CAT ETP

1 2 * Use Template on reverse page to verify locations *

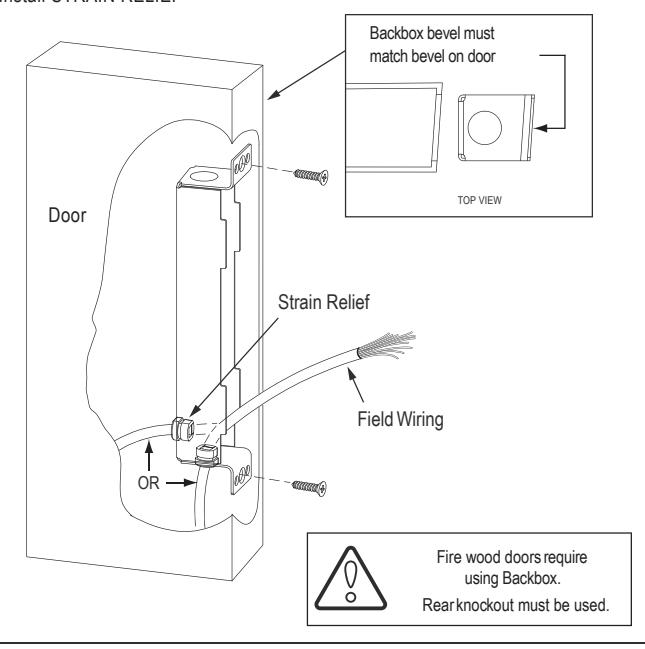

3 Mount Backbox on door.

• a. Make sure bevels match for both backbox and door.
• b. Remove knockouts (from bottom for metal doors, or from back for wood doors).
• c. Pull at least 5" of field wiring through the knockouts.
• d. Install STRAIN RELIEF

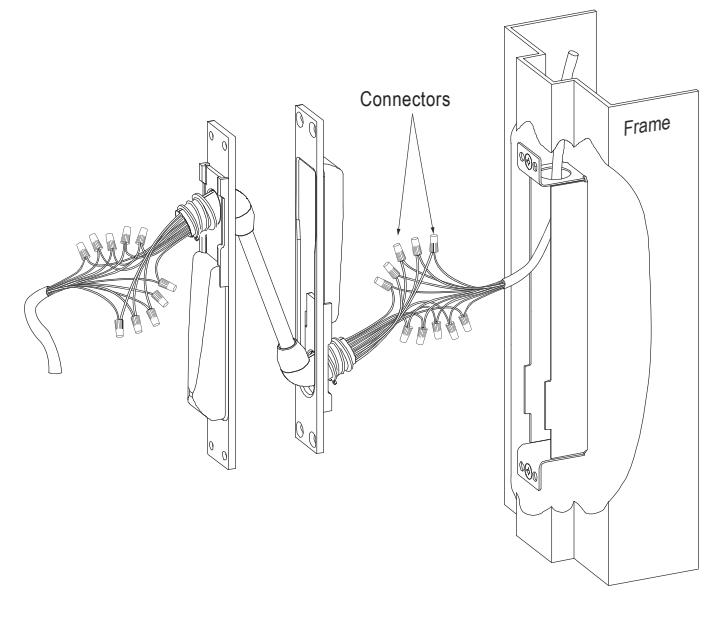

4 Connect the wires with appropriate or specified connectors.

*CATETP-10 shown in illustration

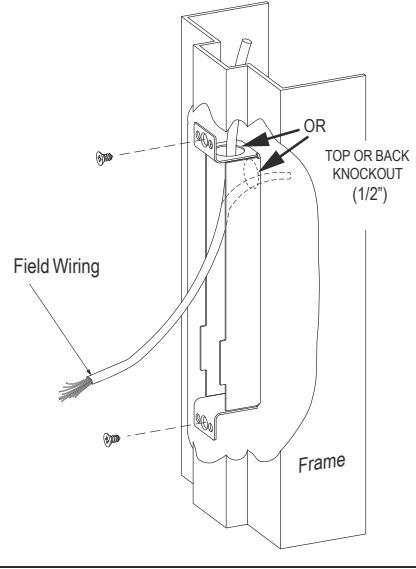

Mount Backbox on frame.

• a. Remove top knockout (top for metal doors, back for wood doors)
• b. Install 1/2" conduit, if applicable
• c. Extend approx. 5" of field wiring through knockout.

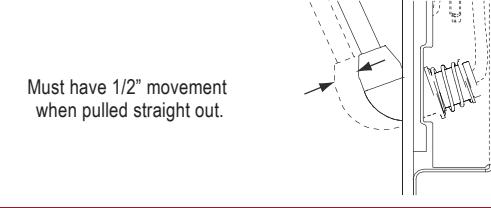

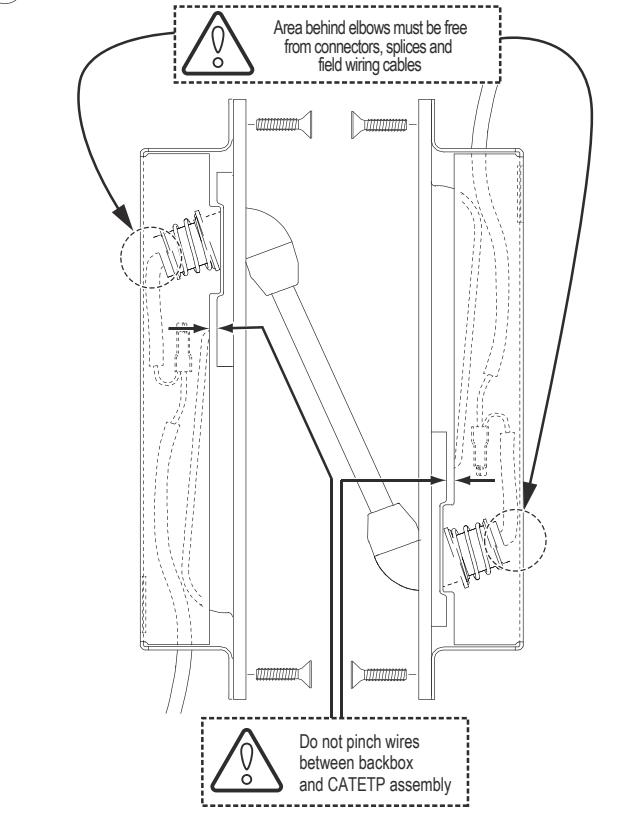

5 Mount CATETP Assembly on both the door and frame.

Check if the door opens and closes properly without binding. Check if all electrical components installed are working. 6

TEMPLATE

LOCATION OF TOP HINGE FROM TOP DOOR	TOP HINGE F	ROM
	ă	DOOR SIZE
MANUFACTURER	.8.9	1.0,2	8,0,,
		A
AMWELD	7 %"	7 3/8"	7 %"
CECO	89	% 9	% 9
CURRIES	" 8/2 4	4 7/8"	4 7/8"
DKS	.8% L	7 3/8"	7 3/8"
FENESTRA	.8% 9	5 1/8"	5 1/8"
KEWANEE	7 1/4"	7 1/4"	7 1/4"
MESKER	" 8/2 4	4 7/8"	4 7/8"
PIONEER	,8½ ¥	4 7/8"	4 7/8"
REPUBLIC	7 %"	9 %"	4 7/8"
STEELCRAFT	7 3%"	7 %"	7 3/8"
