CONCEALED POWER TRANSFER UNIT SPECIFICATIONS

CAT EPT-2 - (2) 18AWG WIRES

MAX. RATING: UP TO 2 AMPS @24VDC

CAT EPT-10 - (10) 24 AWG WIRES

MAX. RATING: UP TO 1 AMP @ 24VDC

PRODUCT DETAILS:

Housing Dimensions: 9"x 1.25"x 1.625"

Minimum door thickness - 1.75" Box: 10.5" x 3.75": x 2.5"

WEIGHT: 2.25 Lbs

15 MASTER PACK:

Box: 12.75" x 11.75" x 11"

WEIGHT: 34 lLbs

CAN BE USED IN COMBINATION WITH THE FOLLOWING HINGES
HINGE TYPE	MAX DOOR SWING
BUTT HINGES UP TO 5"	180°
5 1/2" BUTT HINGES	130°
6" BUTT HINGES	110°
UP TO 3/4" OFFSET PIVOTS	180°

WILL WORK WITH CONTINUOUS HINGES - PLEASE CHECK WITH CONTINUOUS HINGE MANUFACTURER AS TO THEIR CUTOUT AVAILABILITY AND CHARGE FOR THIS CUTOUT

ACCESSORIES

• Add Molex Connector's compatible with Allegion Connect or Assa Abloy Electrolynx system

FEATURES

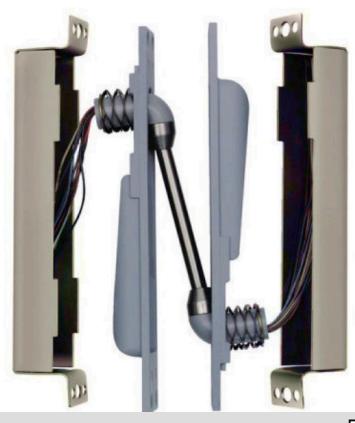

• CAT EPT-2, CAT EPT-10 and CAT EPT-10C are designed to transfer electrical power from the frame to the door in a very secure manner.
• UL 10C-Listed for up to 3 hours for Fire Rated doors and frames Standard 7-2, "Fire Test of Door Assemblies"
• UL-Listed as Miscellaneous Fire Door Accessories
• Classified according to Uniform Building Code (UBC)
• Unit is mortised into the edges of the door and frame and is completely concealed when door is in the close position
• Designed for use in high traffic openings
• Packaged individually with fasteners for wood, steel or aluminum doors and frames
• All parts are made of metal including back boxes - no plastic parts
• Crimp connectors are supplied for a more secure and clean connection.

NOT FOR USE WITH

• Swing-clear hinges
• Pocket pivots
• Butt hinges larger than 6"
• 1 ½" offset pivots
• Center hung doors

MANUFACTURER CROSS REFERENCE

CAL-ROYAL	VON DUPRIN	SECURITON	ABH	SDC
CRPT-2	EPT2	CEPT-2	PT200	PTM-2
CRPT-10	EPT10	CEPT-10	PT1000	PTM-10
CRPT-10C	EPT-10C	EL-CPT-10C

*Brand names are trademarks or registered trademarks of their respective companies
