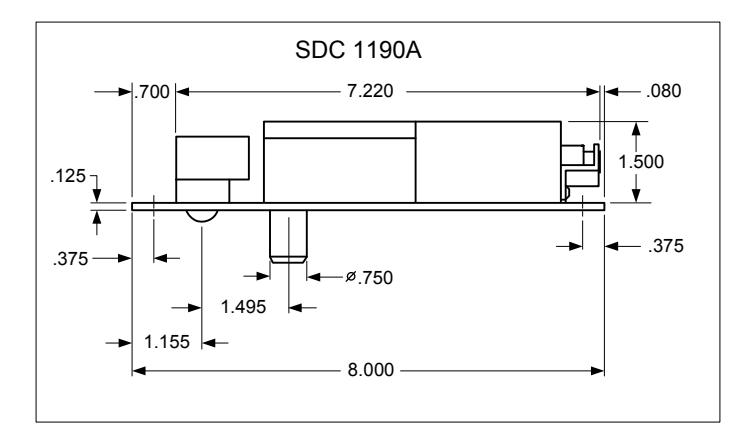

TEMPLATE-1190A ELECTRIC BOLT LOCK

NOTE: TEMPLATE DIMENSIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

ID REQUIREMENTS: 8" x 1-1/2" x 1-1/2" BOLT: 3/4" DIA. SOLID STAINLESS STEEL

BOLT THROW: 3/4", ROTATING

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • Fax: (805) 494-8861

www.sdcsecurity.com •E-mail: service@sdcsecurity.com

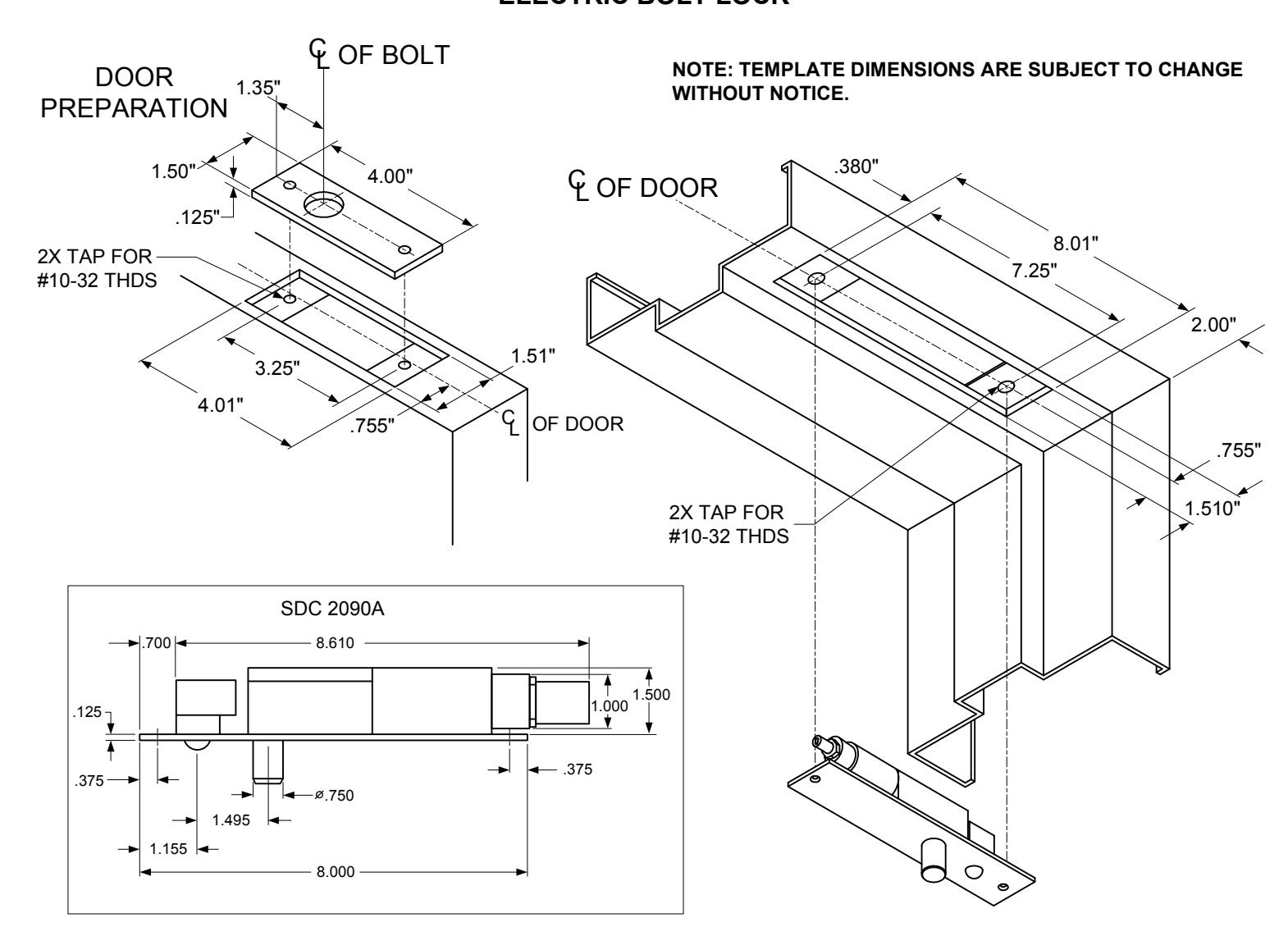

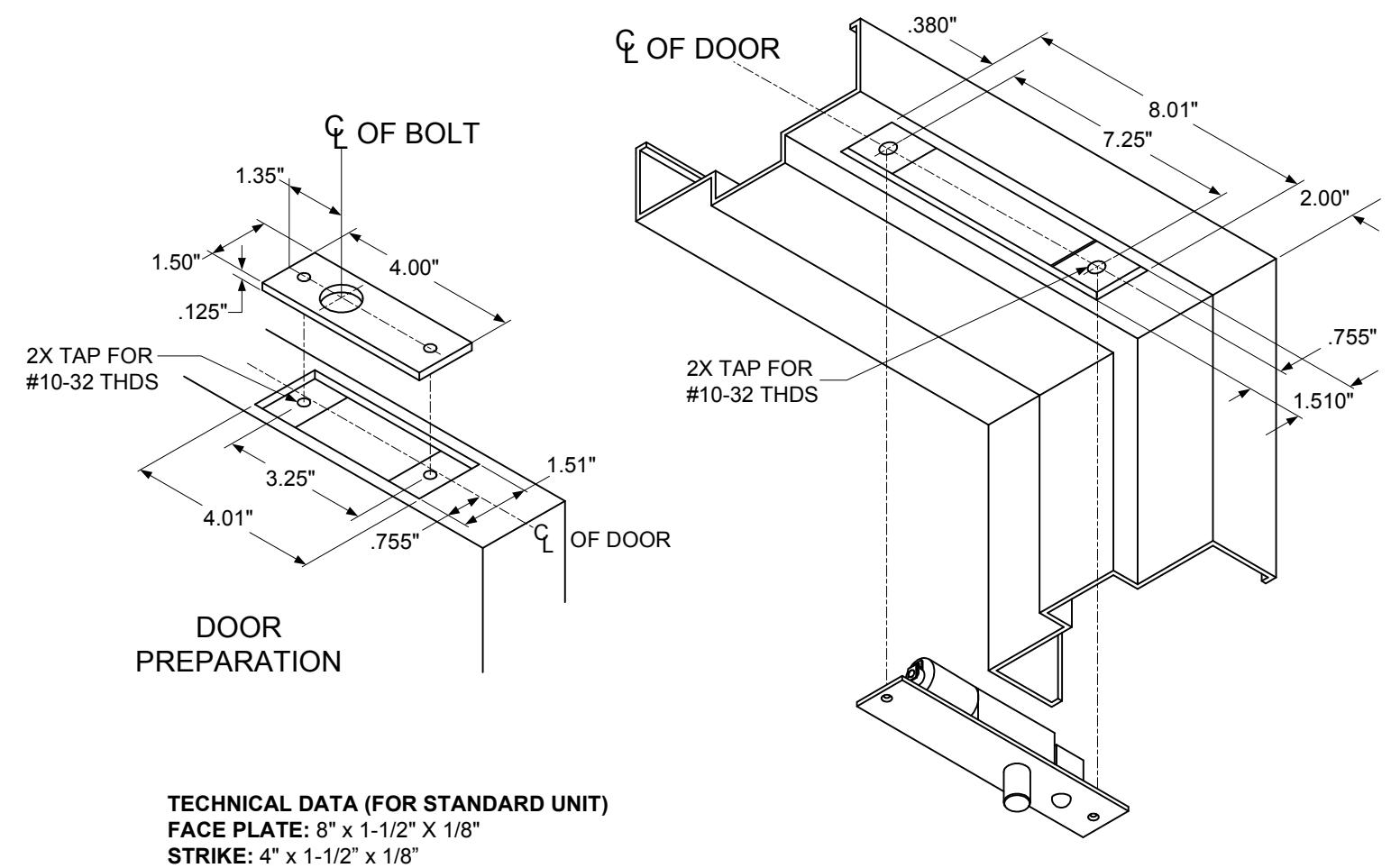

TECHNICAL DATA (FOR STANDARD UNIT)

FACE PLATE: 8" x 1-1/2" X 1/8" STRIKE: 4" x 1-1/2" x 1/8"

ID REQUIREMENTS: 10" x 1-1/2" x 1-1/2"

FINISH: US28 STANDARD (PLATED FINISHES OPTIONAL)

BOLT: 3/4" DIA. SOLID STAINLESS STEEL

BOLT THROW: 3/4", ROTATING

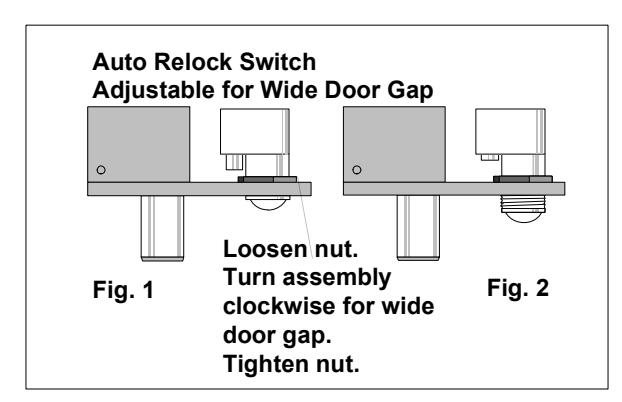

FAIL-SECURE – UNLOCKED WHEN ENERGIZED AUTO RELOCK SWITCH: ADJUSTABLE BALL TYPE

SOLENOID: CONTINUOUS DUTY

ELECTRICAL DATA:

INSRUSH 60 WATTS – 2.5 AMPS MAX. SEATED 12 WATTS - .5 AMP MAX. @ 24VDC

(SPECIFY VOLTAGE REQUIRED)

STATUS SENSORS: BOLT AND DOOR POSITION (OPTIONAL)

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

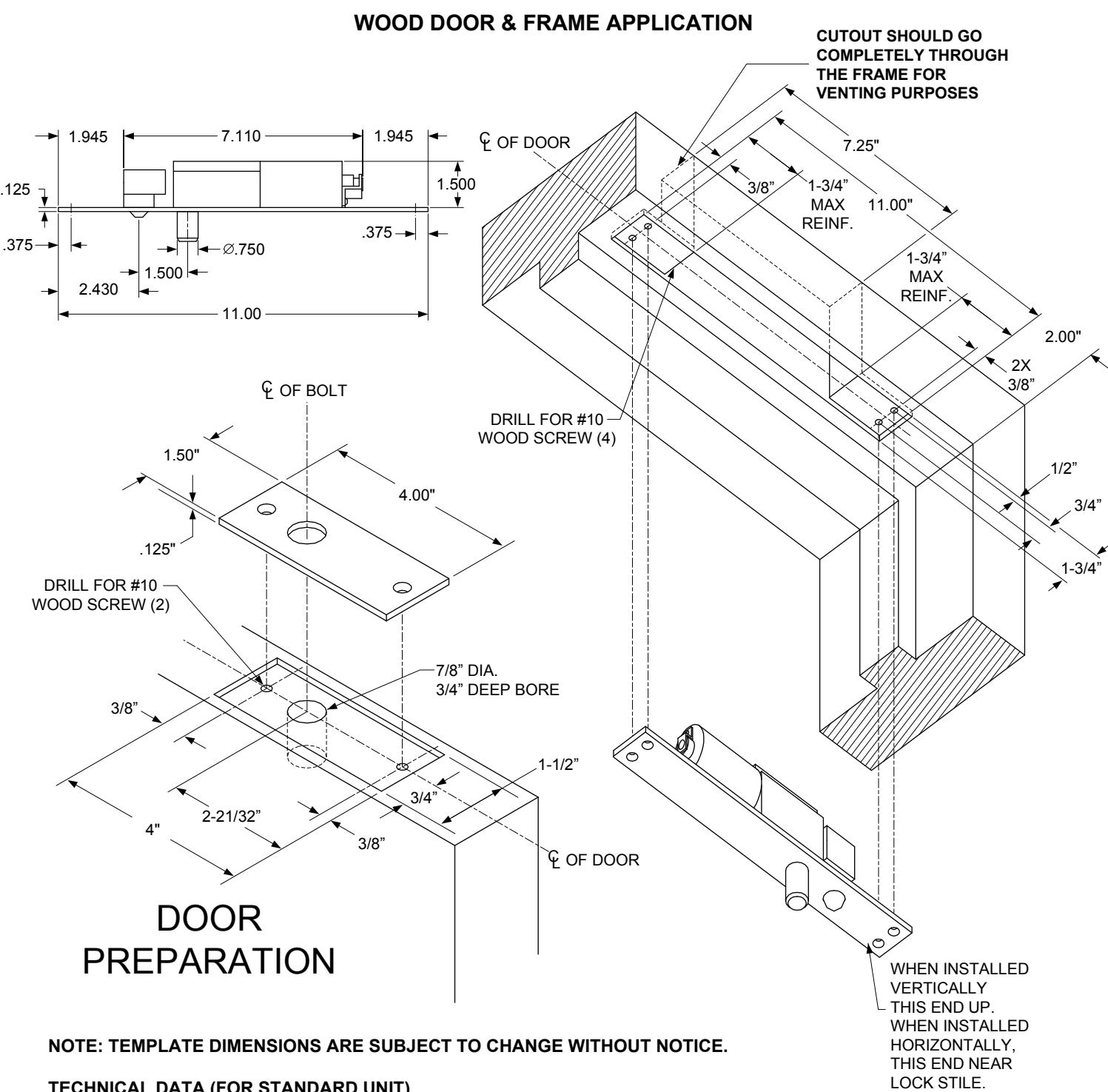

TECHNICAL DATA (FOR STANDARD UNIT)

FACE PLATE: 11" x 1-3/4" x 1/8" STRIKE: 4" x 1-1/2" x 1/8"

BOLT: 3/4" DIA. SOLID STAINLESS STEEL

BOLT THROW: 3/4", ROTATING

PR-1000 MODULE: 3-3/4" x 1-1/4" x 1/2" Required when mounted in frame.
