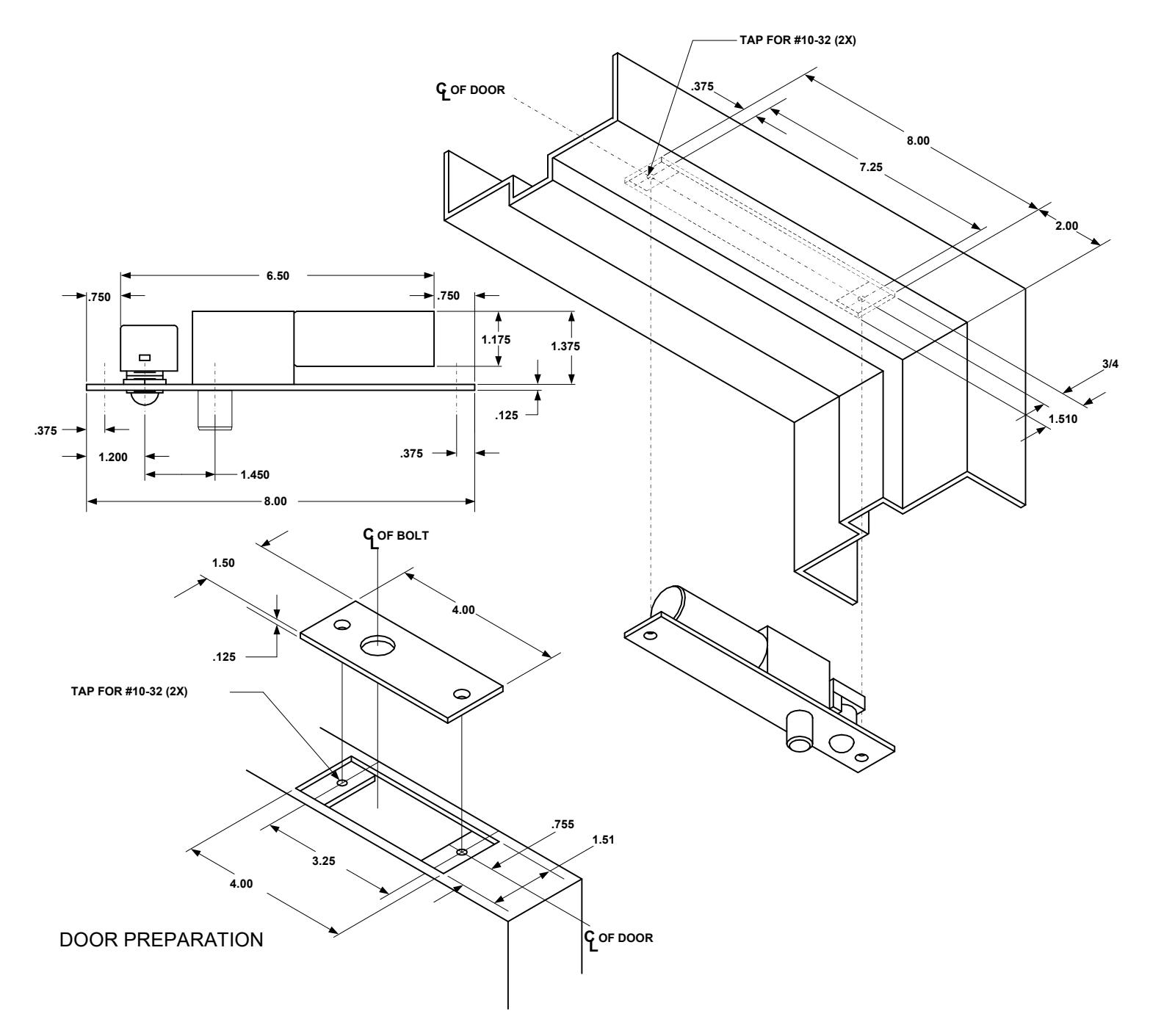

CAD Template 1091A Electric Bolt Lock

INSTALLATION INSTRUCTIONS

1091A ELECTRIC BOLT LOCK

TECHNICAL DATA (FOR STANDARD UNIT)

NOTE:

TEMPLATE DIMENSIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

FACE PLATE: 8" x 1-1/2" X 1/8" STRIKE: 4" x 1-1/2" x 1/8" ID REQUIREMENTS: 8" x 1-1/2" x 1-1/2"

BOLT: 5/8" DIA. SOLID STAINLESS STEEL

BOLT THROW: 3/4"

PR-1000 MODULE: 3-3/4" x 1-1/4" x 1/2" Required when mounted in frame.
