801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

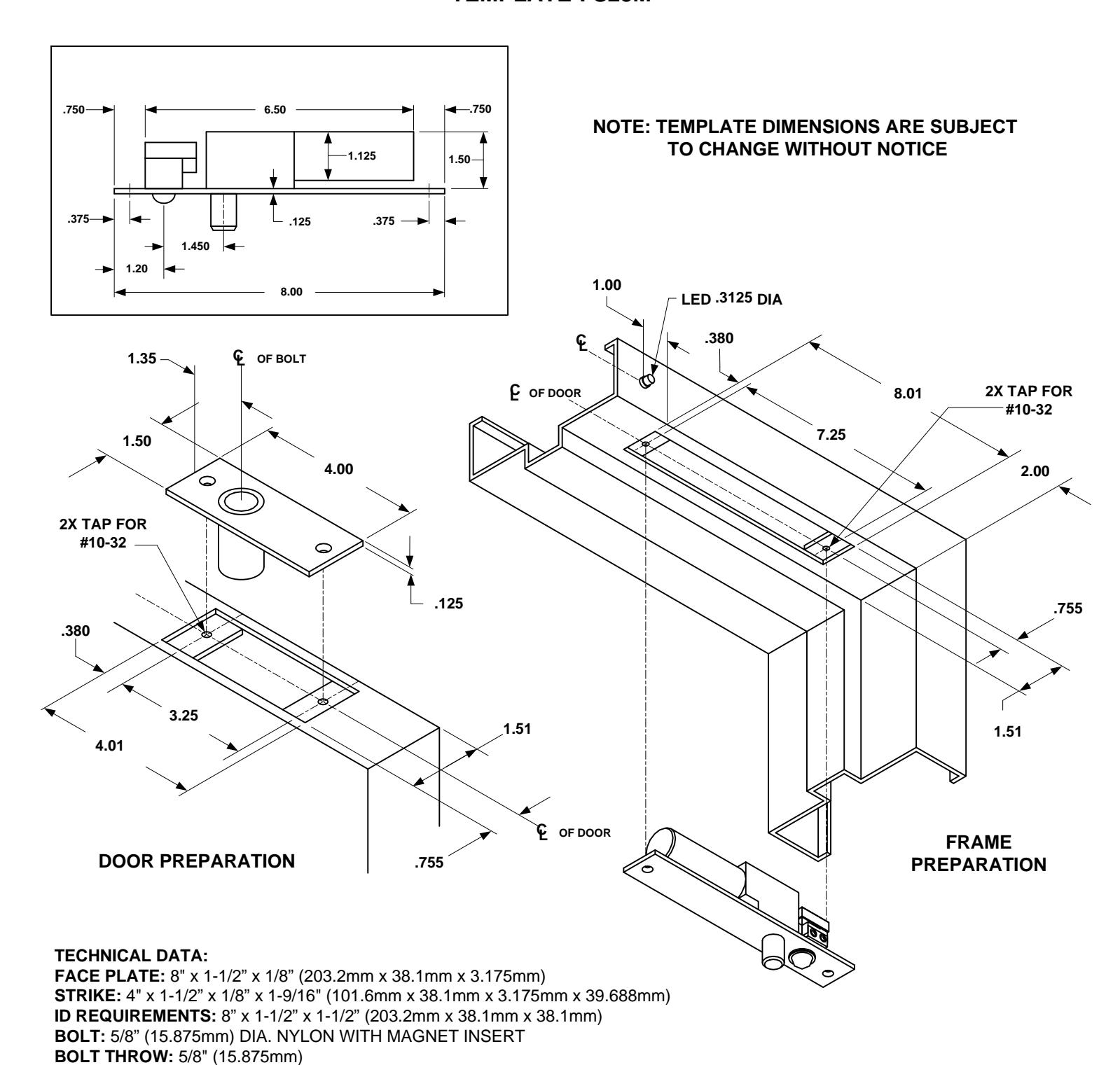

TEMPLATE-FS23M
PR-1000 MODULE: 3-3/4" x 1-1/4" x 1/2" Required when mounted in frame.
P:\INSTALLATION INST\Electric Bolt Locks\TEMP-FS23M\Temp-FS23M.vsd REV J 12-19 Any suggestions or comments to this instruction or product are welcome. Please contact us through our website or email engineer@sdcsecurity.com
