Bollard Post for Push Plate or Touch Panel

Alternative to wall mounted access control or switches for entry doors. Bollard post provide visibility and meet accessibility guidelines. Practical solution for surface mount or in-ground installation. Push Plate Switch and Touchpanel ordered separately.

S and D prep (shown with 4-1/2" Push Plate Switch sold separately)

FEATURES

• For use with Push Plates, Touch Panel Columns & Exit Switches (sold separately)
• 6" Square with 1/8" Walls
• Black HDPE Mortised Removable Cap with Secure Transmitter Mount (wireless transmitter optional and sold separate)
• Standard Single Gang Prep Located at 36" from Finished Floor
• Surface Mount (42") or In-Ground Mount (54")
• Weight 11.0 lbs

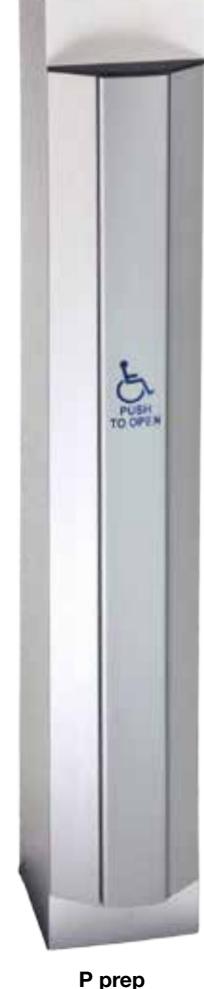

(shown with 36" Touch Panel sold separately)

BPS6 42" Surface Mount, 6" Square Post BPG6 54" In-Ground, 6" Square Post

1

PRODUCT SKU SAMPLE: BPG6 D V 484A4U 400W1-433 400RC433

1| SPECIFY MODEL

BPS6 42" Surface Mount, 6" Square Post BPG6 54" In-Ground, 6" Square Post

2| SPECIFY PREP

S 1-gang prep

D 2-gang prep

P Touch Panel prep

A Narrow Mullion prep

3| SPECIFY FINISH

V 628 Aluminum (standard)

X 710 Dark Anodized Aluminum

4| SPECIFY PUSH PLATE OR COLUMN (SOLD SEPARATELY)

482O4U Push Plate Switch 4-1/2 square, Push to Open, Black Infill, SPDT

482A4U Push Plate Switch 4-1/2 square, Ë Push to Open, Blue Infill, SPDT

484O4U Push Plate Switch 4-1/2 square,

Push to Open, Black Infill, DPDT 484A4U Push Plate Switch 4-1/2 square,

482AA36 Touchpanel 36",

Ë Push to Open, Blue Infill, SPDT

Ë Push to Open, Blue Infill, DPDT

484AA36 Touchpanel 36",

Ë Push to Open, Blue Infill, DPDT

5| SPECIFY WIRELESS TRANSMITTER (OPTIONAL -

400W1-433 433MHz Micro Transmitter

400RC433 433MHz One Channel Receiver
