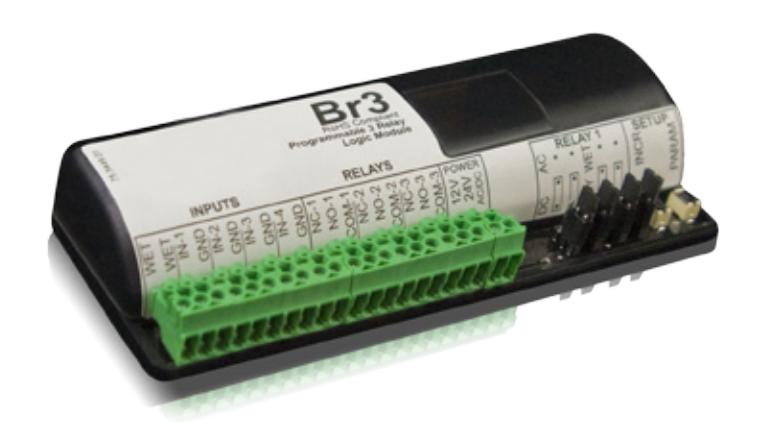

PROGRAMMABLE 3-RELAY LOGIC MODULE

Br3

LOGIC MODULE

Eliminates The Need For Multiple Modules

FEATURES

• Multi-functionality offers increased value by combining legacy MC-Linx functionality with more advanced functions for a solution to a wider variety of applications.
• Contains 3 relays; two 3-AMP and one 1-AMP
• Built-in surge suppression in all 3 relays eliminates the need for external components when installing electric locking devices
• Provides the ability to select a WET voltage output up to 1-AMP on Relay 1 to power electric locking devices without the need for an external power supply (source must be capable of providing at least 1-AMP of power)
• Advanced input power circuitry for better protection, including a resetable fuse

12 Different Functions

The br3 is a logic module for applications including simple timing, door mounted sensor inhibiting and advanced relay sequencing. With multiple functions in one module, technicians will only need to carry one solution.

Most Common Pedestrian Setting – MC25 Components

Activate Push Plate Receiver Activates Br3 Br3 Releases Maglock Br3 Opens Door

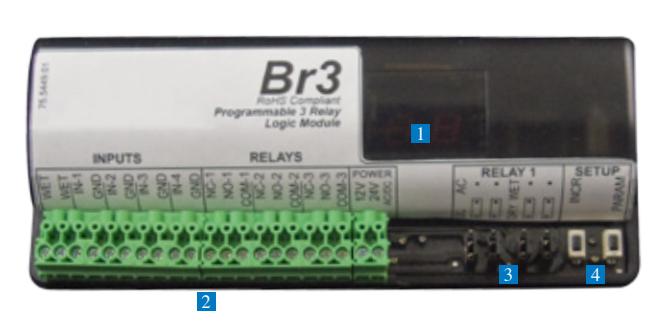

• 1 Two digit, 7-segment display
• 2 Input /Output Screw Terminal
• 3 DRY/ WET Output & AC /DC Selector
• 4 Programmable Push Buttons

West: 800-544-4422 • East: 800-225-6737

LE21 (LOW ENERGY)

COMMON PEDESTRIAN APPLICATIONS

MC25 (2-RELAY SEQUENCE)

PRODUCT DETAILS & TECHNICAL SPECIFICATIONS

FUNCTION	SUBJECT	MOST COMMON APPLICATIONS
(MC10)	Simple Timer	Time delay relay
(MC11)	Ratchet / Latching	Push to open / Push to close
(LE21)	Inhibitor with Door Position Input	Automatic swing door with push plate, approach side SuperScan is inhibited when door is closed
(LE22)	2 Relay Sequence Inhibitor with Door Position Input	Automatic swing door with push plate, approach side SuperScan and Electric Strike. SuperScan is inhibited when door is closed
(MC25)	2 Relay Sequence	Automatic swing door with a push plate and electric locking devices
(MC28)	2 Relay Sequence with Door Position Input	Automatic swing door with a push plate and electric locking devices with a door position switch to prevent the delay from running during a recycle
(MC29)	Relay 1 Deactivation Timer	Automatic swing door or sliding door with an electric locking device and door position switch to prevent lock from reengaging before door closes completely

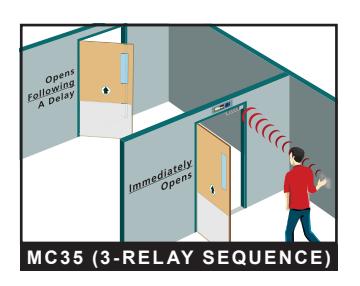

(MC35)	3 Relay Sequence	Two door vestibule with automatic swing doors and single electric locking device

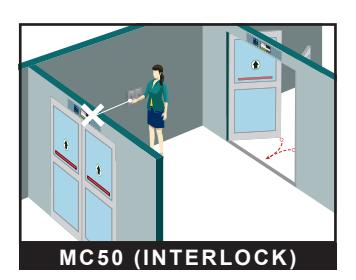

(MC50)	Interlock Timer with Door Position Inputs	Interlock module that will only allow one door to open at a time and can be used with any automatic or manual door
(MC55)	Interlock Ratchet with Door Position Inputs	Interlock module that will only allow one door to open at a time with a ratchet/latching function and can be used with any automatic or manual door

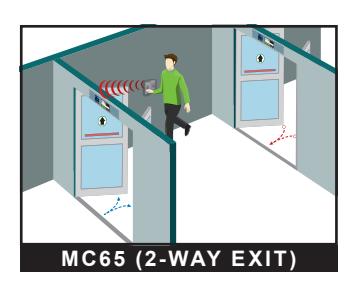

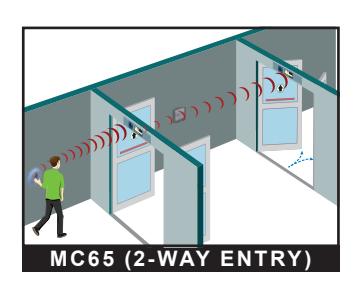

(MC65)	2-Way, 2 Relay Sequence	Two door vestibule sequencing with automatic swing doors traveling in either direction
(MC75)	2 Relay Sequence	Automatic swing door with a push plate and electric locking devices

Note: Functions 10, 11, 50, 55 and 65 are NOT compatible with the WET input

Supply Voltage	12 to 24 V AC / DC
Power Consumption	30 to 130 mA; DRY Output
Temperature Range	-15ºF to 150ºF
Dimensions	5.2 in × 2.2 in × 1.0 in
Housing Material	Gray ABS Plastic
Input Specification	1 to 4; DRY Contact
WET Input	5 to 24 V AC / DC
Contact Rating DRY Relay #1 Relay #2 Relay #3	3 A @ 24 VAC / 30 VDC 3 A @ 24 VAC / 30 VDC 1 A @ 24 VAC / 30 VDC
Contact Rating WET Relay #1	1 A

Specifications are subject to change without prior notice.
