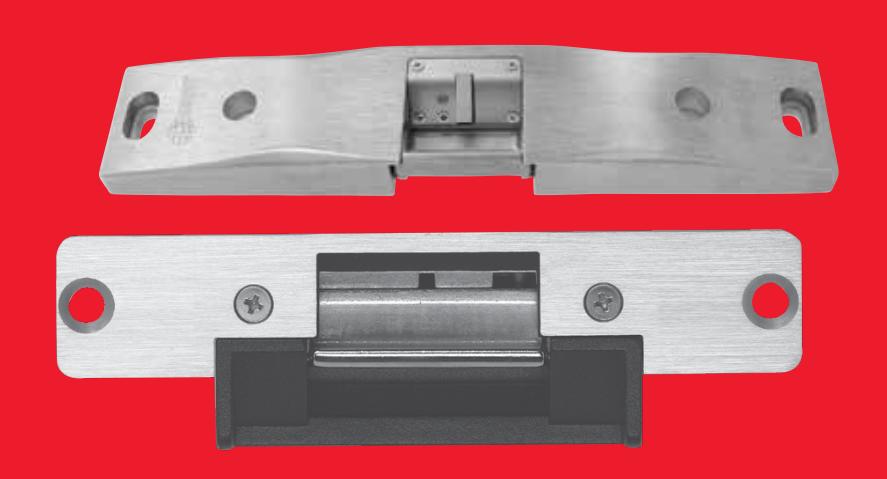

BEST Electric Strikes
Strike Cross Reference
| Category | HES |
Allegion/Von
Duprin |
Folger Adam | Adams Rite | Trine | |
|---|---|---|---|---|---|---|
|
3/4" Surface
Mount Rim Strike |
BES-0162 | 9600 | - | - | - | 4800 |
| BES-F0162 | 9500 | 6300 | - | - | 4800F | |
| BES-0162LM | 9600LBM | - | - | - | - | |
| BES-F0162LM | 9500LBM | - | - | - | - | |
|
1/2" Surface
Mount Rim Strike |
BES-0563 | 9400 | - | - | - | 4850 |
| BES-0563LM | 9400LBM | - | - | - | - | |
| BES-F2164 |
1006
1006CLB |
6400 | 742-75 | - | 4100 | |
| All-In-One Strikes | BES-2364 |
1006
1006CLB |
- | 742-75 | - | - |
| Centerline Strikes–4 Series | BES-4105U | 5200 | - | - | 7500 | - |
| BES-4108U | 5200 | - | - | - | - | |
| BES-4306U | 5200 | - | - | - | - | |
| BES-4309U | 5200 | - | - | - | - | |
| BES-F4104 | 4500 | - | - | - | - | |
| BES-F4114 | 4500 | - | - | 7270 | - | |
| Centerline Strikes–6 Series | BES-S65U | 4500 | 5100 | - | - | - |
| BES-L65U | 4500 | 5100 | - | - | - | |
| BES-S65ULMKM | 4500 | - | - | - | - | |
| BES-L65ULMKM | 4500 | - | - | - | - |
Frame and Lock Type Reference Guide
| Frame Type | Door Lock Type | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Category | Wood | Aluminum |
Hollow
Metal |
Mortise Exit
Device |
Pullman
Latch |
Centerline
Cylindrical |
Offset
Mortise |
Narrowline
Aluminum |
|
|
3/4" Surface
Mount Rim Strike |
BES-0162 | • | • | • | - | • | - | - | - |
| BES-F0162 | • | • | • | - | • | - | - | - | |
| BES-0162LM | • | • | • | - | • | - | - | - | |
| BES-F0162LM | • | • | • | - | • | - | - | - | |
|
1/2" Surface
Mount Rim Strike |
BES-0563 | • | • | • | - | • | - | - | - |
| BES-0563LM | • | • | • | - | • | - | - | - | |
| All-In-One Strikes | BES-F2164 | • | - | • | • | - | • | • | - |
| BES-F2364 | • | - | • | • | - | • | • | - | |
| BES-4105U | • | • | • | - | - | • | - | - | |
| BES-4108U | • | • | • | - | - | • | - | - | |
| BES-4306U | • | • | • | - | - | • | - | - | |
| BES-4309U | • | • | • | - | - | • | - | - | |
| BES-F4104 | - | • | - | - | - | • | - | - | |
| BES-F4114 | - | • | • | - | - | • | - | - | |
| Centerline Strikes–6 Series | BES-S65U | • | • | • | - | - | • | - | • |
| BES-L65U | • | • | • | - | - | • | - | • | |
| BES-S65ULMKM | • | • | • | - | - | • | - | • | |
| BES-L65ULMKM | • | • | • | - | - | • | - | • | |
