BEST Mechanical Locks 8K Series Sell Sheet

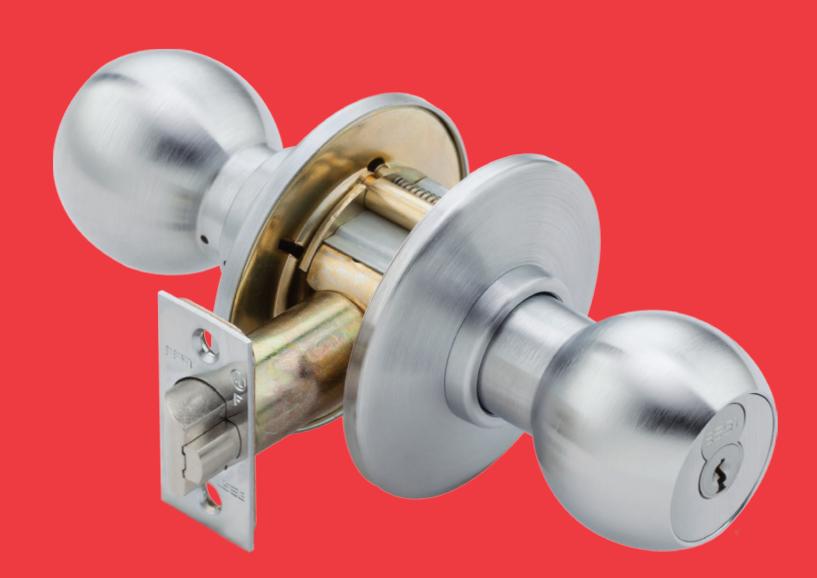

8K Series Locks - Knobs

The premium knob set for heavy-duty applications.

BEST's 8K lock series delivers dependable security in high traffic areas. With knobs machined from brass or bronze bar stock, you'll feel the weight of BEST's solid construction and high-quality performance. Designed for strength and durability, but also for easy installation and use, BEST 8K knob sets are the leading heavy-duty choice.

Designed for long-term performance and security.

We build each 8K lock with top-quality materials and industry-leading design components to enhance reliability and attack resistance. With a wide range of finish and feature options, the 8K series offers premium form and function.

8K Series Cylindrical Lock-Knob Specifications
Certifications	ANSI/BHMA A156.2 Series—Grade 1 UL/cUL listed (3 hour) for single or double swinging doors
Product Specifications	Internal parts: brass or corrosion-treated steel Latch: 9/16" throw; front 2 1/4" and 1 1/8" beveled Knobs: machined from solid brass or bronze; 2 1/8" diameter; 2 7/8" projection from door Roses: brass or bronze reinforced with steel; threaded to chassis Strikes: ANSI strike 2 3/4" x 1 1/8" with curved lip and box standard; ANSI S3 4 7/8" x 1 1/4" with curved lip; ANSI S3 4 7/8" x 1 7/8" flat strike available Door thickness: adjustable from 1 3/8" to 2" standard; E trim for 2 1/8" to 3" doors Backset: 2 3/4" standard; 3 3/4" and 5" available
Keying	7-pin SFIC
Lock Functions	Single Keyed: Entrance – AB (F109) Storeroom – D (F86) Service Station – E (F92) Classroom – R (F84) Dormitory – T (F90) Special – A, B, DZ, EA, RZ, XD, XR, YD, YR UA Hotel (SPN-standard) – H, HJ (F93) Double Keyed: Corridor – C (F88) Storeroom – G (F91) Communicating – S (F80) Institutional – W (F87) Special – DR, RD Keyless: Passage – N (F75), NX (F89) Exit – Y (F89) Privacy – L (F76) Patio – P (F77) Special – LL, M, Q, Z Single dummy trim – 1DT Double dummy trim – 2DT
All Finishes	605: Bright Brass 606: Satin Brass 611: Bright Bronze 612: Satin Bronze	613: Oil-rubbed Bronze 625: Bright Chrome 626: Satin Chrome 690: Dark Bronze Coated
Warranties	Three-year mechanical Three-year finish (613 carries no finish warranty)

Features

BEST 8K

• • Heavy-duty performance. With solid construction and high-quality materials, BEST 8K locks are built for durability and security in the most high traffic applications. Heavy knobs machined from brass or bronze bar stock offer long-lasting performance and a heavy-duty deadlocking latch with 9/16" throw provides greater strike engagement.
• • High-security features. Designed for greater security, the BEST 8K series includes features like no keeper holes on keyed knobs, breakaway options to prevent wrench attacks, and spinfree knobs requiring keys for operation. The BEST 8K keyed knob is removable only after the core is removed, resulting in higher security.
• • Proven reliability. Built-in features like a friction insert inside the rose to resist loosening and long bearing length in the chassis for smooth, wear-resistant operation keep the 8K working smoothly year after year.
• • Easy to use. The BEST 8K series allows quick, economical rekeying and is simple to operate even in demanding applications. A rotating knob face provides easy hand of door change without removing the knob, a built-in steel retractor with low friction bearings allows smooth, wear-resistant operation. An optional tactile/knurled knob can be used for blind, safety, or accessibility applications.

Featured Finishes

Bronze

605: Bright Brass 606: Satin Brass 612: Satin Bronze 613: Oil-rubbed 625: Bright Chrome 626: Satin Chrome

BEST 8K knob sets deliver heavyduty performance you can trust.

690: Dark Bronze Coated
