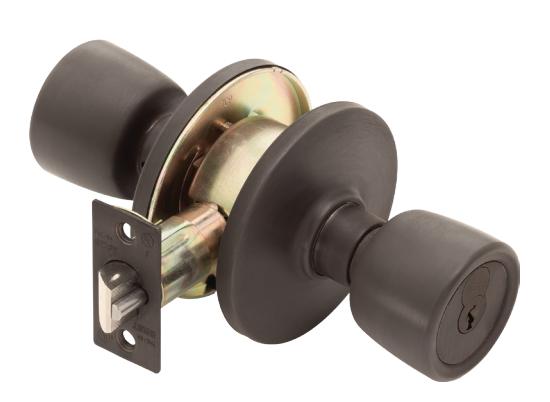

6K Series Locks - Knobs
Reliable knob sets for standard traffic applications.
Our 6K series offers the quality and performance you expect from BEST for standard traffic applications. BEST 6K knob sets exceed ANSI Grade 2 standards, and are built with design features that make the 6K a durable and secure choice for long-term reliability.
Combining quality, aesthetics, and durability.
Built from the quality materials and workmanship that characterize BEST locks, the 6K series comes in a range of finishes and options to fit modern architectural trends and provide long-lasting value.
| 6K Series Lock Specifications | |
|---|---|
| Certifications |
ANSI/BHMA A156.2 Series—Grade 2
UL/cUL listed (3 hour) for single 4' x 8' doors |
|
Product
Specifications |
Materials: Component parts brass, bronze, or zinc; internal parts brass or zinc
dichromate steel Latch: 1/2" throw deadlocking Knob: 2" or 2 1/8" diameter brass or bronze in round or tulip style Rose: 2 9/16" or 3 3/8" diameter; mounting screws concealed Strikes: ANSI strike 2 3/4" x 1 1/8" with curved lip; ANSI S3 4 7/8" x 1 1/4" with curved lip Door thickness: 1 3/8" to 1 7/8" standard Backset: 2 3/8" for 62K; 2 3/4" for 63K; 3 3/4" for 64K; 5" for 65K |
| Keying | 7-pin SFIC |
| Lock Functions |
Single Keyed:
Office – AB (F109) Storeroom – D (F86) Service station – E (F92) Classroom – R (F84) Keyless: Passage – N (F75), NX (F89) Exit – Y (F89) Privacy – L (F76) Hospital privacy – LL Patio – P (F77) Single dummy trim – 1DT |
| All Finishes |
605: Bright Brass
606: Satin Brass 611: Bright Bronze 612: Satin Bronze 613: Oil-rubbed Bronze 625: Bright Chrome 626: Satin Chrome |
| Warranties |
Three-year mechanical
Three-year finish (613 carries no finish warranty) |
Featured Finishes
Bronze
BEST 6K
Features
- • High quality. We use top quality materials and construction to manufacture 6K locks. External components are designed for premium aesthetics and security, while internal components are treated for corrosion resistance to ensure long product life.
- • Proven reliability. BEST 6K knob sets exceed ANSI Grade 2 requirements for security and reliability. Design features like the 6K's keyed knob design and strong retractor springs provide better functionality throughout the life of the lock.
- • Enhanced security. We designed the 6K series to provide security and peace of mind. Cores must be removed before keyed knobs to deter break-in attempts, and a snap-on inside rose with no exposed screws helps to deter attacks.
- • Convenient installation. Install 6K knob sets quickly thanks to design features that make installation, retrofit, and maintenance easy. The 6K series fits standard door preps, a threaded outside rose allows quick door thickness adjustment, and the lock installs easily with only two screws. BEST 6K series locks are field reversible without removing the keyed knob, and retrofit is simple with BEST interchangeable cores.
- • Greater flexibility. The 6K series fits a wider range of applications and offers finish options to match any aesthetic. Each 6K lock set comes in four different backsets and seven different finishes.
For a durable, reliable standard-duty knob set that builds on decades of expertise and innovation, choose the BEST 6K series.
