Versatile keyless entry.

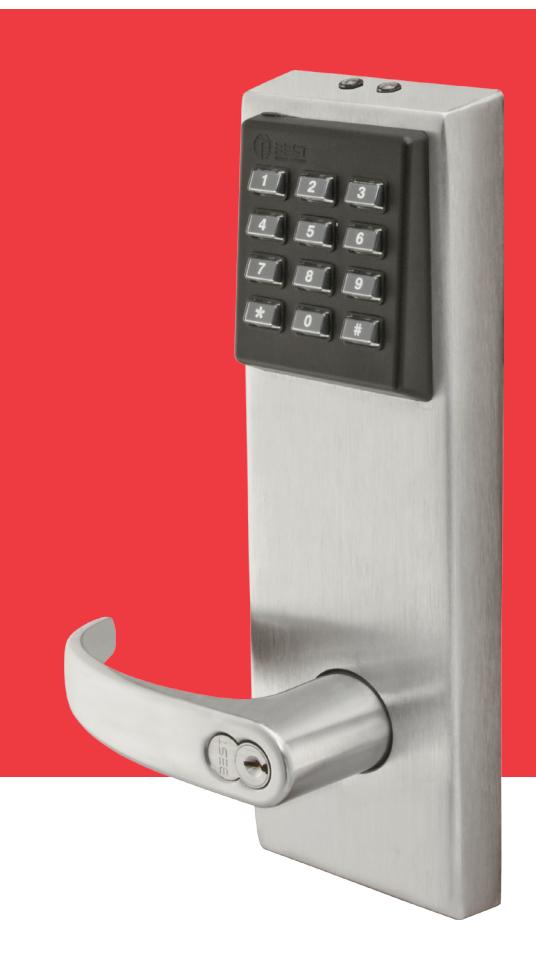

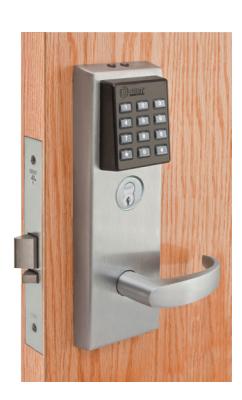

BEST's EZ Series keypad locks—available in cylindrical, mortise, and exit trim versions with trim and finish options aligned with BEST 9K and 40H devices—offer a simply managed key replacement solution. With the heavy-duty mechanical platform and tough security features you expect from BEST, the Keypad EZ Series delivers quality and performance as well as simplified management. Keypad EZ Series locks work with up to fifty unique credentials and allow manager control for varied access rights.

Heavy-duty keyless solutions.

The EZ Series combines BEST's reliable mechanical platform with security and design features for high security even on lower use doors. Simple to manage for fifty or fewer codes, but reliable and durable, the EZ Series delivers excellent keyless solutions.

EZ Series Keypad Lock Specifications
Certifications	ANSI/BHMA A156.2 Grade 1 cylindrical lock ANSI/BHMA A156.3 Grade 1 panic hardware ANSI/BHMA A156.13 Grade 1 mortise lock ANSI/BHMA A156.25 compliant with keypad reader UL 10C listed for electrically controlled single point locks and latches for use on 3-hour A-label doors Miami-Dade NOA Windstorm listed Florida Building Code Windstorm listed Office of the State Fire Marshal listed ANSI/ICC A117.1 Accessible and Usable Building and Facilities (ADA) Section 404.2.6 compliant
Software Features	Variable PIN length 3-6 digits Maximum 50 users; one administrator and five supervisor PINs for group management Programmable at the keypad Passage Mode allowing authorized user to unlock for extended time Deadbolt Override allowing authorized user access when deadbolt is thrown
9KZ Product Specifications	Internal materials: Brass, zinc, or corrosion-treated steel Chassis: 2 1/16" diameter to fit 2 1/8" hole in door Strike: S3 brass or bronze, 4 7/8" x 1 1/4" x 3/32"; or ANSI A115.1 STK brass or bronze, 2 3/4" x 1 1/8" x 3/32" Backset: 2 3/4" standard, 3 3/4" and 5" available Door thickness: 1 3/4" to 2 1/4" Latchbolt: 9/16" (3/4" throw optional) Escutcheon: 10 1/2" x 3 5/16" x 1" sloping to 3/4" Lever: Zinc alloy
40HZ Product Specifications	Case: 0.095" cold rolled steel, zinc dichromate plated for corrosion protection; 5 7/8" x 7/8" x 4 1/16" Faceplate: Brass or bronze; 8" x 1 1/4" x 1/16" automatically adjusts to proper bevel at installation Strike: Brass, bronze, or stainless steel; ANSI A115.1; universal non-handed standard; 4 7/8" x 1 1/4" x 3/32" Backset: 2 3/4" Door thickness: 1 3/4" standard, up to 3" available, specify thickness when ordering Latchbolt: Solid stainless steel oil-impregnated for anti-friction; 3/4" throw; reversible without opening case Deadbolt: Stainless steel; 1" throw Auxiliary bolt: Stainless steel; non-handed Lever handle: Brass, bronze, or stainless steel Escutcheon: 10 1/2" x 3 5/16" x 1" sloping to 3/4"
EXZ Product Specifications	Internal materials: Brass, zinc, or corrosion-treated steel Escutcheon: 11 5/8" x 3 3/8" x 1" Door thickness: 1 3/4" to 2 1/4" Lever handle: Brass, bronze, or stainless steel Exterior trim assembly: Compatible with Precision, Von Duprin, or Sargent 800 rim device
Keying	7-pin IC 6-pin non-IC – 9KZ only Other manufacturer core – 40HZ and EXZ only
9KZ Lock Functions	Cylindrical latch with key override (DV)
40HZ Lock Functions	Deadbolt with key override (TV) Latch with key override (DV) Deadbolt without key override (LV) Latch without key override (NV)
EXZ Lock Functions	With key (EV) Without key (NV)
All Finishes	605: Bright Brass 613: Oil-rubbed Bronze* 690: Dark Bronze Coated* 606: Satin Brass* 619: Stain Nickel Plated 625: Bright UltraShield™ antimicrobial 611: Bright Bronze Chrome coating available 612: Satin Bronze 626: Satin Chrome* *Available in EXZ
Warranties	Three-year warranty Three-year finish (613 carries no finish warranty)

Features

BEST EZ Series

• • Easy to manage. Each EZ Series lock allows up to fifty unique credentials, easily managed with different rights and access parameters.
• • Durable quality. Manufactured from top materials, Keyless EZ Series locks are weatherresistant, and designed for long-lasting functionality.
• • Remote access features. Use the override switch to wire a pushbutton to unlock the door.
• • Enhanced privacy. The mortise deadbolt allows for a privacy feature that controls access when the deadbolt is thrown.
• • Versatile function. Keyless EZ Series locks are available in cylindrical, mortise, and exit trim versions.
• • Complementary aesthetic. Choose trim and finish options to match BEST's popular 9K and 40H locks for a consistent look.

BEST EZ Series keypad locks deliver high quality, keyless convenience, and reliable performance.

Featured Finishes

Brass

Brass

Bronze

Bronze

Chrome

Chrome

Bronze Coated
