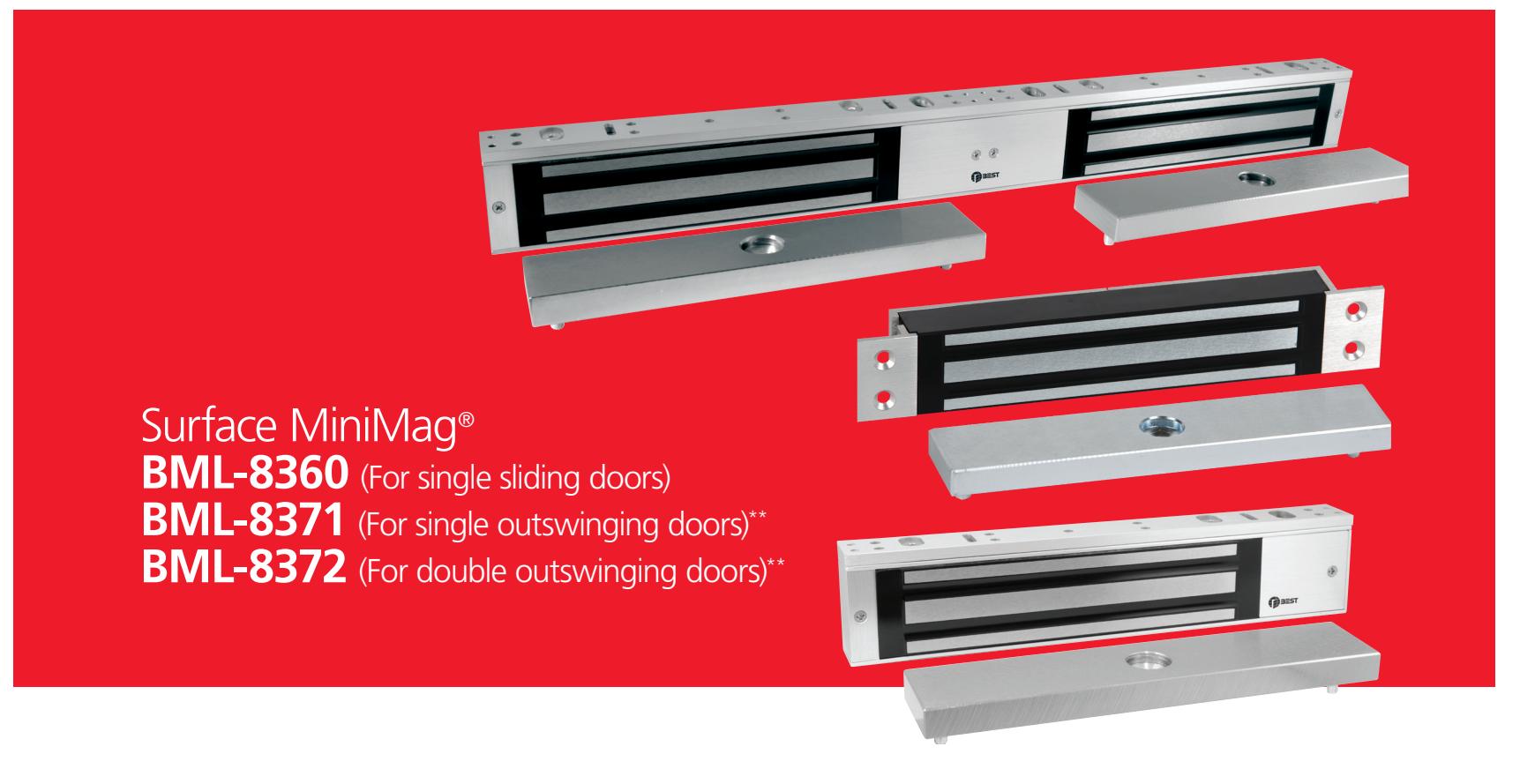

Our low-profile MiniMag® is extremely popular for interior traffic control.
These short electromagnetic locks install perfectly alongside most automatic door operators or stop-mounted door hardware, reducing installation time and eliminating the need for extra brackets.
The MiniMag's® design of 1-7/8" width helps keep undersized openings within code. This is the ideal magnet for use on narrow-style aluminum doors. The BML-8372 double version is especially useful on pairs of doors without mullions.
Energy
500mA1 (BML-8360) 520mA1 (BML-8371/BML-8372) Field-Selectable 12/24VDC
Fire-Rated
(BML-8371/BML-8372) CAN/ULC S104 UL 10C 1-Hour
Strength
Up to 750lbf Holding Force
Monitoring
(BML-8360) Built-In Remote Lock Status Sensor (BML-8371/BML-8372) Optional Door Status Sensor (DSS)/Security Condition Sensor (SCS) Available
Warranty
Lifetime Limited Warranty
Mode Fail-Safe
Electromagnetic Locks
Secure, convenient and easy to install.
Our low-profile Surface MiniMags® provide a secure hold, ensuring proper ingress and egress at all times.
LED Indicator (For 8371/8372 models with SCS monitoring only.)
Magnetic Door Contact (For 8371/8372 models with DSS monitoring only.)
| Product specifications | |||
|---|---|---|---|
|
BML-8371
Surface MiniMag® |
BML-8372
Surface MiniMag® |
BML-8360
Mortise MiniMag® |
|
| Housing dimensions |
1"(25mm) x 1-7/8"(48mm) x
9-3/8"(238mm) DWL Dimensions include 3/16" (5mm) mounting bracket |
1"(25mm) x 1-7/8"(48mm) x 17-3/4"
(476mm) DWL Dimensions include 3/16" (5mm) mounting bracket |
1-1/16"(26.9mm) x 1-1/2"(38.1mm) x 9"
(228.6mm) DWL Dimensions include 3/4" (19mm) mounting tabs |
| Armature plate dimensions | 1/2" (13mm) x 1-1/2" (38mm) x 7-1/4" (185mm) DWL | ||
| Voltage | Field selectable 12/24VDC; Tolerance ±10% | ||
| Power/current requirements |
Max 0.52A at 12VDC; Max 0.26A at 24VDC
(each lock) |
Max 0.50A at 12VDC
Max 0.25A at 24VDC |
|
| Holding force |
Up to 750 lbs (340kg)
(one point locking) |
Up to 750 lbs (340kg)
(two point locking) |
Up to 750 lbs (340kg)
(one point locking) |
| Output relays |
SCS (with LED)–SPDT 1.0A at 24VDC;
DSS–SPDT 0.20A at 12VDC and 0.12A at 24VDC |
Contacts: 0.20A at 12VDC and 0.12A at
24VDC; Dry Output Form C |
|
| Wiring requirements |
2 wires-power input;
Up to 5 wires output |
2 or 4 wires–power input;
Up to 5-10 wires output |
2 wires–power input;
2 wires–relay output |
| Operating temperature | 14° to 140° F (-10° to 60° C) | ||
| Finishes |
28 Brushed Anodized Aluminum (630)
40 Brushed Anodized Dark Bronze (690) |
28 Brushed Anodized Aluminum (630) | |
| Warranty | Lifetime Limited Warranty | ||
| Monitoring options |
SCS-Security Condition Sensor (includes LED indicator)
DSS-Door Status Sensor |
Built-in remote Lock Status Sensor | |
| Certifications |
UL 294 Special Locking Arrangement Component (6th Edition)
CAN/ULC S104 Auxiliary Locks Listed for fire doors rated up to 1 hour UL 10C Auxiliary Locks Listed for fire doors rated up to 1 hour |
N/A | |
| Optional accessories† | |||
| Z-bracket kit | BML-TJ71 | BML-TJ72 | |
| Glass door bracket |
BML-GB7112 1/2" (13mm)
BML-GB7134 3/4" (19mm) |
BML-GB7212 1/2" (13mm)
BML-GB7234 3/4" (19mm) |
|
| Armature plate holder | BML-AH71 | BML-AH72 | |
BML-8371 and BML-8372
Max at 12VDC for 8360, 8371 and 1.04A for 8372
† Accessories may impact holding force
Choose BEST Electromagnetic Locks for a solution that you can trust.
bestaccess.com
BEST is a trademark of dormakaba USA Inc. All rights reserved.
** Install with a Z-bracket (BML-TJ10 for BML-8310 and BML-TJ20 for BML-8320) to accommodate in-swing doors
