BEST Electromagnetic Locks GateMag Sell Sheet
Open the original PDF document
View PDF

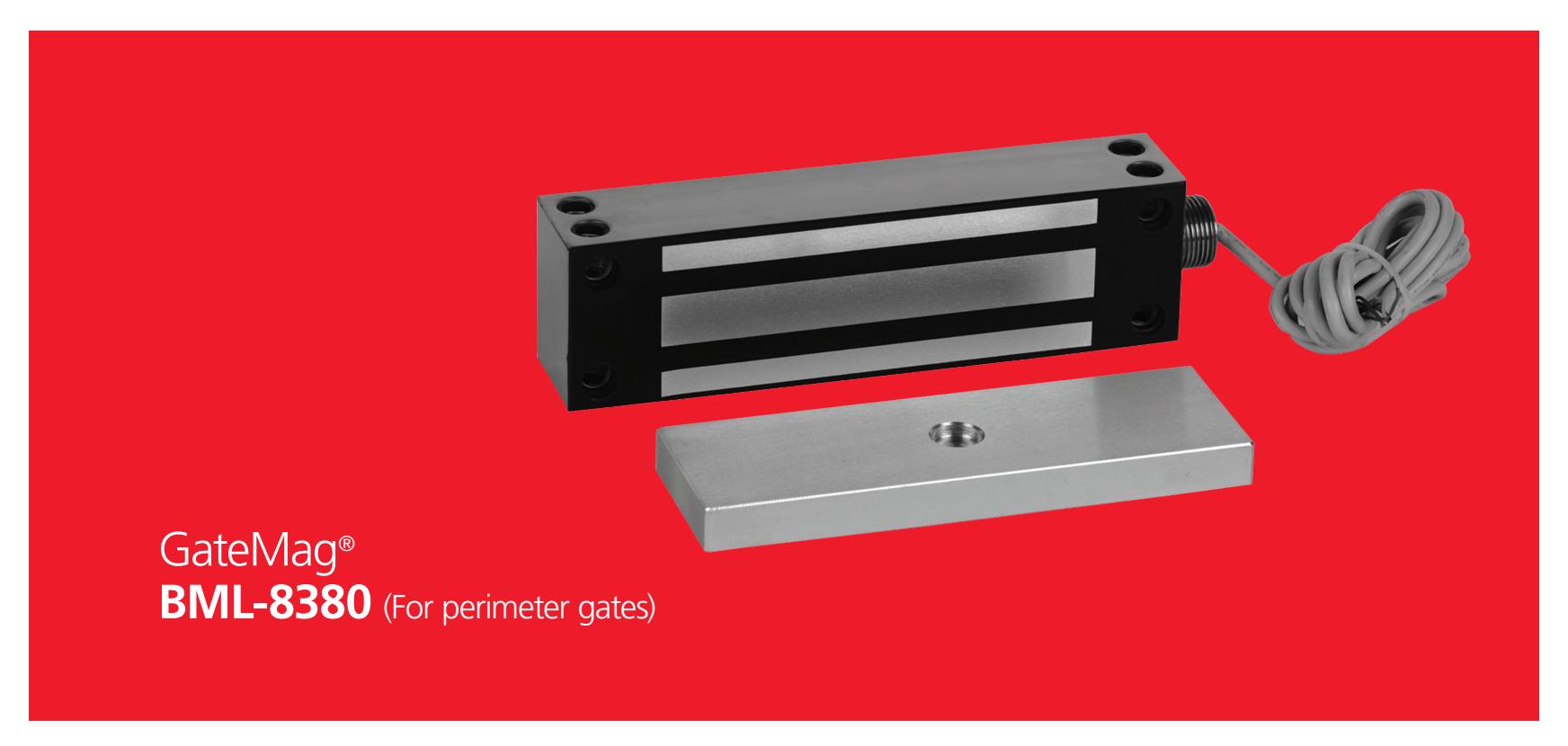

With its rugged, stainless-steel housing, the weather-resistant GateMag® is the ideal solution for perimeter security and internal gates.
The standard Remote Lock Status (RLS) indicates whether the magnet is locked or unlocked, so you can easily monitor access from a remote location.
The GateMag® electromagnetic lock features a built-in conduit fitting and an extra-long wire cable allowing easy wire access to an electrical box.
Energy
480mA1 Field-Selectable 12/24VDC
Fire-Rated
CAN/ULC S104 UL 10C 1-1/2 Hours
Strength
Up to 1200lbf Holding Force
Monitoring Remote Lock Status (built-in)
Warranty
Lifetime Limited Warranty
Mode
Fail-Safe
Versatile, convenient and easy to install.
The GateMag® makes it easy – easy to install, easy to monitor access (even remotely) and easy to manage and maintain.
| Product specifications | |
|---|---|
| Housing dimensions |
1-3/4"(45mm) x 2-1/2"(63mm) x 8-7/8"(225mm) DWL
Dimensions include 3/16"(4.8mm) mounting bracket |
| Armature plate dimensions | 5/8" (16mm) x 3/8" (61mm) x 7-7/16" (190mm) DWL |
| Voltage | Field selectable 12/24VDC; Tolerance ±10% |
| Power/current requirements | Max 0.48A at 12VDC; Max 0.24A at 24VDC |
| Holding force | Up to 1200 lbf (one point locking) |
| Wiring requirements | 2 wires-power input; 2 wires–contact output |
| Operating temperature | 14° to 140° F (-10° to 60° C) |
| Finishes | 28 Brushed Anodized Aluminum (630) |
| Monitoring options | RLS-Remote Lock Status (Built-in) |
| Warranty | Limited Lifetime Warranty |
| Certifications |
CAN/ULC S104 Auxiliary Locks Listed for fire doors rated up to 1-1/2 hours
UL 10C Auxiliary Locks Listed for fire doors rated up to 1-1/2 hours |
| Optional accessories† | |
|---|---|
| Z-bracket kit | BML-TJ80 |
Features
BEST GateMag®
- Housing: stainless steel
- Low energy consumption
- Internal surge protection
- Wire cable: 6-1/2' (1.9 meters)
- Conduit fitting: inside diameter 1/2"; outside diameter 3/4"
- No residual magnetism
- Built-in Remote Lock Status (RLS)
- Weather-resistant

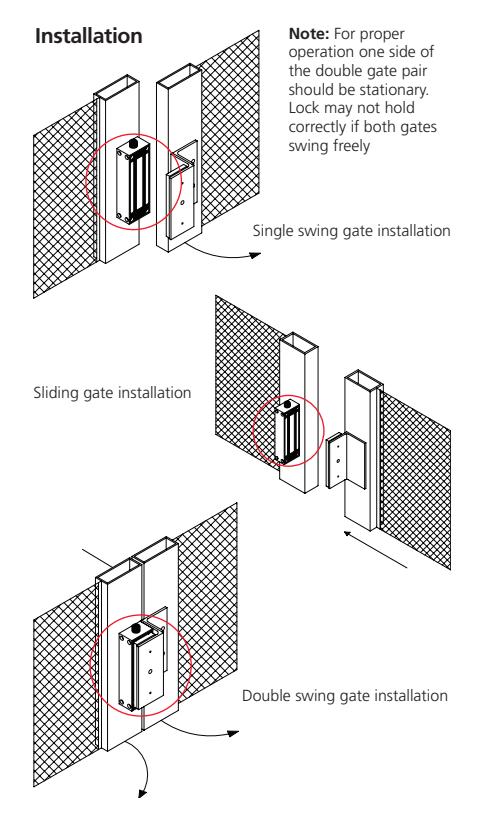

- Mounting: versatile face or bottom
- Built-to-last: limited lifetime warranty
Choose BEST Electromagnetic Locks for a solution that you can trust.
1 Max at 12VDC
† Accessories may impact holding force
NOTE: BEST recommends frame reinforcement and our filtered, regulated DC voltage RCI 10 Series power supplies.
