MultiMag® for outswinging doors

SINGLE DOORS

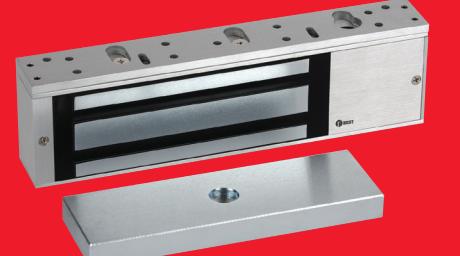

BML-8310

BML-8310SCS

(Security condition sensor)

BML-8310DSS

(Door status sensor)

BML-8310DSSSCS

(Door status and security condition sensors)

DOUBLE DOORS

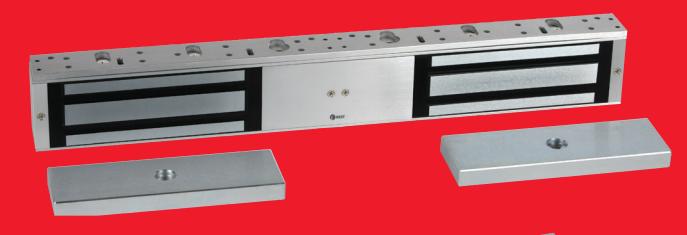

BML-8320

BML-8320SCS

(Security condition sensor)

BML-8320DSS

(Door status sensor)

BML-8320DSSSCS

(Door status and security condition sensors)

These hard-working multi-purpose electromagnetic locks enhance building security and install quickly.

Several standard features make these magnets the "workhorse" of the industry. The adjustable mounting bracket has been enhanced with keyhole mounting to support the magnet's weight during initial installation, freeing the installer's hands to affix the magnet mounting screws. The removable cavity cover offers quick, easy access to wiring.

Energy

230mA1 Auto-Sensing 12-24VDC

Fire-Rated

CAN/ULC S104 UL 10C 1-1/2-Hours

Strength

Up to 1,200lbf Holding Force (Each Electromagnet)

Monitoring

Optional Door Status Sensor (DSS)/Security Condition Sensor (SCS) Available

Warranty

Lifetime Limited Warranty

Mode Fail-Safe

Electromagnetic Locks

Easy, affordable and versatile.

From keyhole mounting to the removable cavity cover to the built-in adjustable time delay, the BEST MultiMag® proves why it's the industry workhorse.

Product specifications
	BML-8310	BML-8320
Housing dimensions	1-5/8" (41mm) x 2-7/8" (73mm) x 10-1/2" (268mm) DWL Dimensions include 1/4" (6mm) housing bracket
Armature plate dimensions		Standard: 5/8" (16mm) x 2-3/8" (61mm) x 7-7/16" (190mm) DWL* Optional: 3/8" (10mm) X 2-3/8" (61mm) x 7-7/16" (190mm) DWL*
Voltage	Field selectable 12/24VDC; Tolerance ±10%
Power/current requirements	Max 0.23A at 12VDC; Max 0.13A at 24VDC (each lock)
Holding force	Up to 1200 lbf (one point locking)	Up to 1200 lbf each point (two point locking)
Output relays	SCS (with LED)—SPDT 1.25A at 24VDC DSS—SPDT 0.20A at 12VDC and 0.12A at 24VDC
Wiring requirements	2 wires-power input Up to 4 wires output	2 or 4 wires-power input 4 or 8 wires output
Adjustable time delay	1-35 seconds
Operating temperature	14° to 140° F (-10° to 60° C)
Finishes	28 Brushed Anodized Aluminum (630) 40 Brushed Anodized Dark Bronze (690)
Monitoring options	SCS-Security Condition Sensor (includes LED indicator) with low-voltage detection; DSS-Door Status Sensor
Warranty	Lifetime Limited Warranty
Certifications	UL 294 Special Locking Arrangement Component (6th Edition) CAN/ULC S104 Auxiliary Locks Listed for fire doors rated up to 1-1/2 hours UL 10C Auxiliary Locks Listed for fire doors rated up to 1-1/2 hours

Optional accessories†
Z-bracket kit	BML-TJ10	BML-TJ20
Split armature plate	BML-SA138 3/8" (9.5mm) BML-SA158 5/8" (16mm)
Glass door bracket	BML-GB8112 1/2" (13mm) BML-GB8134 3/4" (19mm)	BML-GB8212 1/2" (13mm) BML-GB8234 3/4" (19mm)
Armature plate holder	BML-AH10 BML-AH15 for 8310DSS	BML-AH20 BML-AH25 for 8320DSS

LED Indicator (for models with SCS only)

Magnetic Door Contact (for models with DSS only)

Features

BEST MultiMag®

• Available with optional sensors: Security Condition (SCS) and /or Door Status Sensors (DSS)
• Built-in time delay: instant release with adjustable relock, programmable from 0-35 seconds
• Surge protection
• Engineered to overcome residual magnetism
• Designed for easy installation
• Keyhole mounting with stabilizing 4-bolt "drop stop"
• Easy-access wiring cavity
• Convenient plug-in wiring terminals
• Includes: Teks® self-drilling fasteners; 5/8" (16mm) armature plate and paper template
• Built-to-last: limited lifetime warranty

Installation

BML-8310 Typical Installation

BML-8310 Split Armature Installation

BML-8320 Typical Installation

• 1 Max at 12VDC for BML-8310, 460mA for BML-8320
• * DSS armature plate dimensions are 5/8"D x 2-3/8" W x 10" L (16mm x 61mm x 262 mm) and 3/8" D x 2-3/8" W x 10" L (9.5mm x 61mm x 252mm)
• † Accessories may impact holding force

Choose BEST Electromagnetic Locks for a solution that you can trust.
