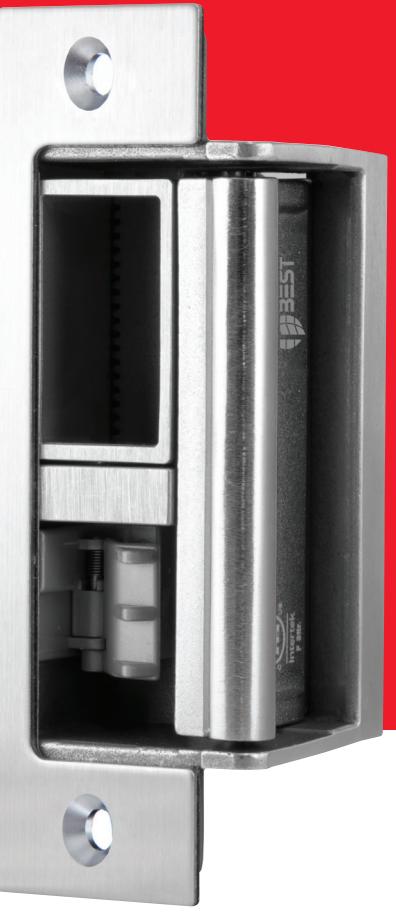

All-in-One Strikes BES-F2164 (Fire-Rated/Fail-Secure) BES-2364 (Fail-Safe)

With 1500 pounds of holding force, BEST All-in-One Strikes combine strength and convenience in a versatile, easy to install design.

With the sawtooth adjustment locator, installers can adjust the strike to align with a wide variety of mortise locks with offset latches eliminating the need to order special faceplates making BEST All-in-One Strikes versatile and easy to install.

Energy 375mA1 Field-selectable 12/24VDC,12-24VAC2

Fire-Rated Optional 3-hour Model Available3

Strength 1500lbf Static 70ft-lb Dynamic

Latch Monitor Plug-in Accessory Available

Endurance 500,000 Cycles

Warranty Five-year (Limited)

Mode Fail-Secure and Fail-Safe

All-in-One Strikes

Versatile, convenient and easy to install.

These electric strikes—featuring an adjustable deadbolt keeper and deadlatch ramp—combine strength and convenience in an attractive, sleek and easy-to-install design.

Model	Mode	Volts	Duty	Sound	Amps	Ohms*
BES-F2164	Fail Secure	12VDC	Continuous	Silent	0.375	37
		24VDC			0.190	148
		12-24VDC	Intermittent	Buzz	0.280-0.565	37
BES-2364	Fail Safe	12VDC	Continuous	Silent	0.375	37
		24VDC			0.190	148

Intermittent Duty: Energized less than one minute with duty ratio 1:5

Continuous Duty: Energized one minute or more

Nominal resistance at +25ºC ± 7% tolerance

Max at 12VDC

Adjustment Locator

Saw-tooth Deadbolt Plug

Features

BEST All-in-One Strikes

• Modular design: compatible with most locks; no special faceplates required; non-handed
• Adjustable: deadbolt keeper and deadlatch ramp—up to 5/16" of strike for precise alignment with lockset; keeper shims for horizontal adjustment‡ —1/16" (1.5mm) and 1/8" (3mm)—for up to 1/8" (3mm)
• Run cool operation: solenoid design prevents keeper from heating up
• Heavy-duty construction: stainless steel with brushed stainless steel finish (32D)
• Holding force: up to 1500lbf (680kgf)
• Easy installation: non-handed; fits HES 1006 (1003) frame cutout (hollow metal)
• Secure: accommodates up to 3/4" latch projection; up to 1" deadbolt (night-latch function only, bolt will not release)
• Included: faceplate, trim plate and anti-tamper security screws for centerline latch entry; star and security driver bit; and, adhesive paper template
• Field selectable voltage input: accommodates 12 or 24VDC and 12 to 24VAC
• Low current draw: 0.19 Amps @24VDC; plug-in wire connector
• Patents: US patent 9,580,935 and Canadian patent 2,850,072
• Warranty: five-year limited

Frame Type

Door Lock Type

Choose BEST All-in-One Strikes for a solution that you can trust.

^{2 12-24} VAC not available with 2364 model

³ Fire-rated (F) model only. 3-hour for single swing, 90 minutes for standard pair of doors.
