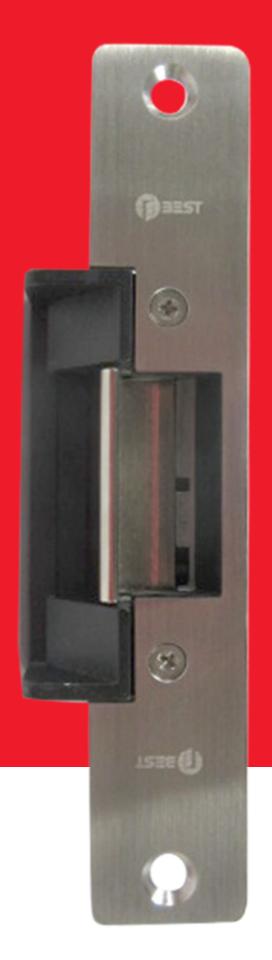

4 Series Centerline Strikes
BES-4105U (Fail Secure 12VAC/VDC Universal)
BES-4108U (Fail Secure 24VAC/VDC Universal)
BES-4306U (Fail Safe 12VDC Universal)
BES-4309U (Fail Safe 24VDC Universal)
BES-F41045 (Fire-Rated, Fail Secure 4 Faceplate 12VAC/VDC)
BES-F41048 (Fire-Rated, Fail Secure 4 Faceplate 24VAC/VDC)
BES-F41145 (Fire-Rated, Fail Secure 14 Faceplate 12VAC/VDC)
BES-F41148 (Fire-Rated, Fail Secure 14 Faceplate 24VAC/VDC)
The BEST 4 Series Electric Strikes have earned their reputation as durable, reliable and economical means of controlling access.
Unique anti-vibration design prevents manipulation by vibration.
Crossed wires are never a problem, as the coil is non polarity-conscious. The F4 Series Electric Strikes are BEST's answer to the need for extra strength in heavy-duty applications and are fire labeled.
Energy 200mA1 12VAC/VDC, 24VAC/VDC
Fire-Rated Optional 1-1/2-Hour Models Available2
Strength 1500lbf Static3 70ft-lb Dynamic
Endurance 500,000 Cycles4
Warranty Three-year (Limited)
Mode Fail-Secure & Fail-Safe
Heavy duty for high-traffic environments.
These commercial-duty strikes are ideal for office complexes, industrial buildings, schools, hospitals, retail outlets and other commercial centers.
| Product specifications | |||||
|---|---|---|---|---|---|
| Construction | Stainless steel | ||||
| Door lock type | Cylindrical and narrowline aluminum | ||||
| Frame type | Hollow metal, aluminum and wood | ||||
| Latch projection | 3/4" (19mm) | ||||
| Connectors | Screw terminals | ||||
| Handing | Non-handed | ||||
| Optional accessories* |
BES-LEK01 1" lip extension kit for retrofit applications, black finish
BES-LEK02 2" lip extension kit for retrofit applications, black finish BES-LEK03 3" lip extension kit for retrofit applications, black finish |
||||
| Finishes | 32D Brushed Stainless Steel | ||||
| Warranty | Three-year limited | ||||
| Certifications |
UL 1034 burglary-resistant Listed
UL 10C, 1-1/2-hour fire-rating Listed2 CAN/ULC S104, 1-1/2-hour fire-rating Listed2 Certified to ANSI/BHMA standard A156.31, Grade 1, endurance 500,000 cycles4 |
||||
| Model | Mode | Volts | Duty | Amps AC | Amps DC |
|---|---|---|---|---|---|
| BES-4105U† | Fail Secure | 12VAC/VDC |
Intermittent
Continuous |
.15 | .20 |
| BES-4108U† | 24VAC/VDC | .07 | .11 | ||
| BES-4306U† | Fail Safe | 12VDC | Continuous | NA | .20 |
| BES-4309U† | 24VDC | NA | .11 | ||
| BES-F41045 | Fail Secure | 12VAC/VDC |
Intermittent
Continuous |
.15 | .20 |
| BES-F41048 | 24VAC/VDC | .07 | .11 | ||
| BES-F41145 | 12VAC/VDC | .15 | .20 | ||
| BES-F41148 | 24VAC/VDC | .07 | .11 |
* Optional accessories do not work with fire rated F4 models.
NOTE: Intermittent Duty = Energized less than 1 min. Continuous Duty = Energized 1 min. or more. Duty Ratio 1:5.
Features
BEST Centerline Strikes
- Accommodates: 3/4" (19mm) latch projection
- 1-1/2" (38mm) cut-out depth: accommodates most door frame material types
- Use with: wide range of door thicknesses, 1-3/8" (35mm) to 2-3/8" (60mm)
- Includes: standard mounting tabs and fasteners
- Non-handed
- Trim plate: included to cover up irregular frame cutout
- Warranty: three-year limited
Frame Type
Door Lock Type
Choose BEST Rim Strikes for a solution that you can trust.
At 12VDC
2 Fire-rated (F) models only available in fail-secure mode with 04 & 14 faceplates.
1,500lbf Static for fire-rated models, 1,000lbf for non-fire-rated 04 & 14 faceplates, 500lbf for 07 & 08 faceplates.
4 Fire-rated (F) models only, 250,000 for other models
† Universal kit including 4 faceplates
