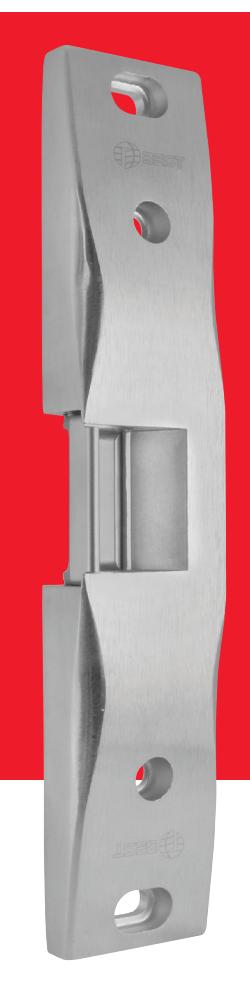

3/4" Rim Strikes

BES-0162 (Surface Mount)

BES-F0162 (Fire-Rated Surface Mount)

BES-0162LM (Surface Mount with Latch Monitor)

BES-F0162LM (Fire-Rated Surface Mount with Latch Monitor)

These Rim Strikes are designed for use with Pullman latch rim exit devices.

Their slim, adjustable design is ideal for tight‑fitting installations.

Designed especially to operate with rim exit devices, these strikes are completely surface mounted, eliminating the need for cutting of the frame.

Their rugged stainless steel design accommodates hollow metal, aluminum and wood door frames. Additionally, with a smooth radius design, these strikes aren't just aesthetically pleasing, they also reduce the chances of catching and injuring individuals.

Energy

500mA1 Field-Selectable 12/24VDC & 12-24VAC

Fire-Rated

Optional 3-Hour Model Available2

Strength

1500lbf Static 70ft-lb Dynamic

Latch Monitor

Optional Latch Monitor Model Available

Endurance 250,000 Cycles

Warranty Five-year (Limited)

Mode Fail-Secure

Designed specifically for commercial environments.

These surface-mounted strikes are ideal for office complexes, industrial buildings, schools, hospitals, retail outlets and other commercial centers.

Product specifications Construction Stainless steel Door lock type Pullman latch rim exit device Frame type Hollow metal, aluminum and wood Latch projection 1/2" (13mm) to 3/4" (19mm) Connectors Plug-in wire Handing Non-handed (featuring horizontal solenoid design) Finishes 32D Brushed Stainless Steel Warranty Five-year limited Certifications UL 294 Listed for Access Control Unit Accessory (6th Edition) UL 1034 burglary-resistant Listed UL 10C three-hour fire-rating Listed2 CAN/ULC S104 three-hour fire-rating Listed2

Model	Mode	Volts	Duty	Ohms	Amps	Current
	Fail Secure	12V	Intermittent	22	0.33	AC
BES-0162			Continuous	22	0.50	DC
BES-F0162 BES-0162LM		24V	Intermittent	22	0.64	AC
BES-F0162LM			Continuous	89	0.24	DC
		11-16V	Intermittent	22	0.32-0.50	AC

Note: UL 1034 Burglary-resistant listing and fire-rating do not apply with use of 0162DDH.

Intermittent Duty: Energized less than 1 minute with Duty Ratio 1:5 Continuous Duty: Energized 1 minute or more

Features

BEST Rim Strikes

For Secure Mount

• Horizontal adjustment: ensures proper latch positioning to compensate for door misalignment–up to 1/4" (6.4mm)
• Run cool operation: solenoid design prevents keeper from heating up
• Heavy-duty construction: stainless steel with brushed stainless steel finish (32D)
• Holding force: up to 1500lbf (680kgf)
• Easy installation: completely surfacemounted—no frame cutting required
• Secure: accommodates 1/2" to 3/4" (13mm–19mm) latch projection
• Conventional keeper design: (one moving part)—promotes even load distribution
• Stainless steel: ensures superior strength and creates a sleek aesthetic design
• Lockdown holes: for secure mount
• HEX socket head cap screws: for added support
• Included: installation tool (HEX key), 1/16" (1.5mm) mounting spacer for additional latch engagement and plug-in wire connectors
• Patents: US patent 7,722,097 and Canadian patent 2,597,916
• Warranty: five-year limited

Frame Type

Door Lock Type

Pullman Latch

Max at 12VDC 2 Fire-rated (F) model only

Choose BEST Rim Strikes for a solution that you can trust.
