BEST Electric Strikes 1-2 Rim Strikes Sell Sheet

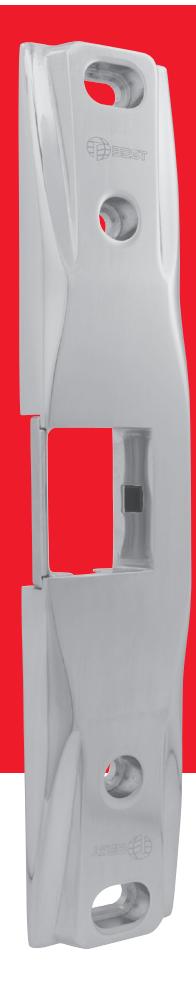

1/2" Rim Strikes BES-0563 (Surface Mount) BES-0563LM (Surface Mount with Latch Monitor)

Their slim, adjustable design is ideal for tight‑fitting installations.

Additionally, equipped with micro-motor technology, these strikes draw less energy than a traditional solenoid strike. Plus, thanks to their surface mount design, no frame cutting is required. And with two 1/8" spacers, these strikes are adaptable, allowing you to create additional sizes (5/8" and 3/4") to accommodate all installations.

Energy 19mA1 Auto-Sensing 12-24VDC

Strength 1500lbf Static 70ft-lb Dynamic

Monitoring Optional Latch Monitor Model Available

Endurance 100,000 Cycles

Warranty Five-year (Limited)

Mode Field-Selectable Fail-Safe & Fail-Secure

Designed specifically for commercial environments.

These surface-mounted strikes are ideal for office complexes, industrial buildings, schools, hospitals, retail outlets and other commercial centers.

For Secure Mount

(BES-0563LM Model)

Product specifications
Dimensions	1-3/4" (45mm) W x 9" (230mm) H x 1/2" (13mm) D
Construction	Stainless steel
Door lock type	Pullman latch rim exit device
Frame type	Hollow metal, aluminum and wood
Latch projection	1/2" (13mm) to 3/4" (19mm)
Connectors	Plug-in wire
Handing	Non-handed
Finishes	32D Brushed Stainless Steel
Warranty	Five-year limited
Certifications	UL 1034 burglary-resistant Listed

Model	Mode	Volts	Duty	Current1
BES-0563	Fail Safe/Secure	12–24VDC	Continuous	19mA-26mA1
BES-0563LM

Features

BEST Rim Strikes

• Surface-mounted: no frame cutting required
• Accommodates: 1/2" to 3/4" (13mm–19mm) latch projection
• Horizontal adjustment: ensures proper latch positioning to compensate for door misalignment—up to 1/4" (6.4mm)
• Conventional keeper design: (one moving part)–promotes even load distribution
• Lockdown: holes for secure mount
• Low energy: draws less energy than traditional solenoid strikes
• Cost savings: operate 3X more strikes per power supply
• Cooler operation: runs cool to the touch; no suppressor kit needed
• High-grade stainless steel: ensures superior strength and creates a sleek aesthetic
• Included: two 1/8" (3.2mm) spacers to create two additional sizes, 5/8" (16mm) and 3/4" (19mm)
• Plug-in wire connectors
• • Non-handed
• • Patents: US patent pending and Canadian patent 2,880,398
• Warranty: five-year limited

Frame Type

Door Lock Type

Pullman Latch

Steady state current at 12VDC, 153mA peak; 26mA steady state at 24VDC with 298mA peak

Choose BEST Rim Strikes for a solution that you can trust.
