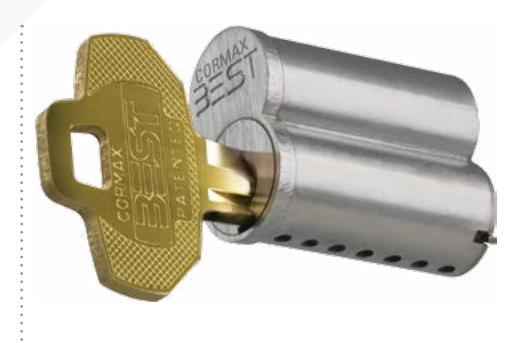

CORMAX™ Specification Data

CORMAX™ is a premier patented keying system that meets all of your needs for higher security, key control, and convenience.

X Series Keyway Features

• X Series keyways are unique to CORMAX™ offering even higher key duplication protection.
• Thicker key blanks with larger bow for added strength and easier handling.
• Recommended for large facilities in multi-building campuses.

M Series Keyway Features

• Four keyways in one family.
• M Series CORMAX™ keys operate both CORMAX™ and BEST® standard cores (backward compatibility) with J, K, L, and M keyways. BEST® standard keys do not operate CORMAX™ cores.
• Available in large bow, long blade, and long nose key blanks to work with special applications.
• Enables seamless, phase-in upgrades in large facilities and multi-building campuses since CORMAX™ cores can be installed in openings demanding higher security while keeping the existing BEST® cores in the remaining areas.

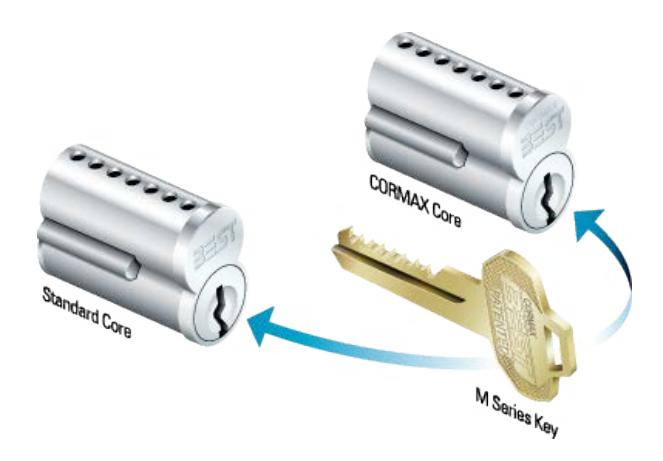

M Series Backward Compatibility

• * Keyway offerings will continue to grow.
• ** Certain restrictions apply.
• *** Additional charges will apply.

Core Format BEST - SFIC BHMA Standard A156.5, Grade 1 Utility Patent 2027 Physical: Core Material Brass Key Material Nickel-Silver Finishes (605, 606, 611, 612, 613, 625, 626, 8 690) Core Size (pin count) 6 or 7 Keyway Count (excluding multi-milling) * > 30 Key System A2, A4 Security Levels: ** (W) Non-exclusive Available (X) Two-digit zip code exclusive Available (Y) One-digit zip code exclusive Available (Z) National exclusive Available Features: Warranty 3 year limited Pick & Drill Resistant Option Key Trap Option Wear Resistant Option M series keys are backward compatible with MJ,MK,ML,MM standard J,K,L,M keyways Milling (sectional keyways) Capability Double, Quad Construction Core to Permanent Keying Yes Support Keystone - Key and Core Control Service Option Management *** BESTCode - Masterkey System Support Service Option Custom Key Stamping *** Service Option Packaging (Uncombinated Cores and Key Blanks**): Single Unit package Dims (L x W x H) - Key 2.5 X 4 1/4 Envelope Single Unit package Dims (L x W x H) - Core 2 1/4 X 3.5 Envelope Single unit package weight (lbs) - Cores .112 lbs Single unit package weight (lbs) - Keys X Series: .028 lbs, M Series: .024 lbs Masterpack count - Cores 50 Masterpack count - Keys X Series:100, M Series: 144
	General:
	Masterpack package Dims (L x W x H)	4 1/4" X 4 1/8" X 3" to 3 1/8"
Masterpack Package weight (lbs) - Cores 5.6 lbs
Masterpack Package weight (lbs) - Keys X Series: 2.88 lbs, M Series: 3.5 lbs

CORMAX™ Keyway Examples

Shown in the chart below are the single CORMAX™ keyways and their multi-milling (sectional) options. CORMAX™ offers 32 unique keyways, 128 level options, and continues to grow and evolve.

Keyways	Single	Single	Single	Single	Double	Double	Quad
	MJ	MK	ML	MM	MJK	MLM	MJLKM
M Series	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED
	XA	XB	XC	XD	XBA	XDC	XDCBA
	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED
	X1	X2	X3	X4	X5	X6	X7
	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED
	X8	X9	X10	X11	X12	X13	X14
	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED
	X15	X16	X17	X18	X19	X20	X21
X Series	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED
	X22	X23	X24	X25	X26	X27	X28
	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED
	X29	X30	X31	X32	X33	X34	X35
	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED
	X36	X37	X38	X39	X40	X41	X42
	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED	PATENTED

For more information on the CORMAX™ offering please contact customer service at 1-855-365-2407.

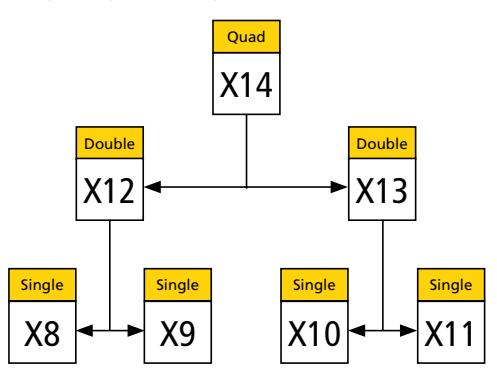

Keyway Family Example

Single - Available on keys and cores Double/Quad - Available on keys only
