Schlage Control™ Smart Deadbolt

with Engage Technology

Model BE467F

Door Preparation Instructions for Door with Existing Holes

Tools Needed M Tape easure Tape Measure Pencil Drill and Drill Bits Bit Sizes: Z\,", 1" Hole Saws 1", 2Z\," Chisel

1 Measure door thickness.

If the door is thinner than 1C\," or thicker than 1C\v", then the lock will not fit properly on the door.

Hammer

L A thick door kit is available from Product Support at 800-847-1864 .

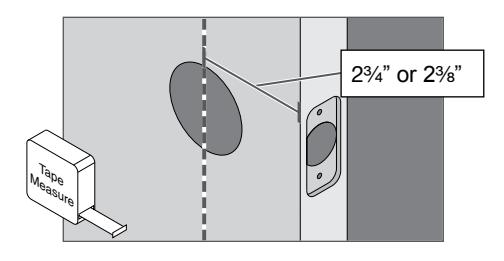

2 Measure the backset.

If existing backset is not 2C\," or 2C\v", then the lock will not fit properly on the door.

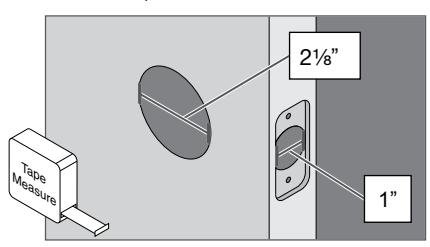

3 Measure the hole sizes.

3a If hole sizes are larger than those shown, then the lock will not fit properly on the door. If hole sizes are smaller than those shown, see steps 3b and 3c .

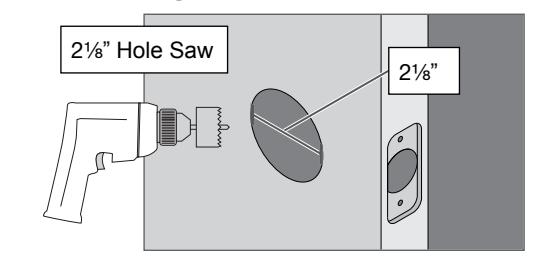

3b If necessary, enlarge hole in door face.

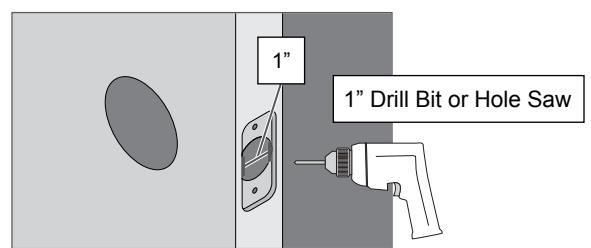

3c If necessary, enlarge hole in door edge.

4 Check the door jamb.

4a Place new strike and reinforcement plate against the door jamb. If these do not fit properly, see steps 4b and 4c .

4b If correction is necessary, trace faceplate and mark holes.

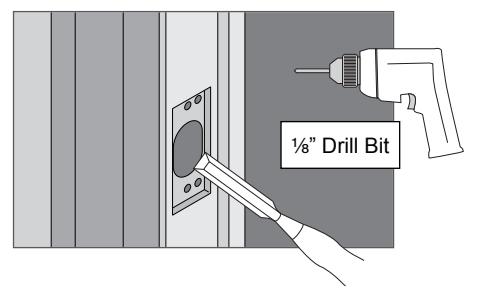

4c If necessary, use chisel, hammer and drill to correct door jamb preparation.
