BE467 Schlage Control Smart Deadbolt Door Prep Template RB117
Open the original PDF document
View PDF
BE-Series

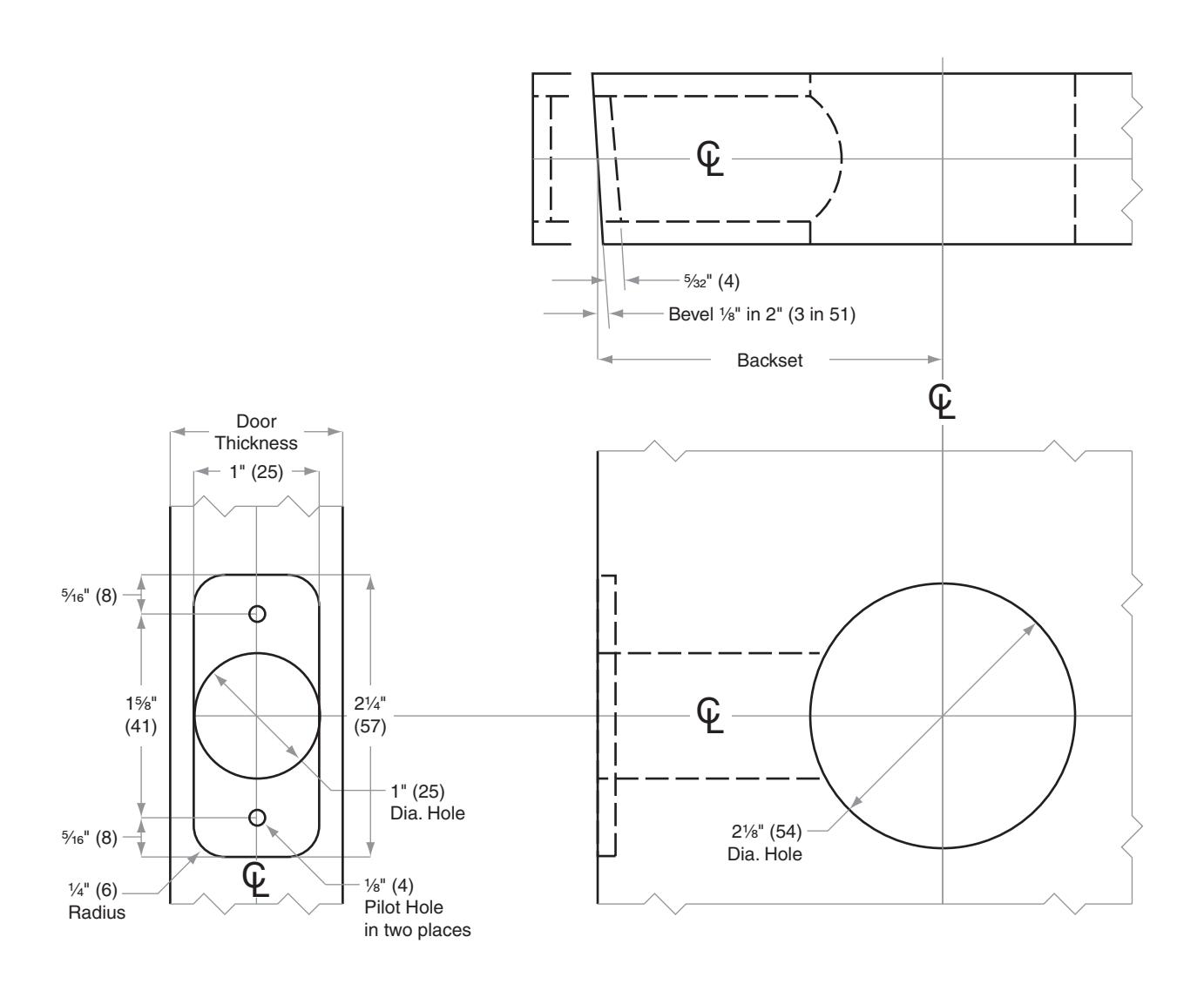

BE467F
Door Type: Wood or Composite, Flat or Beveled
Door Thickness: 1C\," (35 mm)–1C\v" (57 mm)
Faceplate: Round Corner, Z\v" (6 mm) Radius, 1" (25 mm) wide
Backsets: 23 / 8," (60 mm), 23 / 4" (70 mm)
Standard backset in
bold.
Dimensions shown in parentheses () are in millimeters.
© 2016 Allegion RB117 Rev. 05/16 www.allegion.com/us
Door preparation template DRAWING IS NOT TO SCALE! Customer service: 800-847-1864 We can help you find the correct guide for your product and application!
