Auditcon® Series Templates

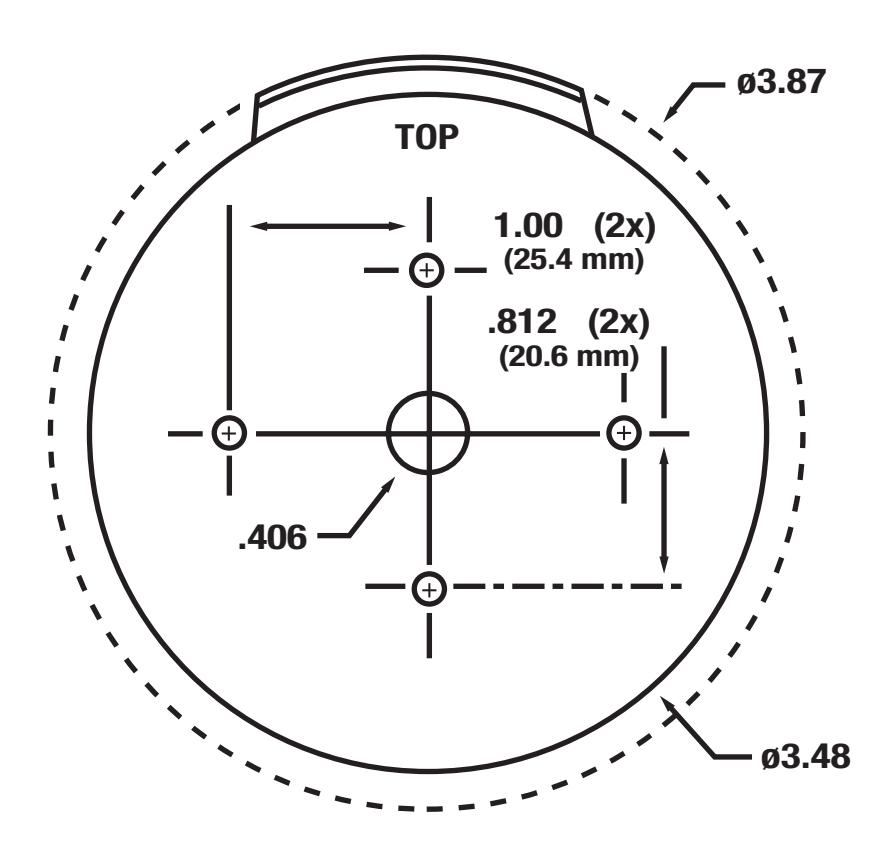

Round and Low Profile Mounting Template

This template is provided at actual size for your convenience of installation.

For additional assistance call our Technical Support staff at 800-950-4744

Large Hole -.406 (10.32mm) Min.

_________________________________

Small Hole - Drill and Tap:

English: #8 - 32 Metric: M4X0.7

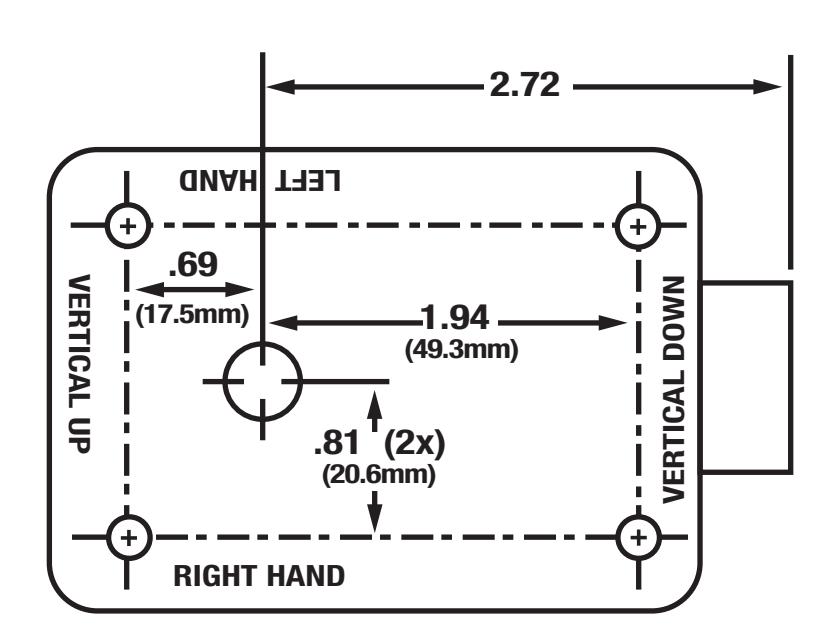

Lock Case Mounting Template

This template is provided at actual size for your convenience of installation.

For additional assistance call our Technical Support staff at 800-950-4744

Large Hole -.406 (10.32mm) Min.

_________________________________

Small Hole - Drill and Tap:

English: 1/4-20 Metric: M6X1

www.kaba-mas.com 888-950-4715 May 2003

Auditcon® Series Templates

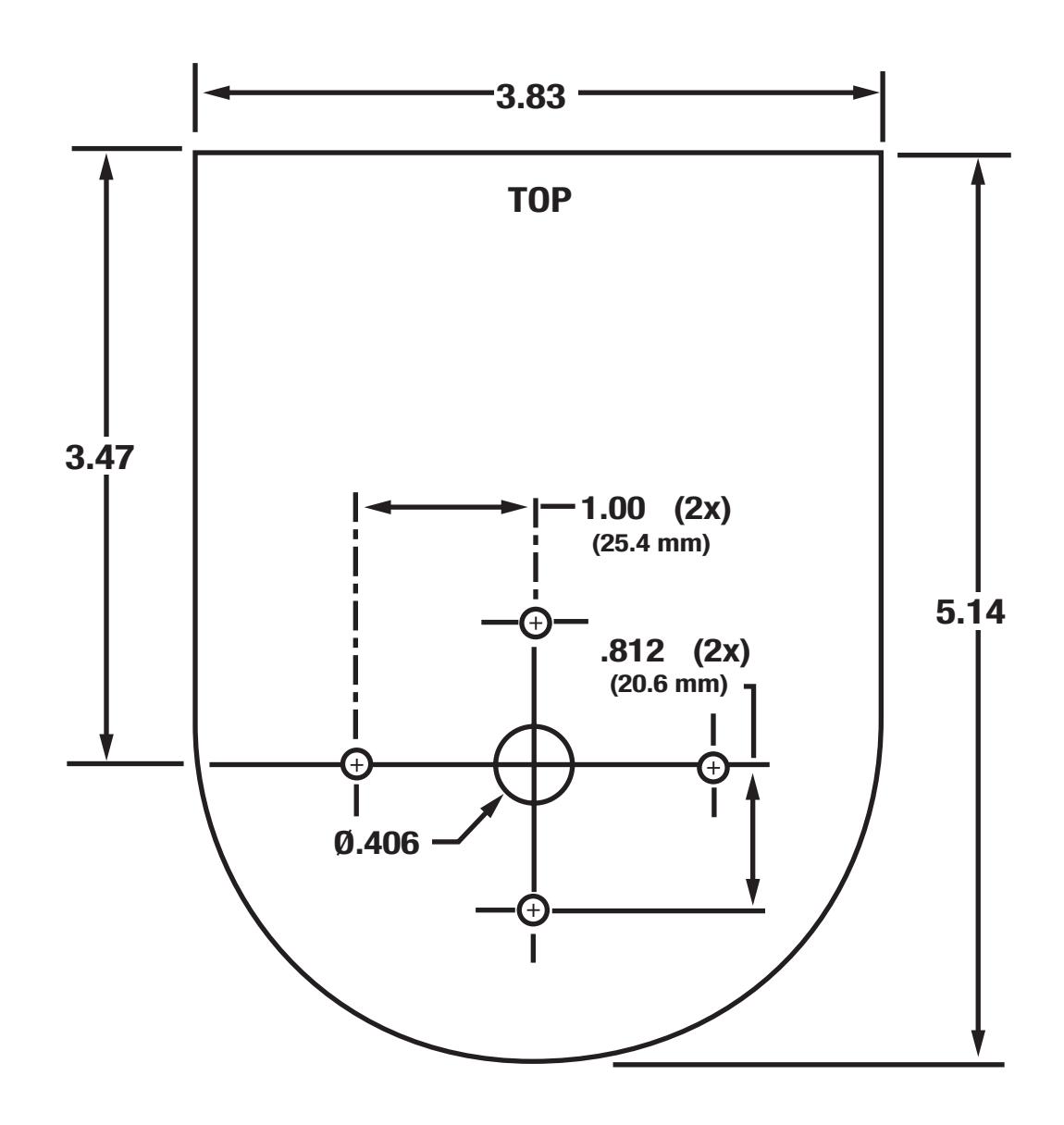

Vertical Housing

This template is provided at actual size for your convenience of installation.

For additional assistance call our Technical Support staff at 800-950-4744.

Large Hole -.406 (10.32mm) Min.

_________________________________

Small Hole - Drill and Tap:

English: #8-32-20 Metric: M4X0.7
