Attachment 3

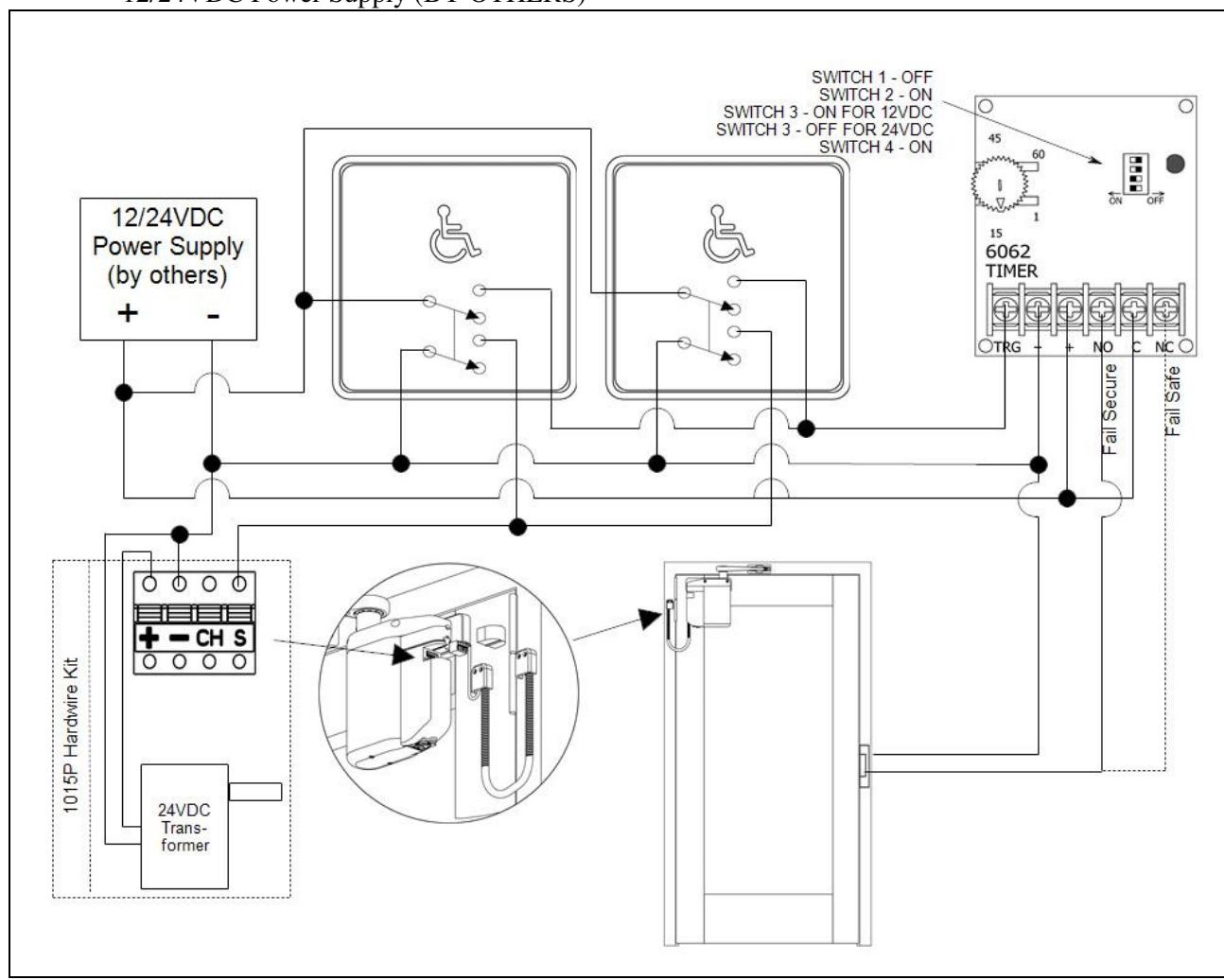

ADAEZ PRO ELI with Electric Strike and Hardwired Buttons

(Sheet 2 of 5)

System Description:

• ADAEZ Pro with 12 or 24VDC power supply (by other) with Hardwired Buttons.
• Pressing either inside or outside push button activates electric lock then
• Door operator initiates and automatic open cycle after a 1/2 second delay.
• The Multi purpose timer keeps the electric lock unlocked for anmadjustable time period to prevent operator from engaging electric lock.

System Requirements:

• 2x 1019-3 Square Pushbutton DPDT
• 1025 Timer Kit
• 1015P Hardwire Kit
• 12/24VDC Power Supply (BY OTHERS)

700002 Rev. F
