HOW TO ASSEMBLE SARGENT SIGNATURE CYLINDERS LOADING SIGNATURE CYLINDER PLUGS

Insert cylinder plug, with correct bitted and dimpled Key, into base of service tool. Select bottam and master pins from from key bitting list. Load cylinder plug with appropriate pins,

Snap on cover onto service tool. Rotate cylinder plug 180° (pins will drop into holes within service tool).

Expose offset bor slots in cylinder plup by, removing service toal cap. Place offset bor springs into offset bor holes in cylinder plug, insert offset bars into slots in cylinder plug, (Be sure bars are oriented according to the following guide)

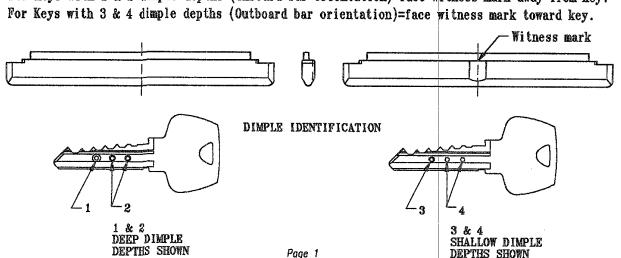

GUIDE TO OFFSET BAR ORIENTATION For Keys with 1 & 2 dimple depths (Inboard bar orientation)=face witness mark away from key.

HOW TO ASSEMBLE SARGENT SIGNATURE CYLINDERS LOADING SIGNATURE CYLINDER PLUGS

cylinder plug)

For body loading information refer to cylinder body Instruction sheet A7079A

HOW TO ASSEMBLE SARGENT SIGNATURE CYLINDERS HOW TO REVERSE OFFSET BAR ORIENTATION

HOW TO ASSEMBLE SARGENT SIGNATURE CYLINDERS HOW TO REVERSE OFFSET BAR ORIENTATION

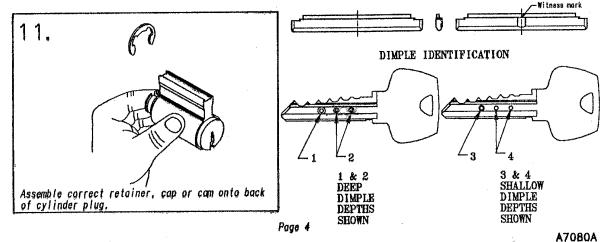

For Keys with 1 & 2 disple depths (indoord ber or lentition)-face witness mork owey from key. For Keys with 3 & 4 disple depths (Outboard bor or lentition)-face witness mork toward key.
