Architectural Door Accessories

ASSA ABLOY

The global leader in door opening solutions

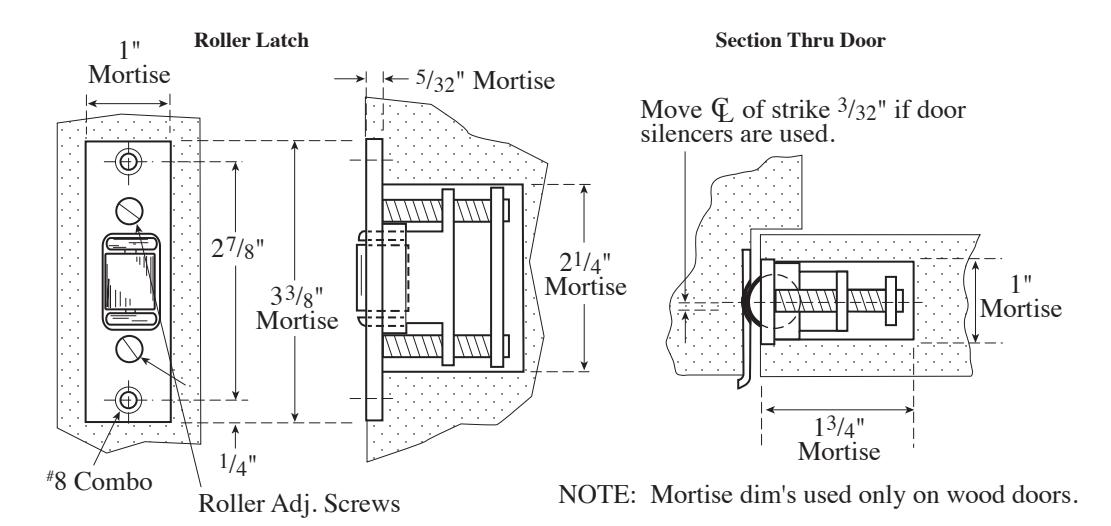

Rockwood 590, 591, 592 Roller Latch

NOT TO SCALE

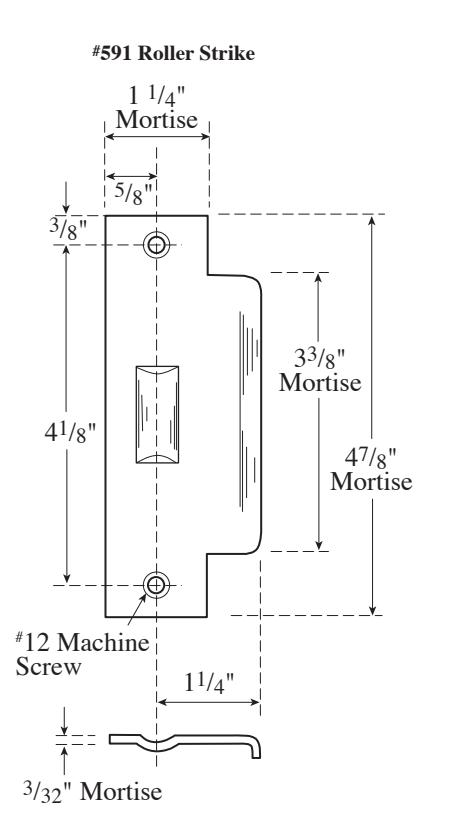

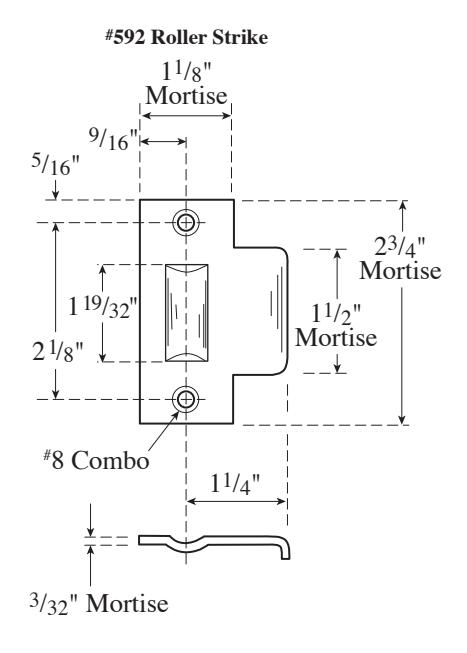

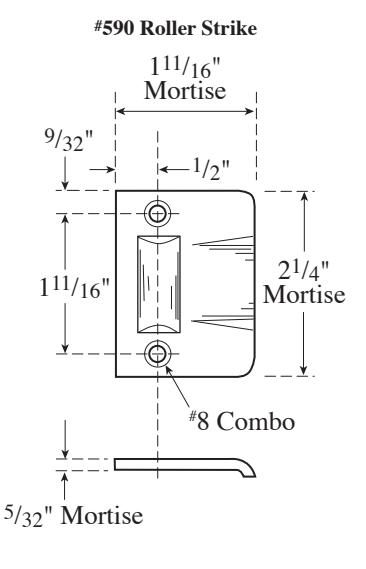

Template T-590, 591, 592

Effective date: January 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.rockwoodmfg.com or call us at 800-458-2424

300 Main Street Rockwood, Pennsylvania 15557 P: 800.458.2424 | F: 800.922.9212 www.rockwoodmfg.com | orders.rockwood@assaabloy.com
