The REVOLUTION in security.
Stand-Alone Touchscreen Leverlock
Revolution Stand-Alone Touchscreen Leverlock
Premier Product
The NEW Arrow Revolution stand-alone touchscreen leverlock offers a high-tech, aesthetically pleasing security solution to enhance everyday leverlock systems. Using state-of-the-art touchscreen technology, end-users can easily grant access for up to 25 individual users without the need to distribute and keep track of multiple keys. The Revolution leverlock is simple to program and easy to install in a matter of minutes.
Multilingual voice guided technology allows for hasslefree programming without a need for bulky manuals. For any facility application requiring an advanced featured leverlock to control entry, the Arrow Revolution leverlock is the modern, ideal solution.
Certification:
- ANSI A117.1 Accessibility Code
- Certified ANSI/BHMA A156.36, Grade 2
Features & Specifications:
Electronic Elements:
- Stand-alone Touchscreen Access Locking Device
- Trilingual English, Spanish, French
- High Tech Look & Feel
- Volume Levels High, Low Default, Silent
- Easy to Use, Install, and Program
-
Users:
- 25 Users
- Add/Delete Individual Users
- Battery Life One Year
Mechanical Components:
- Medium Duty Commercial, Grade 2
- Door Thickness 1-3/8" 1-3/4" Thick Doors
- Key Override Uses a key-in-lever cylinder available in a CS keyway
- Weather Resistant Full Wrap Around Gasket on Both Sides
- Door Prep Standard Prep; 2-1/8" Through Hole, 1" Bore Hole For Latch
- Backset Adjustable 2-3/8" to 2-3/4"
-
Warranty 1 year electronic, lifetime mechanical and finish for residential use.
- 1 year electronic, 3 years mechanical and finish for commercial use.
Finishes:
• US3, US10BL, US15
Functions:
• V3-51 Touchscreen
Revolution Stand-Alone Touchscreen Leverlock
Premier Product

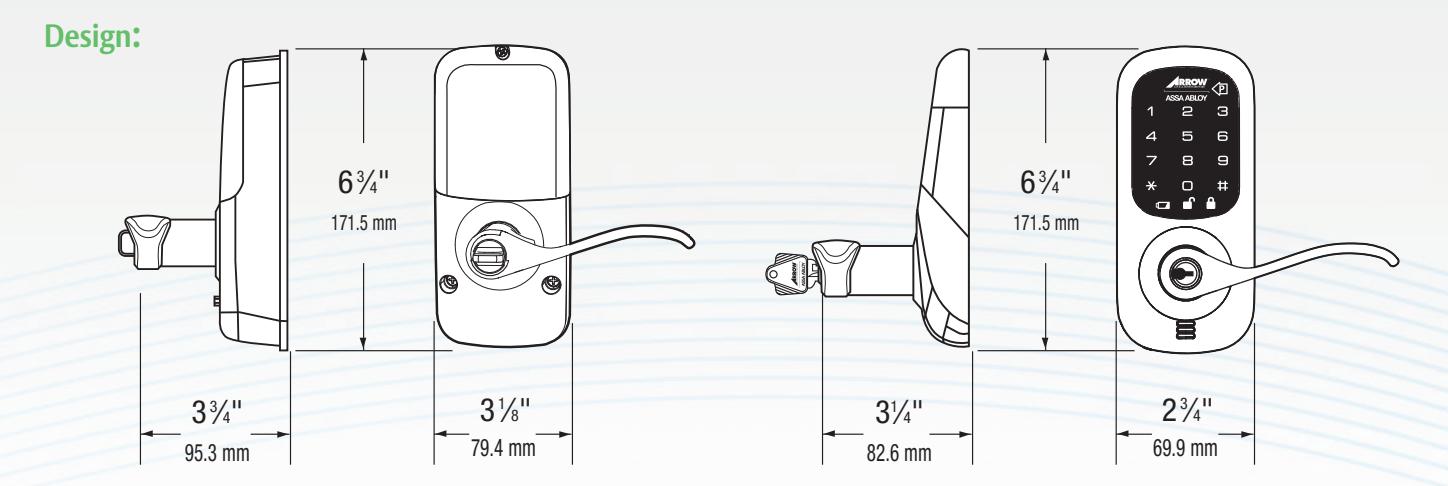

Touchscreen Leverlock Interior Touchscreen Leverlock Exterior
Finishes:
| BMHA | U.S. Equiv | Arrow Equiv | Finish | |
|---|---|---|---|---|
| 1 | 605 | US3 | 03 | Bright Brass |
| 2 | 614 | US10BL | 10BP | Dark Oxide Bronze, Clear Coated |
| 3 | 619 | US15 | 15 | Nickel Plated |
V351 Touchscreen with • For doors that require optional mechanical key override. Key Override • Latchbolt retracted by lever outside with valid pincode; ARROW FUNCTION DESCRIPTION
- by use of mechanical key, or by operating lever inside.
- Inside lever always active.
- Deadlocking latchbolt.
Order Example:
Series: V3 Function: 51 (Touchscreen w/key override) Finishes: 03 (US3)
10BP (US10BL) 15 (US15)

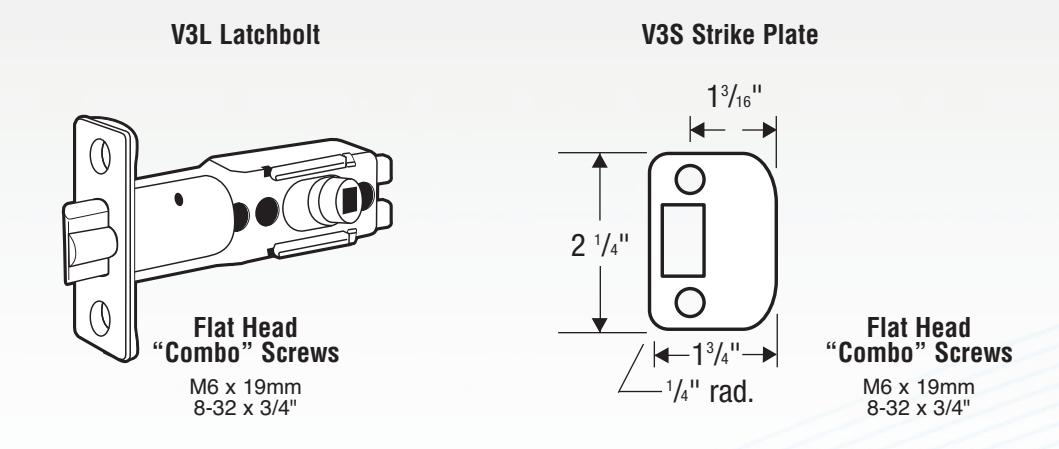

Strike: V3S (Full lip) Latch: V3L (Adjustable 2-3/8" to 2-3/4")
Keyway: CS
Suffix Options:
KD (Standard cylinder keyed different)
Example: To order a Revolution stand-alone touchscreen leverlock in satin nickel finish, with an adjustable backset for 2-3/8"
or 2-3/4", CS keyway, keyed different:
Specify: V3 51 LR 15 V3S V3L CS KD Series Function Trim Finish Latch Suffix Options Strike Keyway
Revolution Stand-Alone Touchscreen Leverlock
Premier Product
How to Install:
