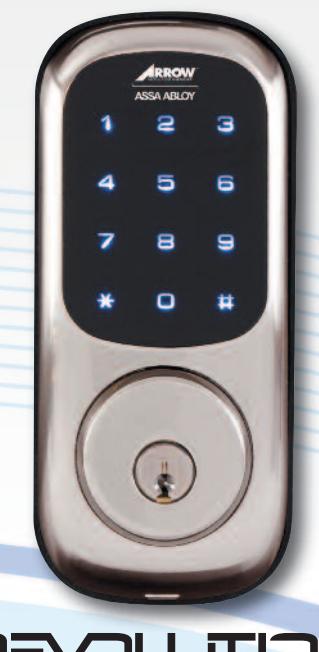

Revolution Stand-Alone Touchscreen Deadbolt

Premier Product

The NEW Arrow Revolution stand-alone touchscreen deadbolt offers a high-tech, aesthetically pleasing security solution to enhance everyday deadbolt systems. Using state-of-the-art touchscreen technology, end-users can easily grant access for up to 25 individual users without the need to distribute and keep track of multiple keys. The Revolution deadbolt is simple to program and easy to install in a matter of minutes.

Multilingual voice guided technology allows for hasslefree programming without a need for bulky manuals. For any facility application requiring an advanced featured deadbolt to control entry, the Arrow Revolution Deadbolt is the modern, ideal solution.

Certification:

• ANSI A117.1 Accessibility Code
• Certified ANSI/BHMA A156.36, Grade 2

Features & Specifications:

Electronic Elements:

• Stand-alone Touchscreen Access Locking Device
• Trilingual English, Spanish, French
• High Tech Look & Feel
• Volume Levels High, Low Default, Silent
• Easy to Use, Install, and Program
• Users:
  • 25 Users
  • Add/Delete Individual Users
• Battery Life One Year
• Deadbolt Motor Motorized Bolt In and Out
• Privacy Feature

Mechanical Components:

• Medium Duty Commercial, Grade 2
• Door Thickness:
  • 1-3/8" 2-1/4" Thick Doors
  • 1-3/8" Requires a Special Thin Door Gasket (Part V1-GSK-PK)
• Keying Standard Cylinder or SFIC Prep.
• Key Override Uses standard Arrow cylinders available in AR and CS keyways
• Weather Resistant Full Wrap Around Gasket on Both Sides
• Manual Retraction Inside Thumbturn, Clutched Motor Assembly
• Door Prep Standard Prep; 2-1/8" Through Hole, 1" Bore Hole For Latch
• Backset Adjustable to 2-3/4" or 2 3/8"
• Warranty 1 year electronic, lifetime mechanical and finish for residential use.
  • 1 year electronic, 3 years mechanical and finish for commercial use.

Finishes:

• US3, US10BP, US15

Functions:

• V2-51 Touchscreen

Revolution Stand-Alone – Touchscreen & Pushbutton Deadbolt

Order Example:

Series: V2 Function: 41 (pushbutton) 51 (touchscreen) Finishes: 03 (US3) 10BP (US10BP) 15 (US15) Strike: V2S Latch: V2L Keyway: AR CS Suffix Options: KD (standard cylinder keyed different) IC (SFIC less core, not available with 41 function)

Example: To order a Revolution Touchscreen Deadbolt in satin nickel finish, rounded strike, with an adjustable backset for 2-3/8" or 2-3/4", CS keyway, keyed different:

Specify: V2 51 15 V2S V2L CS KD Series Function Finish Strike Latch Keyway Suffix Options

8-32 x 5/16"

8-32 x 5/16"

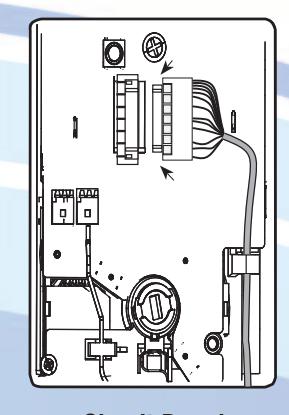

Circuit Board Cable Connector on

inside circuit board Thru-Bolts Pan Head Machine Screws Pan Head Machine Screws M4 x 8mm 8-32 x 5/16" Cable V2 51 Touchscreen V2 41 Pushbutton Inside Mounting Plate Inside Escutcheon Battery Cover Outside Escutcheons Inside Escutcheon

M6 x 59.5mm 15/64 x 2-11/32"
