Touchpad Access Cylindrical Lock Installation Instructions

INSTALLER NOTE:

Failure to follow these instructions could result in damage to the lock and void the factory warranty.

For Technical Assistance contact contact ARROW LOCK 1-800-221-6529 • www.arrowlock.com

This document is available on our website in printed Spanish and French. Go to www.arrowlock.com. Click "Liternature Req"".

Este documento está disponible en español en nuestra página de internet. Vaya a www.arrowlock.com. Presione "Información del Producto y Documentación".

Ce document est disponible sur notre site Web dans le français imprimé. Allez à www.arrowlock.com. Cliquez sur le " ; Information sur le produit et Documentation".

TABLE OF CONTENTS

Warnings 2
Introduction 2
Installation
Components and Tools3
Door Preparation 4
Prepare Lock for Installation	5-6
Install Lock	7-8
Hardware Troubleshooting8
Programming
Programming Features-Menus-Keys-Definitions	9-11
Operating Modes	12-16
Easy Mode	12-13
Advanced Mode	14-16
Miscellaneous Information17
Programming Troubleshooting 18
Sample Pin Code Management Sheets 19

WARNINGS

CAUTION: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

IMPORTANT: The accuracy of the door preparation is critical for the proper functioning and security of this cylindrical product. Misalignment can cause premature wear and a lessening of security.

Finish Care: This lockset is designed to provide the highest standard of product quality and performance. Care should be taken to insure a long-lasting finish. When cleaning is required use a soft, damp cloth. Using lacquer thinner, caustic soaps, abrasive cleaners or polishes could damage the coating and result in tarnishing.

INTRODUCTION

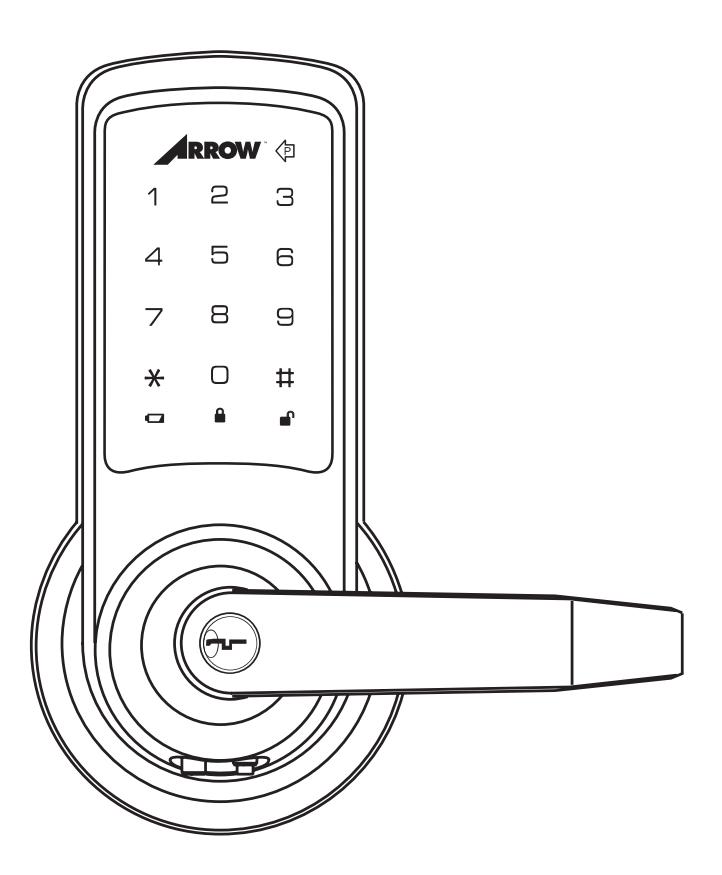

Arrow® Revolution Stand-alone Touchscreen Access Lock combines robust cylindrical locksets with a contemporary electronic aesthetic.

Users benefit from an interactive touchscreen that makes day-to-day access effortless and offers voice-guided programming for simple updates to user information in the event of staffing changes or security breaches.

Revolution is engineered for quick and easy installation and fits into the standard ANSI/ BHMA A156.115 cylindrical locks with lever door prep with only one additional 3/4" hole and 7 screws including latchbolt and strike.

Revolution features the choice of "Easy" or "Advanced" operating modes. Locks are shipped as a default from the factory in "Easy" mode. The desired operating mode should be determined before the completion of lock installation, but can be changed at a later time if required.

COMPONENTS AND TOOLS

In the box, you should find. . .

Quick Start Instructions

Installation Instructions

Door Marker

Outside Touchscreen Assembly

Inside Escutcheon Assembly:

• Inside Support Assembly
• Inside Escutcheon
• Inside Lever Handle
• Battery Cover

4 AA Alkaline Batteries

Latchbolt

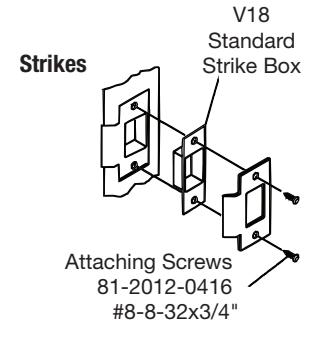

Strike

Allen Wrench 3/32" (2.5mm)

Lever Removal Tool

Screw Pack (7 screws)

2 Keys (If cylinder included)

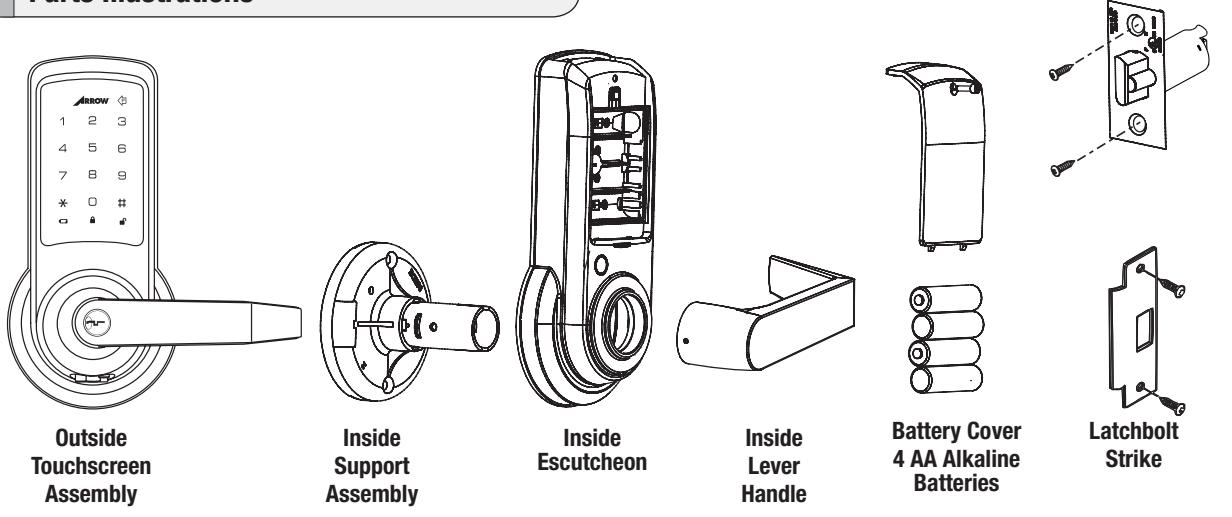

Parts Illustrations

Tools

Door Prep

• 2-1/8" (54mm) hole saw
• 1" (26mm) boring bit
• 5/16" (8mm) drill bit
• 7/64" (2.5mm) drill bit
• Chisel and hammer

Lock Installation

• #2 phillips screw driver
• Lever removal tool (supplied)
• 3/8" or 1/2" drill
• 3/32" Allen wrench (supplied)

DOOR PREPARATION

Mark Door

Verify backset before marking and drilling door.

• A. Mark horizontal line across edge of door 40-5/16" (1024mm) from floor.
• B. Fold door marker over the edge of the door, centering on the horizonal line.
• C. Mark centers of holes at proper backset. For beveled and square edge doors, mark both sides of the door.

Backset 2-3/8" or 2-3/4"

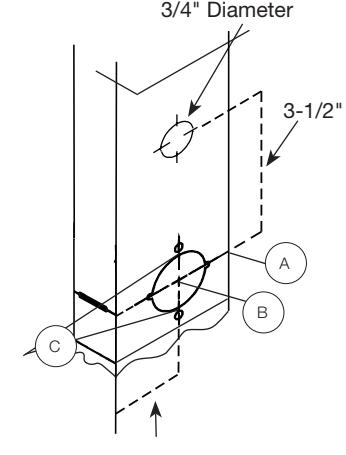

Drill Door

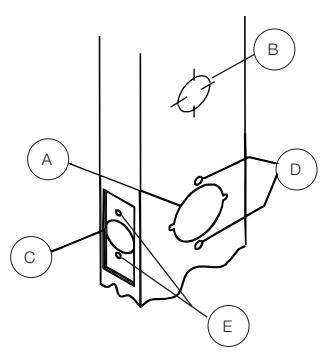

• A. Drill 2-1/8" (54mm) dia. hole through the door. Cut notches as shown on template.
  • Note: To avoid splintering wood doors, drill holes (A) and (D) from both sides of the door.

• C. Drill 1" (25mm) diameter hole in edge of door. Mortise for latchbolt front 1-1/8" (29mm) wide x 2-1/4" (57mm) high by 5/32" deep.
• D. Drill two (2) 5/16" (8mm) diameter holes through door (see note, above).
• E. Drill pilot holes for latchbolt screws. 7/64" (2.5mm).

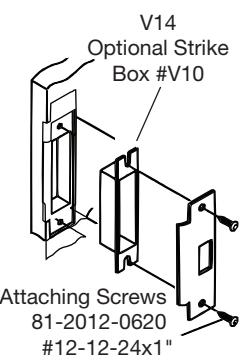

Prepare and Install Strike (Wood Frames Only)

• A. Close the door and mark a horizontal line from the center of the template to the frame of the door.
• B. Measure half the thickness of the door. Mark this same distance with a vertical line starting from the stop side of the frame. Where both lines cross make a 1" (25mm) diameter hole, 1/2" (13 mm) in depth.
• C. Align the holes of the strike with the vertical line. Trace the outline of the strike and mortise with a 1/16" (1.6mm) depth. Attach the strike with two screws (provided).

PREPARE LOCK FOR INSTALLATION

Unpack the Lock

The lock is packed representative of how it will install on the door.

Before installation:

• A. Disassemble the inside escutcheon
• 1. Remove the inside lever with the lever removal tool provided
• 2. Separate the inside support assembly from the inside escutcheon

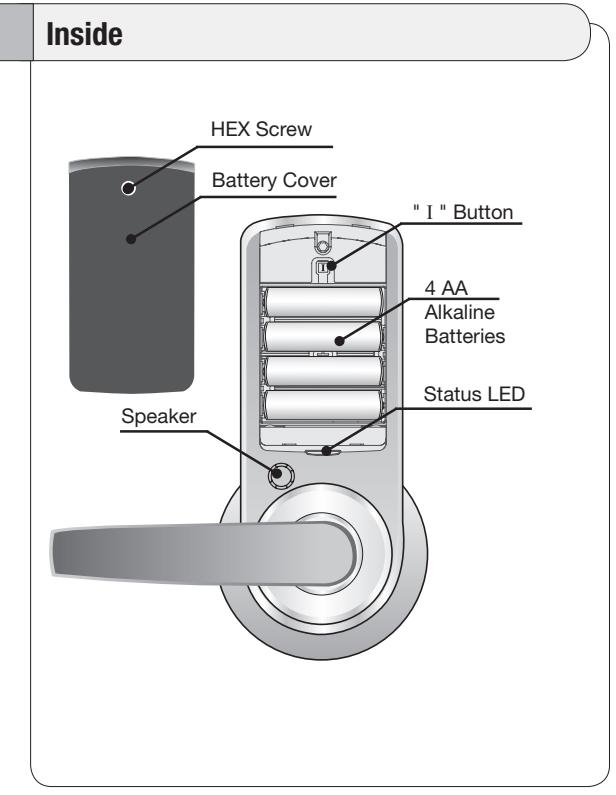

• B. Remove the battery cover
• 1. Unscrew the hex screw using the Allen wrench provided. The hex screw does not come completely out.
• 2. Slide the battery cover off.

The outside assembly stays assembled.

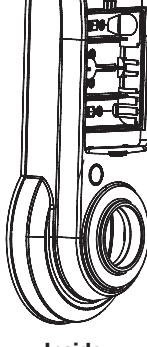

Inside Support Assembly

Support Assembly Screws

Inside Escutcheon

Battery Cover

Inside Lever Handle

Determine Hand of the Door

Face the door from the secure side to determine it's hand. The secure side is the touchscreen side of an entrance door or the corridor side of a room door.

Note: Revolution locks are non-handed; the lever can be flipped around to the desired handing.

Left Hand Reverse Hinges on left. Opens outward. For handed locks, specify LHR.

Left Hand Hinges on left. Opens inward. For handed locks, specify LH.

Right Hand Hinges on right. Opens inward. for handed locks, specify RH.

Right Hand Reverse Hinges on right. Opens outward. For handed locks, specify RHR.

A

B

F

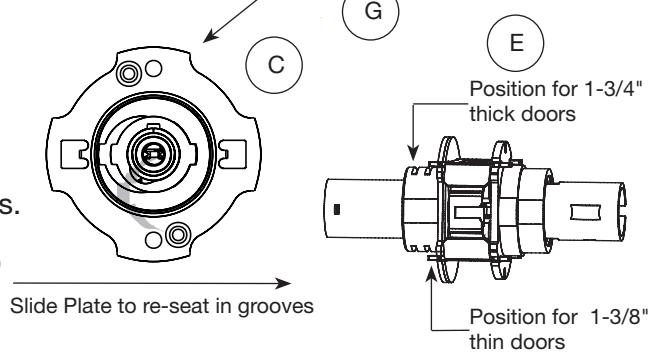

Adjust Lock for Door Thickness (If Necessary)

Lock is packed pre-adjusted for 1-3/4" (44mm) doors. To adjust for thinner door:

• A. Remove (2) screws from outside support assembly.
• B. Slide outside assembly away from the lock body.
• C. Disengage plate from assembly by sliding to the side and removing.

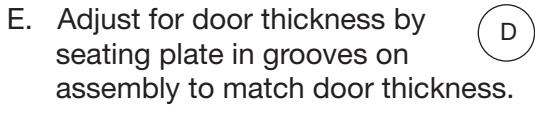

• D. Re-seat plate on outside assembly. Plate hole is slightly off center (gray area). Slide plate over assembly and slide to the center until seated in one of the two grooves.

• F. Re-seat plate on assembly.
• G. Fasten plate and outside assembly to lock body with (2) screws.

How to Replace, Re-Key or Install Cylinder

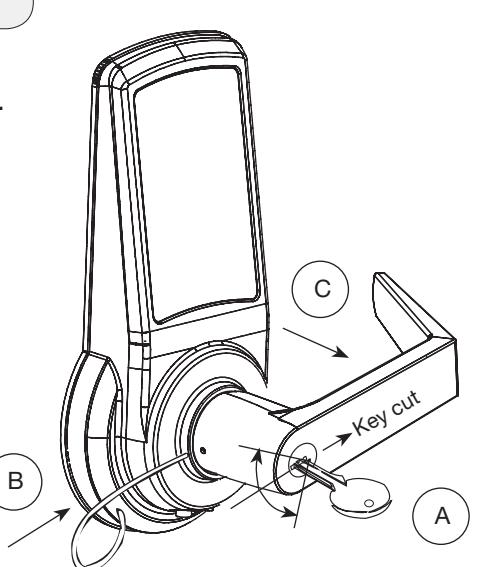

• 1. Remove cylinder handle:
• A. Insert key and rotate 45 degrees counterclockwise.
• B. Insert lever retainer tool and push.
• C. Slide lever off lock.
• 2. Remove the plastic sleeve from the old cylinder.
• 3. Slide new cylinder into sleeve.
• 4. Insert key into cylinder.

Important: Make sure the key cut side of key lines up facing towards the end of the lever. If the key is inserted incorrectly, the lock will reassemble and might appear to properly work; however, when the key is removed, the latchbolt will remain retracted.

5. Rotate key 45 degrees counterclockwise.

Depress retainer plate, push the handle onto the shank until fully seated. Pull on handle to insure properly seated.

2-5/8" (66.5) For 6 pin cylinders, 1-3/8" thick doors 2-7/8" (73) For 6 pin cylinders, 1-3/4" thick doors ONLY

1-3/16" (30) For 6 pin cylinders, 1-3/8" thick doors 1-7/16" (36.5) For 6 pin cylinders, 1-3/4" thick doors ONLY

6 CAUTION: The cylinders furnished with Revolution lock for use in 1-3/8" doors have a tailpiece that is 1/4" shorter than the standard cylinders that are furnished for 1-3/4" doors. Trying to install a standard cylinder in 1-3/8" will DAMAGE the lock body.

INSTALL LOCK

Directions

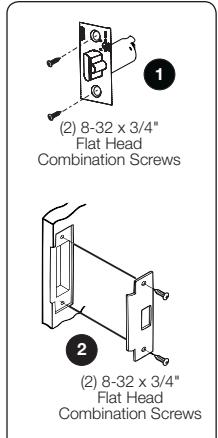

• Install latchbolt in door. Be sure that bevel edge of bolt faces strike. Attach with two screws supplied.
• 2. Install strike on the door frame.

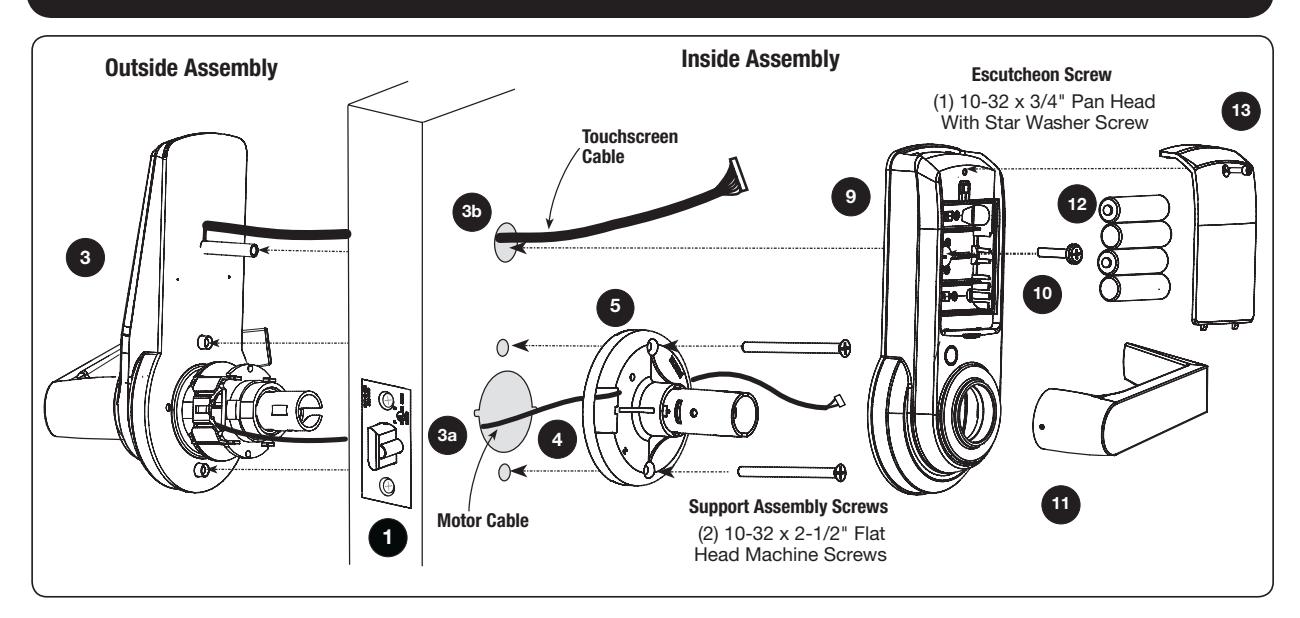

• Insert outside assembly through door, making sure that the lock body frame hooks latch case and retractor engages bolt tail(s). DO NOT FORCE (See Detail A above). If lock body does not engage latch easily, check door preparation for errors.
  • a. Guide motor cable (red and black wires) through 2-1/8" diameter hole.
  • b. Guide touchscreen cable through 3/4" diameter upper hole.

• 4. Guide motor cable through rectangular hole on inside support assembly.
• 5. Slide inside support assembly over outside assembly, lining up top and bottom screw guides with holes in door. Secure both assemblies with (2) 10-32 x 2-1/2" flat head machine screws. Do not over-tighten.

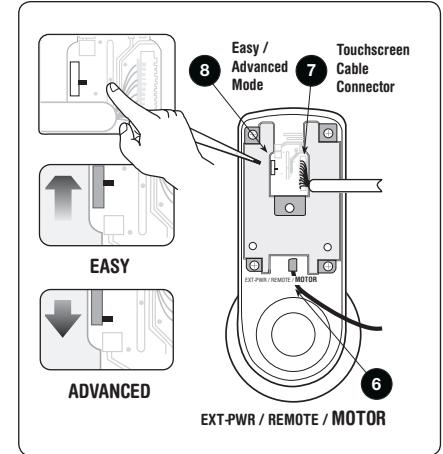

• Attach motor cable connector to the inside escutcheon PC board header marked "MOTOR."
• Attach the touchscreen cable connector to the inside escutcheon PC board header as illustrated.

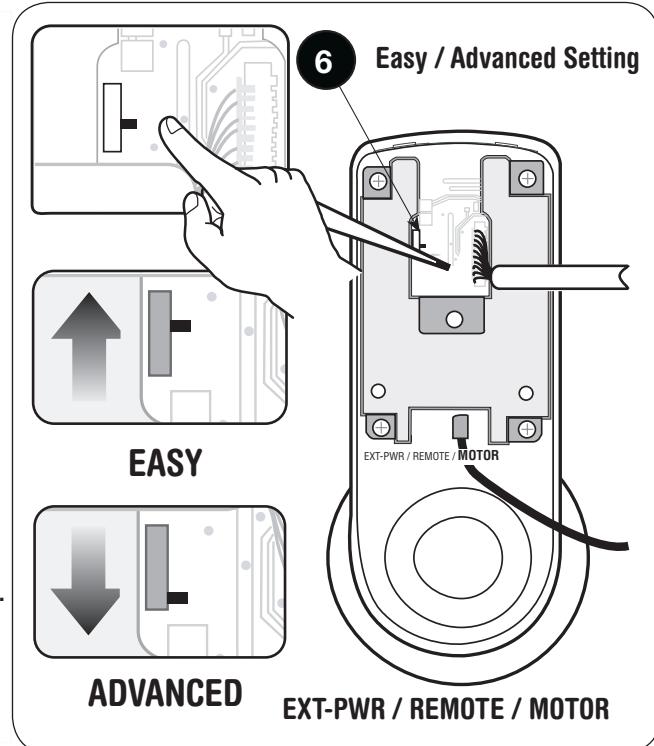

• 8. Select EASY or ADVANCED Mode using the switch on the back of the PC board.

7

Directions, Continued

9. Slide inside escutcheon over inside support assembly.

CAUTION :

• a. Position motor cable against inside support assembly. Avoid pinching wires against the steel shank of the assembly.

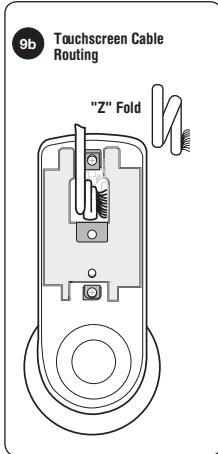

• b. "Z" fold touchscreen wire cable and lay against the back recessed area of the escutcheon assembly. Position and bend wires to prevent binding when installing the escutcheon over the support assembly.
• 10. Install and secure the 10-32 x 3/4" pan head screw through the center of the battery housing into the barrel nut of the outside assembly.
• 11. Slide on inside lever and push in to attach.
• 12. Insert four (4) AA alkaline batteries. The lock responds, " Welcome to the Arrow Digital World ."
• Note: Refer to programming instructions prior to completion of step 13.
• 13. Install battery cover and tighten hex head screw with Allen wrench provided with lock.

HARDWARE TROUBLESHOOTING

Test the Operation of the Lockset

Cycle the lock in both the locked and the unlocked positions. If problems are found:

Symptom	Suggested Action
Door is binding	a.Check that door and frame are properly aligned and door is free swinging.
	b. Check hinges: They should not be loose or have excessive wear on knuckles.
Latchbolt will not deadlock	a. Either strike is out of alignment or the gap between the door and jamb is too great. Realign strike or shim strike out towards flat area of latchbolt.
Latchbolt does not retract or extend properly	Latchbolt tail and retractor are not properly positioned:

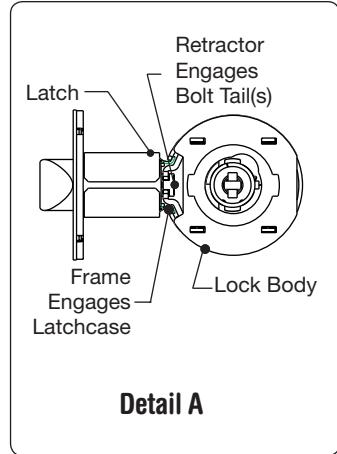

	a. Remove lockset. Look though 2-1/8" hole and verify latchbolt tail is centered between top and bottom of hole.
	b. Remove latchbolt and insert lockset. Look though latchbolt hole and verify retractor mouth centered in hole. If not, adjust outside rose plate.
	c. If necessary, rebore holes to line up retractor and tail.

PROGRAMMING

Programming Features-Menus-Keys-Definitions	9-11
Operating Modes	12-16
Easy Mode	12-13
Advanced Mode	14-16
Miscellaneous Information17
Programming Troubleshooting 18
Sample Pin Code Management Sheets 19

PROGRAMMING FEATURES - MENUS - KEYS - DEFINITIONS

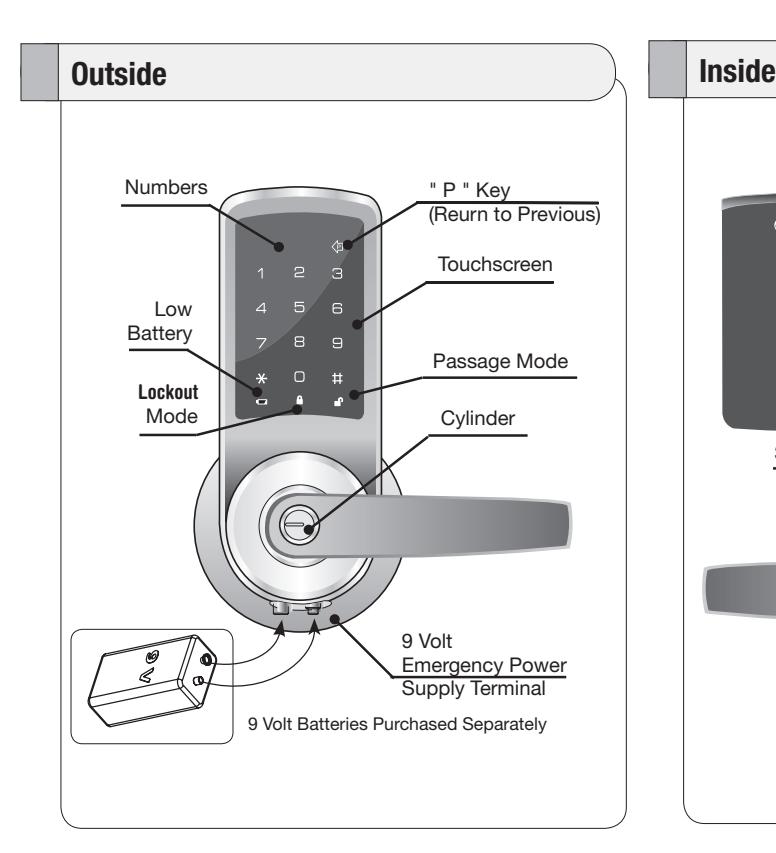

Menu and Icons MPIN Touch the screen with palm of hand or Enter Master PIN code (6 digits in length). Advanced Mode only. Factory default: 123456. fingers to begin and end actions. 1 ~ 0 Enter Supervisor PIN code. Can be 4-12 digits Click the indicated number. in length. Factory default: 1234567890. * Enter User PIN. Can be 4-12 digits in length. Press the Star key on the touchscreen to PIN Enter or Accept entry. SN Supervisor Serial Number (00 - 19). Press the Pound key on the touchscreen to # Advanced Mode only. enter Menu mode User Serial Number (01 - 49). Press this key to return to the previous UN 包 Advanced mode only. step or menu setting. Enter value 1 - 10 (times or seconds). Repeat operation using settings indicated. Enter value 1 - 255 (seconds). The I- Button is located under the battery Ι 1~255 cover. Remove battery cover for access Voice guide. 1 Slide the batter cover up and off. ((

1 Low Battery	2 Passage Mode	3 Lockout Mode	Return to Previous Step 5	Lock and Unlock - Audio and Visual
1 2 3 4 5 6 7 8 9 ***********************************	1 2 3 4 5 6 7 8 8 * 0 \\#/\	1 2 3 4 5 6 7 8 9 *********************************	1 2 3 4 5 8 7 8 9 * 0 #	1 2 3 4 5 6 7 8 9 ** 0 ##

Definitions

Advanced Mode: See "Advanced Mode" on page 14.

All Code Lockout : Advanced mode only. This feature is enabled only by the Master code. When enabled, it restricts all user PIN code access. When the unit is in Lockout, the red locked padlock will appear on the screen.

Easy Mode: See "Easy Mode" on page 12.

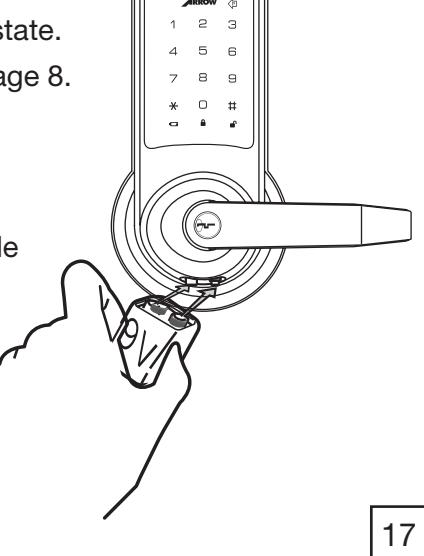

Emergency Power Supply : 9V battery connections are located under the front of the outside escutcheon. In the case that the 4 AA alkaline batteries are completely discharged, a 9V battery can be used to supply power to the lock. While connecting the 9V battery, the lock can be operated as normal, thus granting access so the 4 AA alkaline batteries can be replaced.

Group Lockout : Advanced mode only. This feature can be enabled by either the Master code or the Supervisor code. If Group Lockout is enabled through the Master code, specific Supervisors and their entire group of Users will be locked out. If Group Lockout is enabled through the Supervisor code, only Users corresponding to that Supervisor are locked out.

Definitions

I -Button : Easy mode only. Located under the battery cover, the "I" button is used for changing the default Supervisor code and can be used for programming.

Low Battery : When battery power is low, the low battery icon will begin blinking. If battery power is completely lost, the emergency power supply can be used.

Operating Modes : Revolution features the choice of Easy or Advanced operating modes. The desired operating mode should be determined before the completion of lock installation, but can be changed at a later time if required.

Passage Mode : Easy and Advanced mode. Enabling Passage mode allows continuous entry for non-restricted traffic. Passage mode is enabled or disabled through feature programming by either the Master or Supervisor code. When the unit is in Passage Mode, the green unlocked padlock will appear on the screen.

Master Code : Advanced mode only. The Master code is used for programming Supervisor codes and also for feature settings. The Master code will not operate the lock.

Re-lock Time : After successful code entry and the unit unlocks, it will automatically relock after a default of five (5) seconds. Re-lock time is adjustable from one (1) to ten (10) seconds in Advanced mode only through feature settings.

Shut Down Time : The unit will shut down for a default of one hundred and eighty (180) seconds and not allow operation after the wrong code entry limit has been met. Shut down time is adjustable from one (1) to two hundred and fifty-five (255) seconds in Advanced mode only through feature settings. When the unit is in Shut Down, the red locked padlock icon will be flashing.

Silent Mode : Easy and Advanced mode. Enabling Silent mode shuts off the code confirmation tone playback for use in quiet areas. Silent mode is enabled or disabled through feature programming by either the Master or Supervisor code.

Status LED : Located on inside escutcheon. Flashes green to indicate lock in Passage mode.

Supervisor Code : Easy and Advanced mode. The Supervisor code is used for programming User codes and also for feature settings. The Supervisor code will operate the lock.

User Code : Easy and Advanced mode. The User code is used for operating the lock.

User Lockout : Advanced mode only. This feature can be enabled only by the Supervisor code. When enabled, it restricts User PIN code access only for specified User numbers corresponding to that Supervisor.

Wrong Code Entry Limit : After a default of five (5) unsuccessful attempts at entering a valid PIN code the unit will shut down and not allow operation. Wrong code entry limit is adjustable from one (1) to ten (10) times in Advanced mode only through feature settings.

OPERATING MODES

Easy Mode

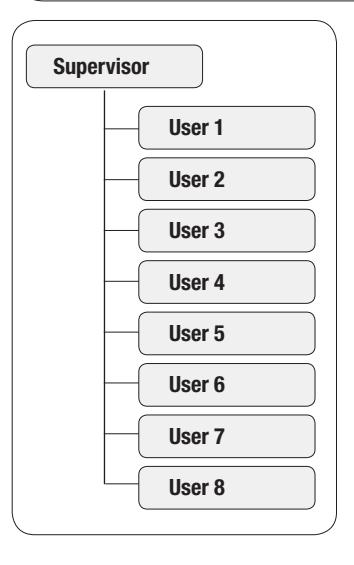

Provides a simple, easy-to-use system for general use. In Easy mode, a total of 9 PIN codes are available for access. Code assignments consist of one (1) Supervisor code and eight (8) User codes.

• Initial programming is performed by the use of the button (located under the battery cover of the inside escutcheon) and voice guided instruction. Subsequent changes to programming can be performed through the touchscreen by the use of the Supervisor code.
• While in Easy mode, the lock can be programmed for Passage mode, Silent mode or alternate Language settings. Auto Re-lock time, wrong code entry limits and shut down times are not adjustable and will remain as factory default.
• Note: After initial set-up, individual User PIN codes can not be added to or deleted from programming. Upon entering the Register/Change user code function, ALL existing User codes are deleted and must be re-entered if needed.
• The operating mode can be changed from Easy to Advanced or visa versa for any lock. Changing the mode resets the lock to factory defaults and all prior programming and PIN codes will be lost. See page 17 for more information.

Feature	Supervisor	User
Entrance Authorization	x	x
Register/Change User Code	x
Set Passage Mode	x
Set Silent Mode	x
Set Language Setting Mode	x

Programming	I-Button	Touchscreen
Set/Change Supervisor PIN	x
Set/Change User PIN (1 - 8)	x	x

Settings	Factory Defaults
Supervisor Code	1234567890
Passage Mode	Disabled
Silent Mode	Disabled
Re-lock Time	5 Seconds
Wrong Code Entry Limit	5 Times
Shut Down Time	180 Seconds
Language	English

Operation of Lock

Touch lock with palm of hand or fingers to activate.

Enter PIN code. Palm or touch the key to confirm the selection.

Turn lever to open door.

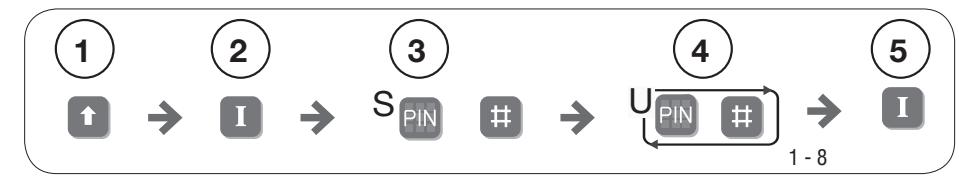

Register / Change PIN Codes (including Supervisor Code) through I-Button

1

Unscrew battery cover hex screw using tool provided. Slide battery cover up and off to reveal the batteries.

2

Press the u button one time

Lock Response:

"Register User code. Enter one Supervisor then up to 8 users. Enter a 4 to 12 digit PIN code, each followed by the the wey. Press the button to complete."

3

Enter the new Supervisor PIN code (4 to 12 digits), followed by the ## key.

Lock Response: Sounds a tone for each PIN code digit with digits flashing in the sequence entered to confirm the entry. Chime signals when playback is complete.

4

Enter the first User PIN code (4 - 12 digits) followed by the # key.

Lock Response: Sounds a tone for each PIN code digit with digits flashing in the sequence entered to confirm the entry. Chime signals when playback is complete.

Continue to enter add User PIN codes (4 to 12 digits each) followed by the key. Up to eight User PIN codes can be entered.

5

Press the 1 button to complete the process after the last playback sequence.

Lock Response: "Registered."

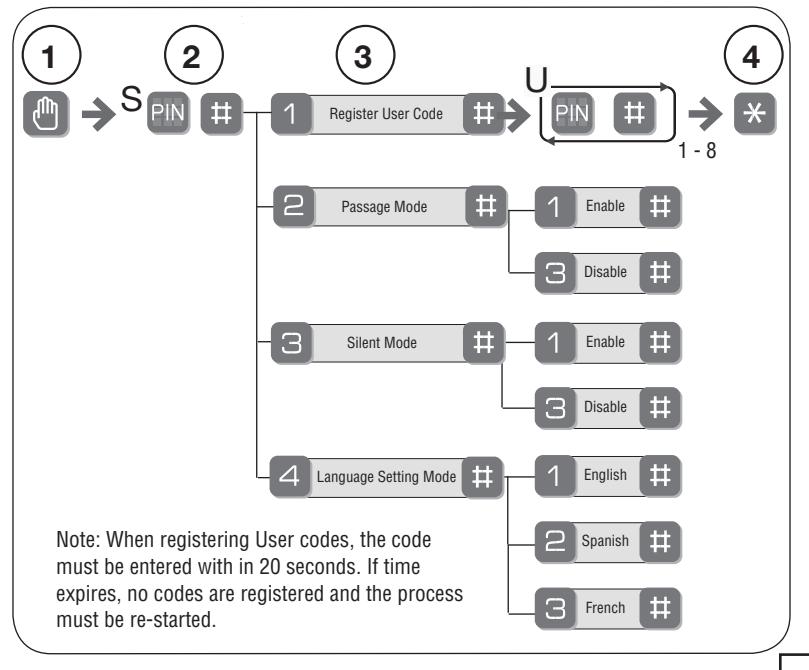

Feature Programming Through Menu Mode via Supervisor Code

• Touch the screen with the palm of your hand or fingers to acitivate
• 2. Enter the 4-12 digit Supervisor PIN code followed by the key. Lock Response: "Menu mode, enter number, press the key to continue."
• 3. Enter digit corresponding to the function to be performed followed by the # key.

Follow the verbal commands.

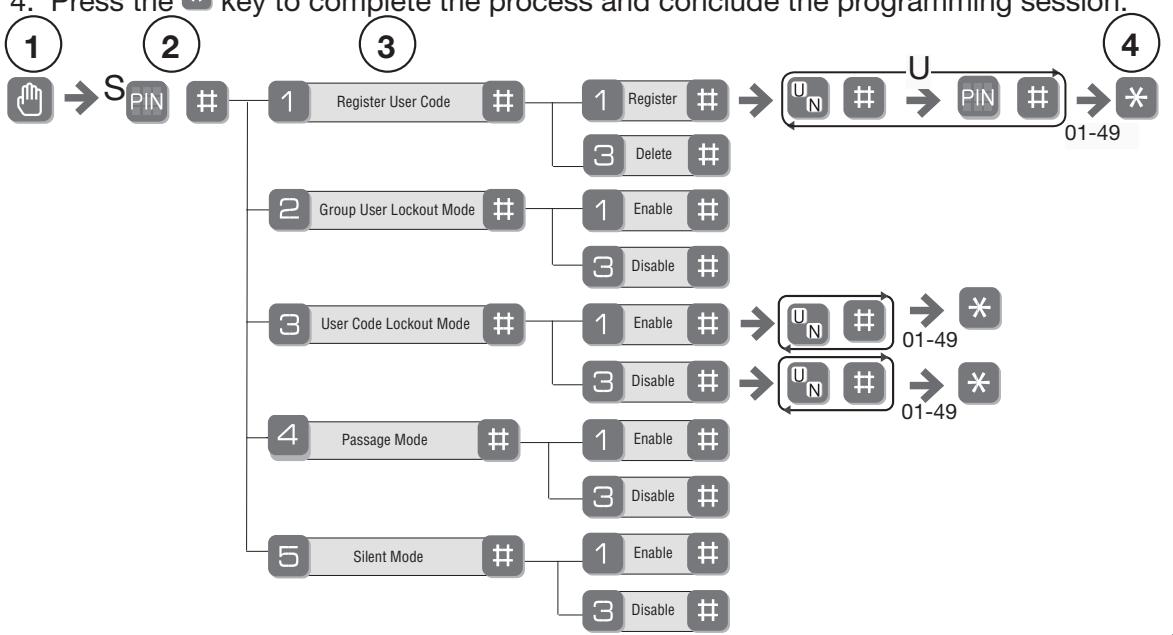

4. Press the key to complete the process and conclude the programming session.

13

Advanced Mode

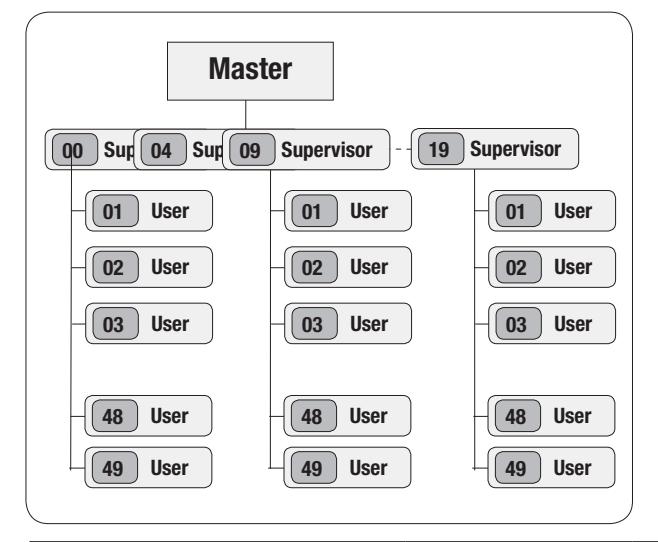

Provides a 3-tier PIN code system for commercial use. In Advanced mode, a total of 1,000 PIN codes are available for access. The 1,000 PIN codes are divided into twenty (20) Supervisor groups of fifty (50) User codes per group.

Advanced mode also has a Master code which is used only for programming and does not grant access.

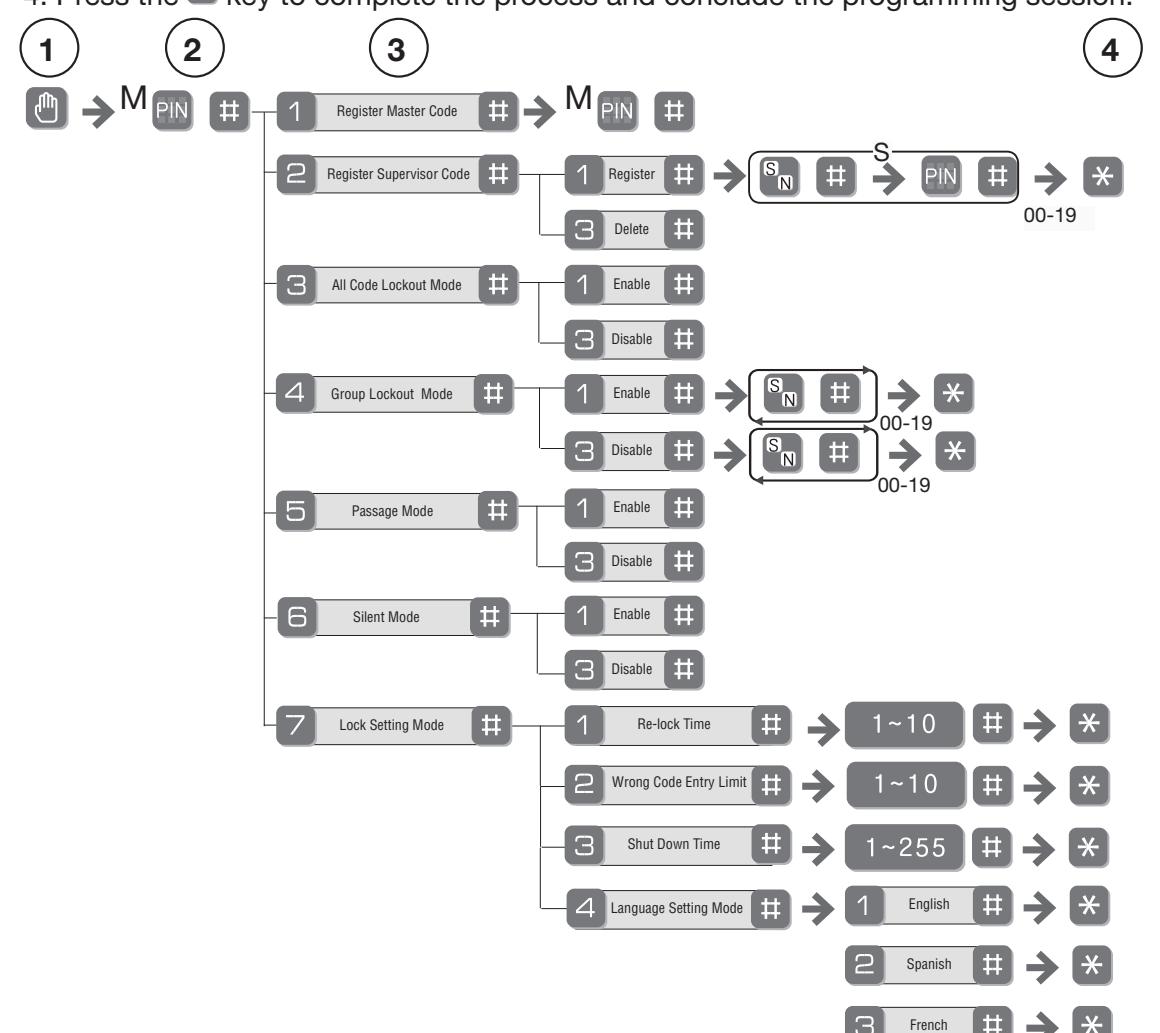

• All programming is performed through the touchscreen using the Master or Supervisor code and voice guided prompts. Only the Supervisor code can establish User codes.
• While in Advanced mode, the lock can be programmed for Passage mode, Silent mode, Lockout mode or alternate Language settings. Auto re-lock time, wrong code entry limits and shut down times are adjustable can be changed from factory default.
• The operating mode can be changed from Advanced to Easy or visa versa for any lock. Changing the mode resets the lock to factory defaults and all prior programming and PIN codes will be lost. See page 17 for more information.

Settings	Master	Supervisor	User
Entrance Authorization		x	x
Register/Change Master Code	x
Register/Change/Delete Supervisor Code	x
Register/Change/Delete User Code		x
Set All Code Lockout Mode	x
Set Group Lockout Mode	x	x
Set User Lockout Mode		x
Set Passage Mode	x	x
Set Silent Mode	x	x
Set Re-lock Time	x
Set Wrong Code Entry Limit	x
Set Shut Down Time	x
Set Language Setting Mode	x

Settings	Factory Defaults
Master Code	123456
Lockout Mode	Disabled
Passage Mode	Disabled
Silent Mode	Disabled
Re-lock Time	5 Seconds
Wrong Code Entry Limit	5 Times
Shut Down Time	180 Seconds
Language	English

Operation of Lock

Touch lock with palm of hand or fingers to activate.

Enter PIN code. Palm or touch the key to confirm the selection.

Turn lever to open door.

Change Default Master Code Before Programming

• 1. Touch the screen with the palm of your hand or fingers to activate .
• 2. Enter the 6-digit default Master PIN code (123456) followed by the key. Lock Response: "Menu mode, enter number, press the key to continue."
• 3. Enter "1" followed by the key.
• 4. Enter new 6-digit Master PIN code followed by the key.
• 5. Press key to complete the process and conclude the programming session.

Feature Programming Through Master Code

• 1. Touch the screen with the palm of your hand or fingers to acitivate .
• 2. Enter the 6-digit Master PIN code followed by the key. Lock Response: " Menu mode, enter number, press the key to continue ."
• 3. Enter digit corresponding to the function to be performed followed by the key. Follow the verbal commands.
• 4. Press the key to complete the process and conclude the programming session.

Set Up Supervisor Codes

• 1. Touch the screen with the palm of your hand or fingers to acitivate .
• 2. Enter the 6-digit Master PIN code followed by the key. Lock Response: " Menu mode, enter number, press the key to continue ."
• 3. Enter "2" followed by the key.
• 4. Enter "1" followed by the key.
• 5. Enter the Supervisor number to register (00-19) followed by the key.
• 6. Enter a 4-12 digit PIN code for the Supervisor number followed by the key.
• 7. Press the key to complete the process and conclude the programming session.

Feature Programming Through Supervisor Code

• 1. Touch the screen with the palm of your hand or fingers to activate.
• 2. Enter the 4-12 digit Supervisor PIN code followed by the key. Lock Response: "Menu mode, enter number, press the key to continue."
• 3. Enter digit corresponding to the function to be performed followed by the key. Follow the verbal commands.

4. Press the key to complete the process and conclude the programming session.

To Set Up User Codes

User Codes can only be programmed through Supervisor Code.

• 1. Touch the screen with the palm of your hand or fingers to acitivate .
• 2. Enter the 4-12 digit Supervisor PIN code followed by the key. Lock Response: " Menu mode, enter number, press the key to continue ."
• 3. Enter "1" followed by the key.
• 4. Enter "1" again, followed by the key.
• 5. Enter the User number to be registered (01-49) followed by the key.
• 6. Enter a 4-12 digit PIN code for the User number followed by the key.
• 7. Press the key to complete the process and conclude the programming session.

MISCELLANEOUS INFORMATION

To Change Operating Modes

Note: Changing the operating mode from Easy to Advanced or vice versa deletes all prior programming.

The outside assembly remains assembled.

• 1. Remove inside lever.
• 2. Remove battery cover using Allen wrench provided with lock.
• 3. Remove four (4) AA alkaline batteries.
• 4. Remove the 10-32 x 3/4" pan head screw from the center of the battery housing into the barrel nut of the outside assembly.
• 5. Remove inside escutcheon.
• 6. On the back of the PC board, change the position of the EASY / ADVANCED switch.

To reassemble the lock, refer to steps 9 through 13 on page 8.

To Return Lock to Programming Defaults

To return the lock to programming defaults without changing the operating mode :

• 1 6. Follow steps 1 through 6 (above).
• 7. Insert the four (4) AA alkaline batteries. The lock responds, "Welcome to the Arrow Digital World."
• 8. Remove the batteries.
• 9. Change the position of the EASY / ADVANCED switch to original state.
• 10. Reassemble the lock by referring to steps 9 through 13 on page 8.

All programming should be returned to factory defaults.

Emergency Power Suppy and Battery Replacement

9V battery connections are located under the front of the outside escutcheon. In the case that the 4 AA alkaline batteries are completely discharged, a 9V battery can be used to supply power to the lock. While connecting the 9V battery, the lock can be operated as normal, thus granting access so the 4 AA alkaline batteries can be replaced. Discharged batteries should be replaced right away.

TROUBLESHOOTING

Symptom	Suggested Action
Lock does not respond – door is open and accessible.	• The touchscreen will become active when pressed with the palm or fingers in at least 3 areas simultaneously.
	• Use a larger area of the palm or fingers and verify contact with at least 3 areas.
	• If touchscreen numbers are visible, check to see if they respond when pressed.
	• Check batteries are installed and oriented correctly in the battery case.
	• Check batteries are in good condition; replace batteries if discharged (page 17).
	• Check to see if touchscreen cable is properly connected and not pinched (page 7).
Lock does not respond – door is locked	• Batteries may be completely discharged.
and inaccessible.	• Use mechanical key to gain entry and replace batteries.
	• Connect a 9-volt battery to the emergency power supply terminal which is located on the outside escutcheon, under the lever. With the 9-volt battery con nected, palm the touchscreen, enter PIN code, and palm touchscreen again (page 17). Replace batteries.
The unit is on for a while, and then shows no reaction. Lights dim.	• The batteries do not have enough power. Replace the batteries.
Unit chimes to indicate code accep-	• Check to see if there is another locking device on the door (i.e. deadbolt).
tance, but the door will not open.	• Check the door gaps for any foreign objects between door and frame.
	• Check that the motor cable is firmly connected to the PC board header marked "MOTOR" (page 7).
Unit operates to allow access, but will	• Check to see if Passage Mode is enabled (pages 15-16).
not automatically re-lock.	• If the Passage Mode icon on the touchscreen and the status indicator on the
	• interior escutcheon flicker for several seconds, it is set at Passage Mode (page 9). Disable Passage Mode to lock the door.
	• If low battery indicator is lit (page 10), change batteries.
PIN codes will not register.	• PIN codes must consist of 4 to 12 digits to register.
	• The same PIN code cannot be used for multiple users.
	• In Advanced Mode, registration/management of PIN codes is set at the authority of Master and/or Supervisor.
	• Contact the Master or Supervisor.
	• In Advanced mode, the Master PIN code does not unlock the door.
	• In Easy Mode, User codes must be entered within 20 seconds (while the touchscreen is active) or the process will have to be restarted.
	• In Easy Mode, the Supervisor PIN code can only be registered using the I-Button.
	• The star (*) or pound (#) can not be used as part of the PIN code.
Upon entering a PIN code and pressing	• Either All Code, Group or User Lockout Mode is enabled (15-16).
the star (*) key, the unit displays and "invalid code" error or the lock times	• Only the Master or Supervisor can enable Lockout Mode.
out without responding.	• Contact the Master user or Supervisor.
Upon entering a PIN code and pressing	• Check to see if either you or your group is set at Lockout Mode.
the (*) key, the red padlock icon ap pears and there are different tones.	• Setting/managing Lockout Mode is up to Master and Supervisor. Contact the Master user or Supervisor.
The unit operates, but it makes no sound.	• Check to see if Silent Mode is enabled (page 13, 15).
The unit responds "Low Battery"	• This is the voice alarm alerting that it is time to replace the batteries. Replace all four (4) batteries with new AA Alkaline batteries.
Upon entering a PIN code and pressing the star (*) key, the unit responds "Wrong digit numbers."	• The digits entered were incorrect or incomplete. Re-enter the code.

PIN CODE MANAGEMENT SAMPLE SHEETS

Easy Mode PIN Code Management
Door Number:			Door Number:
	Name	PIN Number		User Name	PIN Number
Supervisor			Supervisor
User 1			User 1
User 2			User 2
User 3			User 3
User 4			User 4
User 5			User 5
User 6			User 6
User 7			User 7
User 8			User 8

				Advanced Mode PIN Code Management
Location:			Door Number:		User	User Name	Group #	User #	PIN Code
User Type	User Name	Group #	User #	PIN Code	User 24
Master					User 25
Supervisor					User 26
User 01					User 27
User 02					User 28
User 03					User 29
User 04					User 30
User 05					User 31
User 06					User 32
User 07					User 33
User 08					User 34
User 09					User 35
User 10					User 36
User 11					User 37
User 12					User 38
User 13					User 39
User 14					User 40
User 15					User 41
User 16					User 42
User 17					User 43
User 18					User 44
User 19					User 45
User 20					User 46
User 21					User 47
User 22					User 48
User 23					User 49

ARROW USA 100 Arrow Drive, New Haven,CT 06536-0915 Phone: (800) 839-3157 Fax: (800) 421-6615 customer-service@assaabloyrss.com

Orders & Customer Service: Arrow Lock & Door Hardware P.O. Box 3075 Salem, VA 24153 Phone USA: 800-839-3157 Fax: 800-421-6615

Phone Canada: 905-738-2466 Fax: 905-738-2678

Invoice Payments Only Arrow Lock Accounts Receivable P.O. Box 640711 Pittsburgh, PA 15264

Return Goods Only (RGA# Required) Arrow Lock & Door Hardware 100 Arrow Lock Drive New Haven, CT 06511

Arrow Architectural Hardware

ARROW® is a registered trademark of Arrrow Architectural Hardware, an ASSA ABLOY Group company. Revolution™ is a trademark of Arrrow Architectural Hardware, an ASSA ABLOY Group company. Other products' brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only. These materials are protected under U.S. copyright laws. All contents current at time of publication.

Arrow Architectural Hardware., an ASSA ABLOY Group company, reserves the right to change availability of any item in this catalog, its design, construction, and/or its materials. Copyright © 2009, Arrow Architectural Hardware, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Arrow Architectural Hardware is prohibited.
