Cylinders & IC Products – Arrow Pointe Flex

Premier Product

The Pointe Flex System offers a totally new concept in interchangeable core key control. The system employs a unique core security feature and patented key design. The unique feature is the pin assembly which runs through the center of the core keyway preventing standard competitive interchangeable core keys from entering the lock cylinder. Only the patented Pointe Flex key can operate locks with the Pointe Flex cylinder. All keyways are restricted and will be issued on a contractual basis, determined by geographical availability. Pointe Flex enables you to create a high/low system, by incorporating core with and without the pin assembly, greatly enhancing flexibility.

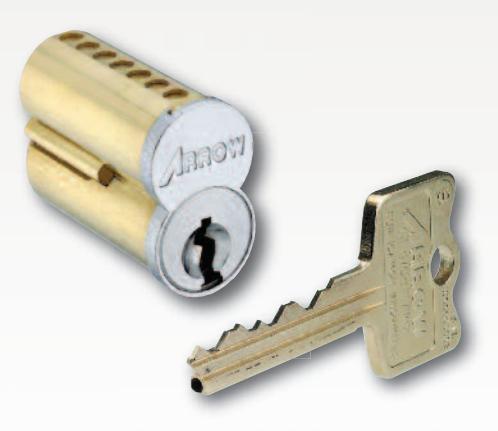

7 PIN INTERCHANGEABLE CORE & PATENTED KEY

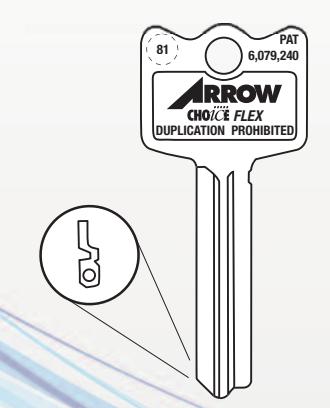

Pointe Flex Key Blanks:

Nickel Silver

CAT NO.	DESCRIPTION
CHX x Keyway	6 or 7 Pin Key Blank, with hole in blade
CH x Keyway	6 or 7 Pin Key Blank without hole in blade

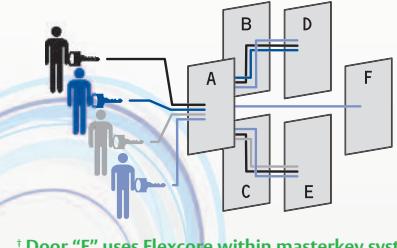

* Dualevel Masterkeying Capabilities.

† Door "F" uses Flexcore within masterkey system.

• Maintenance (A, B, C, D, E) Supervisor A (A, B, D)
• Supervisor B (A, C, E)
• General Manager (All doors)†

Features:

• Available 6 and 7 pin
• Solid brass construction

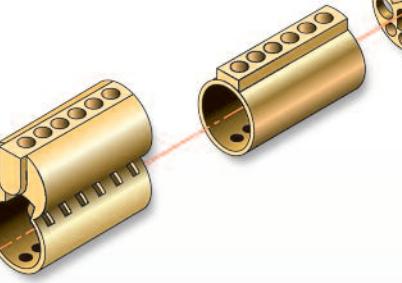

• Reinforced sleeve design
• Combinated or Uncombinated
• US26D or US4 finish

Arrow Keyways:

Restricted keyways-consult factory for availability.

CAT NO.	DESCRIPTION	$/\backslash !/\backslash !/$
X1CR	6 Pin Core Combinated
X71CR	7 Pin Core Combinated
X1CR-UC	6 Pin Core Uncombinated
X71CR-UC	7 Pin Core Uncombinated
