ARROW Lock and Door Hardware
3626 Allegheny Dr Salem, VA 24153 1-800-839-3157

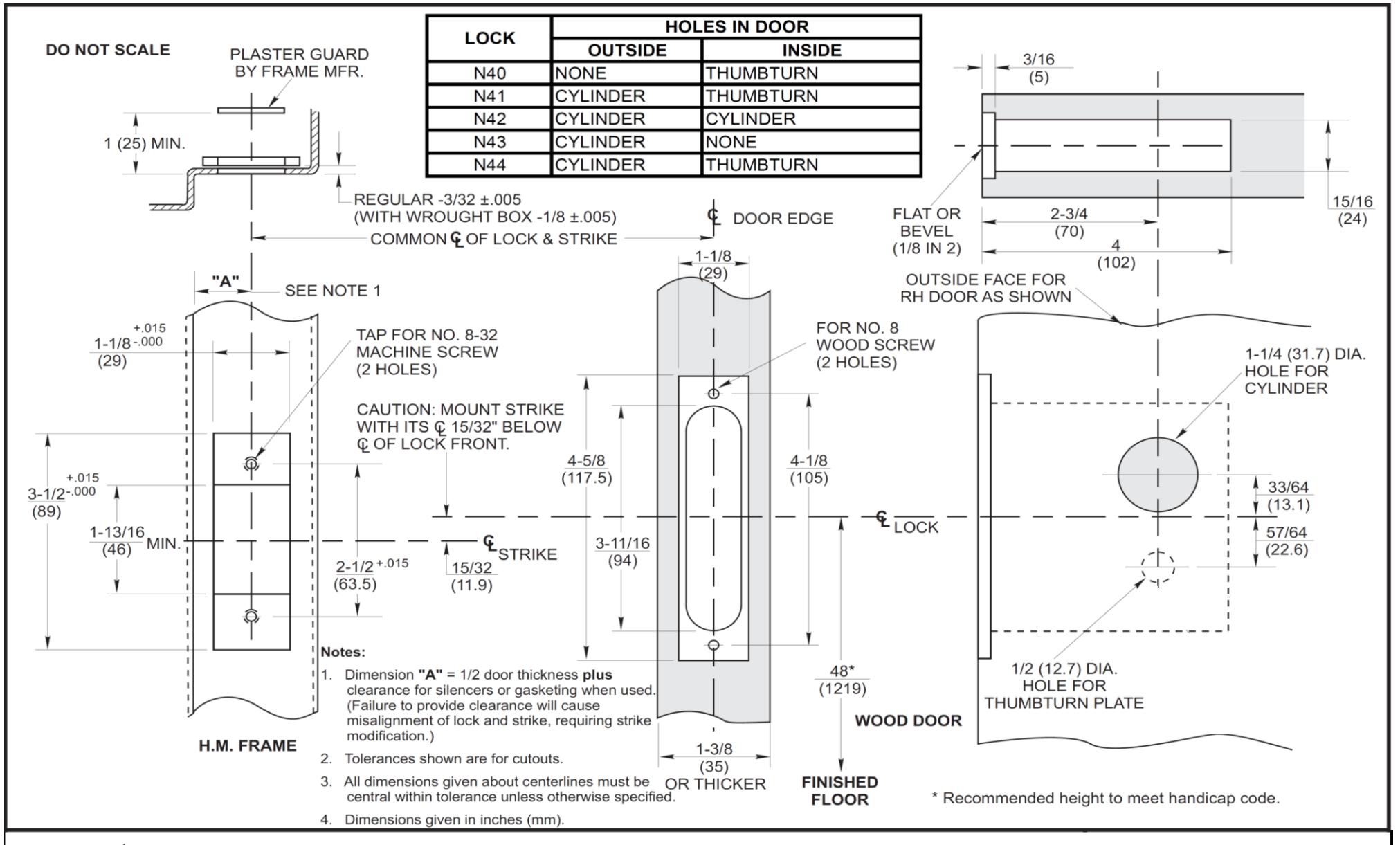

N SERIES LOCK - WOOD DOOR TEMPLATE
| ASSA ABLOY | ||
|---|---|---|
| ACCAADECT | SHEET | 1 of 2 |
| REV. & DATE | TEMPLATE NO. |
|---|---|
| C - 11-16 | 1127A |
ARROW Lock and Door Hardware
3626 Allegheny Dr Salem, VA 24153 1-800-839-3157

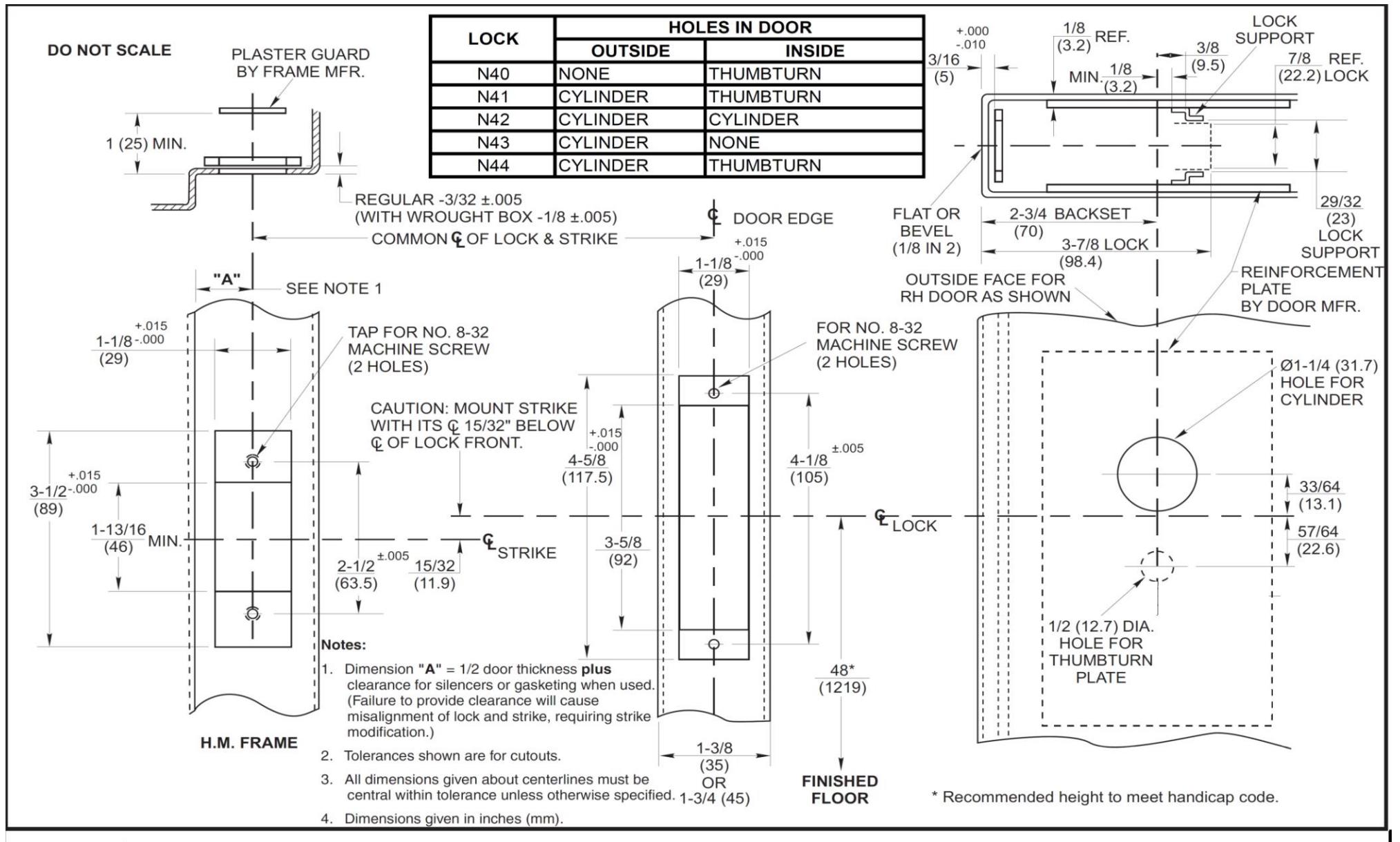

N SERIES LOCK - METAL DOOR TEMPLATE
| SHEET 2 of 2 C - 11-16 1127A | REV. & DATE | TEMPLATE NO. | ||
|---|---|---|---|---|
| SHEET | 2 of 2 | C - 11-16 | 1127A |
ASSA ABLOY
