Arrow Lock & Door Hardware Revolution V1 Lever Wood Door Template

Notes:

1. Do not scale drawing

+.015

(25) Dia.

2-1/4 -.000

1-5/8 ±.005

(41)

• 2. For strike preparation refer to: 371 Strike - Template No. 7102-0005 497 Strike - Template No. 7102-0003

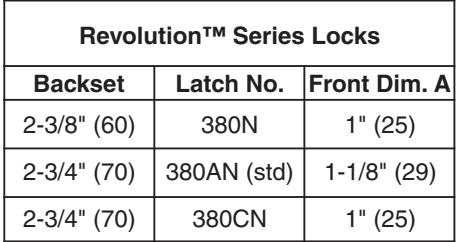

• 3. Backset: 2-3/4" (70mm) standard 2-3/8" (60mm) to order
• 4. For H.M. door preparation refer to Template No. 7150-8016
• 5. All dimensions given in inches (mm).

(63)

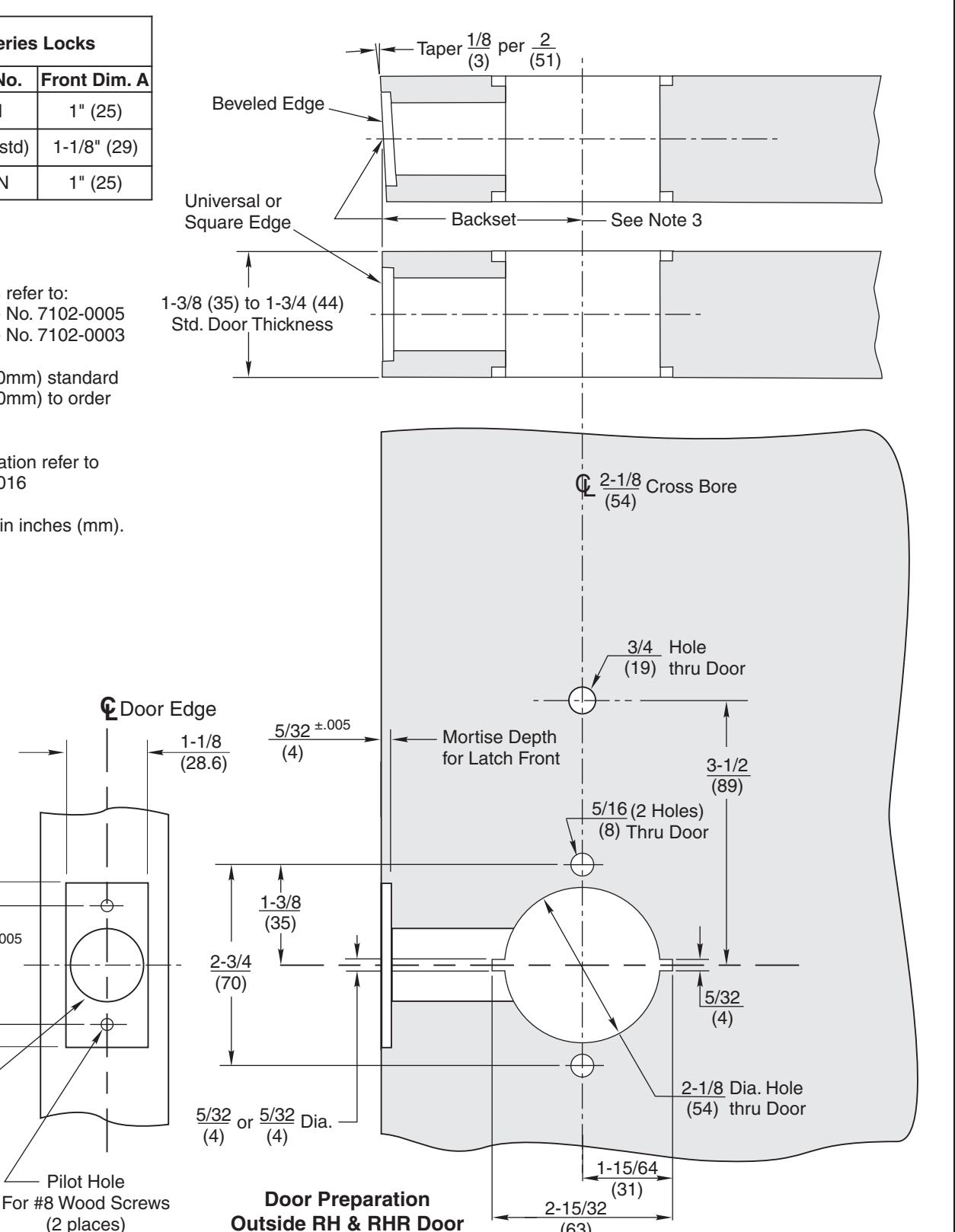

Revolution™ Stand-alone Touchscreen Access Locks Wood Door Preparation 2-3/8" (60mm) and 2-3/4" (70mm) Backsets

Pilot Hole

(2 places)

3625 Allegheny Dr Salem, VA 24153 1-800-839-3157

assa ablo

www.arrowlock.com

V1TEMPL-WD

07-09
