Arrow Lock & Door Hardware Revolution V1 Lever Hollow Metal Door Template
Open the original PDF document
View PDF| Revolution™ Series Locks | ||
|---|---|---|
| Backset | Latch No. | Front Dim. A |
| 2-3/8" (60) | 380N | 1" (25) |
| 2-3/4" (70) | 380AN (std) | 1-1/8" (29) |
| 2-3/4" (70) | 380CN | 1" (25) |
Notes:
- 1. Do not scale drawing
- For strike preparation refer to: 371 Strike Template No. 7102-0005 497 Strike Template No. 7102-0003
- 3. Backset: 2-3/4" (70mm) standard 2-3/8" (60mm) to order
- 4. For wood door preparation refer to Template No. 7150-8017
- Door manufacturer must provide supports within the door to keep the door from collapsing when lock is installed. Back of latch case must also be supported.
- 6. All dimensions given in inches (mm).
+.015
-.000
±.005
1-5/8

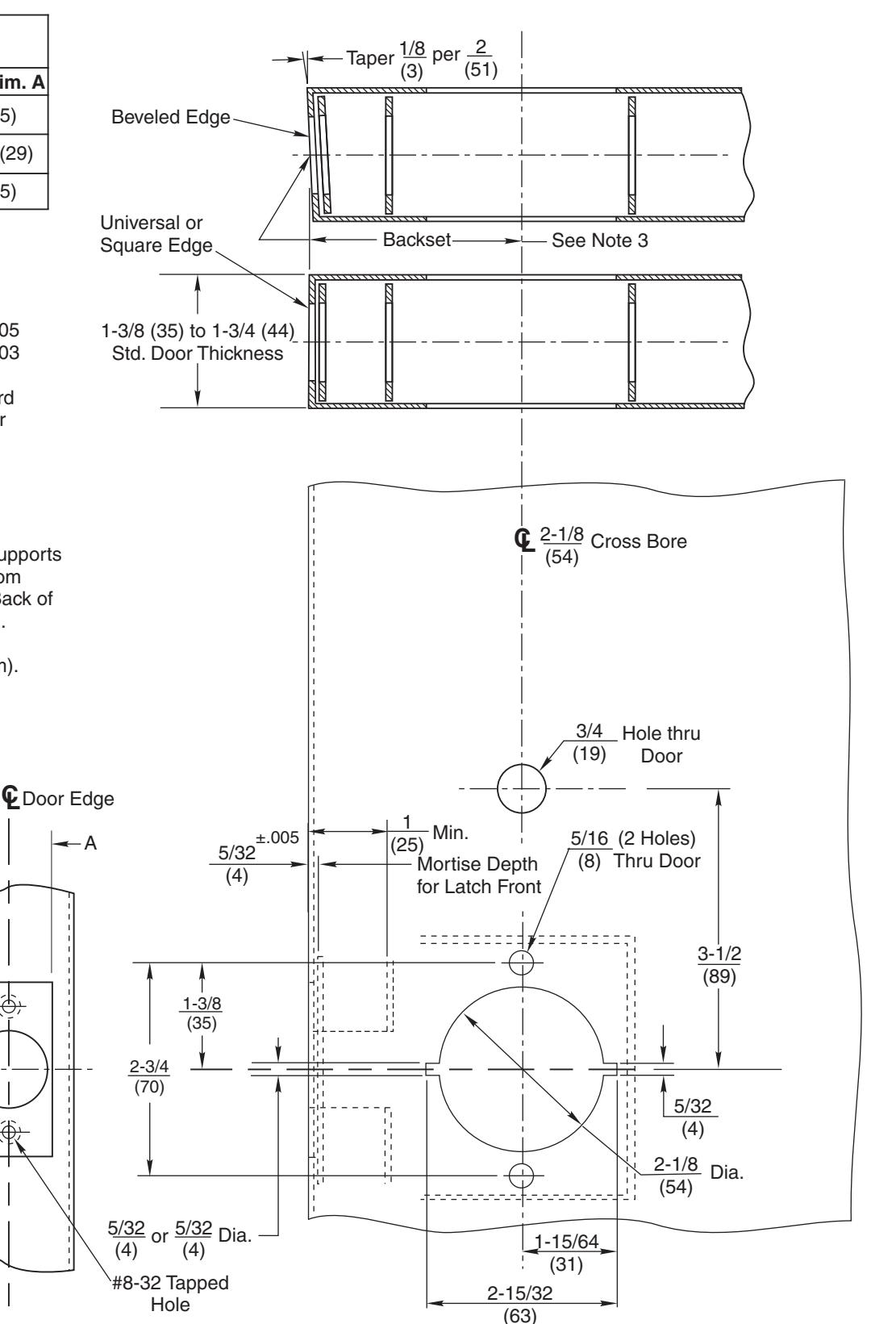

Revolution<sup>™</sup> Stand-alone Touchscreen Access Locks H.M. Door Preparation 2-3/8" (60mm) and 2-3/4" (70mm) Backsets
3625 Allegheny Dr Salem, VA 24153 1-800-839-3157
ASSA ABLOY
www.arrowlock.com
TEMPLATE NUMBER V1TEMPL-HM
07-09
