Arrow Lock & Door Hardware RLX Series Lever Template

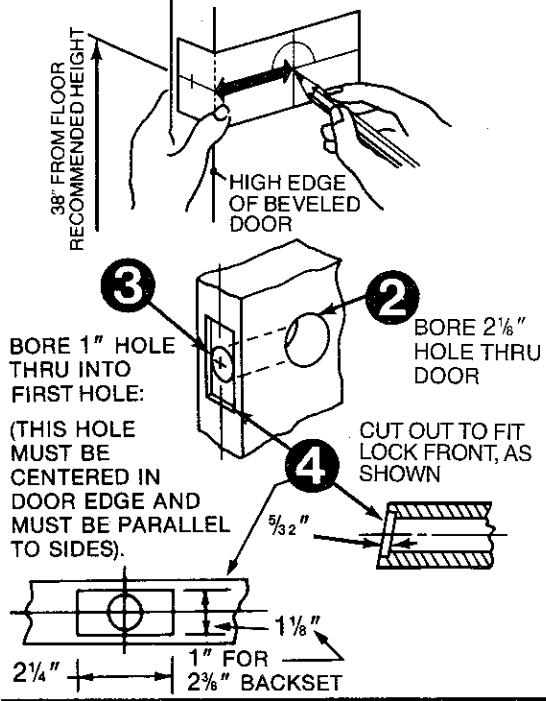

TO MORTISE DOOR FOR LOCK

DETERMINE CORRECT BACKSET AND DOOR THICKNESS—THEN PLACE TEMPLATE ON DOOR AND MARK FOR HOLES.

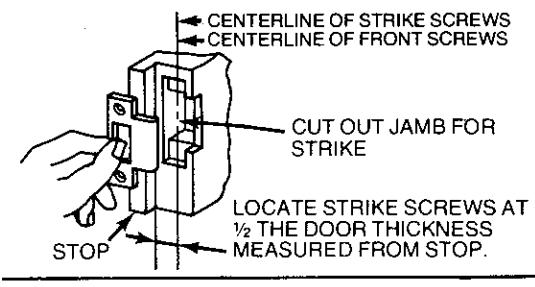

TO MORTISE FRAME FOR STRIKE

WHEN STRIKE BOX IS NOT USED-RECESS IN JAMB, MUST BE DEEP ENOUGH TO ALLOW LATCH BOLT TO EXTEND ITS FULL FREE LENGTH.

GUARD BOLT STOPS ON STRIKE WHEN DOOR IS CLOSED.

SEE REVERSE SIDE
