Arrow Lock & Door Hardware 5016N Series Door CloserTemplate
Open the original PDF document
View PDFPrinted in U.S.A.
(50.8) Max.
Typ. Overhead Stop Channel
* Door/Wall/Hardware/Jamb
131° to *180°
101° to 130°
Opening
To 100°
conditions permitting
Do not scale drawing. Right hand door shown. Dimensions are in inches (mm).
Hollow-metal doors require channel or box-type reinforcement when thru-bolt Door swing may be limited by door, frame, wall or hardware conditions.
Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm) unless otherwise noted.
mount is specified.
Closer Sizes 1-6
| Fast | Fasteners Chart | ||
|---|---|---|---|
| Fasteners | Door or Frame | Drill-Sizes | |
| ard | 1/4" - 20 Self drilling & | Wood |
3/16" (4.76 mm.)
Pilot hole required |
| pue | tapping screw | Metal | No drilling or tapping necessary |
| S | 1/4" - 20 Machine screw | Metal |
drill: #7 (0.201" dia.)
tap: 1/4" - 20 |
| Isnoi | Through-bolts and grommet-nuts | All |
9/32" (7.00 mm.) through;
3/8" (9.50 mm.) dia. x |
| iJdO | 5 | 3/8" (9.50 mm.) deep on door opposite to closer. |

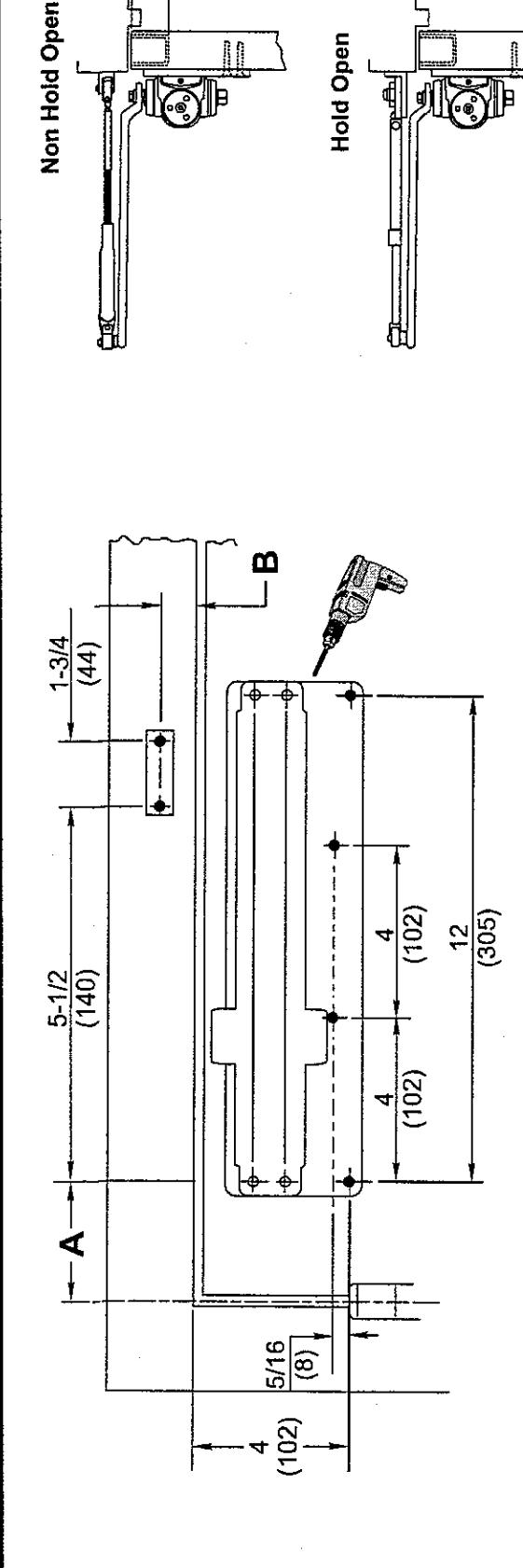

| www.arrowloc | Regular Arm Application with 5016DP Drop Plate for Concealed Stop Clearance |
|---|---|
| TOWN. | 5016N(S)H(D) Series Hold Open Door Closers |
| #Moddy | 5016N(S)(D) Series Non Hold Open Door Closers |
325 Duffy Ave. Hicksville, NY 11801 Phone (516) 704-2700 FAX (516) 704-2790
www.arrowlock.com
TEMPLATE NUMBER 5000N-0104
10-04
Do not scale drawing.
Right hand door shown.
· Dimensions are in inches (mm).
Hollow-metal doors require channel or box-type reinforcement when thru-bolt Door swing may be limited by door, frame, wall or hardware conditions. mount is specified.
Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm) unless otherwise noted
Closer Sizes 1-6
| • | ||||
|---|---|---|---|---|
| les (mm). | ard | 1/4" - 20 Self drilling & | Wood |
3/16" (4.76 mm.)
Pilot hole required |
| ed by door, frame, wall or hardware conditions. | pue | tapping screw | Metal | No drilling or tapping necessary |
| ilre channel or box-type reintorcement when thru-boit | S | 1/4" - 20 Machine screw | Metal |
drill: #7 (0.201" dia.)
tap: 1/4" - 20 |
| mmended for reinforcements in hollow-metal doors and ) unless otherwise noted. | Optional | Through-bolts and grommet-nuts | All |
9/32" (7.00 mm.) through;
3/8" (9.50 mm.) dia. x 3/8" (9.50 mm.) deep on door opposite to closer. |
|
5016N(S)(D) Series Non Hold Open Door Closers
5016N(S)H(D) Series Hold Open Door Closers |
sers | ARROW |
325 Dufty Ave.
Hicksviffe, NY 11801 Phone (516) 704-2790 FAX (516) 704-2790 |
|

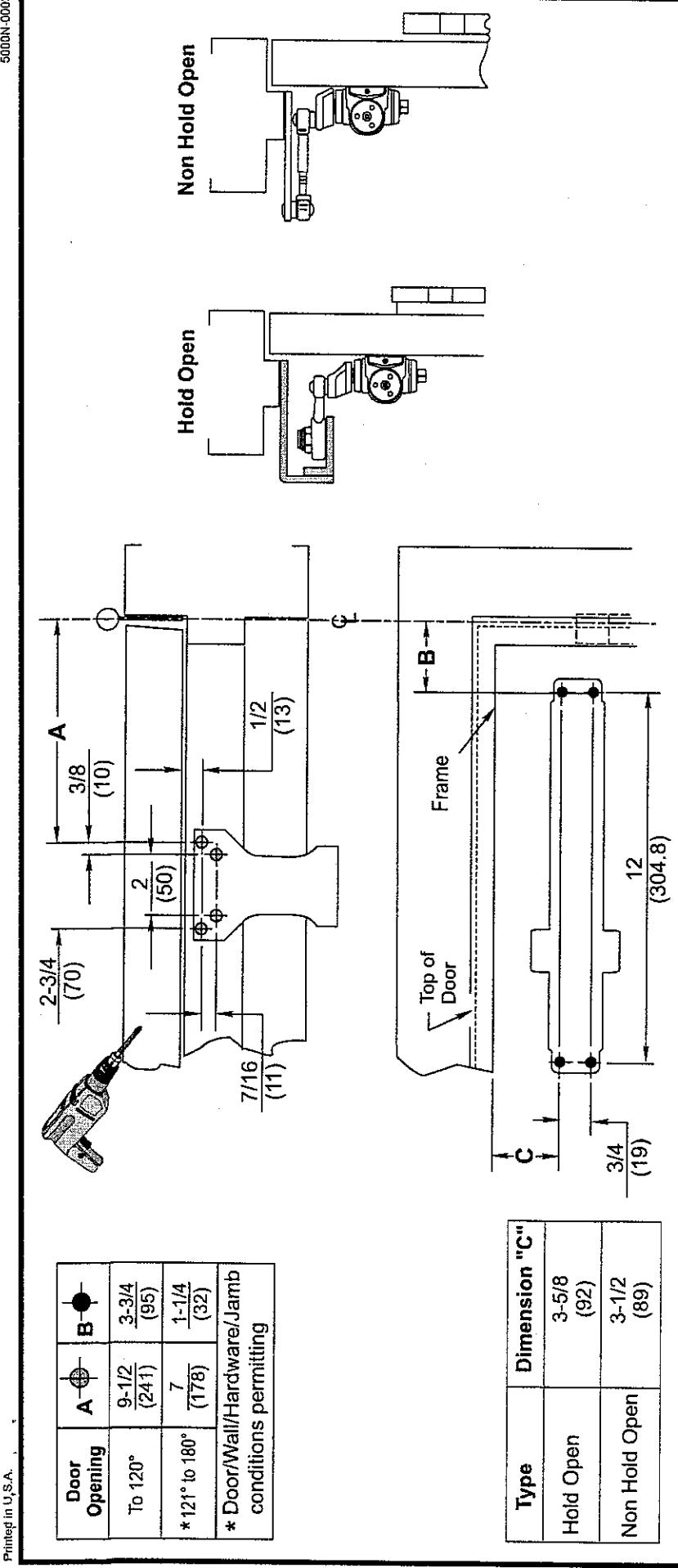

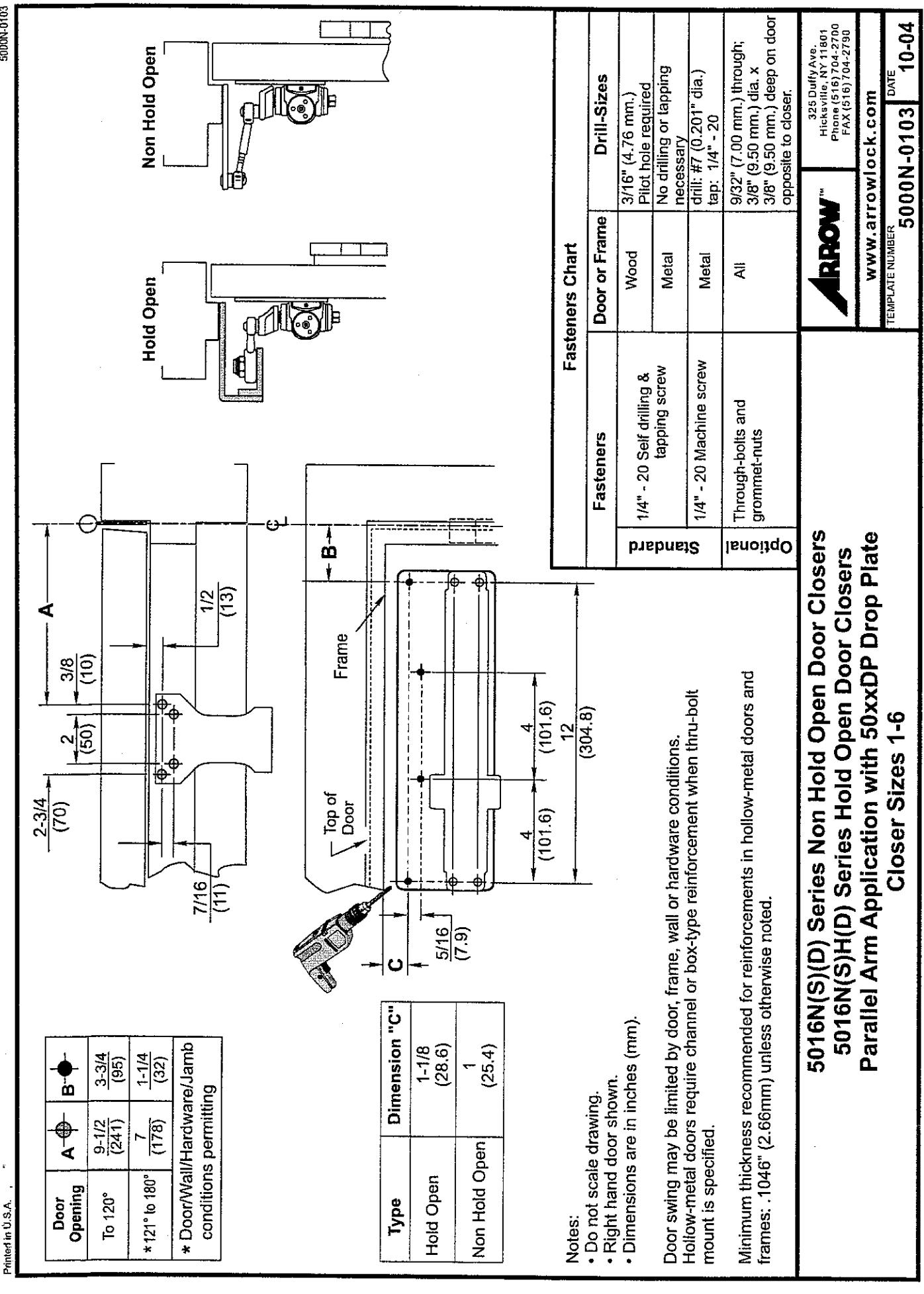

| Parallel Arm Application | www.ar | www.arrowlock.com |
Drill-Sizes
Door or Frame
Fasteners
Fasteners Chart
10-04
5000N-0003
TEMPLATE NUMBER
| Туре | Dimension "B" |
|---|---|
| Hold Open |
4-1/4
(108) |
| Non Hold Open |
3-3/4
(95) |
Dimension "A"
Opening To 100°
7-1/2 (191)
6 (152)
101° to 130°
4-1/2 (114)
131° to *180°
Do not scale drawing.
* Door/Wall/Hardware/Jamb
conditions permitting
-
Right hand door shown.
Dimensions are in inches (mm).
Minimum thickness recommended for reinforcements in hollow-metal doors and Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
frames: .1046" (2.66mm) unless otherwise noted.
Door swing may be limited by door, frame, wall or hardware conditions.
| Fast | Fasteners Chart | |||
|---|---|---|---|---|
| Fasteners | Door or Frame | Drill-Sizes | ||
| рля | 1/4" - 20 Self drilling & | Wood |
3/16" (4.76 mm.)
Pilot hole required |
|
| pue | tapping screw | Metal | No drilling or tapping | |
| 75 | 1/4" - 20 Machine screw | 24045 | drill: #7 (0.201" dia.) | |
| Metal | tap: 1/4" - 20 | |||
| ខេព | Through-bolts and | ΙΨ | 9/32" (7.00 mm.) through; | |
| 10 | arommet-nuts | 3/8" (9.50 mm.) dia. x | ||
| ŋd | 3/8" (9.50 mm.) deep on door | |||
| 0 | opposite to closer. |
| WORRAL. | Total Contract |
|---|---|
325 Duffy Ave. Hicksville, NY 1180 Phone (516) 704-276 FAX (516) 704-2790
TEMPLATE NUMBER
www.arrowlock.com
5000N-0102
10-04

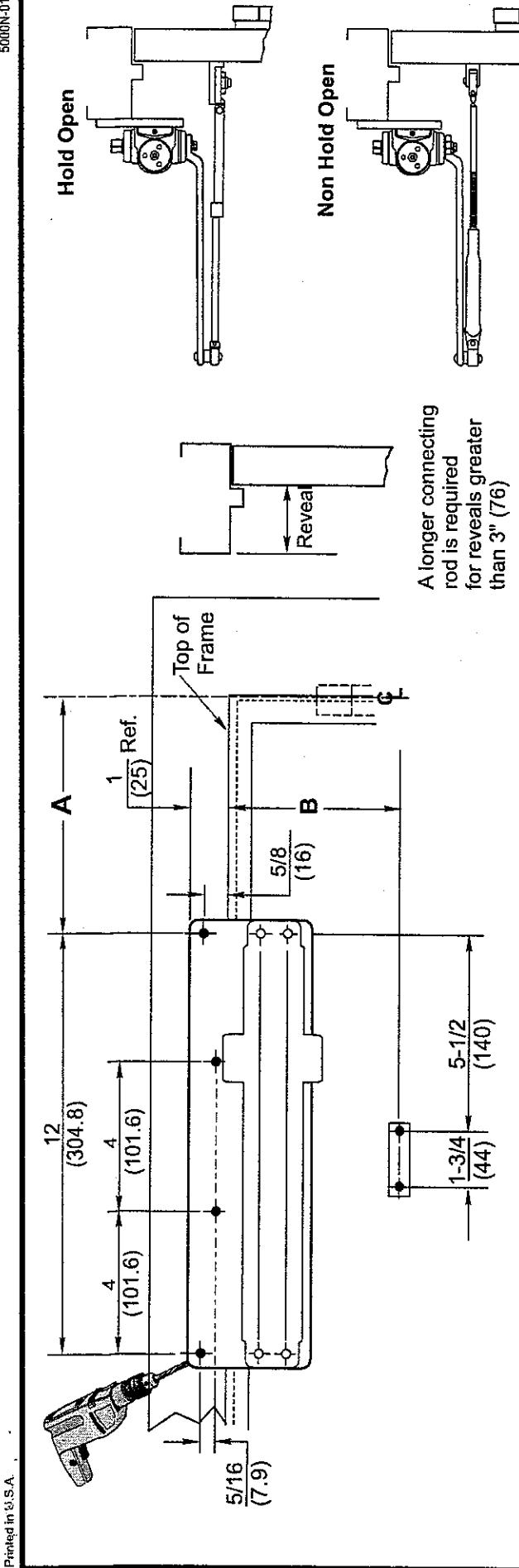

Top Jamb Arm Application with 5016DP Drop Plate
Closer Sizes 1-6
5016N(S)(D) Series Non Hold Open Door Closers 5016N(S)H(D) Series Hold Open Door Closers
