Arrow GL Series Cylindrical Levers Template
Open the original PDF document
View PDF

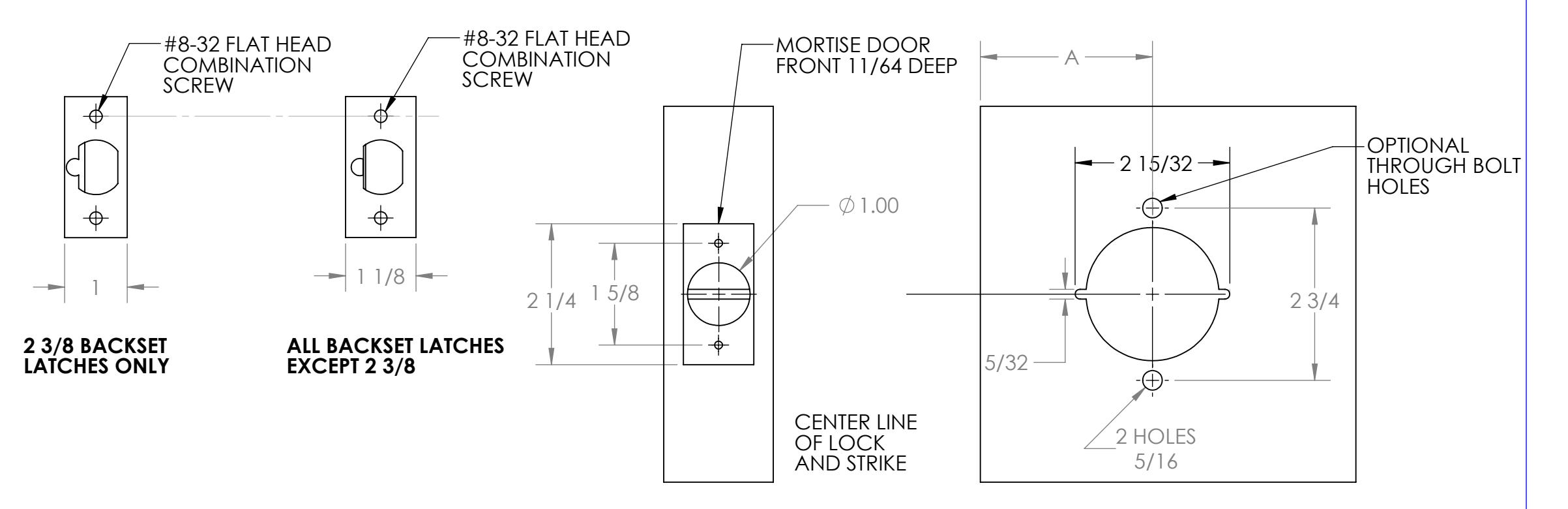

| GL LATCH BACKSETS | ||
| LATCH | BACKSET | |
|
G70
G72 |
2 3/8 OPTIONAL LATCH | |
|
G71
G73 |
2 3/4 STANDARD LATCH | |
|
G81
G83 |
3 3/4 OPTIONAL LATCH | |
|
G91
G93 |
5 OPTIONAL LATCH | |

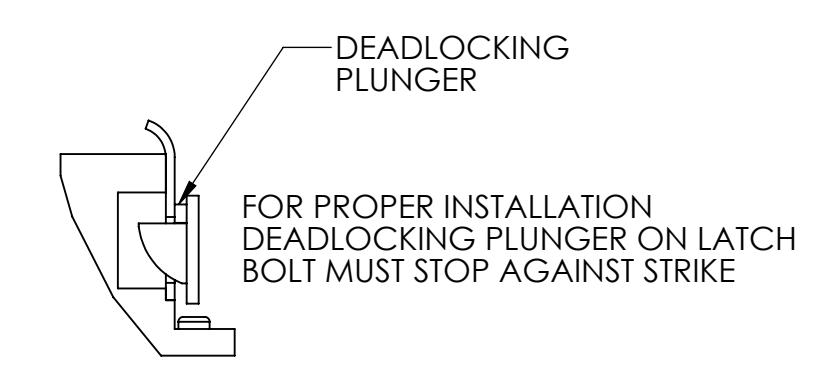

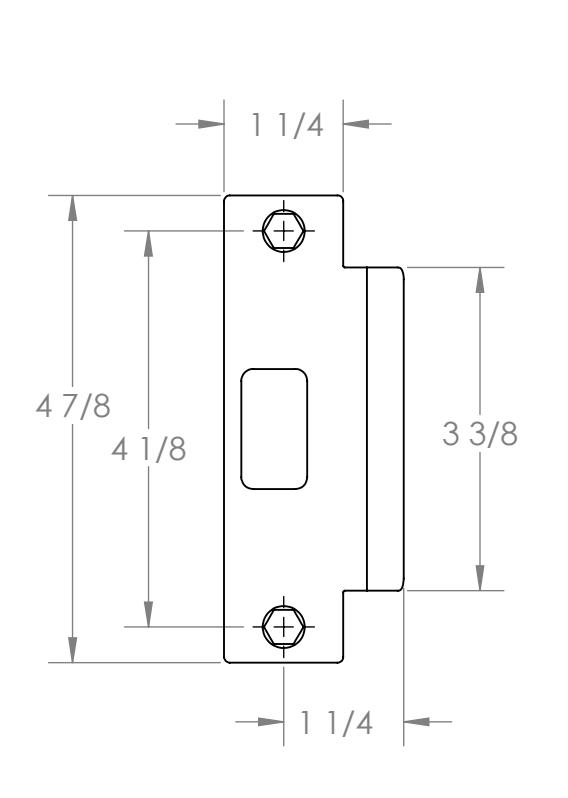

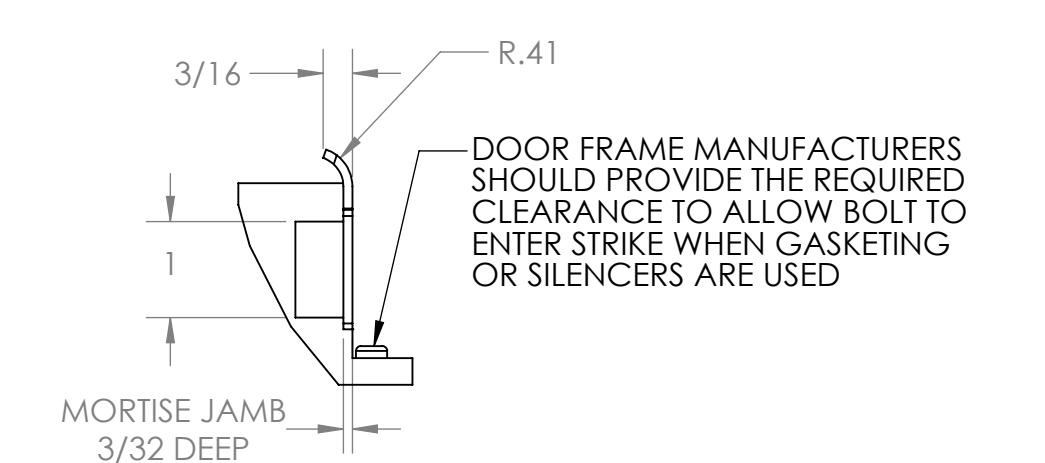

306 STRIKE
CUT OUT THROUGH DOOR
ASSA ABLOY
ARROW Lock and Door Hardware
3626 Allegheny Dr Salem, VA 24153
GL SERIES TEMPLATE
1-800-839-3157
| REV | DATE | TEMPLATE NO. |
|---|---|---|
| Α | 04/14 | GL-001 |
