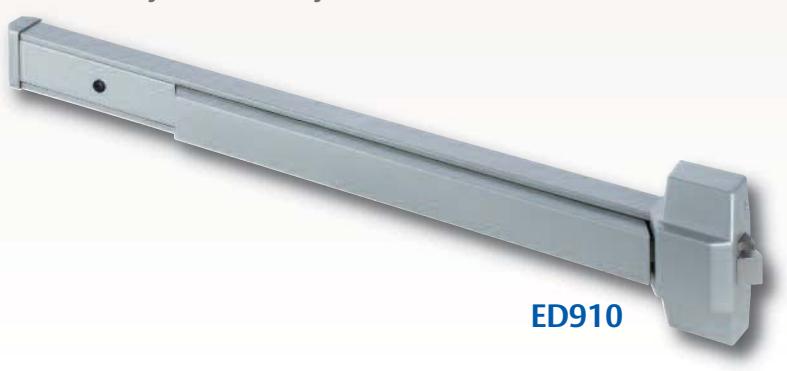

ED910 Series Exit Devices

Certification & Compliance:

• ANSI/BHMA A156.3, Grade 1
• Underwriters Laboratories (UL and CUL) Listed for accident hazard (panic) standard.
• All exit devices comply with life safety code NFPA 101

Professional Replacement Products

The ED910 and PEC910 exit devices are similar in function, yet different in form. The ED910 is a value exit device for everyday solutions whereas the PEC910 features a one-piece design with a patented permanent end cap – ideal for high traffic or high vandalism areas. Both products are BHMA Grade One certidfied and designed to replace or upgrade existing devices. Each also comes with an extended 10-year warranty.

Features:

Chassis – Stamped steel materials

Chassis Cover – Cast zinc

Door Type – Fits 1-3/4" (44.5 mm) doors standard.

Door Width – For 48" doors, can be cut for a minimum 43" door width. For 36" doors, can be cut for a minimum 31" door width.

Stile – 4-1/2" (144.30 mm) minimum

Mounting – Wood and machine screws furnished standard

Handing – Reversible

Dogging – Hex-type hold down

Finishes:

BHMA	Arrow Equiv.	Finish
689	AL	Aluminum (sprayed finish)
630	32D	Satin Stainless Steel
690	BRZ	Dark Bronze (sprayed finish)

For 36" Door Widths:	Part No.
Aluminum Finish (sprayed)	ED910-36.AL/PEC910-36.AL
Satin Stainless Steel Finish	ED910-36.32D/PEC910-36.32D
Dark Bronze Finish (sprayed)	ED910-36.BRZ/PEC910-36.BRZ

For 48" Door Widths:	Part No.
Aluminum Finish (sprayed)	ED910-48.AL
Satin Stainless Steel Finish	ED910-48.32D
Dark Bronze Finish (sprayed)	ED910-48.BRZ

Latchbolt – Stainless steel

Rail Assembly – Powder coated steel, stainless steel optional

Warranty – Ten year warranty

Packaging – 4 units per master carton

Strike – Surfaced applied, nylon coated

ES90 Strike:

Parts:	Part No.
Strike	ES90
Screw Pack	ES9-201
End Cap (aluminum)	ES9CAP.AL
End Cap (dark bronze)	ES9CAP.BRZ
