DC500 Series Door Closers

Classic Product

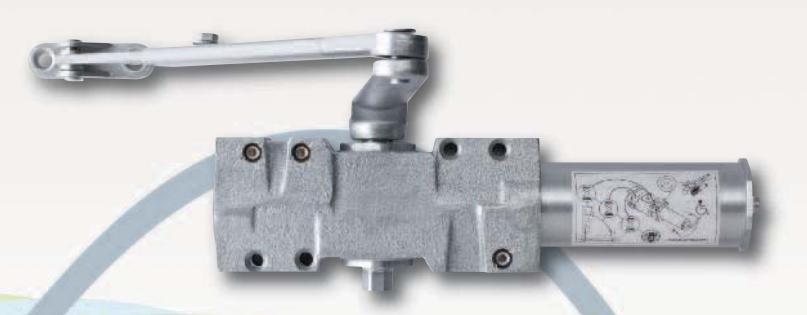

The Arrow DC500 Series Heavy Duty Surface Applied Door Closers are ideal for Institutions or other high traffic applications. The DC500 is designed for end users looking for value and versatility in a rugged design making this series suitable for a wide variety of applications.

Compliance:

  • UL/cUL listed.
  • UL10C listed for positive pressure to comply with UBC-72 (1997).
  • Meets the requirements of ANSI A156.4 and ANSI ICC A117.1. Grade 1
  • Meets ADA requirements (Americans with Disabilities Act).

Look for the universal symbol next to Arrow products that comply with ADA accessibility requirements.

Sizes (Adjustable):

DC516 closers are adjustable for spring sizes 1 through 6.

1 1 5 147 141 8" 50
9mm) (1372 		0 "
4mm)
Á Regular Arm & Top Jamb Size
1 		Size
2 		Size
3 		Size
4 		Size
5 		Size
6
Parallel Arm Size
2 		Size
3 		Size
4 		Size
5 		Size
6
Exterior (& Vestibule) Door Width 24" 30" 36" 42" 48" (610mm) (762mm) (914mm) (1067nm) (1219mm)
Regular Arm & Top Jamb Size
3 		Size
4 		Size
5 		Size
6
Parallel Arm Size
4 		Size
5 		Size
6

Features:

  • Heavy duty cast iron body.
  • Hardened steel rack and pinion.
  • High tensile steel springs.
  • Staked valves
  • Two non-critical adjusting valves (sweep and latch) control closing speed.
  • Backcheck intensity valve.
  • All temperature fluid.
  • Full plastic cover standard.
  • Non-handed for regular, top jamb and parallel arm mount applications.
  • Supplied with fully threaded selfreaming/tapping screws, sleeve nuts and thru-bolts for 1-3/4" thick doors.

  • DC516-1 Series door closers are supplied with a hold open arm.
  • DC516-2 has a heavy duty parallel arm with a stop feature for door openings between 90° and 110°.
  • DC516-3 has a heavy duty parallel arm with a stop and thumb turn hold open feature for door openings between 90° and 110°.
  • Packaging: one per box and four boxes per carton.
  • 10 year limited warranty.

Finishes:

  • Aluminum (689), Specify AL
  • Dark Bronze (690), Specify DBZ

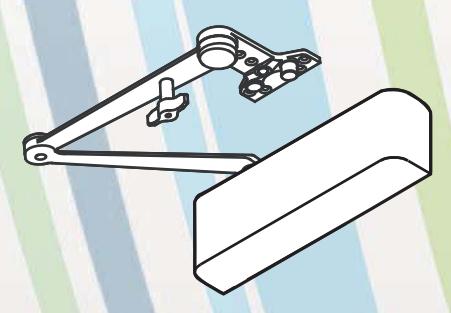

Regular Arm Installation

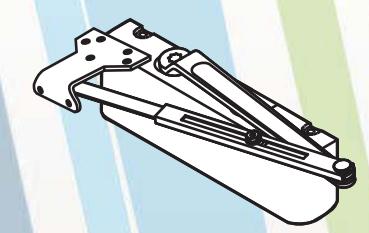

Top Jamb Installation

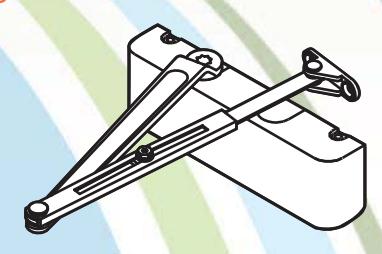

Parallel Arm Installation

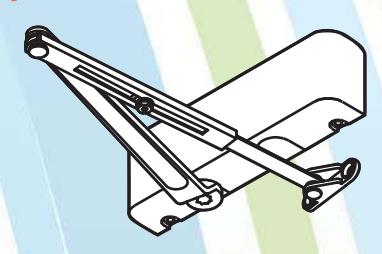

Heavy Duty Parallel Arm Installation
