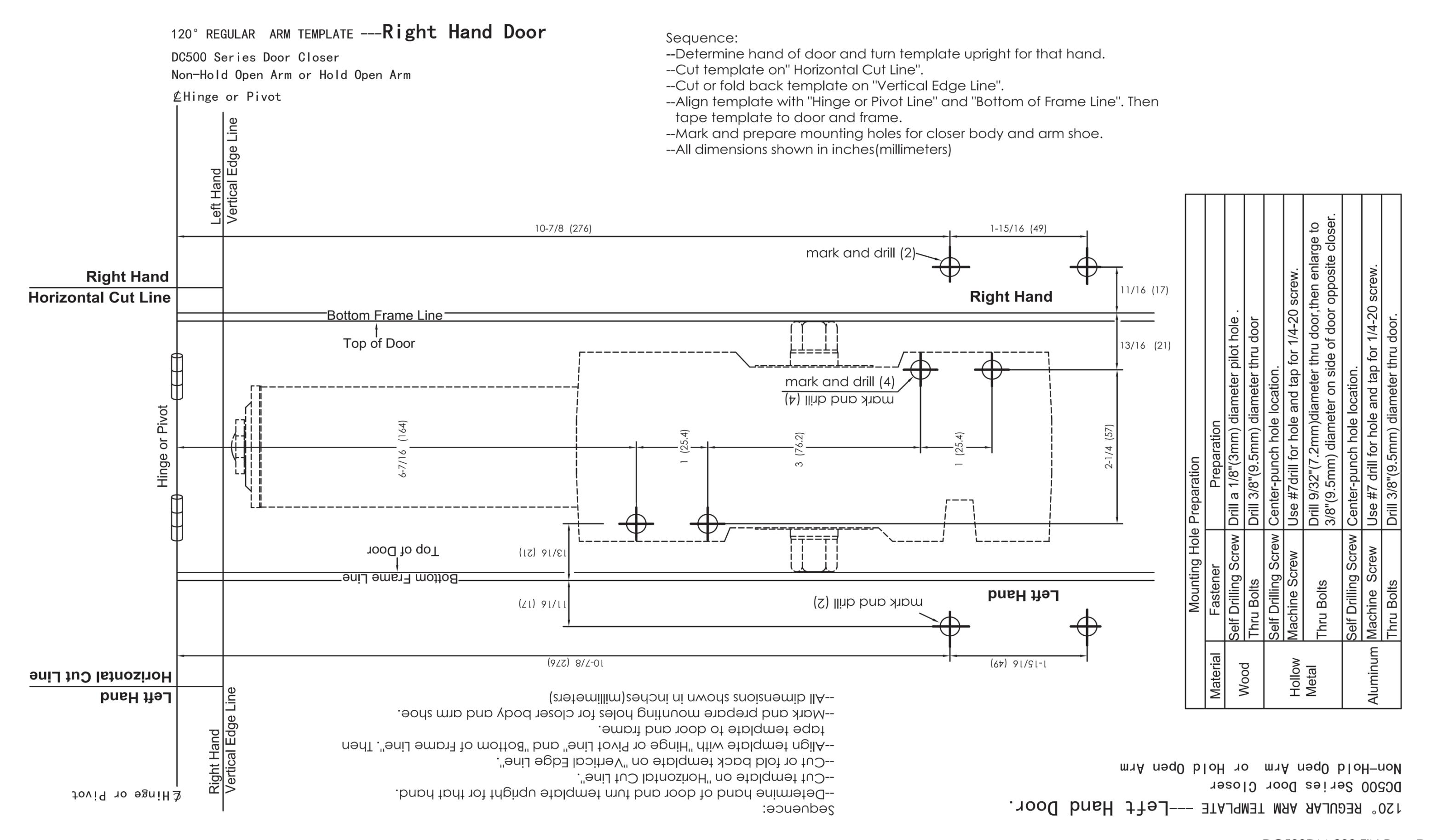

Arrow DC500 Series Door Closer Template

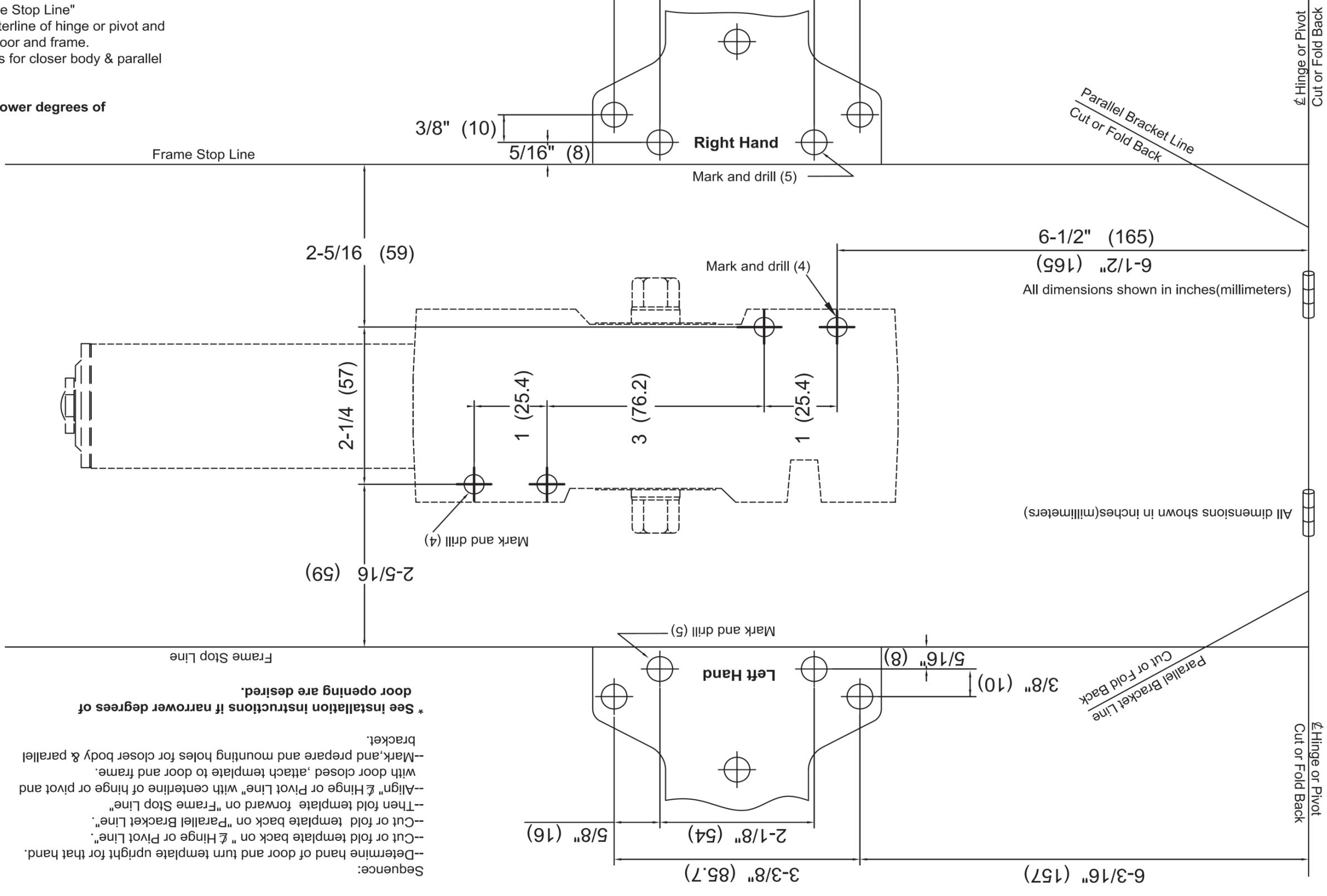

180° PARALLEL ARM TEMPLATE ---- Right Hand Door*

DC500 Series Door Closer

Non-Hold Open Arm Or Hold Open Arm Sequence:

• --Determine hand of door and turn template upright for that hand.
• --Cut or fold template back on " ⊈ Hinge or Pivot Line".
• --Cut or fold template back on "Parallel Bracket Line".
• --Then fold template forward on "Frame Stop Line"
• --Align" ⊈ Hinge or Pivot Line" with centerline of hinge or pivot and with door closed ,attach template to door and frame.
• --Mark, and prepare and mounting holes for closer body & parallel bracket.

* See installation instructions if narrower degrees of door opening are desired.

3-3/8" (85.7)

2-1/8" (54)

5/8" (16)

180° PARALLEL ARM TEMPLATE --- Left Hand Door * DC500 Series Door Closer Non-Hold Open Arm

6-3/16" (157)
