DC300 Series Door Closers

Value Product

The Arrow DC300 Series surface applied door closers are an economical value for customers requiring convenience and security in an affordable package. They are ideally suited for retail or office buildings.

Compliance:

• UL/cUL listed.
• UL10C listed for positive pressure to comply with UBC-72 (1997).
• Meets requirements of ANSI A156.4. Grade 1
• Adjustable size closers may be adjusted to meet requirements of ADA and ANSI ICC A117.1.

Look for the universal symbol next to Arrow products that comply with ADA accessibility requirements.

Sizes (Adjustable/Fixed):

• DC314 Adjustable sizes 1 through 4.
• DC325 Adjustable sizes 2 through 5.
• DC304 Fixed size 4.
• DC305 Fixed size 5.

Regular Arm & Top Jamb Size 1 2 3 4 Parallel Arm Size Size Size Size Size Size Size Size	or Door Width	m) (1219mm) (1372r
Parallel Arm 2 3 4 5	ar Arm & Top Jamb	Size Size 5
Exterior (8. Vestibule)	el Arm	Size 5
Door Width (610mm) (762mm) (914mm) (1067mm) Regular Arm & Top Jamb

				7
Regular Arm & Top Jamb	Size 3	Size 4	Size 5
Parallel Arm	Size 4	Size 5

Features:

• Cast aluminum body.
• Hardened steel rack and pinion.
• High tensile steel springs.
• Staked valves
• Two non-critical adjusting valves (sweep and latch) control closing speed.
• Backcheck intensity valve.
• All temperature fluid.
• Full plastic cover available (sold separately).
• Non-handed for regular, top jamb and parallel arm mount applications.

• Hold open arm available on adjustable closers – Specify: DC3xx-1.
• Supplied with fully threaded wood screws, machine screws and thru-bolts for 1-3/4" thick doors.
• Packaging: one per box and six boxes per carton.
• 10 year limited warranty.

Finishes:

• Aluminum (689), Specify AL
• Dark Bronze (690), Specify DBZ

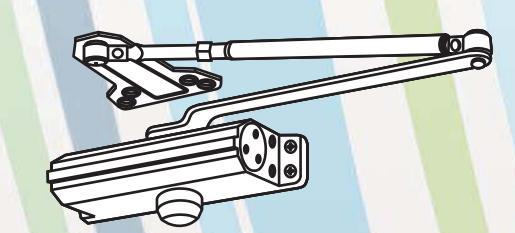

Regular Arm Installation

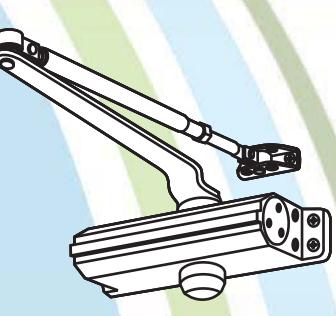

Top Jamb Installation

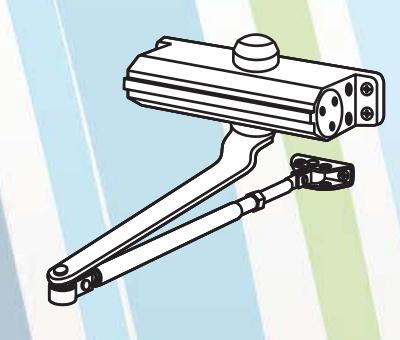

Parallel Arm Installation
