Arrow DC300 Series Door Closer Regular & Top Jamb Template
Open the original PDF document
View PDF
| DIMENSIONS "A" | ODENING | ||
|---|---|---|---|
| inches | mm | OPENING | |
| 7 | 178 | TO 100° | |
| 6 | 152 | 101° TO 120° | |
| 3-1/2 | 89 | *121° TO 180° | |
ARROW Lock and Door Hardware
3626 Allegheney Dr. Salem, VA 24153 1-800-839-3157

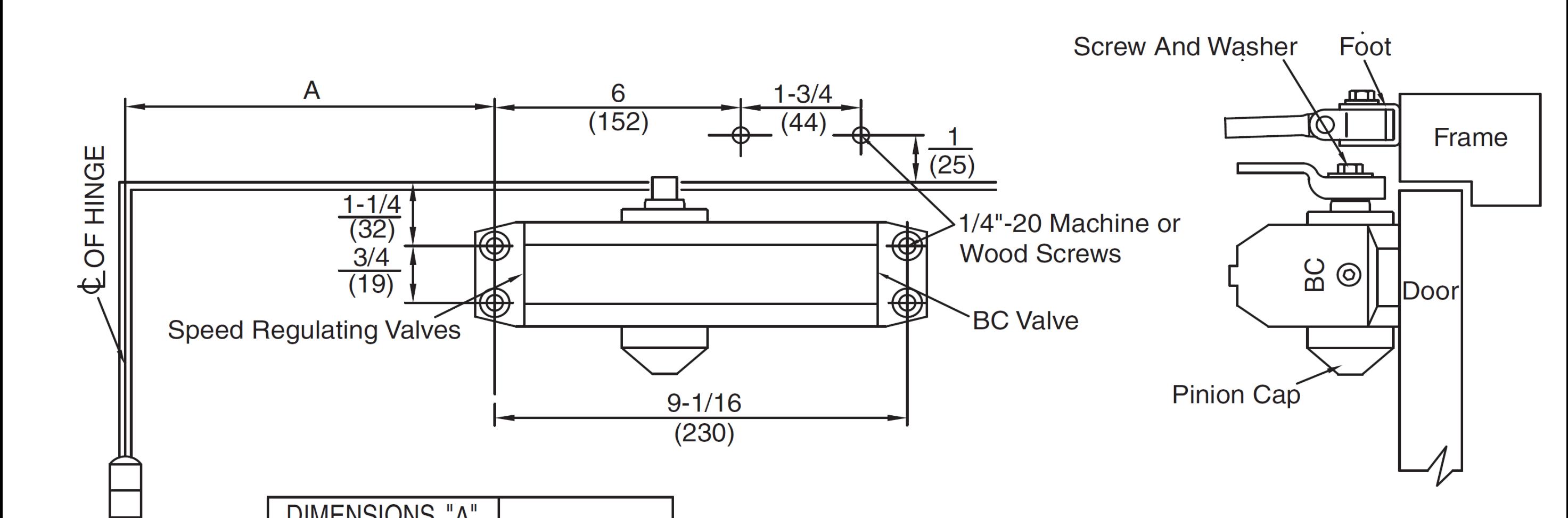

DC314 AND DC325 REGULAR ARM TEMPLATE
| REV. & DATE | TEMPLATE NO. | |
|---|---|---|
|
SHEET
1 OF 2 |
A 04-14 | DC300DM-203.FIN |
| DIMENSIONS "A" | ODENING | ||
|---|---|---|---|
| inches | mm | OPENING | |
| 7 | 178 | TO 100° | |
| 6 | 152 | 101° TO 120° | |
| 3-1/2 | 89 | *121° TO 180° | |
ARROW Lock and Door Hardware
3626 Allegheney Dr. Salem, VA 24153 1-800-839-3157

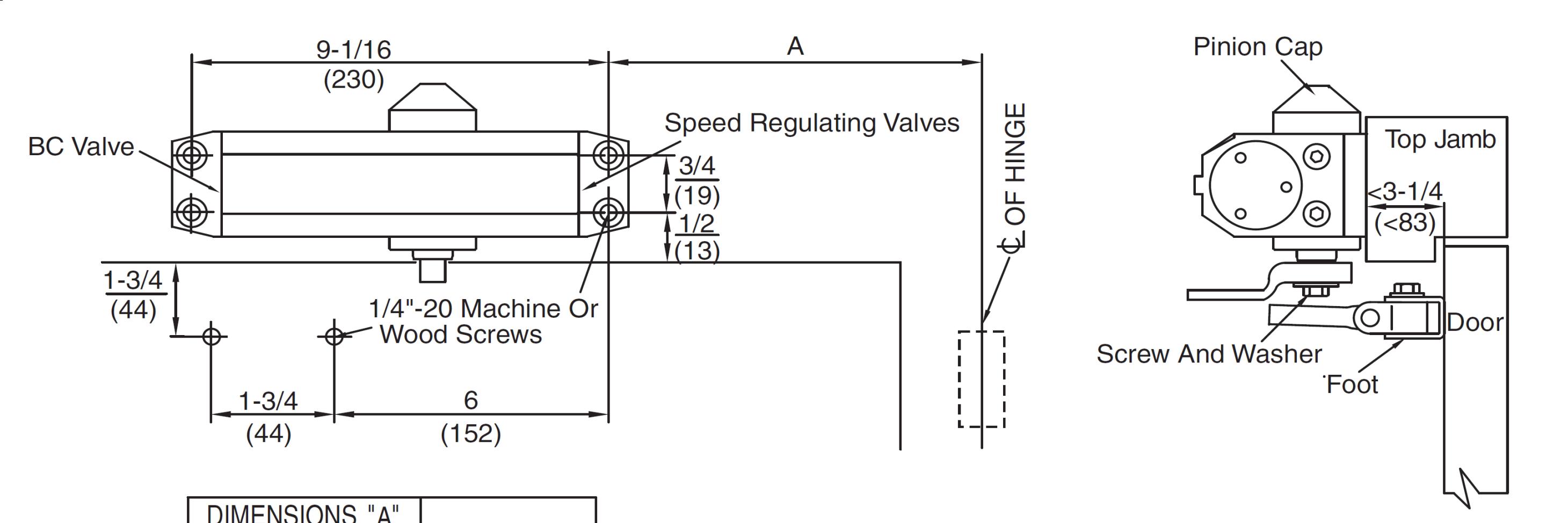

DC314 AND DC325 TOP JAMB TEMPLATE
| REV. & DATE | TEMPLATE NO. | |
|---|---|---|
|
SHEET
2 OF 2 |
A 04-14 | DC300DM-203.FIN |
