Arrow DC300 Series Door Closer Hold Open Arm Template
Open the original PDF document
View PDF
3626 Allegheney Dr. Salem, VA 24153 1-800-839-3157

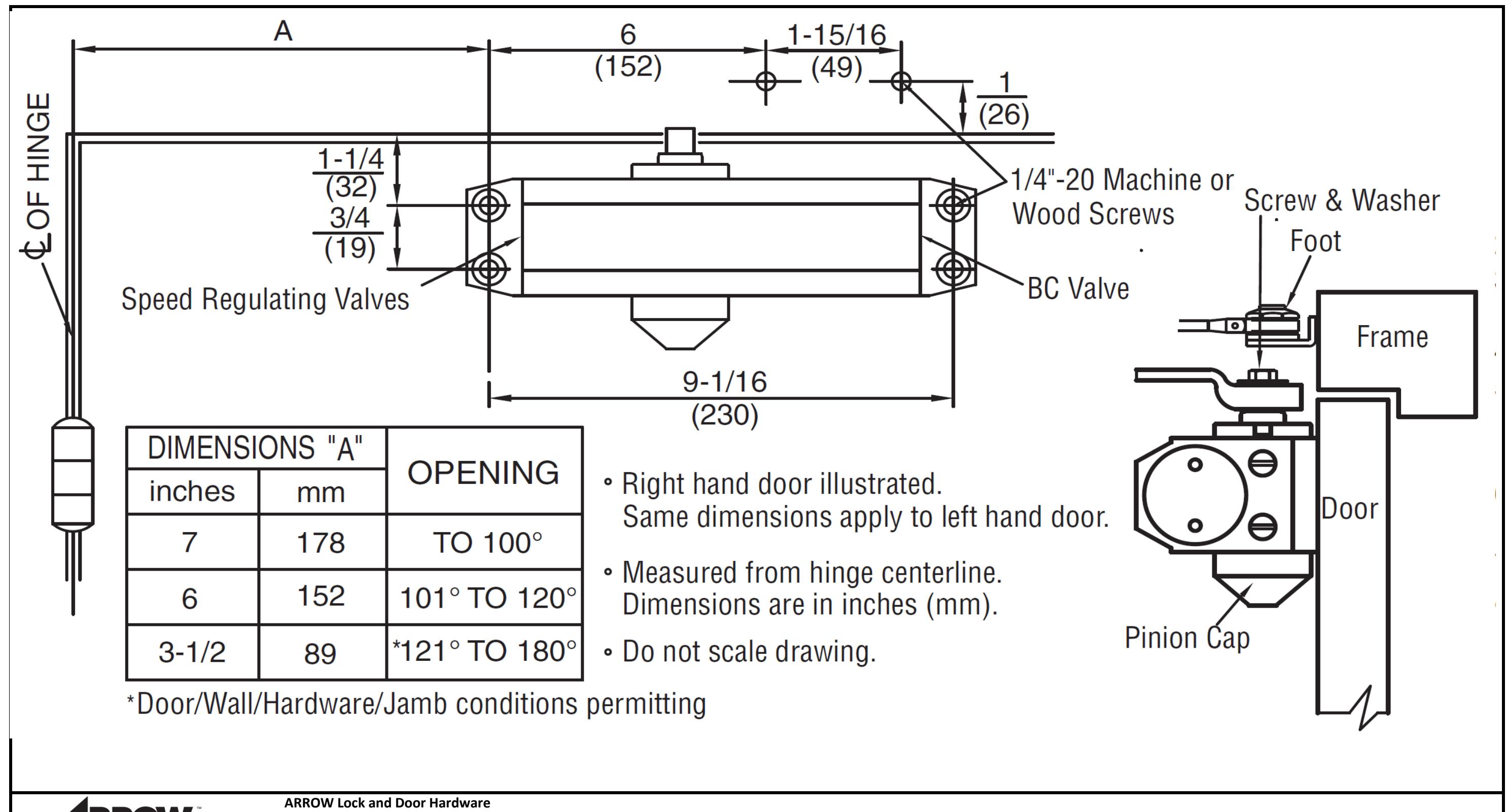

DC314-1 AND DC325-1 STANDARD (PULL SIDE) TEMPLATE
SHEET 1 OF 3 REV. & DATE TEMPLATE NO. A 04-14 DC300-1DM-203.FIN
ARROW Lock and Door Hardware
3626 Allegheney Dr. Salem, VA 24153 1-800-839-3157

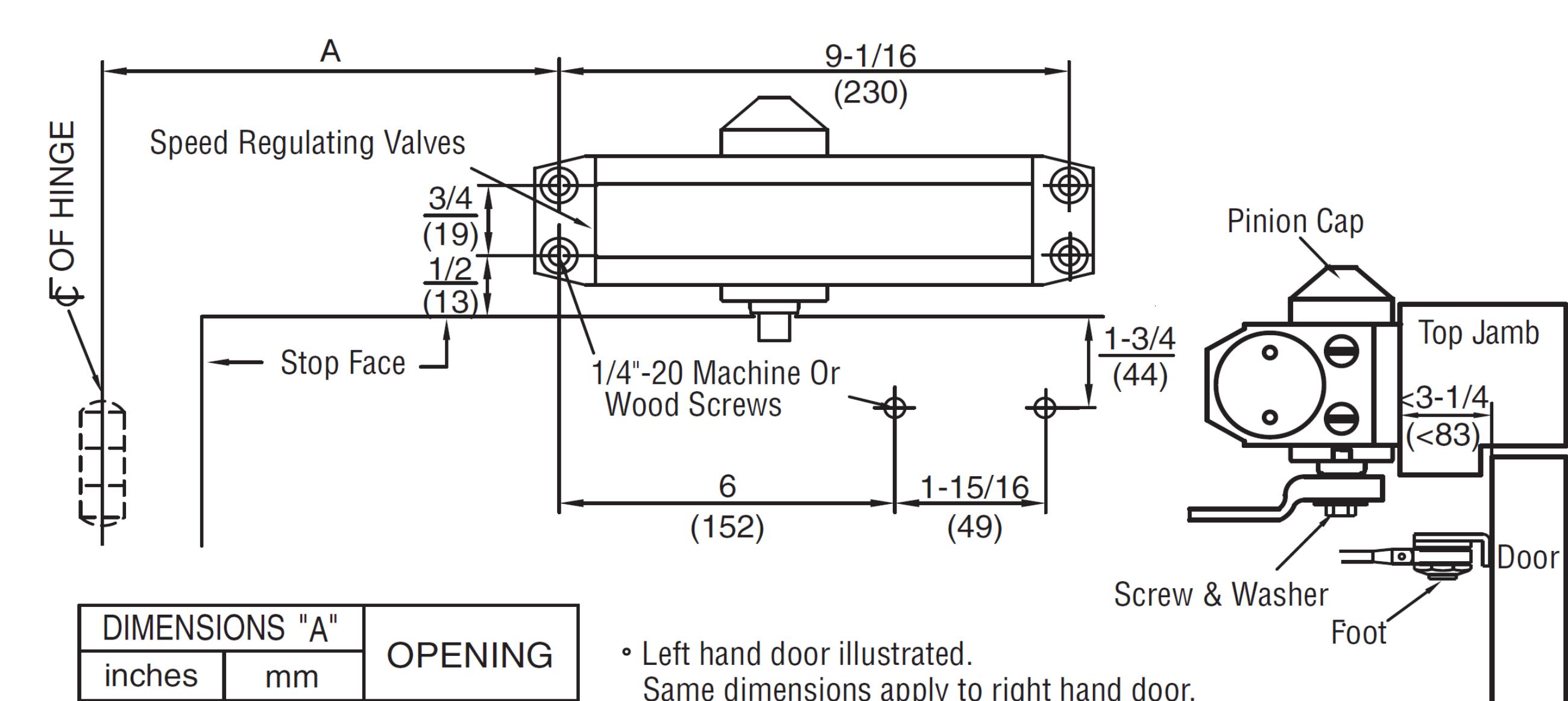

DC314-1 AND DC325-1 PUSH SIDE TOP JAMB TEMPLATE
| REV. & DATE | TEMPLATE NO. | ||
|---|---|---|---|
|
SHEET
2 OF 3 |
A 04-14 | DC300-1DM-203.FIN | |

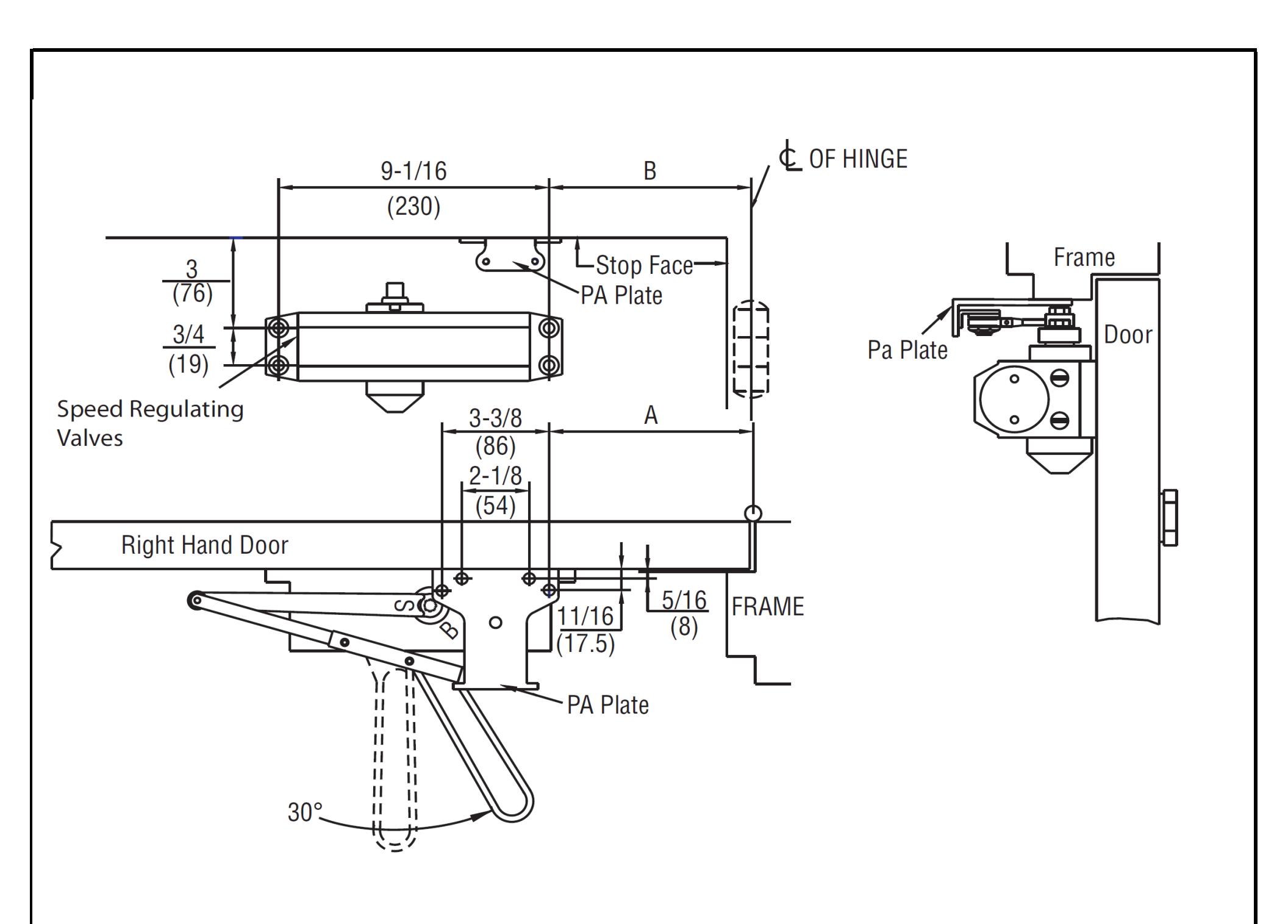

| DIMENSIONS "A" | DIMENSIONS "B" | ODENING | ||
|---|---|---|---|---|
| inches | mm | inches | mm | OPENING |
| 9 | 227 | 7-5/8 | 194 | TO 120° |
| 7-1/2 | 190 | 6-1/8 | 156 | *121° TO 180° |
DC314-1 AND DC325-1 STANDARD (PULL SIDE) TEMPLATE
ARROW Lock and Door Hardware 3626 Allegheney Dr. Salem, VA 24153 1-800-839-3157
