Cylinders & IC Products – Arrow Pointe Sliding Door Core

Classic Product

The Sliding Door Core is an addition to the Arrow Pointe SFIC Pointe product line, the SD series. This core is used to retrofit existing sliding door housings such as the Best® 4S73 and Olympus Lock® 723S sliding door cylinder housing.

This style core is used in conjunction with housings designed to work in display cabinets and storage areas using sliding door panels to secure valuables behind class panels and doors made of other building materials.

Our precision engineering design, keying capability and availability make Arrow Pointe interchangeable cores our most specified brand for commercial, industrial and institutional applications.

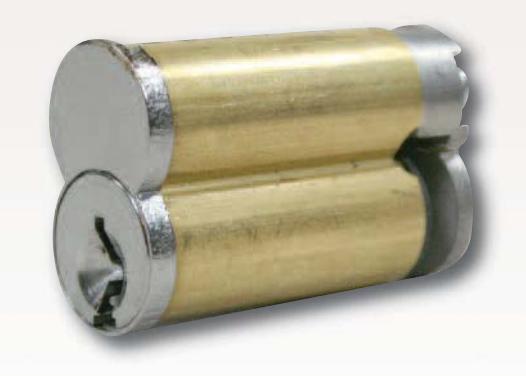

7 PIN POINTE SLIDING DOOR INTERCHANGEABLE CORE

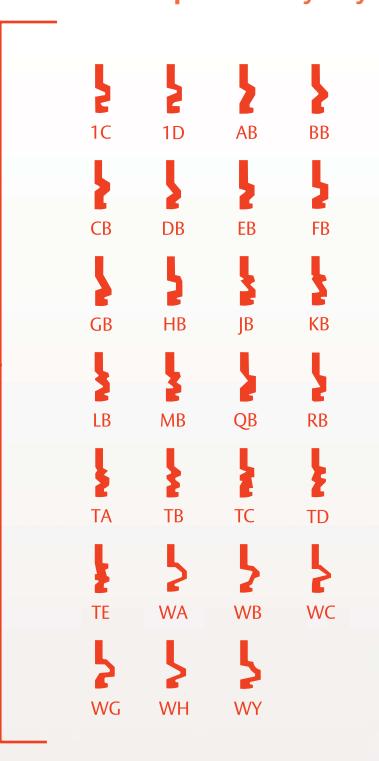

Arrow & Competitor Keyways:

Features:

• Reinforced Sleeve Design
• Barrell Cap Design
• Solid Brass Construction

Finishes:

US26D & US4 finishes.

Pinning:

7 Pin: SD7100CR x Keyway — Combinated & Uncombinated.

Arrow Keyways:

1C & 1D Standard keyways or unpublished restricted keyways available — consult factory for availability.

Pointe Key Blanks:

Nickel Silver

CAT NO.	DESCRIPTION
C x Keyway	7 Pin Key Blank
CP x Keyway	7 Pin Key Blank, Plain Bow

Competitive Keyways:

AB, BB, CB, DB, EB, FB, GB, HB, JB, KB, LB, MB, QB, RB, TA, TB, TC, TD, TE, WA, WB, WC, WG, WH, WY
