7700 Powered Door Operator

Classic Product

The Arrow 7700 Series offers functionality and control at an affordable price. Ideal for retrofit applications, the 7700 Series converts interior, non-fire rated doors for ADA compliance easily and affordably while providing a simple way to achieve touchless environments in public restrooms. Furnished standard with a track assembly, the pull-side mounted unit can be operated manually or activated by wall switches, or radio frequency devices. Easy to install, set-up and adjust, the 7700 Series is perfect for ADA-compliant offices, classrooms and dorm rooms, and touch free applications like public restrooms, labs and examination rooms.

Compliance:

• * ETL Certified
• * Meets the requirements of ANSI/U.L. standard 325 for automatic closing doors
• * Meets the requirements of ANSI/BHMA standard A117.1
• * Meets ADA requirements (Americans with Disabilities Act)

Features:

• Pull sidemounting
• •Non-handed
• •Quiet operation
• •Electrically controlled backcheck, sweepandlatch
• •Activation options:wall switches, radiofrequency devices
• Ease ofinstallationand set-up
• •On/Off Switch
• •Hold open options: 0-30 seconds (5 secondsminimum requiredforADA andANSI/BHMAA156.19)
• •Onboard 24VDC (1.1A) power supplyforaccessories
• •Door closermodeformanual usage
• •Electronicmotor dampening –providesfeel of normal,manual door closer
• •Electric hardwareandaccess controlinterface
• •OptionalAC power cord
• Push &Go
  • –As the doorismanually opened, the operator "senses"movementand opens door to thefull-open position.

• Obstruction Detection
  • Motor stops if door is obstructed during opening
• Motor Start Delay
  • 0-5 second delay to allowing locking hardware to release first
• Overload Safety Shut-Off
  • After two minutes of receiving a door activation signal, the inverter will time out and close the door
  • Prevents motor/inverter damage
• Power Input; 120 VAC, 60Hz
• Current Draw: .6A
• Relay Output: SPDT
  • Normally Open/Normally Closed (jumper)
  • For electric strike function
• 1-year warranty

Finishes:

• Aluminum (689), Specify AL
• Dark Bronze (690), Specify DB

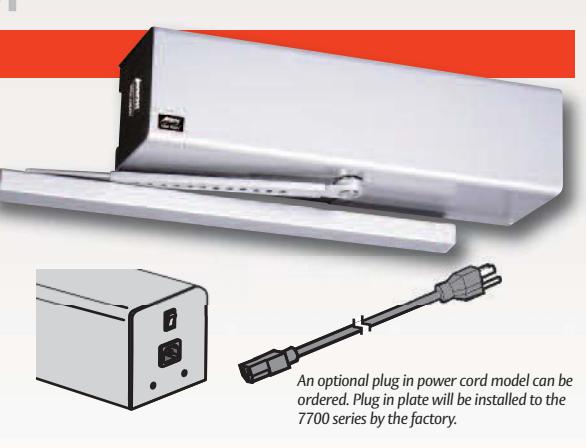

Introducing the Arrow 7710P and 7710PRF1 Series Door Operator with an Optional Plug-in Power Cord!

Arrow is pleased to announce the addition of the 7700 series powered door operator to it's product line. The 7700 series requires hard wired installation with standard electric power. An optional plug in power cord model can be ordered (factory installed only) and will simply plug into a code compliant 120 VAC power receptacle.

Radio frequency can also be ordered as an additional feature for convenience. See the parts reference chart and ordering requirements for more information.

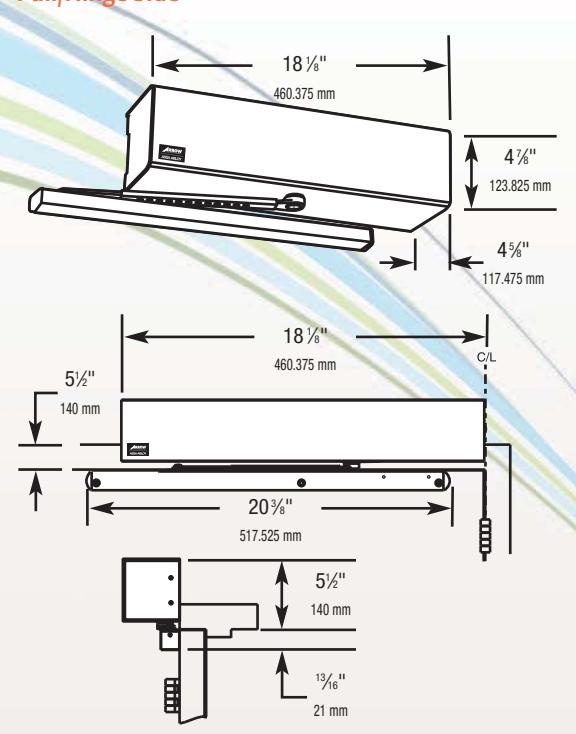

Pull/Hinge Side
