Arrow 5016NH Non Handed Door Closer Installation Instructions

Open the original PDF document

View PDF

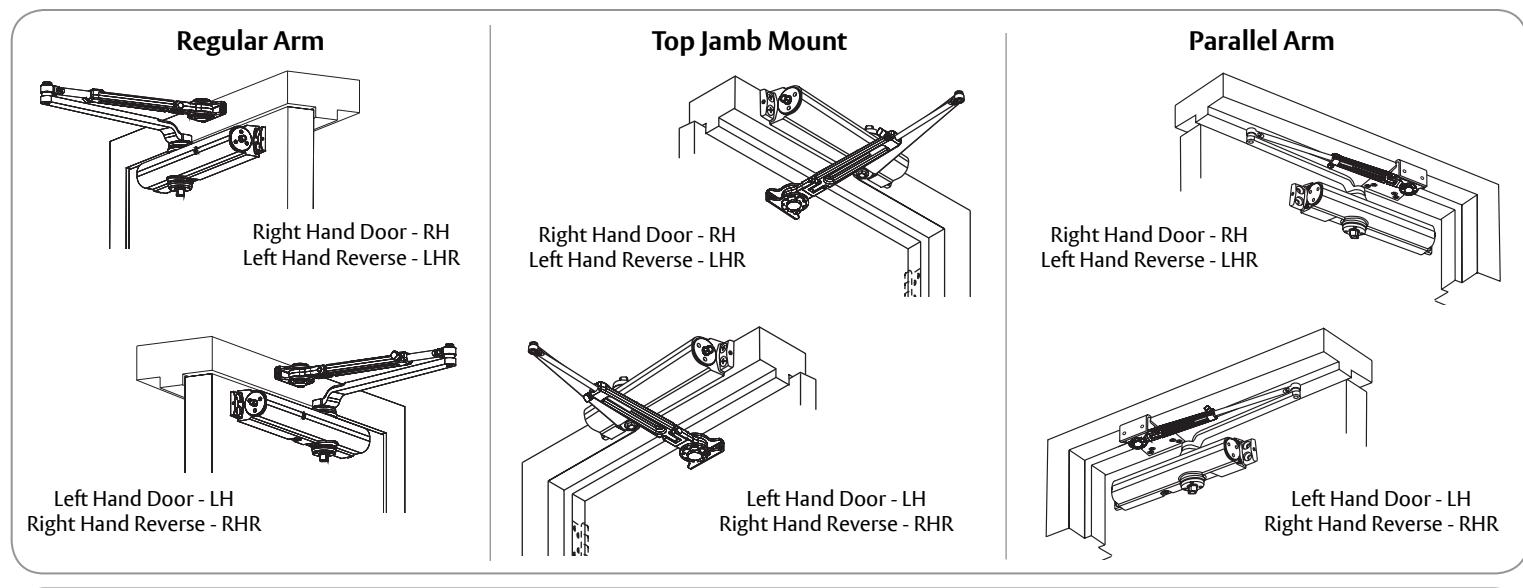

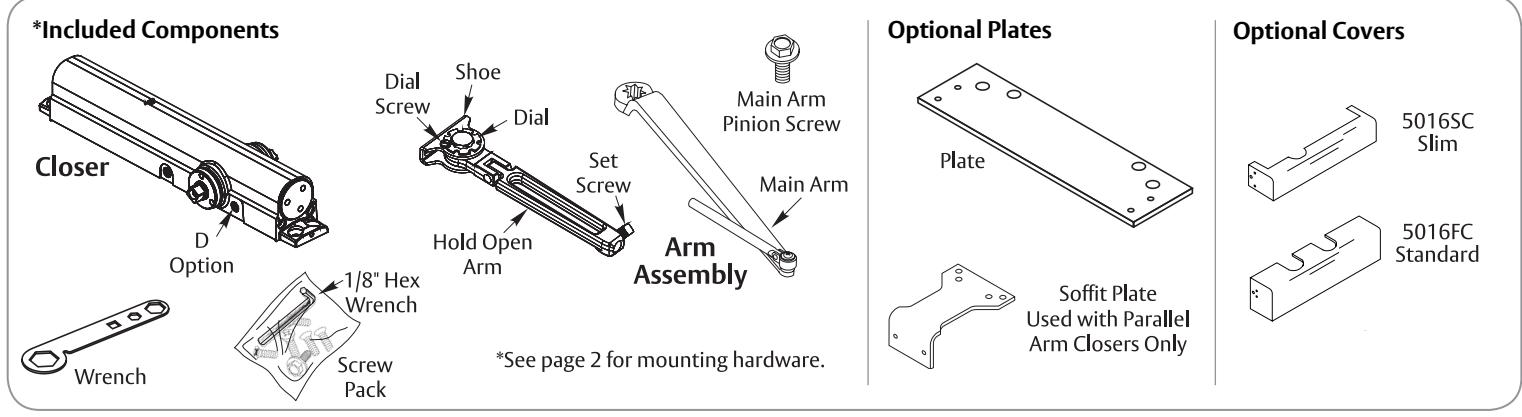

5016NH Hold Open Arm Models

Non Handed Door Closer Regular Arm Top Jamb Mount

With or without D suffix (delayed action)

Parallel Arm

WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

Ce produit peut vous exposer au plomb qui, dans l'état de la Californie, est reconnu pour causer le cancer, des anomalies congénitales ou d'autres problèmes de reproduction. Pour plus d'informations, visitez: www.P65warnings.ca.gov.

5016NH Installation Instructions

Before You Begin

ATTENTION:

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment.

  • "D" suffix (Delayed Action) is an optional feature.
  • For special applications, a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.
  • Doors should be hung on ball bearing or anti-friction hinges.

  • A separate door stop is recommended.
  • Always consult door/frame manufacturer for fastener compatibility.
  • Door and frame must be properly reinforced.
  • Adjust closing time speed between 3 and 7 seconds from 90° to 0°. Greater closing times may be required for elderly or handicapped.
  • These door closers should NOT be installed on exposed side (weather side) of exterior doors.
  • Dimensions are given in inches (millimeters).

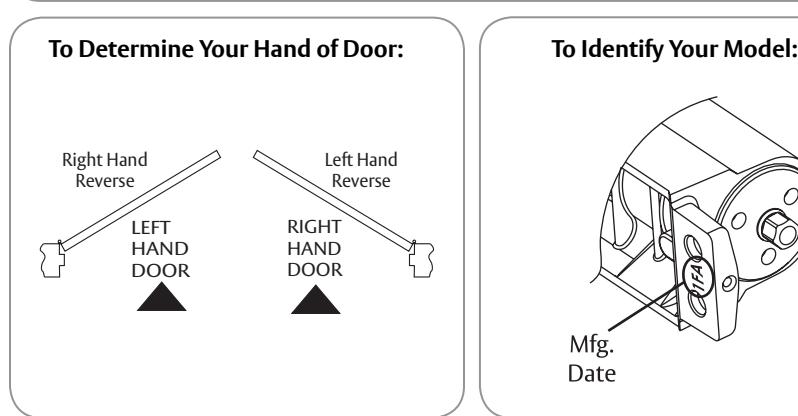

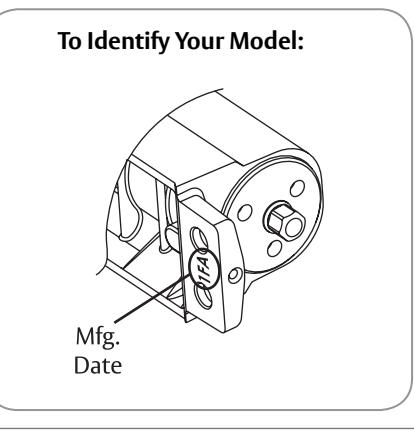

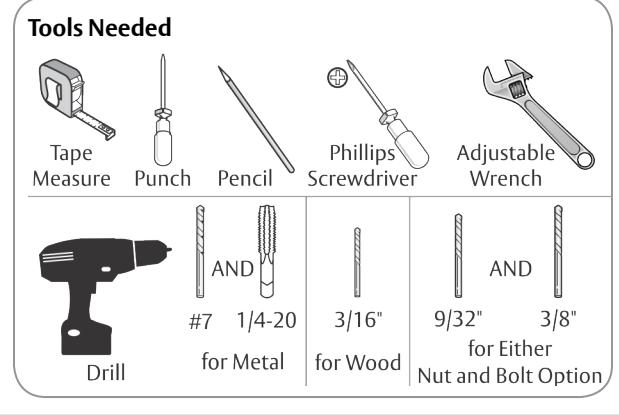

Mounting Hardware Door or Frame Drill
Closer, H/O Shoe or Optional PA Bracket:
1/4-14 x 1-1/2 Oval Flat Head Mach. Screw 		Wood 3/16" (4.76mm)
Closer, H/O Shoe or Optional PA Bracket:
1/4-20 x 3/4 Oval Flat Head Mach. Screw 		Drill #7 (.201 dia. or 5.10mm)
H/O Shoe to Optional PA Bracket:
1/4-20 x 1/2 Oval Flat Head Mach. Screw 		Metal Tap 1/4-20
Closer:
Sleeve Nut and Bolt (SNB) 		Hollow Metal 9/32" (7.00mm) thru
3/8" (9.50mm) door face opposite to closer
(optional) Aluminum or Wood 3/8" (9.50mm) thru
Closer:
Thru Bolt and Grommet Nut (TBGN)
(optional) 		All 9/32" (7.00mm) thru
3/8" (9.50mm) dia. x 3/8" (9.500mm) deep,
door face opposite to closer

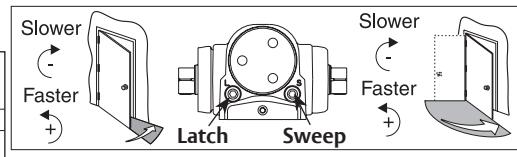

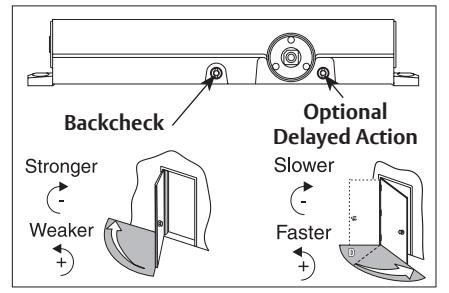

Closer Adjustments

Use provided hex wrench to turn valves. NEVER force valves out of closer. NEVER completely close backcheck valve.

Door must be open to adjust spring closing power. Refer to chart. Do not use a power drill. Warranty will be void.

Spring Closing Power Required
Ä TYPE MAXIMUM DOOR SIZE
DOOR OF
INST. 		* 34"
(0.85M) 		36"
(0.90M) 		42"
(1.05M) 		48"
(1.20M)
Regular Arm Top Jamb Parallel Arm 5 8 11 13
5016NH INTE Parallel Arm FULL 360° TURNS 7 10 13 16
501 EXTERIOR Regular Arm
Top Jamb 		7 10 13 16
ЕХТЕ Parallel Arm 9 12 15 18
*20 FULL (360°) TURNS MAX. AVAILABLE = 10 TURNS AS SHIPPED

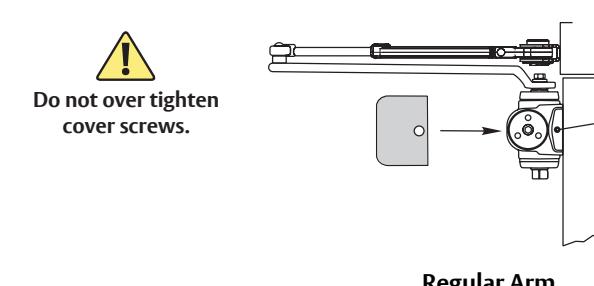

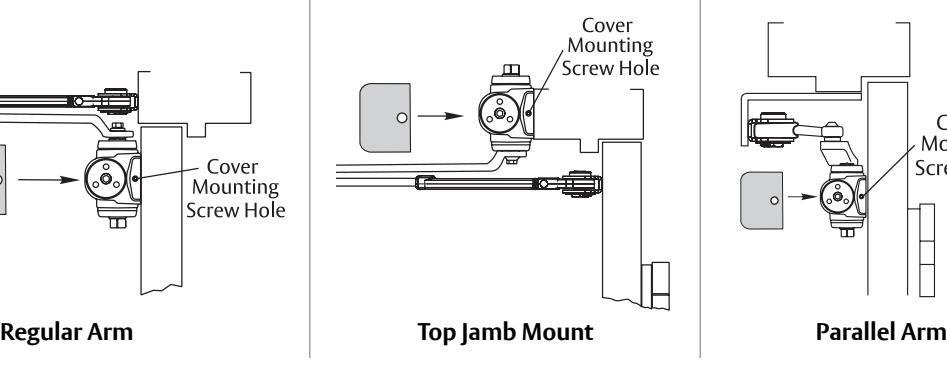

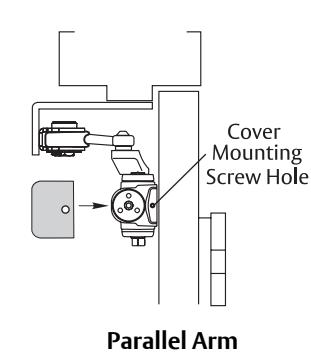

Cover

5016NH Regular Arm Installation (Right Hand Shown)

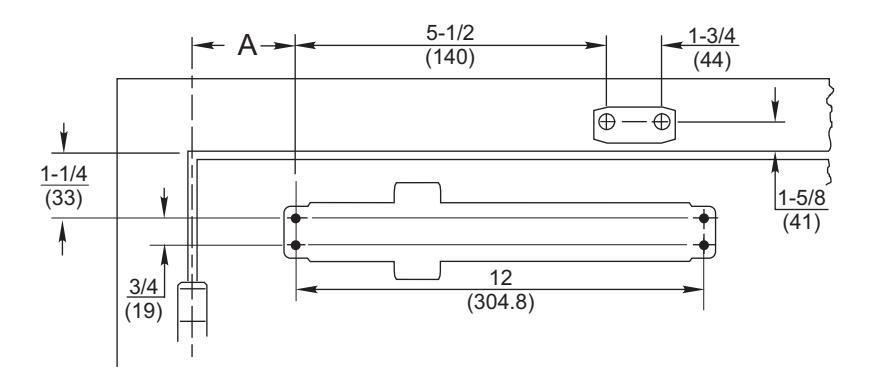

1. Prepare door and frame.

Opening Dimension "A"
To 100° 7-1/2
(191)
101° to 130° 6
(152)
131° to *180° 4-1/2
(114)

Door/Wall/Hardware/Jamb * conditions permitting

2. Mount closer to door. 3a. Remove dial from Hold Open arm.

3b. Install separate arms.

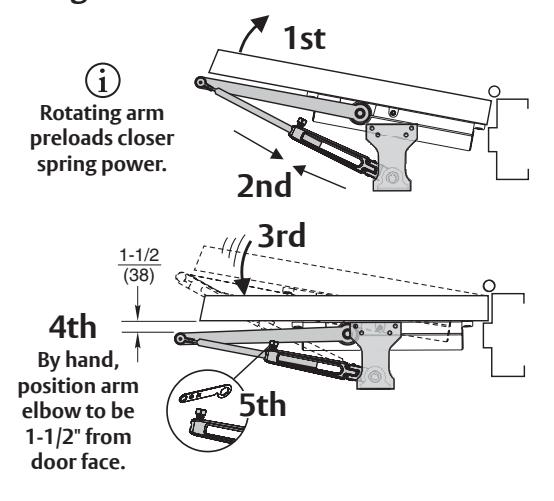

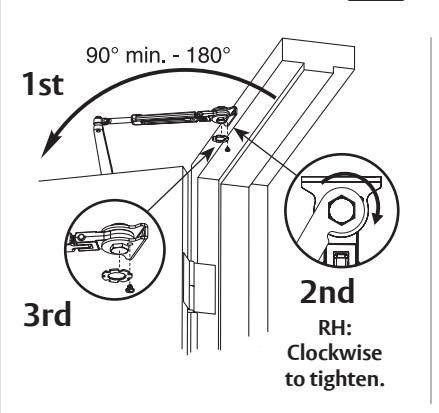

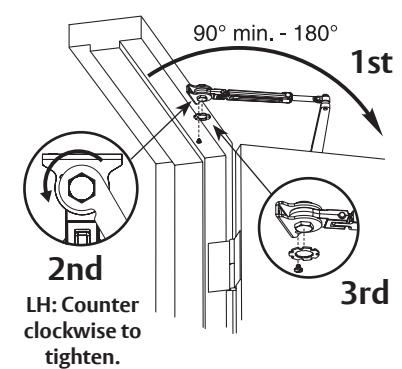

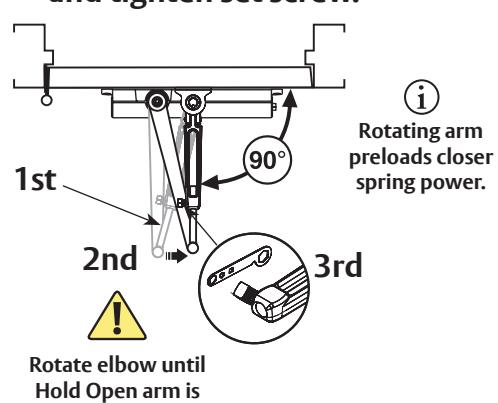

4. Connect arms, preload spring and tighten set screw.

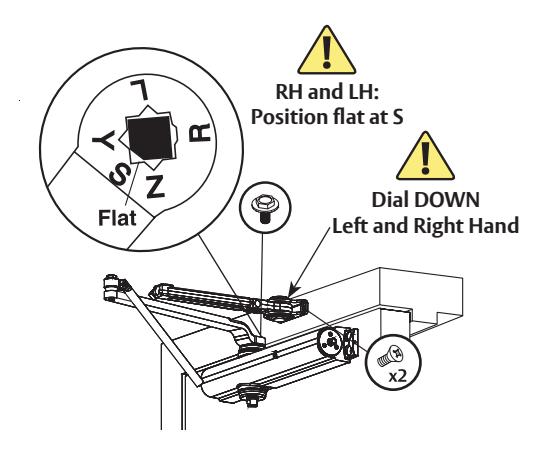

5. Set Hold Open. Keep door open in position until dial screw secures dial.

You've installed the 5016NH Hold Open Closer - Regular Arm.

Go to page 2 for closer adjustments and decorative cover installation.

perpendicular to frame.

5016NH Top Jamb Mount Installation (Right Hand Shown)

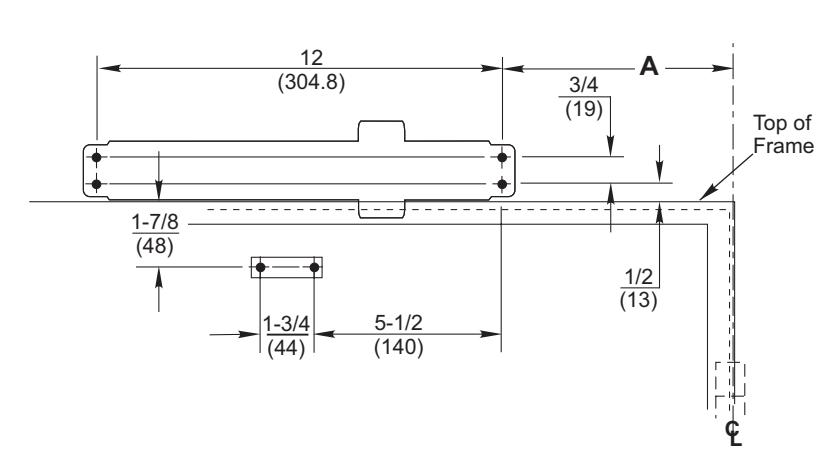

1. Prepare door and frame.

Opening Dimension "A"
To 100° 7-1/2
(191)
101° to 130° 6
(152)
131° to *180° 4-1/2
(114)

Door/Wall/Hardware/Jamb * conditions permitting

A longer connecting rod is required for reveals greater than 3" (76)

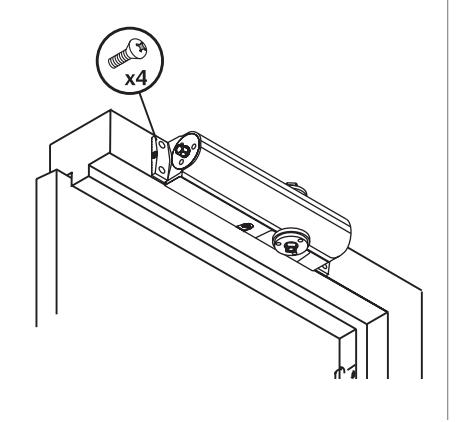

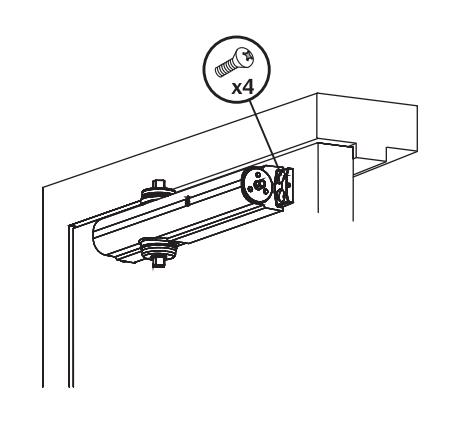

2. Mount closer to frame.

3a. Remove dial from Hold Open arm.

3b. Install separate arms.

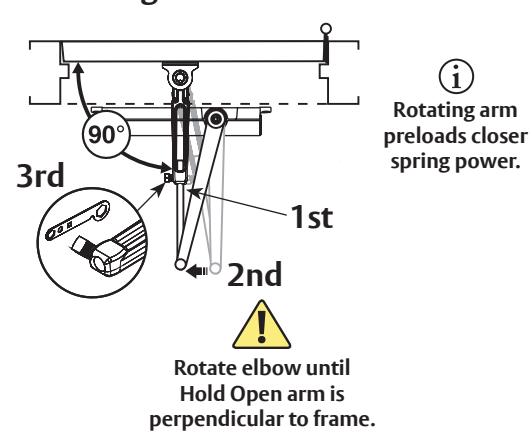

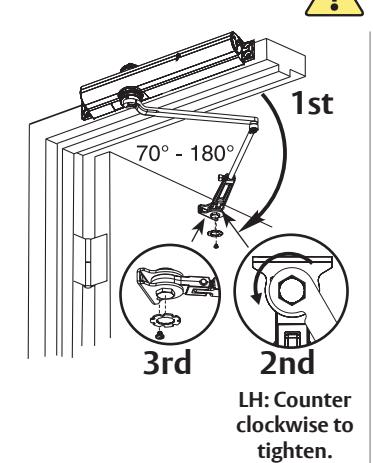

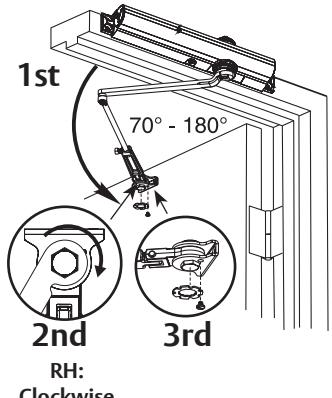

4. Connect arms, preload spring and tighten set screw.

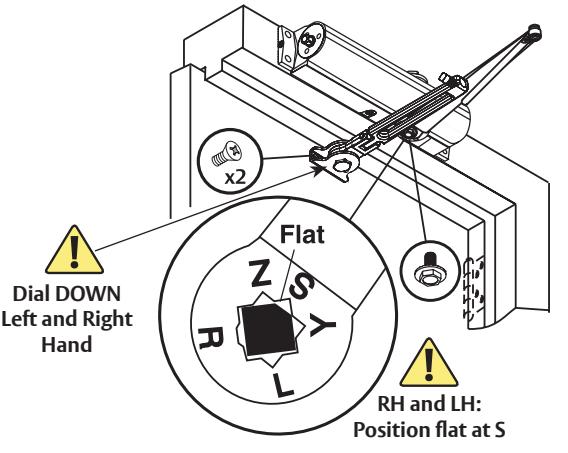

5. Set Hold Open.

Keep door open in position until dial screw secures dial.

Clockwise to tighten.

You've now installed the 5016NH Hold Open Closer - Top Jamb Mount.

Go to page 2 for closer adjustments and decorative cover installation.

5016NH Parallel Arm Installation (Right Hand Shown)

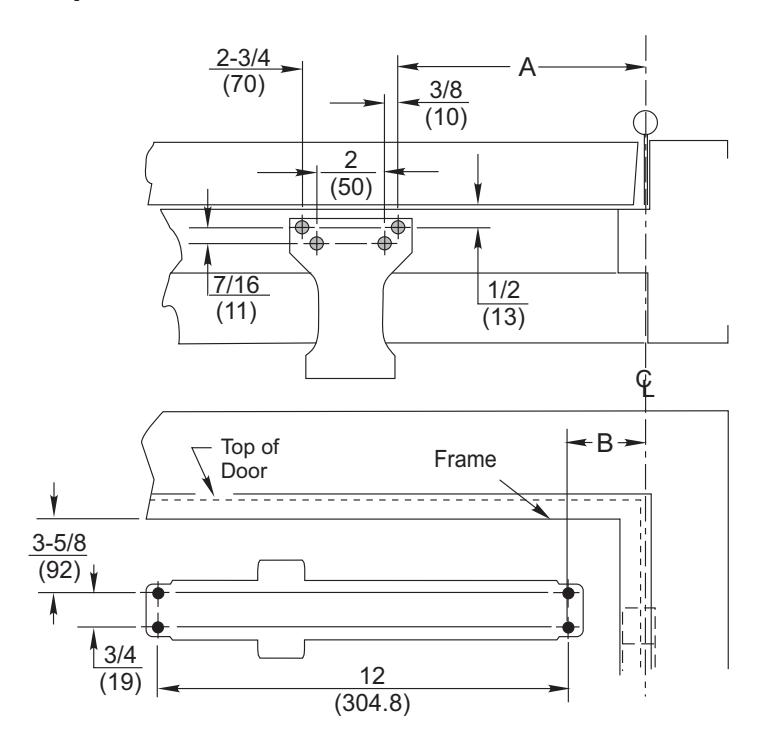

1. Prepare door and frame.

Door
Opening 		A B- -
To 120° 9-1/2
(241) 		3-3/4
(95)
*121° to 180° 7 (178) 1-1/4
(32)

* Door/Wall/Hardware/Jamb conditions permitting

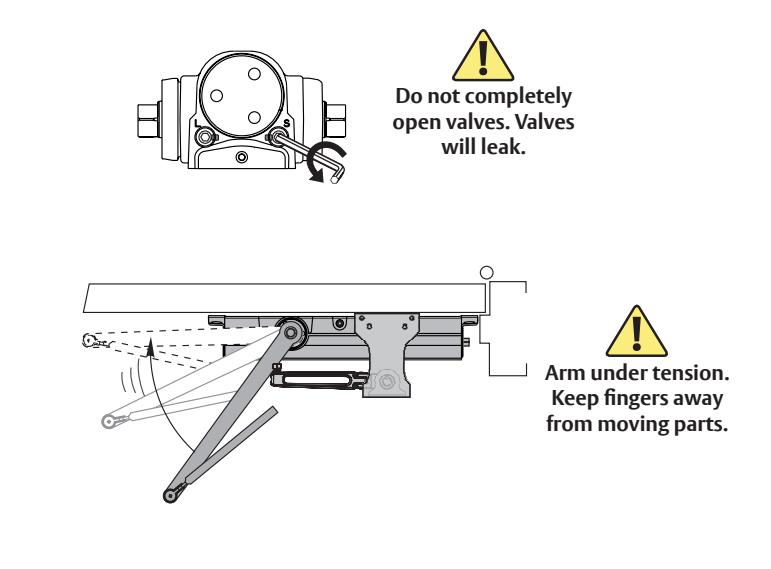

2. Close latch and sweep valves.

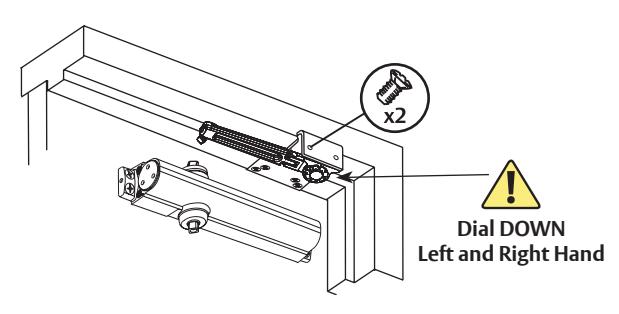

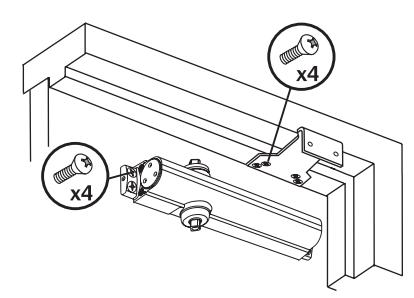

4. Install soffit plate and mount closer.

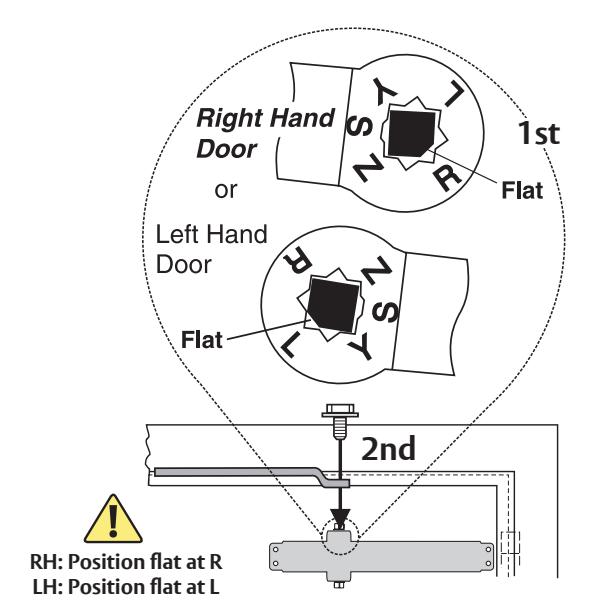

5. Install Hold Open arm to plate.

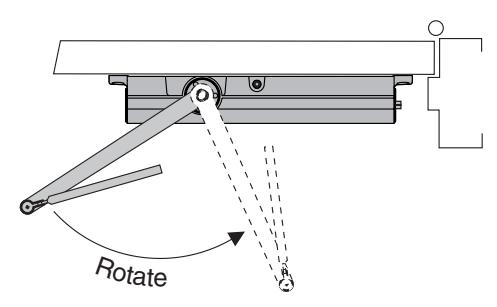

6. Place main arm on closer spindle and rotate.

5016NH Parallel Arm Installation (Right Hand Shown) continued

ASSA ABLOY

7. Remove arm and attach as shown.

8. Open latch and sweep valves.

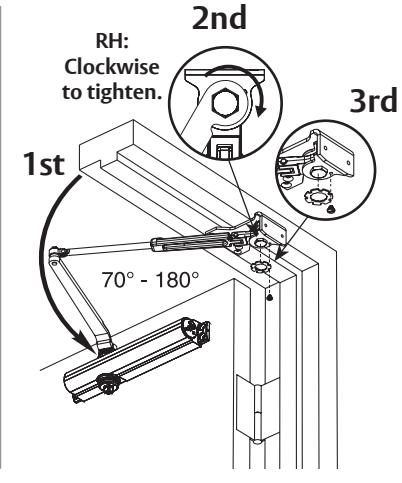

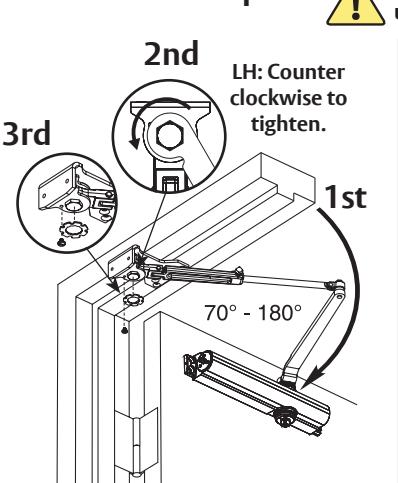

9. Connect arms, preload spring and tighten set screw.

10. Set Hold Open.

Keep door open in position until dial screw secures dial.

You've now installed the 5016NH Hold Open Closer - Parallel Arm.

Go to page 2 for closer adjustments and decorative cover installation.
