Non Hold Open Models

5016N

Installation Instructions

80-9311-0007-021 (8-04)

Non Handed Door Closer

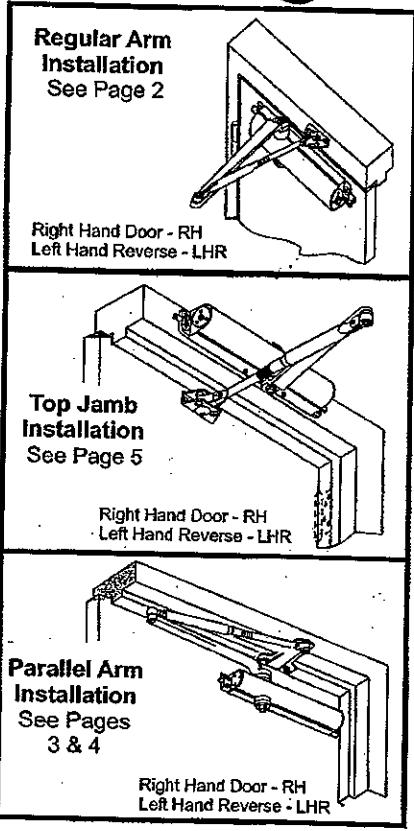

Regular Arm Installation

See Page 2

Left Hand Door - LH

Left Hand Door - LH Right Hand Reverse - RHR

Left Hand Door - LH Right Hand Reverse - RHR

Right Hand Reverse - RHR

Top Jamb

Installation

See Page 5

Parallel Arm

Installation

See Pages

3 & 4

An Incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment.

"D" suffix (Delayed Action) is an optional feature.

NOTE: For special applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.

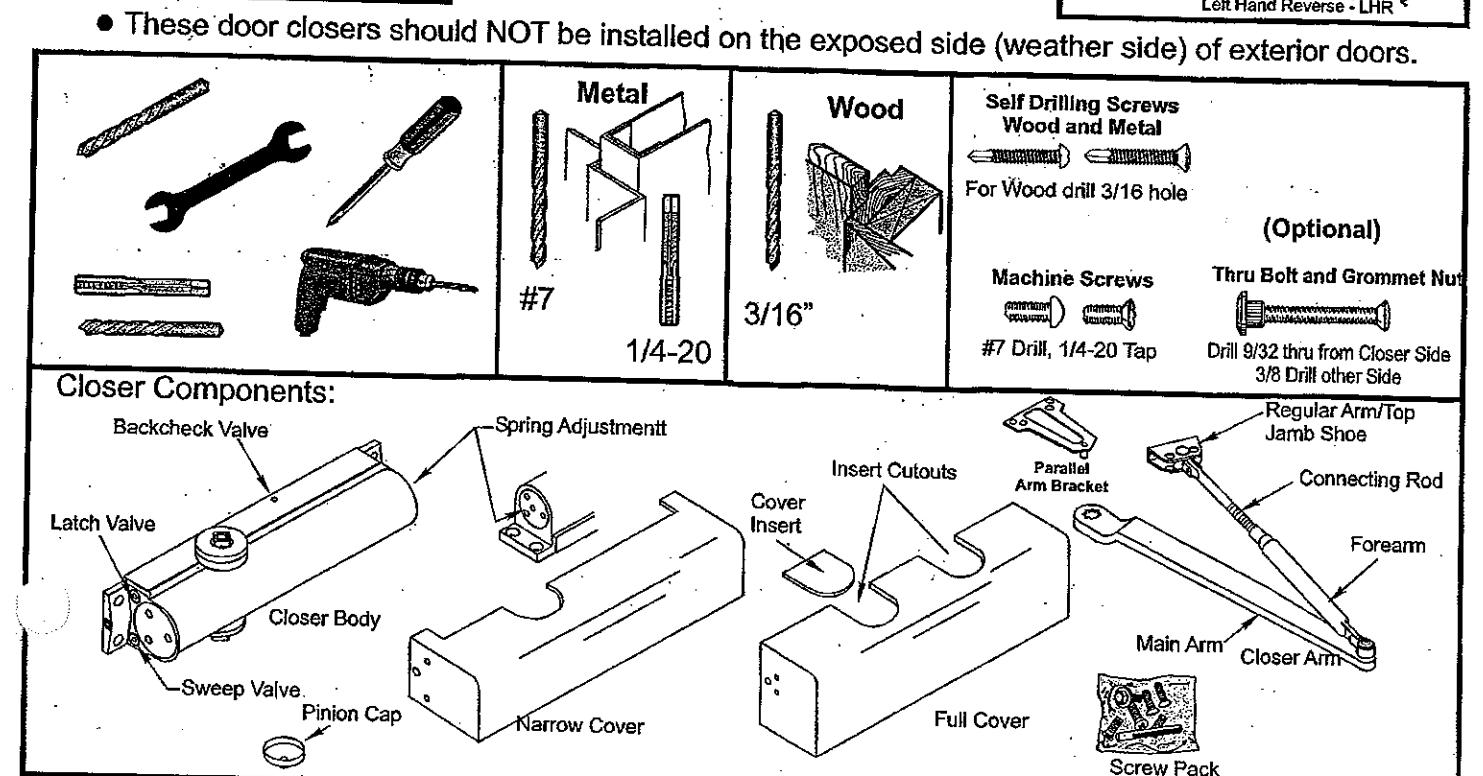

• Doors should be hung on ball bearing or anti-friction hinges.
• A separate door stop is recommended.
• Door and frame must be properly reinforced.
• Adjust closing time speed between 3 and 7 seconds from 90° to 0°. Greater closing times may be required for elderly or

Adjustable (Sizes 1 thru 6)

Non Hold Open Door Closers — Regular Arm 80-9311-0007-021 (8-04)

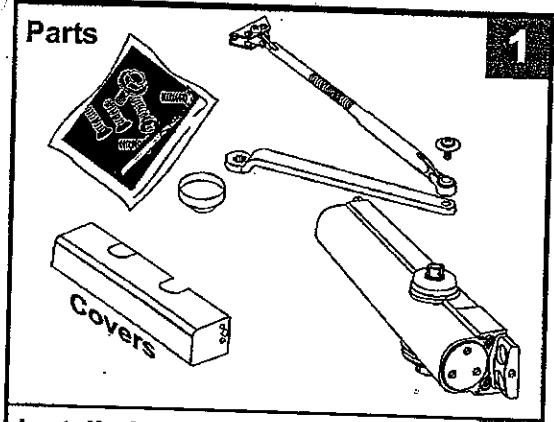

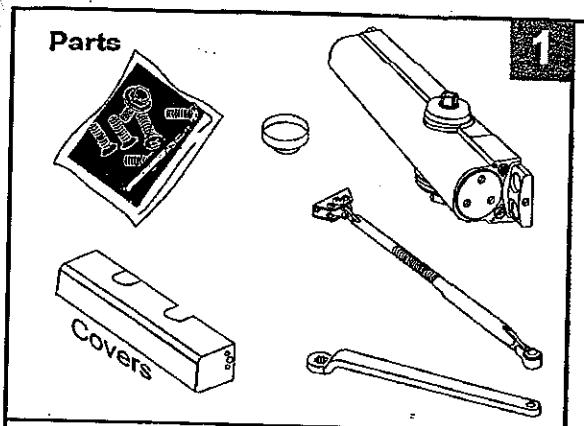

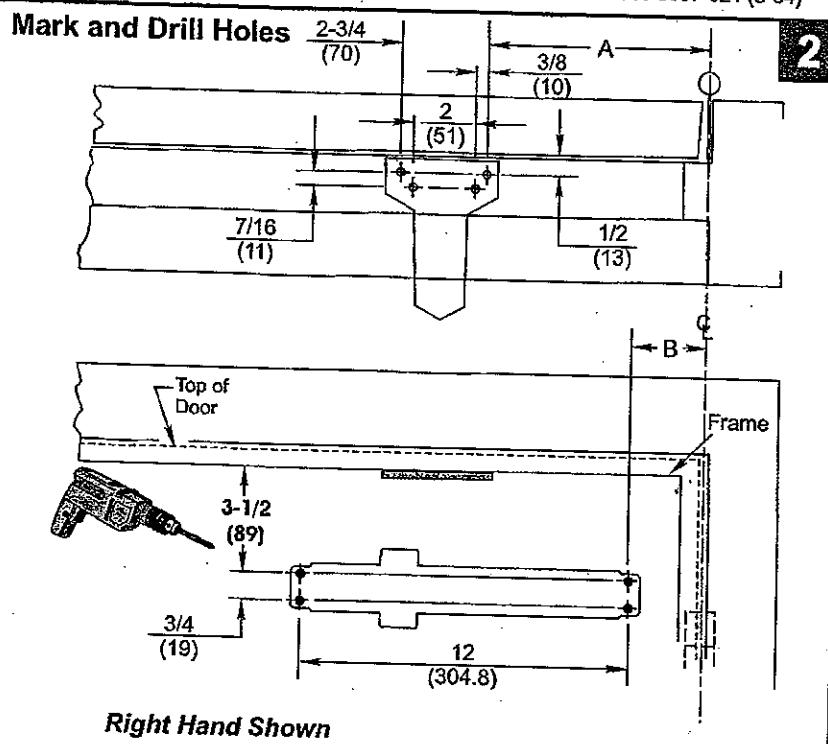

Mark and Drill Holes 5-1/2 (140) (19) 12 (304.8)

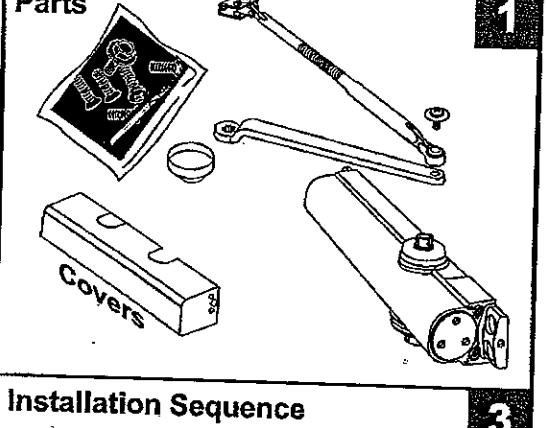

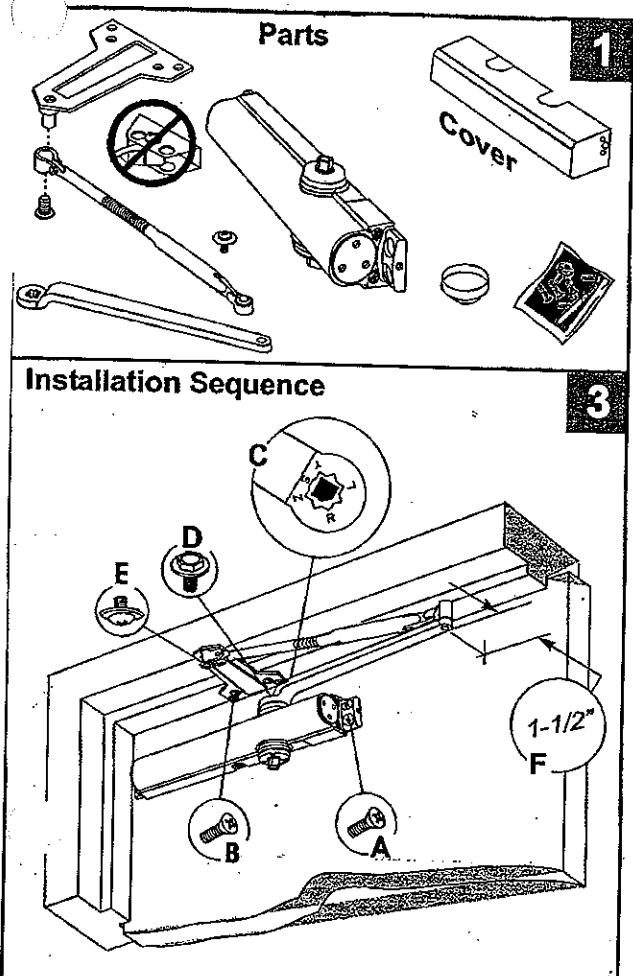

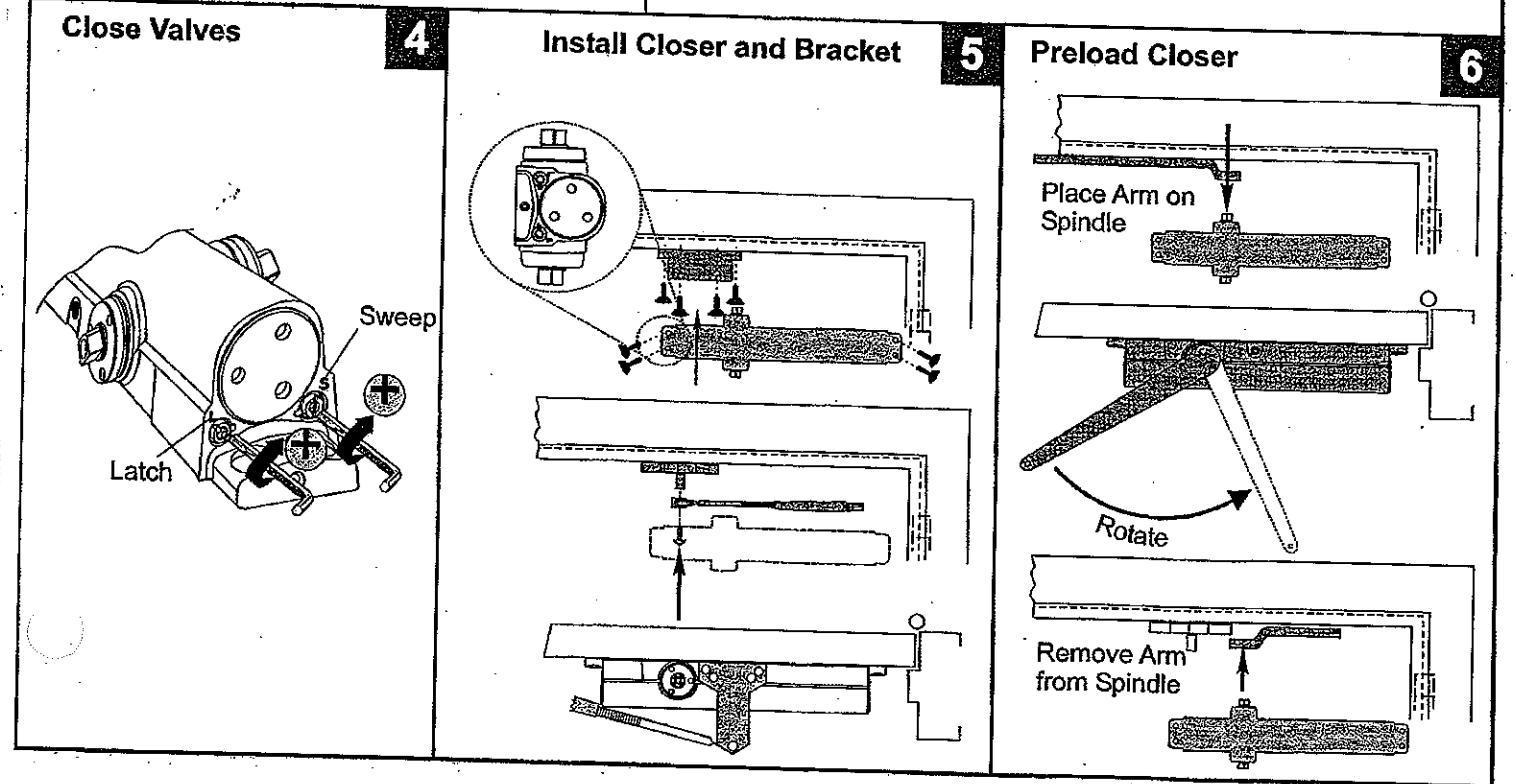

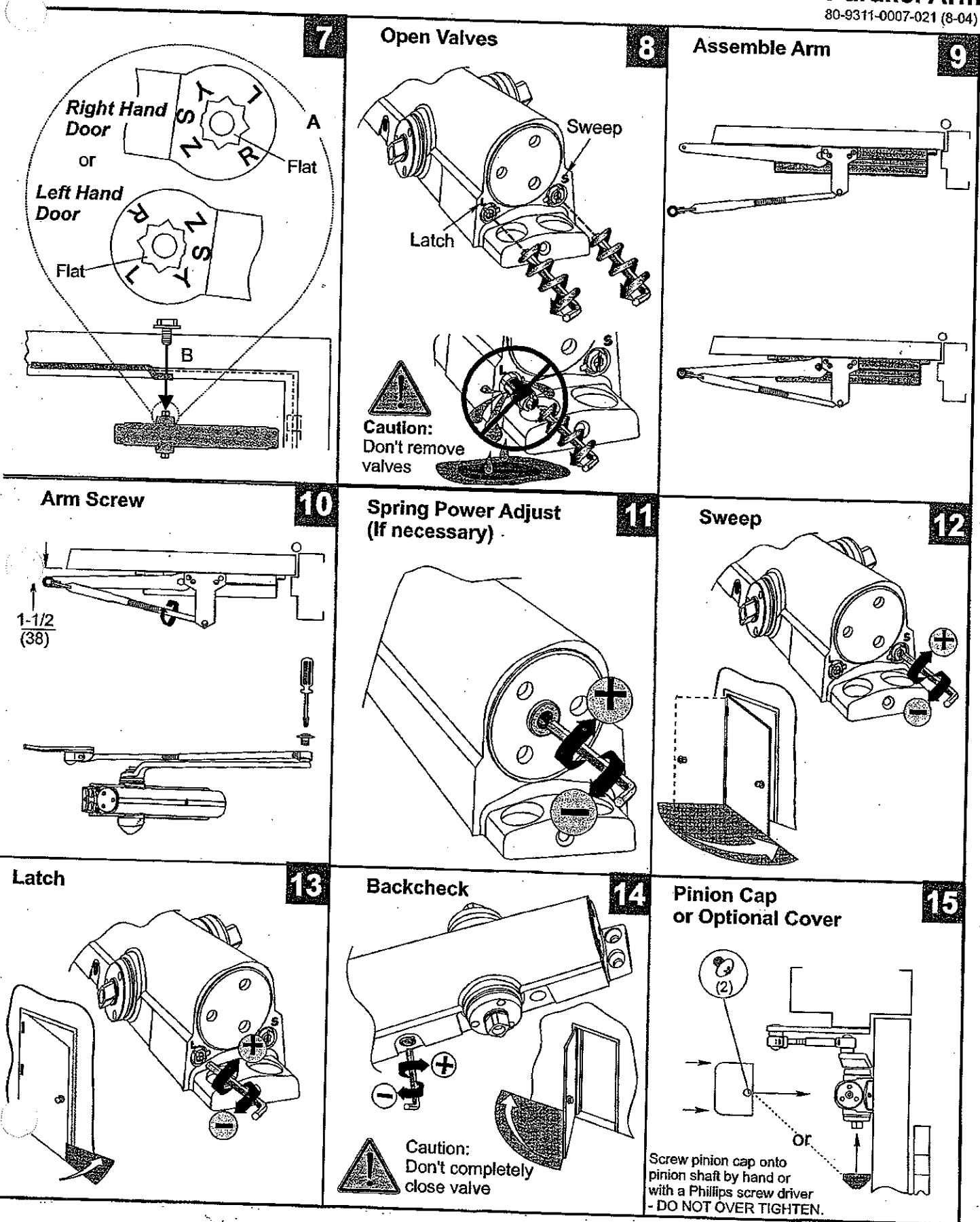

Installation Sequence

Opening Dimension "A" 7-1/2 To 100° (191)101° to 130° (152)4-1/2 131° to *180° (114)

Right Hand Shown

niches
(mm)

* Door/Wall/Hardware/Jamb conditions permitting

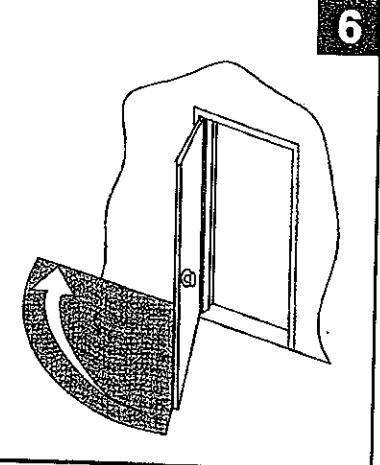

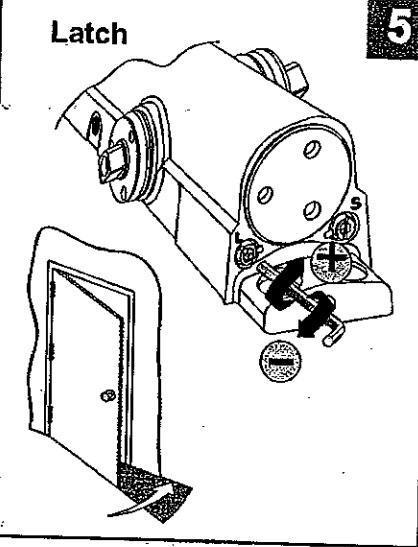

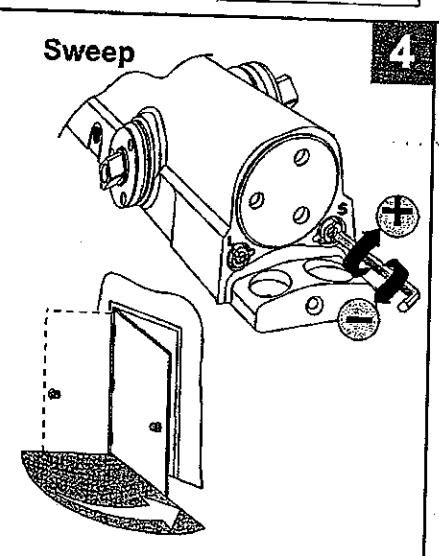

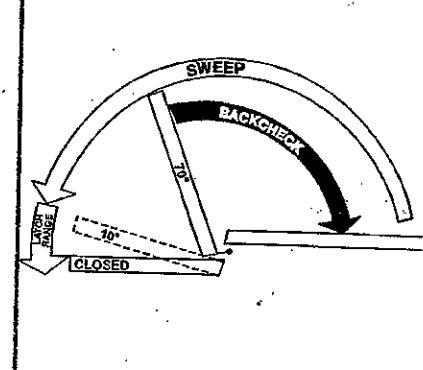

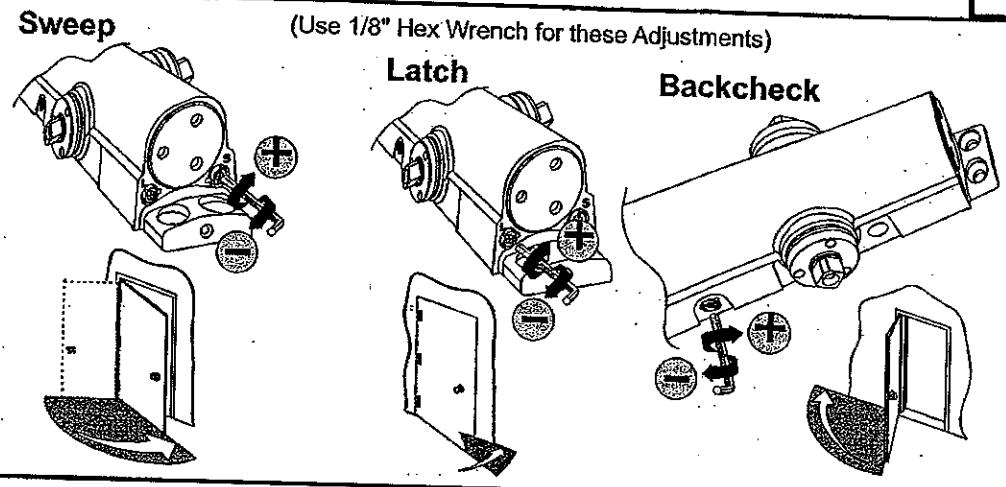

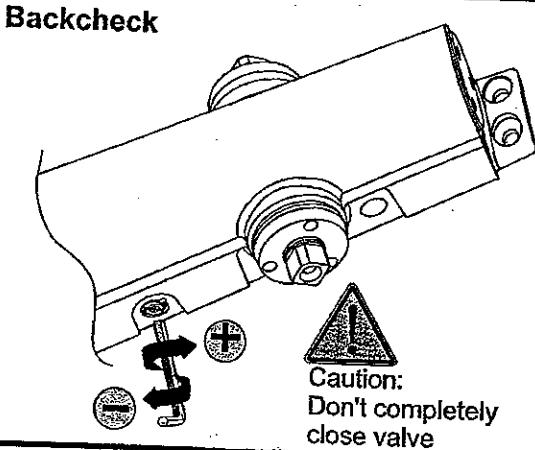

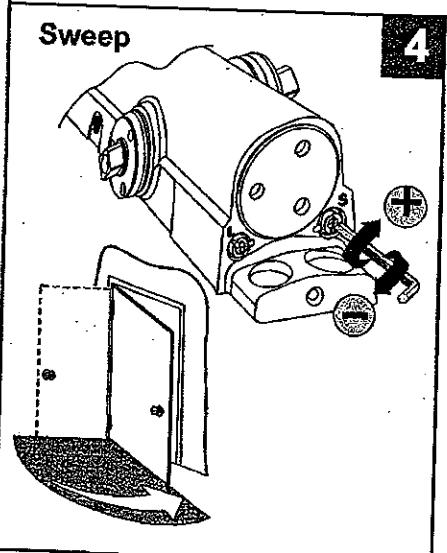

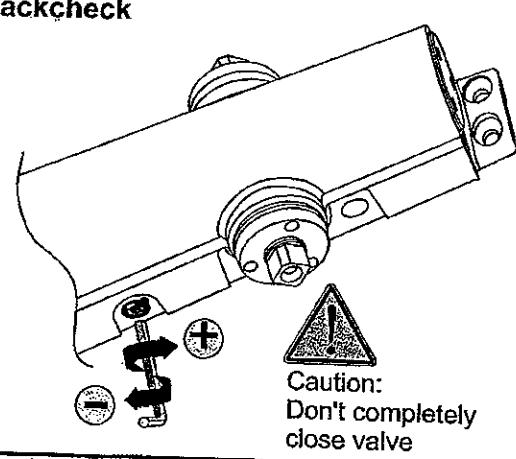

Backcheck

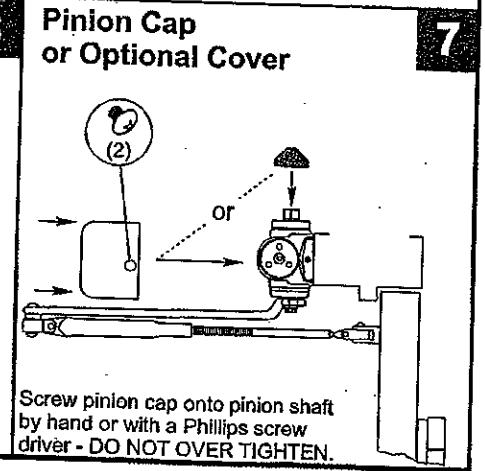

Pinion Cap or Optional Cover

7

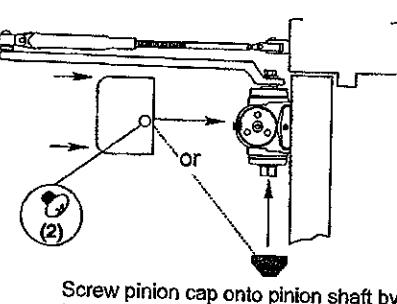

Screw pinion cap onto pinion shaft by hand or with a Phillips screw driver - DO NOT OVER TIGTHEN.

Non Hold Open Door Closers — Parallel Arm 80-9311-0007-021 (8-04)

* Door/Wall/Hardware/Jamb conditions permitting

Inches (mm)

Door Opening	A	B~ ∳ -
To 120°	9-1/2 (241)	3-3/4 (95)
*121° to 180°	7 (178)	1-1/4 (32)

Non Hold Open Door Closers — Parallel Arm

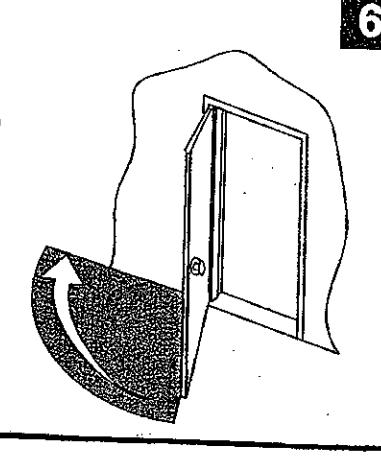

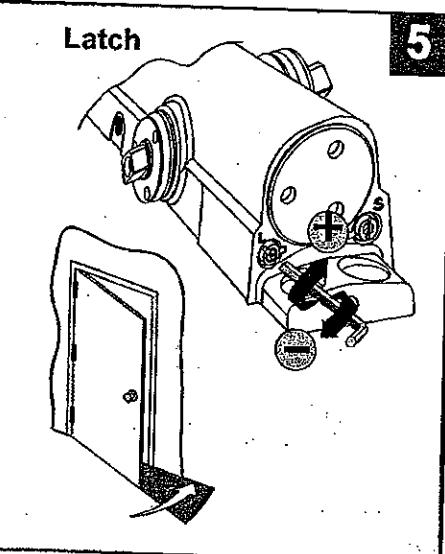

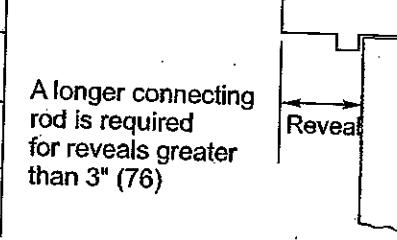

Non Hold Open Door Closers — Top Jamb Arm 80-9311-0007-021 (8-04)

90

Mark and	d Drill Holes	021(00
	12 (304.8) 3/4 (19)	- - -
	1-7/8	Top of Frame
	(38)	3 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
Inches

(mm) Right Hand Shown
Opening	Dimension "A"
To 100°	7-1/2 (191)
101° to 130°	6 (152)
131° to *180°	4-1/2 (114)

(mm)

* Door/Wall/Hardware/Jamb conditions permitting

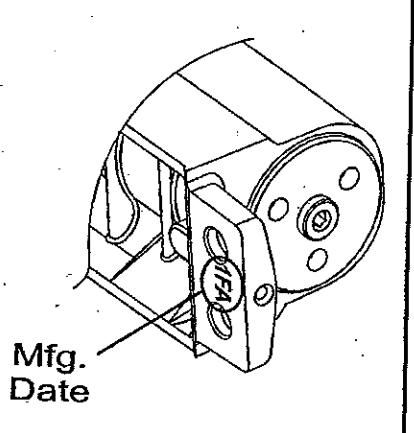

5016N Series Adjustments Page

ARROW™

325 Duffy Ave. Hicksville, NY 11801 Phone (516) 704-2790 FAX (516) 704-2790 www.arrowlock.com

80-9311-0007-021 (8-04)

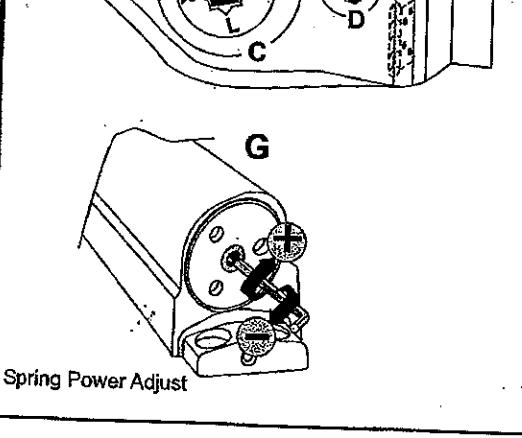

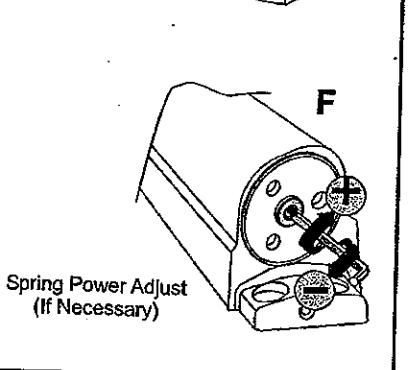

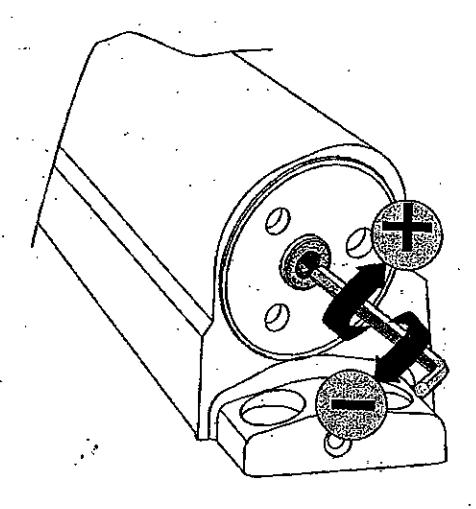

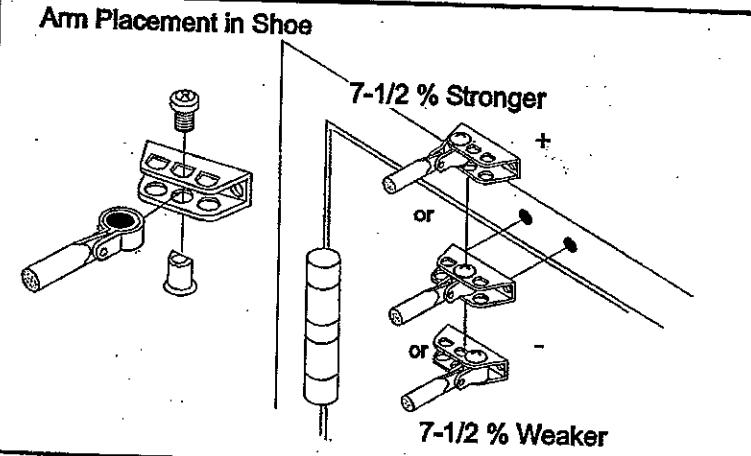

Spring Power Adjust

(Use 1/8" Hex Wrench for this Adjustment)

Adinator
Adjustment Chart		Number of Turns Required
	ਲ	TYPE		MAXIMUM DOOR SIZE
	Š	OF INST.	*	32" (0.85M)	36" (0.90M)	42" (1.00M)	48" (1.20M)
5016N	ERK	Regular Arm Top Jamb	JLL 360° TURNS OF YOWER ADJUSTMEN WRENCH	5	8	11	13
		Parallel Arm		7	10	13	16
		Regular Arm Top Jamb		7	10	13	16
		Parallel Arm		9	12	15	18

*20 FULL (360°) TURNS MAXIMUM AVAILABLE Closer is shipped set at mid range setting = 10 turns
