Electric Hinges/Pivots

Hager Ives McKinney Stanley PBB Bommer Rixson ABH and more

Series 1100 | Electric Hinges/Pivots

ACSI Series 1100 Electric Hinges/Pivots are designed for doors that require concealed low voltage power transfer, concealed electric monitoring or concealed low voltage power transfer with monitoring. ACSI Series 1100 products are UL Listed and carry a full one-year warranty.

Manufacturers

Hager, Ives, McKinney, Stanley, PBB, Bommer, Rixson, ABH, Dorma, Design Hardware, Don-Jo and more* *Consult factory for manufacturers not listed

Options

Custom wire lead lengths
Universal Molex® Connectors
Connectors available in Hager, ASSA or Ives specifications

Features

UL Listed
UL Fire Rating on steel and stainless electric hinges
All architectural finishes in sizes 4x4 through 6x6
Hinges/Pivots in stock for same-day shipments

Notes

Electric hinge must be placed in the center position only.
ACSI requires NON-NRP hinges for modification. Hinge pin is not field removable after modification.
ACSI part #302-03-03 mortar guard is required for all application with grout-filled frames. Failure to install mortar guard will void the electric hinge warranty.

Comparison Chart

ACSI	STANLEY	HAGER		IVES
1104	CE-54	ETW-4	CC-4	TW4
1106	CE-56	ETW-6	CC-6	TW6
1108	CE-58	ETW-8	CC-8	TW8
1110	CS	EMN	CS	MON
1114	CECS-54	ETM-4	CSCC-4	TW4M
1116	CECS-56	ETM-6	CSCC-6	TW6M
1118	CECS-58	ETM-8	CSCC-8	TW8M

Models Available

Model	Description
1102	Concealed electric through-wire (2 wire, 22ga)
1104	Concealed electric through-wire (4 wire, 28ga)
1106	Concealed electric through-wire (6 wire, 28ga)
1108	Concealed electric through-wire (8 wire, 28ga)
1100-10	Concealed electric through-wire (10 wire, 28ga)
1100-12	Concealed electric through-wire (12 wire, 28ga)
1102x4	Concealed electric through-wire (2 wire, 22ga x 4 wire, 28ga)
1182*	Concealed electric through-wire (2 wire, 18ga)
1182x4*	Concealed electric through-wire (2 wire, 18ga x 4 wire, 28ga)
1182x6*	Concealed electric through-wire (2 wire, 18ga x 6 wire, 28ga)
1110	Concealed electric monitor
1114	Concealed electric monitor and through-wire (4 wire, 28ga)
1116	Concealed electric monitor and through-wire (6 wire, 28ga)
1118	Concealed electric monitor and through-wire (8 wire, 28ga)
1120*	Concealed air transfer hinge

^* Not available in pivot modification

How to Order

Manufacturer's Model	ACSI Model
Stanley FBB179 4.5x4.5 26D	1104
Hager BB1279 5.0x4.5 10B	1108
Rixson M19 US26 LH	1110

Electrical Specifications

Concealed electric through-wire

22ga, 28ga conductors, 12 inch wire lead length both sides
3.5A continuous @ 50VAC/VDC
16A pulse @ 50VAC/DC
400msec maximum pulse-width
10sec minimum off-time between pulses
18ga conductors, 12 inch wire lead length both sides
10A continuous @ 50VAC/VDC
20A inrush @ 50VAC/DC for 4sec

Concealed electric monitor

• 0.5A @ 30VDC

Door Controls

Mortise Keyswitches Pushbutton Switches Emergency Release Door Position Sensors Indicators Digital Keypads

Series 1300 | Door Controls

Mortise Keyswitches

ACSI Series 1310 Mortise Keyswitches are designed to control electric locks, electric strikes, electric exit devices and a variety of other control applications. The keyswitches allow keying the electrically controlled openings to facility master key systems. DPDT contacts unless otherwise noted.

Model	Description
1310-1	Single gang, wall mount
1310-2	Single gang, 2 LEDs (red and green), wall mount
1310-3	Adjustable time delay, double gang, SPDT contacts, wall mount
1310-3-1	Adjustable time delay, double gang, 1 LED (red or green), SPDT contacts, wall mount
1310-4	Narrow style, 1-3/4" frame mount
1310-4-2	Narrow style, 2 LEDs (red and green), 1-3/4" frame mount
1310-5	Audible alarm, double gang, wall mount
1310-5-2	Audible alarm, double gang, 2 LEDs (red and green), wall mount
1310-6	Single gang, 2 momentary switches, wall mount
1310-7	Single gang, 2 momentary switches, 1 LED (red or green), wall mount
1310-8	Single gang, 2 momentary switches, 2 LEDs (red and green), wall mount

^* When ordering 1310 Keyswitches, specify momentary or maintained action.

Pushbutton Switches

ACSI Series 1320 Pushbutton Switches provide a variety of functions for commercial and industrial door control applications. DPDT contacts unless otherwise noted.

Model	Description
1320-1	Single gang, wall mount
1320-2	Single gang, 1 LED (red or green), wall mount
1320-3	Single gang, 2 LEDs (red and green), wall mount
1320-4	Adjustable time delay, double gang, 1 LED (red or green), wall mount
1320-5	Mushroom button, single gang, SPDT contacts, wall mount*
1320-5-2	Mushroom button, single gang, 2 LEDs (red and green), SPDT contacts, wall mount*
1320-6	Narrow style, 1-3/4" frame mount
1320-6-2	Narrow style, 2 LEDs (red and green), 1-3/4" frame mount

^* When ordering 1320 Pushbuttons, specify momentary or maintained action.

Series 1300 | Door Controls

Emergency Release

ACSI 1330-3 Emergency Release provides manual emergency reporting; attractive/durable and finished in blue enamel.

Features

UL Listed
California State Fire Marshall approved
Normally open or normally closed contacts
Key resettable for increased security
Designed for indoor or outdoor use
Mounts in a standard single gang box
Comes packaged with two spare keys, mounting hardware and one glass break tube

Model	Description
1330-3	Emergency Release

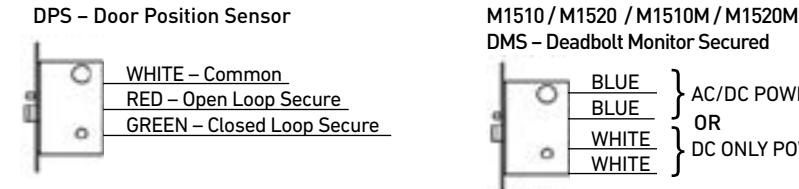

Door Position Sensors

ACSI Series 1335 Door Position Sensors are used to confirm door position. Magnetic sensors mounted in the frame react to the proximity of the magnet mounted in the door. Pneumatic models also available for use in hazardous locations.

Model	Description
1335-1	D.P.S. Standard mortise, SPDT, N.O./N.C. con tacts
1335-2	D.P.S. ANSI, SPDT, N.O./N.C. contacts
1335-3	D.P.S. 1" Recessed mount, SPDT, N.O./N.C. contacts
1335-4	D.P.S. Standard mortise, DPDT, N.O./N.C. contacts
1335-5	D.P.S. ANSI, DPDT, N.O./N.C. contacts
1335-6	D.P.S. 1" Recessed mount, DPDT, N.O./N.C. contacts

Indicators

ACSI Series 1340 Indicators provide visual or audible indication of system status.

Model	Description
1340-1	Single gang, 1 LED (red or green), wall mount
1340-1-2	Single gang, 2 LEDs (red and green), wall mount
1340-2	Audible alarm, single gang, wall mount
1340-3	High security audible alarm, single gang, wall mount

Electrical Specifications

1310/1320 Switches

• Contacts Rated 1A @ 30VDC

1330-3 Emergency Release Switch

Separate N.O./N.C. Outputs
Can be wired for SPDT Contact Configuration
Contacts Rated 1A @ 30VDC

1340-2 & 1340-3 Audible Alarm

DC Voltage Range: 4V 28V
DC Current Range: 3mA 16mA
Frequency: 2900 Hz
Sound Intensity: 64dB @ Min.V; 76dB @ Max.V

Red/Green LED Indicator used with 1310/1320/1340 Controls

• 20mA @ 24VDC

Series 1300 | Door Controls

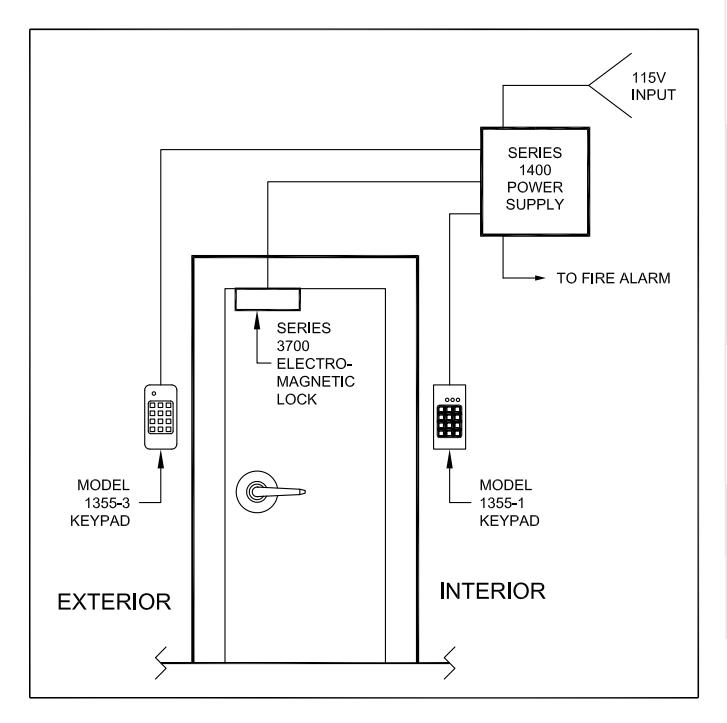

Digital Keypads

ACSI Series 1355 Digital Keypads offer proven reliability for commercial, industrial and residential applications. The keypads are designed to control any electric locking device.

Features

Keypad programmable
10-30 VDC; 12-24VAC-auto adjusting (12-24VAC/DC for 1355-5)
120 user capability
Codes can be 1 to 6 digits including repeated digits
1-90 sec. adjustable relock delay (1-255 sec. for 1355-6)
LED status indicators (for all models except 1355-4)
Request-to-exit switch input
Main relay ON/OFF latching (toggle mode)
Panic output (for all models except 1355-5 and 1355-6)
Remote alarm panel interface capability
Main relay: 5A, form C @ 24VDC with 10A surge (2A for 1355-3, 1355-4 and 1355-6)
Non-volatile memory remembers codes and instructions when power is removed


Model	Description
1355-1	Digital Indoor Keypad
1355-2	Weather Resistant Keypad
1355-3	Sealed Environmental Keypad • Weather resistant, self-contained metal housing • Vandal resistant • Small design suitable for commercial, industrial and residential applications
1355-4	Ruggedized Digital Keypad • Weather resistant, self-contained metal housing • Vandal resistant • One piece housing suitable for wall, post or gooseneck mounting • Internal audible multi-status indicator (sounder) • Available in white or black
1355-5	Mullion Digital Keypad • Weather resistant for outdoor as well as indoor applications • Backlit hardened keys • Doorbell key with associated relay output • Narrow style suitable for aluminum door frame mounting • Available in bronze or satin aluminum
1355-6	Indoor/Outdoor Backlit Keypad • Weather resistant • Illuminated backlit hardened keys • Flush mount design • Includes audible indicator (sounder)
1355-7	Harsh Environment Keypad • Vandal and weather resistant case • Indoor/outdoor applications • Touch sensitive flat key design • 12/24 volts AC/DC jumper selectable

Power Supplies

1406/1426 Power Supplies

ACSI 1406 and 1426 Power Supplies are designed to operate exit devices equipped with ACSI Series 1550 Electric Latch Retraction (required with 1550 Electric Solenoid Latch Retraction).

Features

UL Listed and tested to UL 294 standard
Class 2 rated outputs
2A load capacity
Overload, over voltage, and short circuit protection
1406 Series only: select from independent control of single exit devices from separate inputs (one or two single doors) or sequential operation of two exit devices from a single input (pair of doors)
Automatic door operator interface
Fire alarm interface
Field adjustable latch retraction time delay
24VDC, 12VDC* constant voltage outputs (250mA each)
*Not available in battery backup models

Day/Night Mode-ACSI 1426 Power Supply

Provides a separate input for retracting one exit device or two exit devices sequentially without activating the automatic door operator. While the latches are held retracted, the auto-operator can be activated independently from a different input.

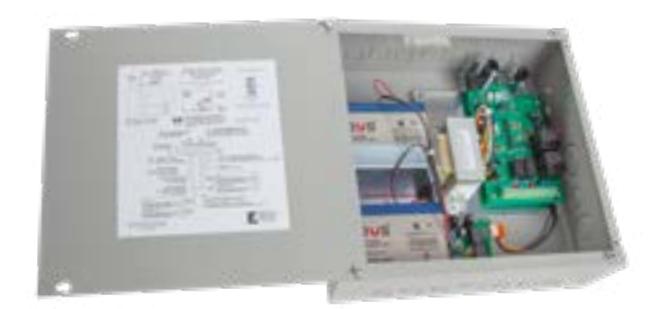

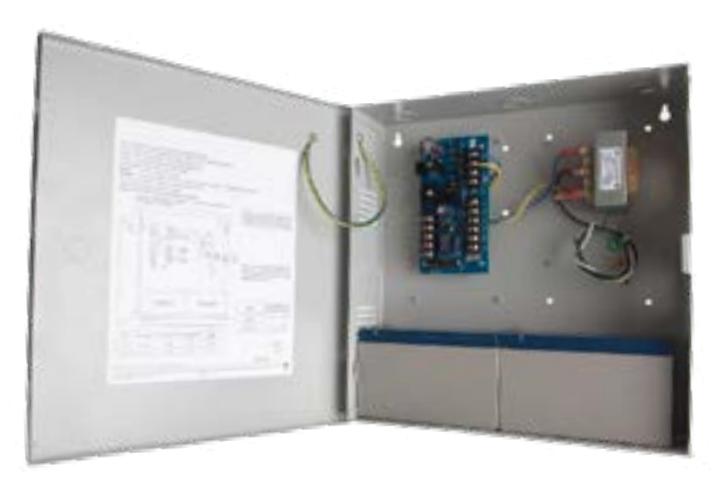

1406BB/1426BB Power Supplies with Battery Backup

All the same features as above, but includes built-in battery backup power:

4 hours of backup power at full load during AC power failure
Standby battery power with a supervised AC failure output and low battery output
Supplied with (2) 12V, 7Ah lead acid batteries

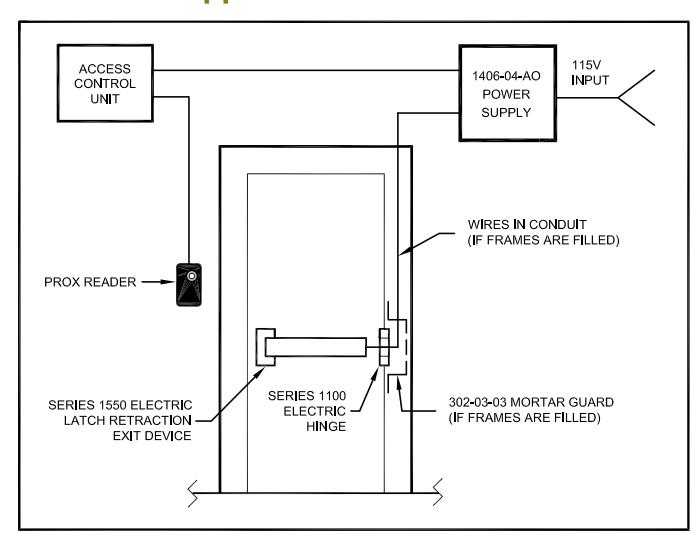

ACSI 1406 Application

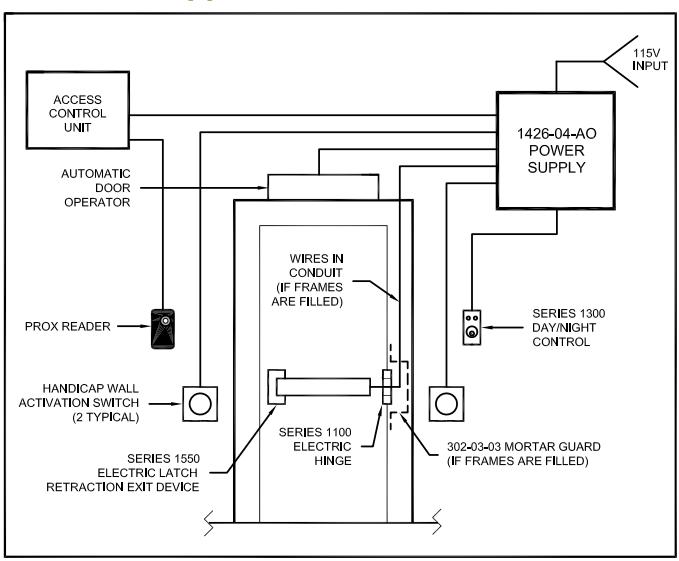

ACSI 1426 Application

1410 Interlock Power Supply

ACSI 1410 Interlock Power Supply is designed to interconnect two or more doors using fail safe locking devices. Each supply can control up to four doors and the system can be expanded for requirements in excess of four doors. Any one door can be programmed to be a part of (common to) as many as three separate interlocking systems. Separate plug-in p.c. boards used to control interlocking doors can be programmed for normally locked or normally unlocked operation.

Inputs are available for fire alarm and optional emergency release interface for override of the interlocking system. Applications include darkrooms, laboratories, pharmaceuticals, detention centers, money counting rooms, airlocks, clean rooms, etc.

ACSI system engineers are available for design and consultation services to coordinate all aspects of the system. ACSI electric locking systems and all documentation including riser diagrams and point-to-point wiring diagrams can give distributors a single source for their system requirements.

Features

UL Listed and tested to UL 294 standard
Filtered/Regulated 24VDC
Class 2 rated outputs
2.2A load capacity
Overload, over voltage, and short circuit protection
Automatically accepts 120VAC or 240VAC input

Model	Description
1410-2	2 Door Interlock
1410-3	3 Door Interlock
1410-4	4 Door Interlock

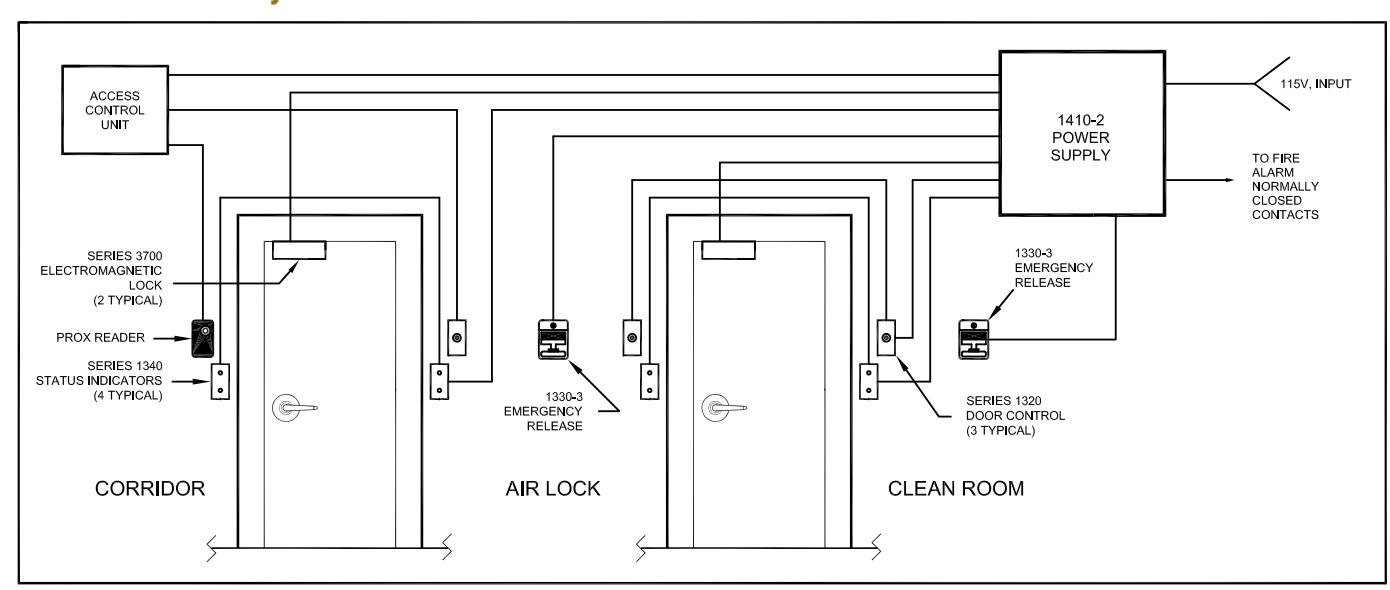

1410

ACSI Interlock System

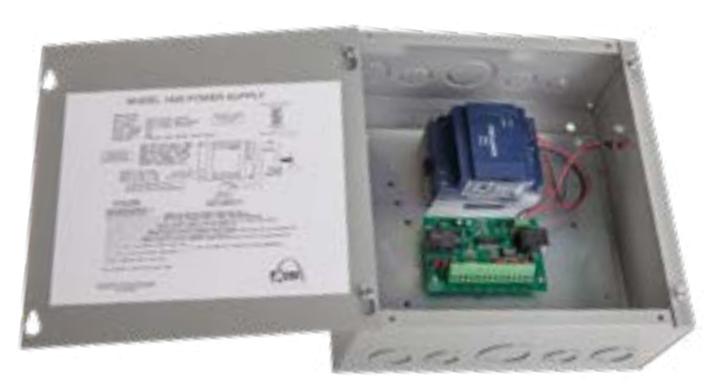

1420 Power Supply

ACSI 1420 Power Supply can be used in the following applications:

Provide power/control to exit devices equipped with the ACSI Series 1550-MD Motor Drive Electric Latch Retraction. (See ACSI Series 1500 Electric Exit Device Catalog)
Provide power/control to electrified door hardware in applications requiring automatic door operator interface.

UL Listed and tested to UL 294 standard
Filtered/Regulated 24VDC
Class 2 rated outputs
2A load capacity
Overload, over voltage, and short circuit protection
Automatically accepts 120VAC or 240VAC input

Each 1420 Includes

Separate inputs for activation switch on entry and exit sides of the opening.
Relay dry contact output to automatic door operator input.
Built-in 0.5 second time delay between activation of the electrified door hardware and automatic door operator.
Input for optional fire alarm or emergency release switch when urgent unlocking of door is required.
Auxiliary 24VDC constant voltage output
Separate 24VDC outputs for fail safe and fail secure electrified door hardware.

Options

DN – Day/Night mode provides a separate input for retracting one exit device or two exit devices simultaneously without activating the automatic door operator. While the latches are held retracted, the auto-operator can be activated independently from a different input. ¹⁴²⁰

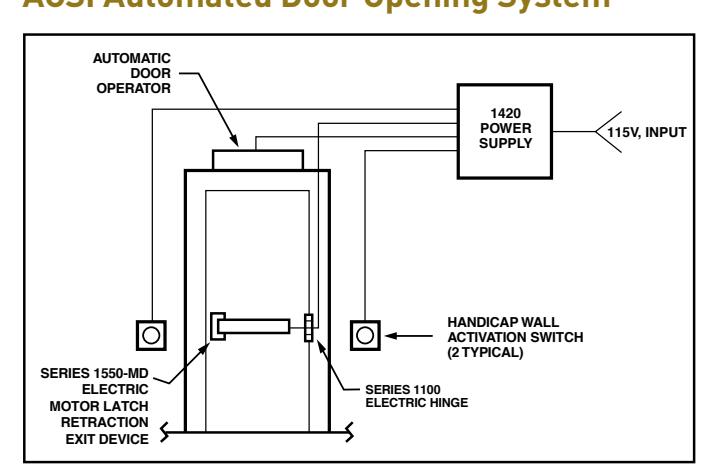

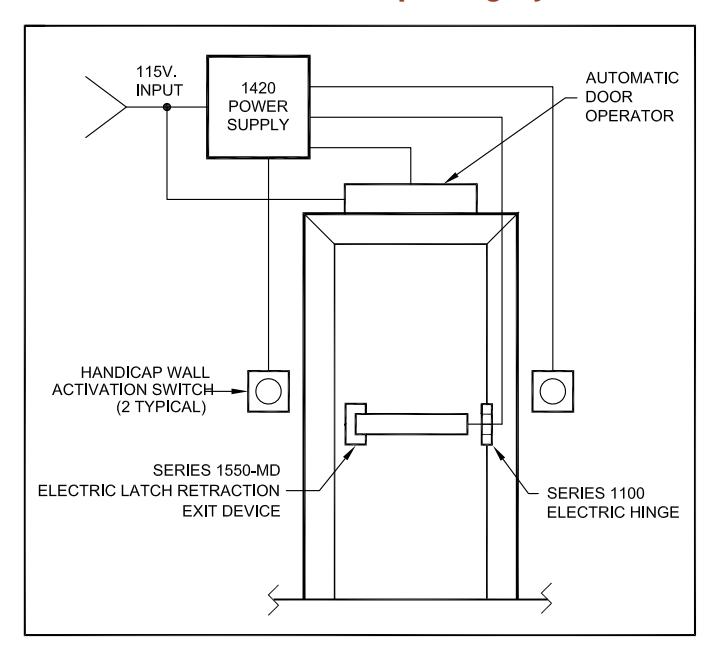

Features ACSI Automated Door Opening System

1440 Power Supply

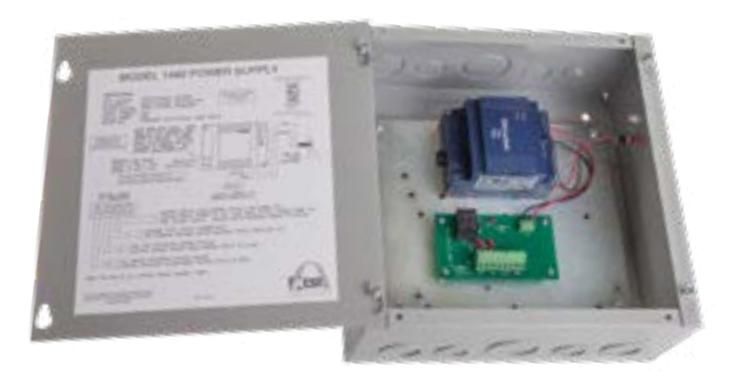

ACSI 1440 Power Supply provides power for fail safe or fail secure locking devices.

Features

UL Listed and tested to UL 294 standard
Filtered/Regulated 24VDC
Class 2 rated outputs
2A load capacity
Overload, over voltage, and short circuit protection
Surge suppression on fail safe and fail secure outputs
Automatically accepts 120VAC or 240VAC input

Each 1440 Includes

Interface relay to isolate the locking device current from the control switch
Auxiliary 24VDC constant voltage for powering standalone devices such as keypads, motion detectors, status indicators, etc.
Field terminal block set at 45° for ease of installation

Options

TD – Adjustable time delay for 1 second to 60 minutes

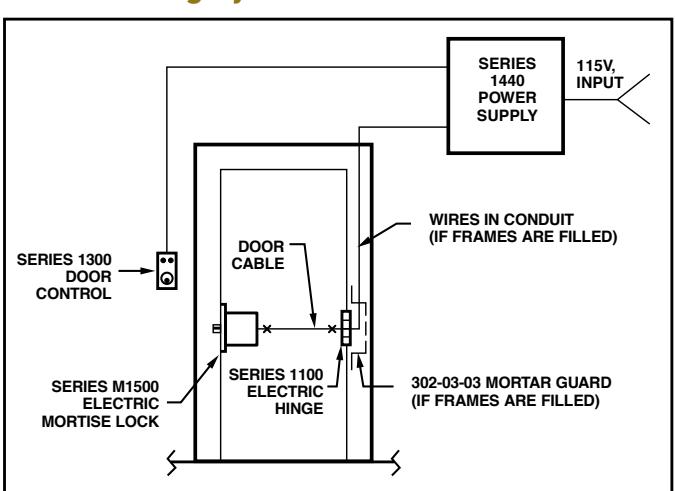

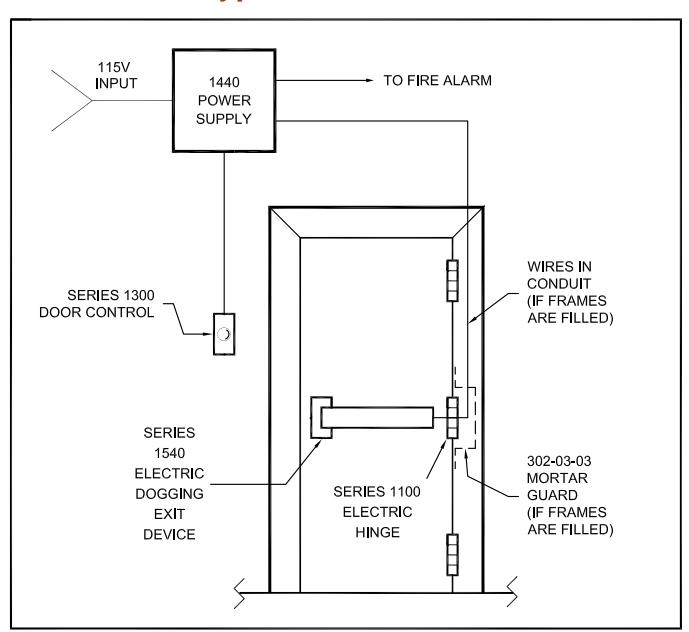

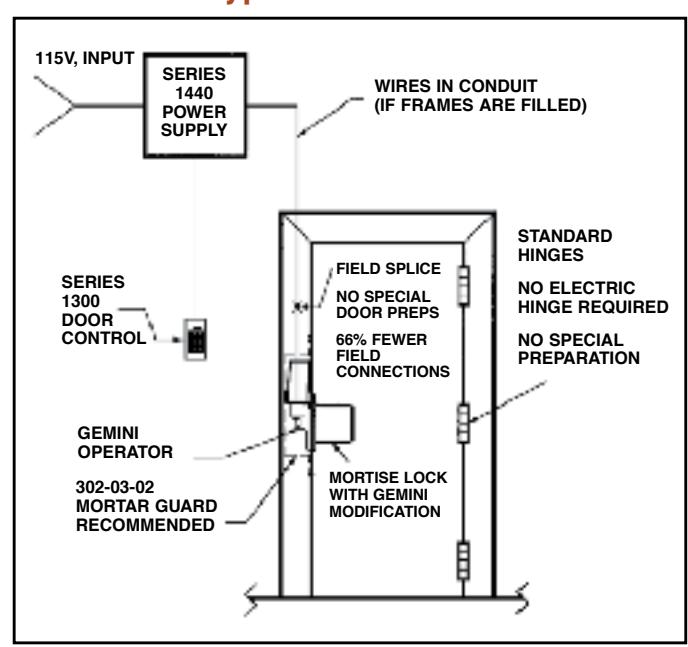

ACSI Locking System ACSI Locking System

1440

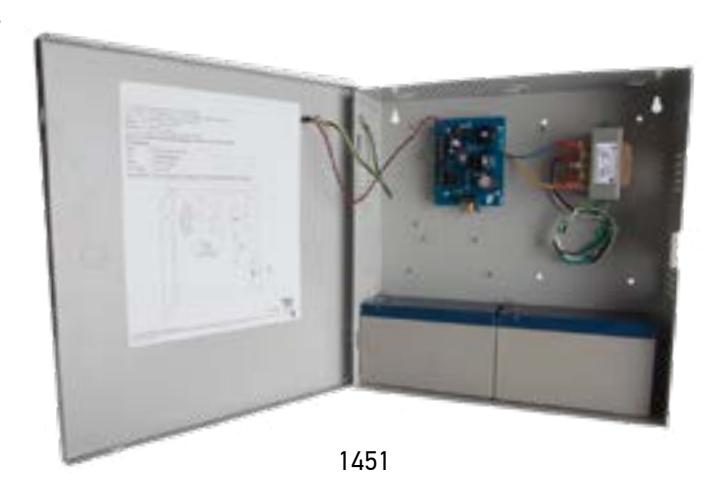

1451/1452 Power Supplies with Battery Backup

ACSI 1451 and 1452 Power Supplies can be used in the following applications:

Provide power/control to exit devices equipped with the ACSI Series 1550-MD Motor Drive Electric Latch Retraction. (See ACSI Series 1500 Electric Exit Device Catalog)
Provide power/control to electrified door hardware in applications requiring automatic door operator interface.
Provide power for fail safe or fail secure locking devices.

Features

1451-1A load capacity
1452-1.75A load capacity
UL Listed for US and Canada
Filtered/Regulated 12VDC or 24VDC
Class 2 rated outputs
Fire alarm interface
Overload and short circuit protection
Automatic switchover to standby battery when AC fails
Built-in battery charger
Supplied with (2) 12V, 7Ah lead acid batteries

Options

TD Adjustable time delay for 1 second to 60 minutes
DN Day/Night mode provides a separate input for retracting one exit device or two exit devices simultaneously without activating the automatic door operator. While the latches are held retracted, the auto operator can be activated independently from a different input.
AO Automatic Operator Interface

1452

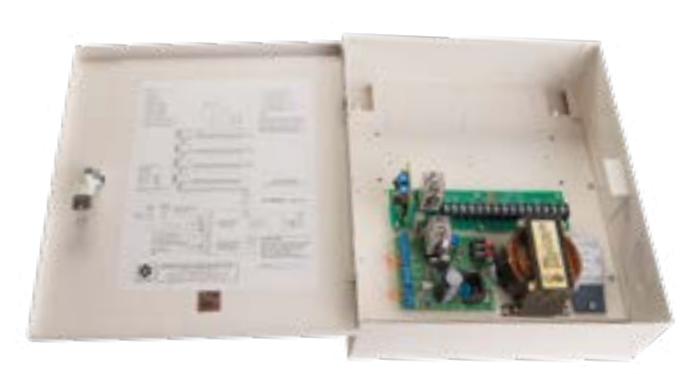

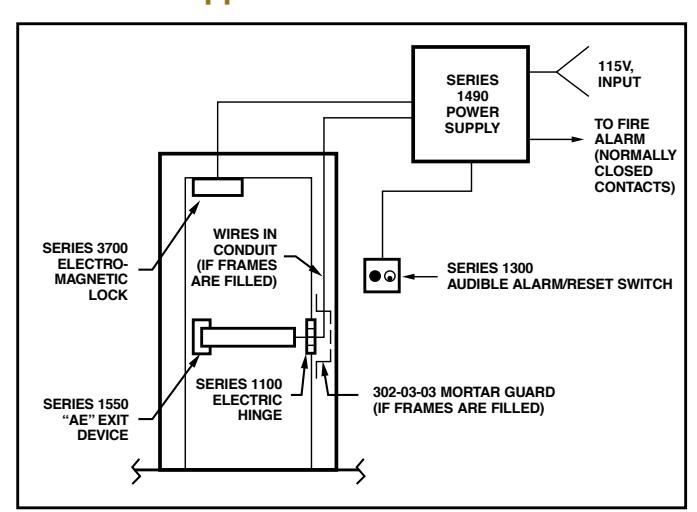

1490 Delayed Egress Power Supply

ACSI 1490 Power Supply is designed to interface with ACSI electromagnetic locks in a delayed egress locking application.

Features

UL Listed
Compliance with NFPA code requirements
Filtered/Unregulated 24VDC
2A load capacity
Input for delayed egress activation
Manual reset of delayed egress alarm
Optional auto reset available
Fire alarm interface
Output for audible alarm
Field adjustable delay for nuisance alarm, door release, request-to-exit and auto reset delay times
One power supply can provide up to 4 delayed egress alarm zones

Description of System Operation

The delayed egress alarm becomes activated when the push bar of the Series 1500 modified exit device is depressed. A concealed AE (request-to-exit) switch initiates an irreversible cycle that begins with the Series 1300 audible alarm sounding for a predetermined time (field adjustable) while the Series 3700 electromagnetic lock remains energized locking the door.

At the end of the timing cycle, the electromagnetic lock de-energizes and unlocks the door while the audible alarm continues sounding. The door will remain unlocked and in an alarm state until manually reset by the Series 1300 keyswitch. Resetting the system will lock the door by energizing the electromagnetic lock and will turn off the audible alarm.

Note: When using the system with a door position switch, the door must be fully closed prior to resetting the system. Resetting with the door open will energize the electromagnetic lock, but will not turn off the audible alarm. The audible alarm will also begin sounding if a forced entry occurs while the system is armed.

In the event of a fire alarm, the electromagnetic lock will immediately de-energize to unlock the door. Upon resetting the fire alarm, the system will return to normal standby operation.

Model	Description
1490-21	1 zone card
1490-22	2 zone cards
1490-23	3 zone cards
1490-24	4 zone cards

ACSI 1490 Application ACSI 1490 Application

1490-21

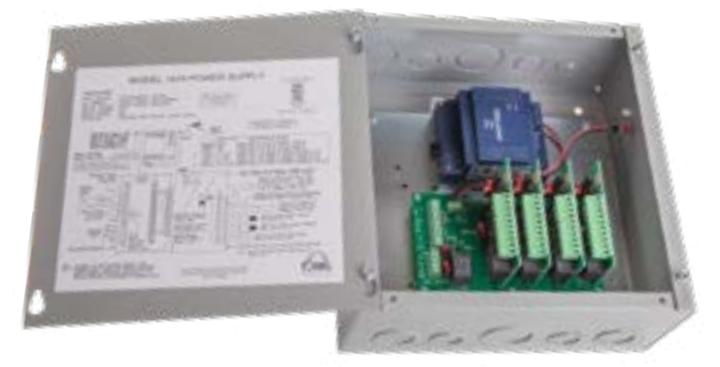

Series 1400 Power Supply Specifications

ACSI Series 1400 Power Supplies are designed and manufactured by ACSI engineers to operate a variety of electric locking devices that will meet the most sophisticated specifications.

ACSI system engineers are available to assist you in the selection of the power supply that best meets your application. All ACSI designed systems include riser diagrams and point-to-point wiring diagrams that allow ease of interface with life-safety and security systems.

Input

1406, 1426, 1490 120VAC, 0.75A, 60Hz

1406BB, 1426BB

120VAC, 1.08A, 60Hz

1410, 1420, 1440, 1400-6100

120VAC, 0.9A, 50/60Hz

240VAC, 0.6A, 50/60Hz

1451

115VAC, 0.6A, 50/60Hz

1452

115VAC, 0.6A, 50/60Hz

Output

1406, 1426

1550 Device Outputs: 40VDC, 1.5A (combined) Filtered/

Unregulated

Auxiliary 24V Output: 24VDC, 0.25A Filtered/Regulated

Auxiliary 12V Output: 12VDC, 0.25A Filtered/Regulated

1406BB, 1426BB

1550 Device Outputs: 40VDC, 1.8A (combined) Filtered/

Unregulated

Auxiliary 24V Output: 24VDC, 0.2A Filtered/Regulated

1490

24VDC, 2A Filtered/Unregulated

1420, 1440, 1400-6100

24VDC, 2A Filtered/Regulated

1410

24VDC, 2.2A Filtered/Regulated

1451

24VDC, 1A Filtered/Regulated

1452

24VDC, 1.75A Filtered/Regulated

Enclosure Dimensions/Type

1406, 1410, 1420, 1426, 1440, 1400-6100

10"x10"x4", NEMA Type 1 Screw Cover Junction Box

1406BB, 1426BB

12"x16"x4", NEMA Type 1 Screw Cover Junction Box

1490

12"x14"x4", Surface Mount Cabinet w/Hinged Door and

Keyed Lock

1451, 1452

13.5"x13"x3.25", Surface Mount Cabinet w/Hinged Door

and Cam Key Lock

Enclosure Weight

1410

9 lbs (with all four plug-in boards installed onto motherboard)

1406, 1426

12 lbs

1406BB, 1426BB

26 lbs (with batteries)

1420, 1440, 1400-6100

8 lbs

1490

15 lbs (with all zone cards installed)

1451, 1452

18 lbs (with batteries)

Electric Exit Devices

Von Duprin

Corbin Russwin

Sargent

Dorma

Hager

Jackson

Stanley Commercial

Design Hardware

PDQ

First Choice

Falcon

You supply the exit device and ACSI supplies high quality UL Listed modifications to a wide range of manufacturers' exit devices. ACSI engineers and technicians are available to provide system design, wiring diagrams, and a variety of technical services.

1550-MD Electric Motor Latch Retraction

ACSI Series 1550-MD Electric Motor Latch Retraction modification/kit provides a remote means of locking or unlocking exit devices.

Simultaneous electric latch retraction and dogging (push bar depressed)
UL Listed for both panic and fire exit hardware
Available for mortise, rim, concealed and surface vertical rod exit devices
Field or factory installed
Quiet operation
Continuous duty rated
Low power consumption
24VDC operation
-ACSI Series 1400 power supplies recommended
Interface with life-safety systems
Non-polarized leads
On-board diagnostic LEDs
Automatic retry

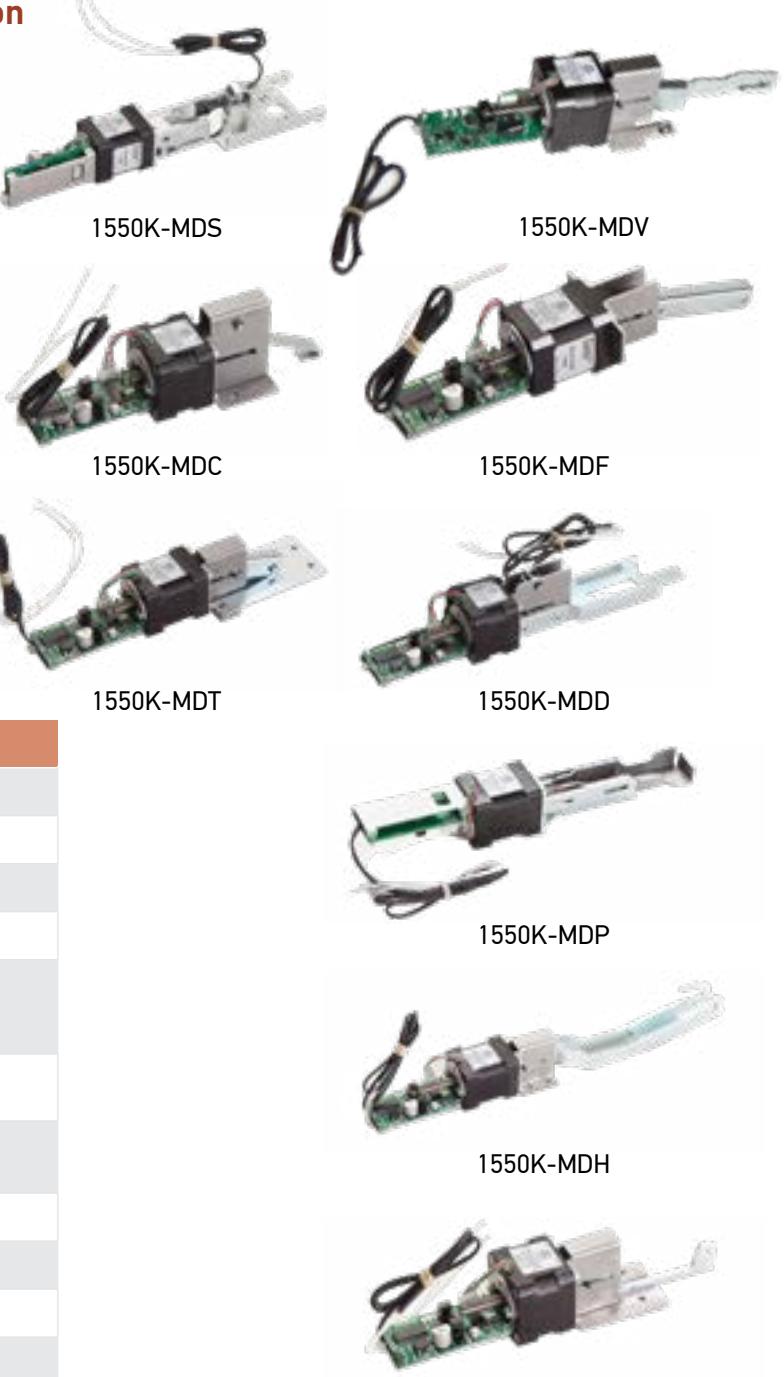

Model	Manufacturer's Series
1550K-MDV	Von Duprin 33A/35A, 98/99
1550K-MDV22	Von Duprin 22
1550K-MDC	Corbin Russwin ED4000, ED5000, Yale 7000
1550K-MDD	Dorma 9000
1550K-MDT	Hager 4500, 4600 PDQ 6200 Stanley Commercial QED100, QED200, QED300
1550K-MDO	Falcon 1690, 1790 First Choice 3600, 3700
1550K-MDS	Sargent 80 Arrow 1000, 3000, 4000
1550K-MDP	Precision 2000, 5000
1550K-MDF	Falcon 24, 25
1550K-MDH	Design Hardware 1000
1550K-MDX	Dorex 9500
1550-MDA*	Adams Rite 3000, 8000
1550-MDR*	Regent 5700
1550-MDJ*	Jackson 20
*Not available as a field installable kit.

^* Not available as a field installable kit.

1550K-MDO

1550 Electric Solenoid Latch Retraction

ACSI Series 1550 Electric Solenoid Latch Retraction modification provides a remote means of locking or unlocking exit devices.

UL Listed for both panic and fire exit hardware
Available for mortise, rim, concealed and surface vertical rod exit devices
Continuous duty rated
Interface with life-safety systems
Standard ACSI Series 1550 System includes:
1) ACSI Series 1550 exit device modification
2) ACSI Series 1406 or 1426 power supply (required)
3) ACSI Series 1100 electric hinge (no special unsightly power transfer required)
1550K-VD is a field installable kit for Von Duprin 33A/35A and 98/99 exit devices

Note: Electrified vertical rod exit devices are UL Listed to operate properly on doors not exceeding 48 inches wide and 96 inches tall.

1560/1570 Electric Trim Control

ACSI Series 1560/1570 Electric Trim Control modification provides a remote means of locking or unlocking outside lever handle trims of exit devices.

Fail Safe (Power Lock)
Outside trim is locked when power is applied and unlocked when power is removed. Trim control will unlock in the event of a power failure.
Fail Secure (Power Unlock)
Outside trim is unlocked when power is applied and locked when power is removed. Trim control will lock in the event of a power failure.
Continuous duty rated
Low power consumption
24VDC, 24VAC, 12VDC, or 12VAC operation
ACSI Series 1400 power supplies recommended
Interface with life-safety systems

1540 Electric Dogging

ACSI Series 1540 Electric Dogging modification provides quiet egress when electrically dogged. When energized, first time mechanical depression of the push bar will continuously hold the push bar depressed and the latch bolt retracted. When power is removed or interrupted, the push bar is released and the latch bolt will extend.

UL Listed for both panic and fire exit hardware
Available for mortise, rim, concealed and surface vertical rod exit devices
Continuous duty rated
Low power consumption
24VDC operation
ACSI Series 1400 power supplies recommended
Interface with life-safety systems

1510/1520 Electric Mortise Exit Control

ACSI Series 1510/1520 Electric Mortise Exit Control modification provides a remote means of locking or unlocking mortise exit devices.

UL Listed
Fail Safe (Power Lock)
Outside trim is locked when power is applied and unlocked when power is removed. Lockset will unlock in the event of a power failure.
Fail Secure (Power Unlock)
Outside trim is unlocked when power is applied and locked when power is removed. Lockset will lock in the event of a power failure.
Continuous duty rated
Low power consumption
24VDC, 24VAC, 12VDC, or 12VAC operation
ACSI Series 1400 power supplies recommended
Interface with life-safety systems

1550K-VD-4 1570-996L-24V AC/DC

Electric Trim Control

ACSI stocks Von Duprin electrified 996L exit trim controls.

RE/VR 1560 996L 24VAC/DC 626	Von Duprin – Fail Safe
RE/VR 1560 996L 24VAC/DC 613	Von Duprin – Fail Safe
RE/VR 1570 996L 24VAC/DC 626	Von Duprin – Fail Secure
RE/VR 1570 996L 24VAC/DC 613	Von Duprin – Fail Secure

Note: Available in 12 volt

Electric Exit Device Modification Listing

Note: If you do not find the lock of your choice listed, please consult with our factory engineering staff. We may request that you send a sample for further evaluation.

Arrow	Corbin Russwin	Dorma	Falcon	Precision	Sargent	Von Duprin	Yale
1000, 3000	ED4000	9000	24, 25	2000*	80	33A/35A**	7000
4000	ED5000		1690, 1790	5000*		22, 98/99*
Adams Rite	Design Hardware	Hager	Jackson	PDQ	Regent	Stanley Commercial
3000	1000	4500	20*	6200	5700	QED100, QED200, QED300
8000		4600
Dorex	First Choice
9500*	3600, 3700

^* Available in 1550-MD (Motor Drive) only.

Solenoid Electric Latch Retraction Comparison Chart

Manufacturer	Latch Retraction Part #	Power Supply Part #	Latch Bolt Monitor Part #	Request-to-Exit Part #
ACSI	1550	1406	LM	AE
Von Duprin	EL	PS873	LX	RX
Yale	P	781N	S	B
Corbin Russwin	M94	781N	M91	M92
Precision	ELR	ELR150	LS	SS
Dorma	ES	ES100	LM	MS
Adams Rite	EL, LR	PS-LR	LM	M1
Hager	ELR, EL	2901/2902		RX

^** Not available in Von Duprin 48 function.

How to Order

1 EXIT DEVICE	2 MODIFICATION #	3 LOCK PART #	4 OPERATING VOLTAGE	5 OPTIONS	6 QUICK CONNECT SYSTEM	7 HANDING
RE	1550-MD	FULL PART	24VDC	AE	QC1	LHR
VR	1550*	NUMBER	24VAC/DC	LM	QC2	RHR
ME	1560		12VDC		QC3
	1570		12VAC/DC
	1540
	1510
	1520

Examples:

1 EXIT DEVICE	2 MODIFICATION #	3 LOCK PART #	4 OPERATING VOLTAGE	5 OPTIONS	6 QUICK CONNECT SYSTEM	7 HANDING
RE	1550-MD	8800 (SARGENT)		LM	QC2	RHR
ME	1520	9975 (VON DUPRIN)	12VAC/DC		QC3	LHR
VR	1540	7120 (YALE)	24VDC	AE	QC1	RHR

1. Exit Device

(Select type of lock to be modified)

RE	Rim Exit Device
VR	Vertical Rod Exit Device
ME	Mortise Exit Device

2. Modification Number

(Select type of lock modification required)

1550-MD	Motor Latch Retraction
1550*	Solenoid Latch Retraction
1560	Fail Safe Trim Control
1570	Fail Secure Trim Control
1540	Dogging
1510	Fail Safe Mortise Exit Control
1520	Fail Secure Mortise Exit Control

^* ACSI UL Listed 1406 or 1426 Power Supply must be used with ACSI 1550 Solenoid Latch Retraction Modifications.

3. Lock Part Number

Enter manufacturer's full lock part number

4. Operating Voltage

Required for 1510/1520/1560/1570 modifications

24VDC 24VAC/DC 12VDC 12VAC/DC

5. Options

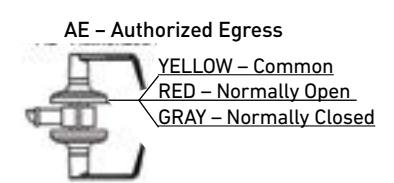

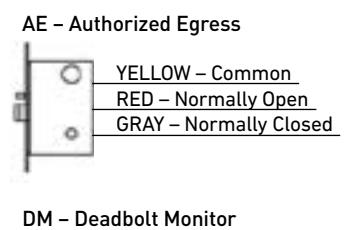

AE	Authorized Egress Monitors the use of the push bar. The AE Switch can be used to: • Signal a control console when the push bar is depressed • Activate a door alarm • Control an electromagnetic lock for egress • Shunt a door alarm to allow egress

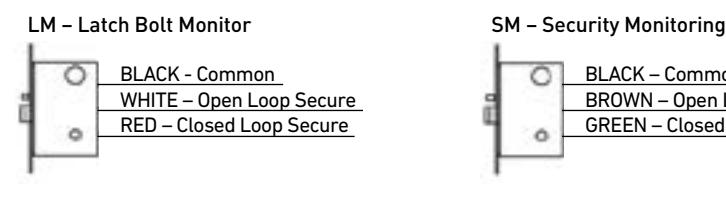

LM	Latch Bolt Monitor Monitors the full extension of the latch bolt or rods.

6. Quick Connect System

(Select type of system to be modified)

QC1	ACSI Quick Connect System
QC2	ASSA ElectroLynx® System
QC3	Allegion Connect System

7. Handing

RHR	Right Hand Reverse
LHR	Left Hand Reverse

Motor Electric Latch Retraction Comparison Chart

Manufacturer	Latch Retraction Part #	Power Supply Part #	Latch Bolt Monitor Part #	Request-to-Exit
ACSI	1550-MD	1420, 1440, 1451, 1452	LM	AE
Von Duprin	QEL	902	LX	RX
Sargent	56	3510	53	55
Dorma	MLR	PS532RF	LM	MS
Adams Rite	SE	PS-SE	LM	M1
Hager	MLR	2903, 2904	LM	RX
Corbin Russwin	MELR	BPS-24	M91	M92
Precision	MLR	RPSMLR2	LS	TS

Exit Device Switch Kits

ACSI Series K Switch Kits are field installed in exit devices. Series K Switch Kits include a SPDT (Single Pole Double Throw) switch assembly with long wire leads and easy-to-follow installation instructions. K Switch Kits may be used to:

Provide instant release of magnetic locks for free egress
Activate a door alarm
Signal a control console when the push bar of an exit device is depressed
Shunt a door alarm to allow free egress

Model	Manufacturer
K-100	Von Duprin 22, 33A/35A, 98/99
K-200	Von Duprin 22, 33A/35A, 98/99 (2-SPDT switches)
K-101	Von Duprin 55
K-102	Von Duprin 88
K-103	Sargent 80, Arrow 1000, 3000, 4000, Dorex 9500
K-203	Sargent 80, Arrow 1000, 3000, 4000, Dorex 9500 (1-DPDT switch)
K-104	Sargent 9600, 9700, 9800, 9900
K-105	Sargent 9300, 9400, 9500
K-106	Adams Rite 3000, 8000
K-107	Corbin Russwin 8000, Yale 2100
K-108	Jackson 1085, 1095
K-109	Corbin Russwin ED4000, ED5000, Yale 7000
K-110	Monarch 18, 19
K-111	Doromatic 990, 1090

Model	Manufacturer
K-112	Doromatic 1490, 1590
K-124	Precision 2000
K-125	Dorma 9000
K-126	Hager 4500, 4600, PDQ 6200, Stanley Commercial QED100, QED200, QED300
K-226	Hager 4500, 4600, PDQ 6200, Stanley Commercial QED100, QED200, QED300 (2-SPDT Switches)
K-128	Design Hardware 1000
K-129	Falcon 24, 25
K-130	Jackson 20
K-131	Falcon 1690, 1790
K-123	Latch Bolt Monitor for Von Duprin 33A/35A, 98/99
K-127	1550K-VD ELR Kit Latch Bolt Monitor for Von Duprin 33A/35A, 98/99

Electrical Specifications

1550-MD Motor Latch Retraction

• 24VDC, 1A Inrush, 400mA Holding

1550 Solenoid Latch Retraction

• Must use ACSI 1406 or 1426 Power Supply (see ACSI series 1400 catalog for output voltages)

1510/1520

12VAC/DC, 612mA
24VAC/DC, 330mA

1540

• 24VDC, 225mA

1560/1570

12VAC/DC, 612mA
24VAC/DC, 330mA

Series 1540 Typical Installation

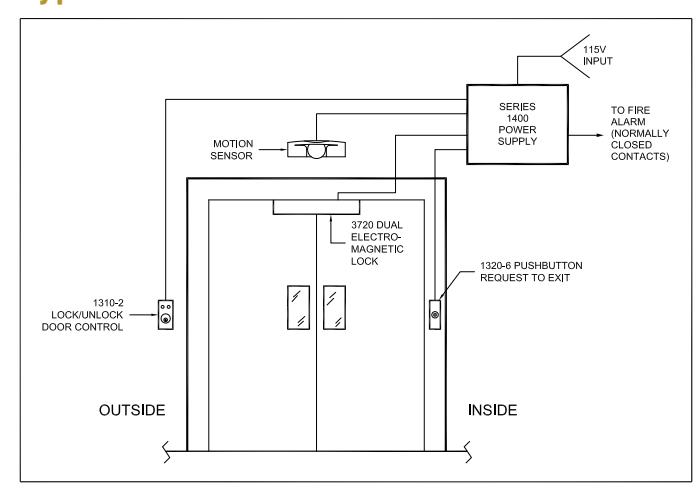

ACSI Automated Door Opening System

Electric Locks

Schlage

Corbin Russwin

Sargent

Yale

Best

Hager

Stanley Commercial

PDQ

Falcon

Arrow

Design Hardware

Tell

Baldwin

and more

ACSI supplies high quality UL Listed modifications to a wide range of manufacturers' locksets. Series 1500 electric locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The Series 1500 locks allow remote electric locking or unlocking while conforming to life-safety codes. Series 1500 locks are available in motor-controlled or solenoid-controlled in both mortise and cylindrical locks.

Features

UL Listed
California State Fire Marshall approved
Fail Safe (Power Lock)
Outside trim is locked when power is applied and unlocked when power is removed (storeroom function when energized). Lockset will unlock in the event of a power failure (passage function).
Fail Secure (Power Unlock)
Outside trim is unlocked when power is applied and locked when power is removed. Lockset will lock in the event of a power failure.
Simple user selectable fail safe/fail secure operation in motor-controlled locks
Continuous duty rated
Low power consumption
24VDC, 24VAC, 12VDC or 12VAC operation
Automatic 12V or 24V, AC or DC operating voltage for motor-controlled locks.
ACSI Series 1400 power supplies recommended
When key cylinders are provided in the locks, the latch bolt may be momentarily retracted with key even though electrically locked. Note: Locks that are electrically unlocked may not be locked via the key cylinder.
Wide variety of monitoring options are available
Interface with life-safety systems

Applications

Doors in stairtowers, offices, classrooms, interlocks, elevator lobbies, laboratories, computer rooms, cashier stations, hospital equipment rooms, pharmaceutical storage rooms

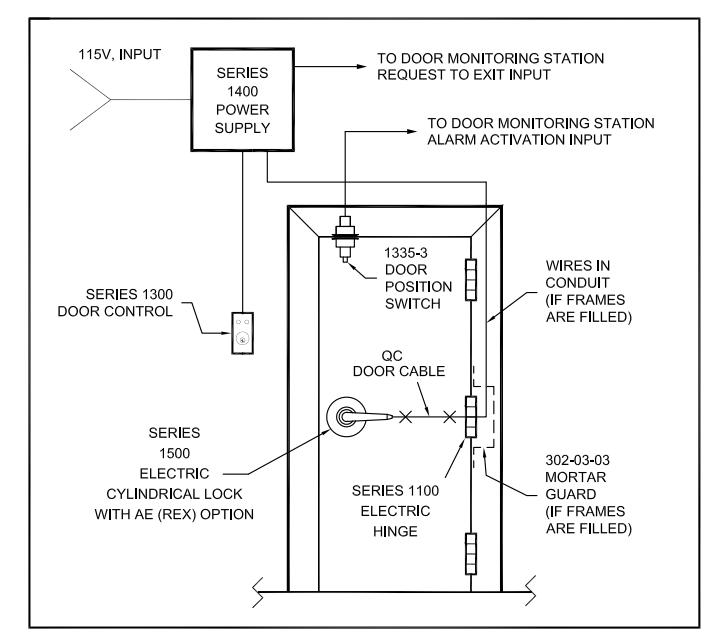

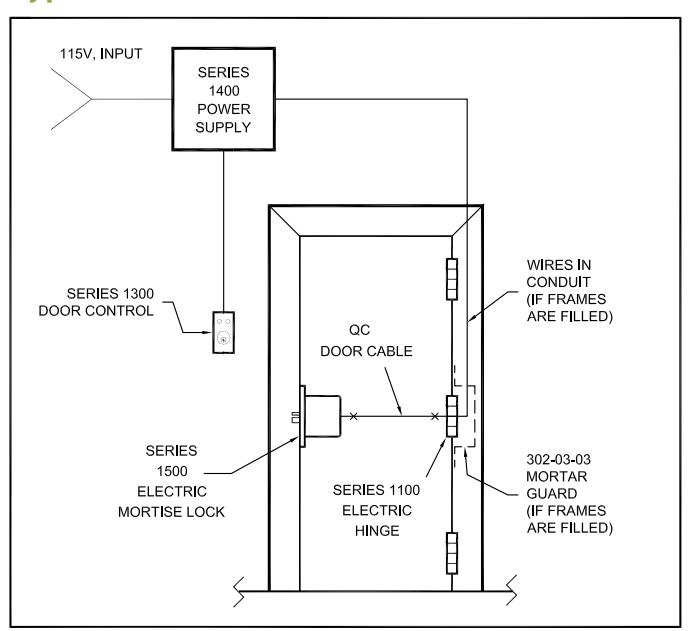

Typical Installation

How to Order

1 LOCK TYPE	2 MODIFICATION #	3 OPTIONS	4 LOCKING	5 LOCK PART #	6 OPERATING VOLTAGE	7 QUICK CONNECT SYSTEM	8 HANDING
M	1520M	AE	1	FULL	12/24V	QC1	RH
C	1510M	LM	2	PART	24VDC	QC2	LH
MU	1520	SM		NUMBER	24VAC/DC	QC3	RHR
	1510	DM			12VDC		LHR
	1500	DMS			12VAC/DC
		DPS

Example:

LOCK TYPE	MODIFICATION #	OPTIONS	LOCKING	LOCK PART #	OPERATING VOLTAGE	QUICK CONNECT CABLE	HANDING
M	1520M	AE	1	L9070 (SCHLAGE)	12/24V	QC3	RH

1. Lock Type

(Select type of lock to be modified)

M	Mortise Lock
C	Cylindrical Lock
MU	Unit Lock

2. Modification Number

(Select type of lock to be modified)

1520M	Fail Secure Motor-Controlled*
1510M	Fail Safe Motor-Controlled*
1520	Fail Secure Solenoid-Controlled
1510	Fail Safe Solenoid-Controlled
1500	Monitor Only

^* Factory ships Fail Secure as default (unless specified Fail Safe). Field selectable to Fail Safe.

3. Options

AE	Authorized Egress (Mortise or Cylindrical Lock) Monitors the use of the INSIDE trim when the OUTSIDE trim is locked. The AE switch can be used to: • Shunt a door alarm to allow egress • Signal a control console when the trim is activated • Activate a door alarm • Control an electromagnetic lock for egress
LM	Latch Bolt Monitor (Mortise Lock) Monitors the full extension of the main latch.
SM	Security Monitoring (Mortise Lock) Monitors the locked or unlocked status and the dead latch status in series.
DM	Deadbolt Monitor (Mortise Lock) Monitors the full extension of the deadbolt.
DMS	Deadbolt Monitor Secured (Mortise Lock) Monitors the full extension of the deadbolt disabling the electrical control of a fail secure lockset locking the OUTSIDE trim. Retracting the deadbolt will enable the electrical control. Free egress at all times. • Uses include private rooms, restrooms, and lactation rooms.
DPS	Door Position Sensor (Mortise Lock) Monitors the door position. A magnetic sensor mounted in the mortise lock reacts to the proximity of a magnet mounted behind the ASA strike.
MK-10	Authorized Egress Kit Field installable for Schlage L series mortise lock.

How to Order (Cont.)

4. Locking

1	Standard control locks outside (secure side) trim.
2	Locks both sides – mortise locks only.

5. Lock Part No.

Distributors supply ACSI with mortise, cylindrical or unit locks for modification. Please supply the lock manufacturer's full part number.

Example: L9070, 8237, 8808, ND80, 3357, etc.

Note: Refer to the last page of this catalog section for a complete listing of locks required by ACSI.

6. Operating Voltage

12/24V	Motor-Controlled Locks, automatic 12V or 24V, AC or DC operating voltage
24VDC	Solenoid-Controlled Locks
24VAC/DC	Solenoid-Controlled Locks
12VDC	Solenoid-Controlled Locks
12VAC/DC	Solenoid-Controlled Locks

Note: Mortise locks can be supplied with pneumatic control. Consult factory.

7. Quick Connect System

QC1	ACSI Quick Connect System
QC2	ASSA ElectroLynx® System
QC3	Allegion Connect System

8. Handing

RH	Right Hand
LH	Left Hand
RHR	Right Hand Reverse
LHR	Left Hand Reverse

Accessories

1580-1	AC/DC Converter
1580-2	Voltage Regulator • Regulates source voltages up to 30VDC (35VAC) to a 24VDC output level • Works with AC or DC source voltages • Can be used with 24VAC/DC rated cylindrical or mortise locks up to 360mA. • UL Listed

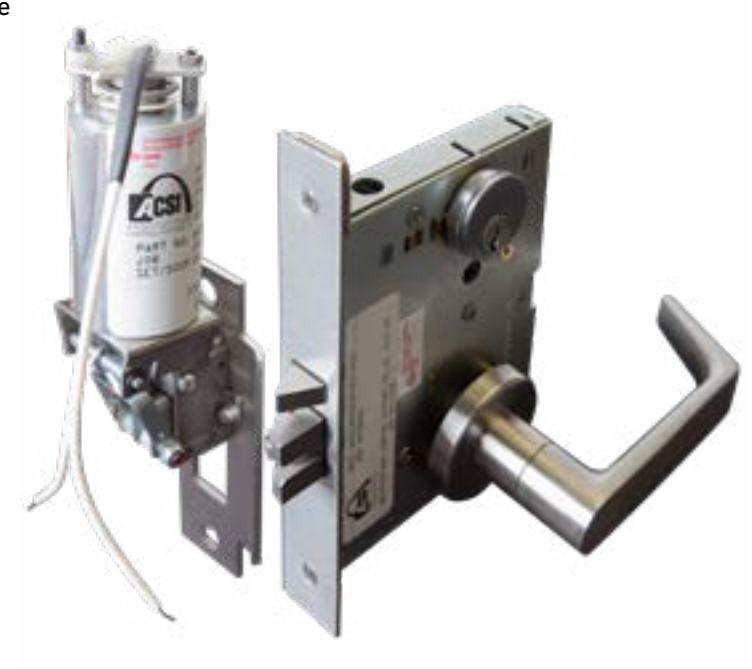

Electric Mortise Lock Bodies

ACSI Stocks Electric Mortise Lock Bodies available in Schlage, Corbin Russwin, Sargent, Yale, Best and Falcon. The locks are available as motor-controlled or solenoid-controlled. Motor-controlled locks are field selectable for fail safe or fail secure and have automatic 12V or 24V, AC or DC operation. Solenoid-controlled locks must be specified as fail safe or fail secure and 12VAC/DC or 24VAC/DC. A variety of monitoring options are available.

Motor-Controlled
M1510M	L9070B	12/24V	Schlage Fail Safe
M1510M	2055B	12/24V	Corbin Russwin Fail Safe
M1510M	8237B	12/24V	Sargent Fail Safe
M1510M	8808B	12/24V	Yale Fail Safe
M1510M	MA561B	12/24V	Falcon Fail Safe
M1520M	L9070B	12/24V	Schlage Fail Secure
M1520M	2055B	12/24V	Corbin Russwin Fail Secure
M1520M	8237B	12/24V	Sargent Fail Secure
M1520M	8808B	12/24V	Yale Fail Secure
M1520M	MA561B	12/24V	Falcon Fail Secure
	Solenoid-Controlled
M1510	L9070B	24VAC/DC	Schlage Fail Safe
M1510	2055B	24VAC/DC	Corbin Russwin Fail Safe
M1510	8237B	24VAC/DC	Sargent Fail Safe
M1510	8808B	24VAC/DC	Yale Fail Safe
M1510	45H7RB	24VAC/DC	Best Fail Safe
M1510	MA561B	24VAC/DC	Falcon Fail Safe
M1520	L9070B	24VAC/DC	Schlage Fail Secure
M1520	2055B	24VAC/DC	Corbin Russwin Fail Secure
M1520	8237B	24VAC/DC	Sargent Fail Secure
M1520	8808B	24VAC/DC	Yale Fail Secure
M1520	45H7RB	24VAC/DC	Best Fail Secure
M1520	MA561B	24VAC/DC	Falcon Fail Secure

M1510M /M1520M

• 12/24V, 250mA Inrush, 10mA Holding

M1510 / M1520

12VAC/DC, 612mA
24VAC/DC, 330mA

MU1510 / MU1520

12VAC/DC, 612mA
24VAC/DC, 330mA

Corbin M1520M

Schlage M1520M

Yale M1520M

Falcon M1520M

Best M1520

Electric Cylindrical Locks

ACSI Stocks Electric Cylindrical Locks available in Schlage, Corbin Russwin, Sargent and Yale. The locks are available as motor-controlled or solenoid-controlled. Motor-controlled locks are field selectable for fail safe or fail secure and have automatic 12V or 24V, AC or DC operation. Solenoid-controlled locks must be specified as fail safe or fail secure and 12VAC/DC or 24VAC/DC. Authorized Egress (Request-to-Exit) option is also available.

Motor-Controlled Cylindrical Lock
C1510M*	ND80B	12/24V			Schlage Fail Safe
C1510M	10G04B	12/24V	LL	626	Sargent Fail Safe
C1510M	3357B	12/24V	NZD	626	Corbin Russwin Fail Safe
C1510M	5405LNB	12/24V	AU	626	Yale Fail Safe
C1520M*	ND80B	12/24V			Schlage Fail Secure
C1520M	10G04B	12/24V	LL	626	Sargent Fail Secure
C1520M	3357B	12/24V	NZD	626	Corbin Russwin Fail Secure
C1520M	5405LNB	12/24V	AU	626	Yale Fail Secure
Solenoid-Controlled
C1510*	ND80B	24VAC/DC			Schlage Fail Safe

C1510	10G04B	24VAC/DC	LL	626	Sargent Fail Safe
C1510	3357B	2VAC/DC	NZD	626	Corbin Russwin Fail Safe
C1510	5405LNB	24VAC/DC	AU	626	Yale Fail Safe
C1520*	ND80B	24VAC/DC			Schlage Fail Secure
C1520	10G04B	24VAC/DC	LL	626	Sargent Fail Secure
C1520	3357B	24VAC/DC	NZD	626	Corbin Russwin Fail Secure

^* Specify trim style, format and finish. Available in Rhodes, Sparta and Athens trim style. Finishes available in 626, 625 and 613.

Schlage C1520

Corbin C1520M

Sargent C1520M

Yale C1520M

Electrical Specifications

C1510M / C1520M

• 12/24V, 250mA Inrush, 10mA Holding

C1510 / C1520

12VAC/DC, 250mA
24VAC/DC, 150mA

Electric Lock Comparison Chart

ACSI	ARROW	BEST	CORBIN RUSSWIN	DESIGN HARDWARE	FALCON
M1510M/M1520M-1**			20906, 20907	E-M-07-FS/FSE
M1510M/M1520M-2**			20914, 20915, 20932	E-M-30-FS/FSE
M1510-1	A17-177, B17-177	EWEL	20903, 20910	E-M-07-FS	M851
M1510-2		WWEL	20901, 20920	E-M-30-FS	M811
M1520-1	A17-178, B17-178	EWEU	20905, 20930	E-M-07-FSE	M881
M1520-2		WWEU	20940	E-M-30-FSE	M821
C1510M/C1520M-1**				E-Z-86-FS/FSE
C1510-1	Q12-177, H12-177	DEL	33903	E-Z-86-FS	T851
C1520-1	Q12-178, H12-178	DEU	33905	E-Z-86-FSE	T881
AE	RE	RQE	M92	REX	RX*
LM*	LM*	LS*	M91*	LM*
SM*	SM*		M105*	SM*
DM*
DMS*
DPS*		DS*

^** Motor-controlled

^* Available in Mortise only

ACSI	HAGER	PDQ	SARGENT	SCHLAGE	STANLEY COMMERCIAL	YALE
M1510M/M1520M-1**	3880EL/EU	MR199A**	8270, 8271	L9090EL/EU L9092EL/EU L9094EL/EU
M1510M/M1520M-2**		MR200	8272, 8273	L9091EL/EU L9093EL/EU L9095EL/EU
M1510-1	3880EL		8270	L9080EL		8890
M1510-2			8272	L9082EL		9984-2
M1520-1	3880EU		8271	L9080EU		8891
M1520-2			8273	L9082EU		8895-2
C1510M/C1520M-1**	3480EL/EU			ND80EL/EU
C1510-1	3480EL	GT199FS	10G70	ND80EL	QCL192	5490
C1520-1	3480EU	GT199FSC	10G71	ND80EU	QCL194	5491
AE	RX	REX	RX	RX	X	REX
LM*	LM*	LM*	LX*	LX*		LBM*
SM*
DM*			DX*
DMS*			DX*
DPS*	DPM*

^** Motor-controlled

^* Available in Mortise only

Electric Lock Modification Listing

Note: If you do not find the lock of your choice listed, please consult with our factory engineering staff. We may request that you send a sample for further evaluation.

Manufacturer	Mortise Locks	Cylindrical Locks	Unit Locks
Arrow	AM17, BM17	QL82
Baldwin	6065, 6065LS
Best	45H7R*
Corbin Russwin	2055	3357	UT2557*
Design Hardware	M-05, M-13	Z-84
Falcon	MA561, MA571	T561
Hager	3850, 3856	3480
PDQ	MR148*
Sargent	8237, 8225	10G04
Schlage	L9050, L9070 L9080** (see note below), L9453	ND80 ND94*
Stanley Commercial	QM160*	QCL170
Tell Manufacturing		LC2486
Yale	8800, 8847	5405LN

^* Available in solenoid-controlled only

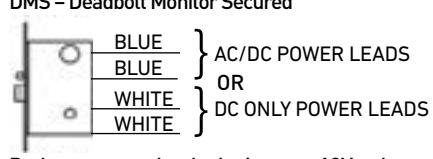

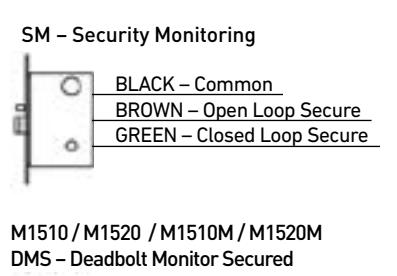

Lock Schematics

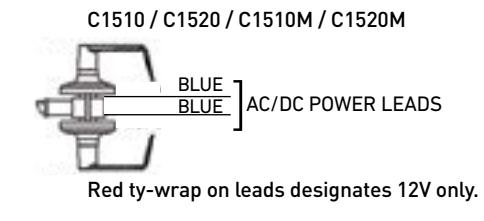

Red ty-wrap on leads designates 12V only.

^** Schlage L9080 must be supplied with extra spring cage to compensate for lever sag of outside trim.

Electromagnetic Locks

Series 3700 | Electromagnetic Locks

ACSI Series 3700 UL Listed Electromagnetic Locks combine high security features with fail safe operation and conform with life-safety codes. The Series 3700 is designed for single or pairs of outswing or inswing doors.

Features

UL Listed
Variety of models available
Positive fail safe security
No moving parts maintenance free
Low power consumption
Built-in surge and spike protection
Built-in door position sensor

Options

Magnetic bond sensor
Power LED
Custom length housings
Variety of architectural finishes
Glass door brackets

Electrical Specifications

12VDC, 500mA
24VDC, 250mA

How to Order

1. Model


3710	Single 1200 lb. magnetic lock (outswing)
3711	Single 1200 lb. magnetic lock with Z bracket (inswing)
3720	Double 1200 lb. magnetic lock (outswing)
3721	Double 1200 lb. magnetic lock with Z bracket (inswing)
3750	Single 1200 lb. magnetic lock for sliding doors
3760	Single 300 lb. magnetic lock
3770	Double 300 lb. magnetic lock
3780	Single 600 lb. magnetic lock
3790	Double 600 lb. magnetic lock
3795	Concealed magnetic shear lock

2. Operating Voltage

24VDC
12VDC

Typical Installation

3. Finish

SA	Satin Aluminum
BA	Black Anodized
GA	Gold Anodized
DBN	Dark Brown Anodized
US3	Bright Brass
US4	Satin Brass
US26	Bright Chrome

4. Options

MBS	Magnetic bond sensor
L1	1 LED (green or red)
L2	2 LEDs (green and red)
FP1	Filler plate, single magnet*
FP2	Filler plate, double magnet*
GLB-1	1/2" glass door bracket
GLB-2	3/4" glass door bracket
AB-1	Angle bracket for single magnet (1"x1"x14")
AB-2	Angle bracket for double magnet (1"x1"x25")
AB-3	Angle bracket for single magnet (1-1/2"x2-5/8"x14")
AB-4	Angle bracket for double magnet (1-1/2"x2-5/8"x25")

^* Specify 1/2" or 5/8" thick.

Note: Please consult the factory for custom length decorative housings.

Communicating Bath Door System

www.acsi-inc.com

Series 6100 | Communicating Bath Door System

ACSI Series 6100 Communicating Bath Door System is designed to coordinate access to a common bathroom facility from adjoining rooms. This system allows more efficient utilization of floor space in facilities by eliminating the need for a bathroom in each room.

Features

Fail safe system doors will unlock when power is removed
Free egress at all times
User privacy
Eliminates accidental lock-out from either room to the bathroom
Mechanical key override allows personnel to enter during an emergency
2A load capacity
Inputs available for optional emergency release switch when urgent unlocking of the door is required
Convenient field wiring of system components

Options

Located above outside doors for emergency release:
1330-3 Emergency Release
1320-1 Pushbutton Switch

Required Components

Item	Qty	Description
1	1 Each	1400-6100 Power Supply
2	2 Each	Door Position Sensors
3	2 Each	Pushbuttons with indicator marked "Push to Lock"
4	2 Each	Indicators marked "Occupied"
5	2 Each	Electric Hinges, Model 1104*
6	2 Each	M1510 or C1510 Fail Safe Locks*

^* Electric hinges and electric locks are not included, but must be ordered with the Series 6100 system.

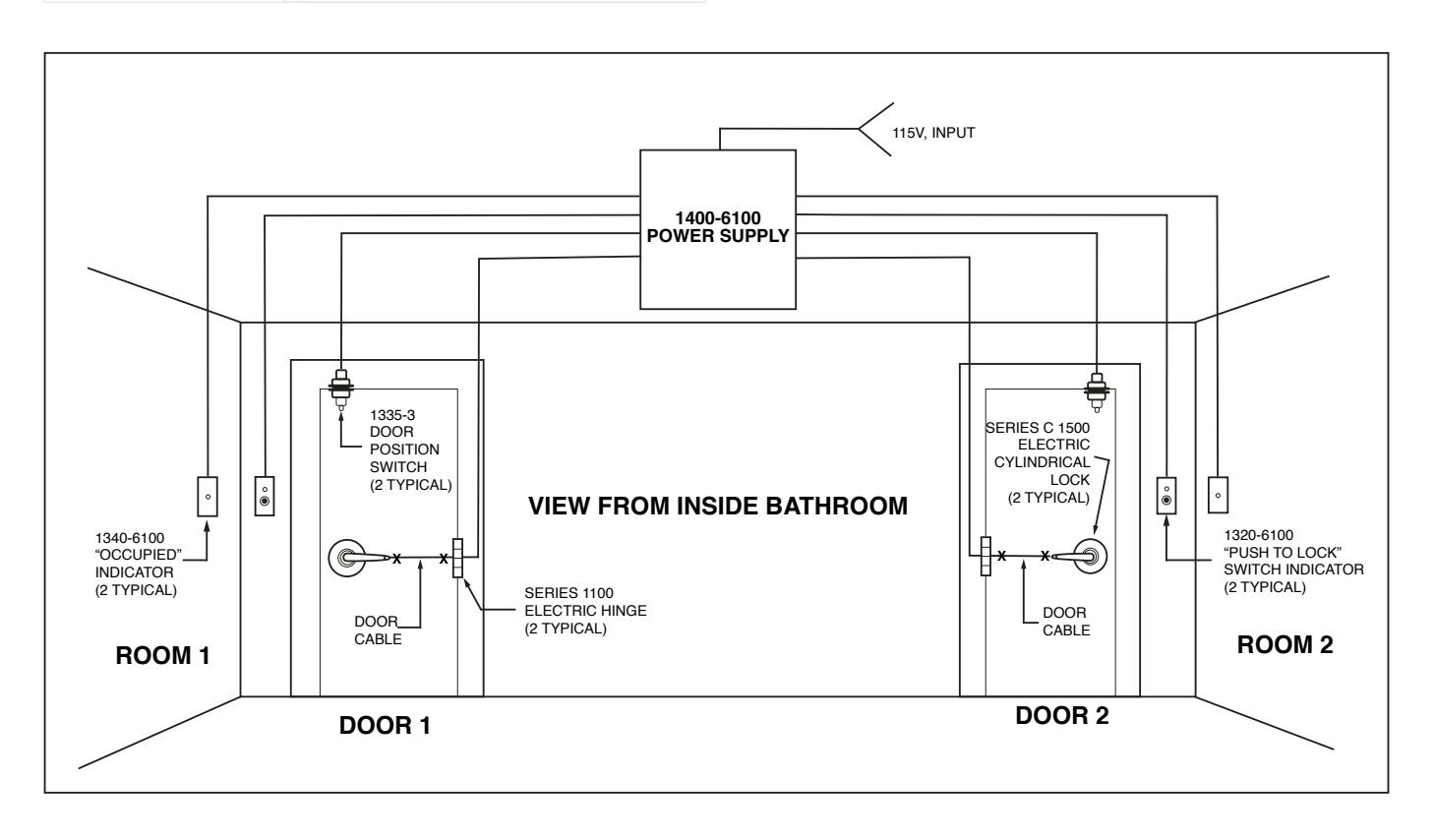

Description of System Function

When the bathroom is not occupied, both doors are unlocked and all indicators are extinguished. Upon entering the bathroom from one of the rooms, the occupant depresses the inside pushbutton switch to lock both doors (both doors must be closed in order for them to lock). When the doors lock, the red indicators inside the bathroom indicate that both doors are locked from the outside. The green indicators outside the bathroom indicate that the bathroom is occupied.

Note: Both doors are always free egress and can be unlocked mechanically from the outside with a key. When the occupant exits either door, both doors automatically return to the unlocked condition and all indicators are extinguished.

Series 6100 | Communicating Bath Door System

How to Order

1	2	3
Model	Electric Locking Device	1104 Electric Hinge
6100	A or B

1. 6100 System

6100	Communicating Bath Door System

2. Electric Locking Device

Distributors supply ACSI with mortise or cylindrical locks for modification. Please supply the lock manufacturer's full part number. Example: L9070, 8237, 8808, ND80, 3357, etc.

A (2) M1510	Electric Mortise Locks
B (2) C1510	Electric Cylindrical Locks

3. 1104 Electric Hinges

Please specify manufacturer, weight, size and finish of the hinge required. (2) Hager BB1279 4.5x4.5 26D 1104 (2) Stanley FBB191 5.0x4.5 10B 1104

Note: System may also be furnished with an emergency release device; i.e., 1330-3 Emergency Release or 1320-1 Pushbutton Switch.

Gemini Locking Systems

Series 8500 | Gemini Locking Systems

ACSI Series 8500 Gemini Locking System provides safety and security for stairtower doors or controlled areas where both locking and latching are required. The Gemini system allows remote electric locking or unlocking while conforming to life-safety codes. The system consists of two components: a Gemini modified mortise lockset and a frame mounted Gemini operator.

Features

UL Listed Gemini mortise lock no special door prep
UL Listed Gemini operator located in the frame
Ability to work with a wide range of mortise lock manufacturers:
Arrow
Corbin Russwin
Schlage
Fail Safe (Power Lock)
Outside trim is locked when power is applied and unlocked when power is removed (storeroom function when energized). Lockset will unlock in the event of a power failure (passage function).
Fail Secure (Power Unlock)
Outside trim is unlocked when power is applied and locked when power is removed. Lockset will lock in the event of a power failure.
24VDC or 24VAC/DC
Mechanical key override
When key cylinders are provided in the locks, the latch bolt may be momentarily retracted with key even though electrically locked. Note: Locks that are electrically unlocked may not be locked via the key cylinder.
Easy installation: Gemini operator fits easily into 2" face frames. Only one wiring termination.
Optional quick connect cable
Continuous duty rated
Heavy-duty stainless steel housing
Security monitoring available
Interface with life-safety systems

Series 8500 Typical Installation Series 8500 Typical Installation

Series 8500 | Gemini Locking Systems

How to Order

1 GEMINI OPERATOR	2 LOCK TYPE	3 CONTROL MODE	4 OPERATING VOLTAGE	5 QUICK CONNECT CABLE	6 SECURITY MONITORING	7 FINISH	8 HANDING	9 LOCK PART #
8500	M1	PL	24VDC	QC	CLS	26D	LH	L9070
8500F	M2	PUL	24VAC/DC		OLS		RH
							LHR
							RHR

Example:

GEMINI OPERATOR	LOCK TYPE	CONTROL MODE	OPERATING VOLTAGE	QUICK CONNECT CABLE	SECURITY MONITORING	FINISH	HANDING	LOCK PART #
8500	M1	PL	24VDC	QC	CLS	26D	LH	L9070

1. Gemini Operator

8500	The standard Gemini operator is designed for 2" face frame applications and fits a standard ANSI 4-7/8" frame prep.
8500F	Also designed for 2" face frame applications, this operator is supplied with an oversized strikeplate for easy installation in retrofit applications.

2. Lock Type

M1	Mortise lock with one side (lever or knob) locked
M2	Mortise lock with both sides (lever and knob) locked

3. Control Mode

PL	Power Lock (Fail Safe)
PUL	Power Unlock (Fail Secure)

4. Operating Voltage

24VDC 24VAC/DC

5. Quick Connect Cable

QC An optional quick connect cable 10' in length with stripped wires at one end for splicing into an electrical box or power supply and with a connector on one end for quick connect to the Gemini operator is automatically supplied with a matching connector.

Note: Leave this space blank if not required.

6. Security Monitoring

CLS	Closed Loop Secure – Monitor • When lock is secure (latch in strike-operator in locked position), monitor loop is a closed circuit. The circuit opens if security is breached.
OLS	Open Loop Secure – Monitor • When lock is secure (latch in strike-operator in locked position), monitor loop is an open circuit. The circuit closes if security is breached.

Note: Leave this space blank if not required.

7. Finish

Specify US standard architectural hardware finish as required.

8. Handing

LH	Left Hand
RH	Right Hand
LHR	Left Hand Reverse
RHR	Right Hand Reverse

9. Lock Part Number

Distributors supply ACSI with mortise locks for modification. Please supply the lock manufacturer's full part number.

Example: L9070, 2055, BM17

Note: Refer to the last page of this catalog section for a complete listing of locks required by ACSI.

Accessories

302-03-02 Gemini Mortar Guard, 15"

Series 8500 | Gemini Locking Systems

Gemini Lock Modification Listing (Indicates Locksets that are UL Listed)

Note: If you do not find the lock of your choice listed, please consult with our factory engineering staff. We may request that you send a sample for further evaluation.

Arrow	Corbin Russwin	Schlage
AM17	2055	L9050
BM17		L9070
		L9080*

^* L9080 must be supplied with extra spring cage to compensate for lever sag of outside trim.

Gemini Comparison Chart

ACSI-Gemini	SDC HiTower
Fail Safe
8500-M1-PL	7550, 7540
8500-M2-PL	7530
8500-M1 or M2-PL*	7510, 7520
Fail Secure
8500-M1-PUL	7570
8500-M2-PUL	7560

^* Please consult the factory for proper part number.

ACSI	Description	SDC
CLS, OLS	Monitoring	9A, 69A
QC	Quick Connect Cable	SC-10
302-03-02	Mortar Guard for 2" Face Frame	7500-EB-S

Electrical Specifications

Gemini Operator
• 24VAC/DC, 600mA
Monitoring Contact Rating
• 0.5A @ 30VDC
