Application Instructions for 814 S Series Outside Trim for 8888 and 8804

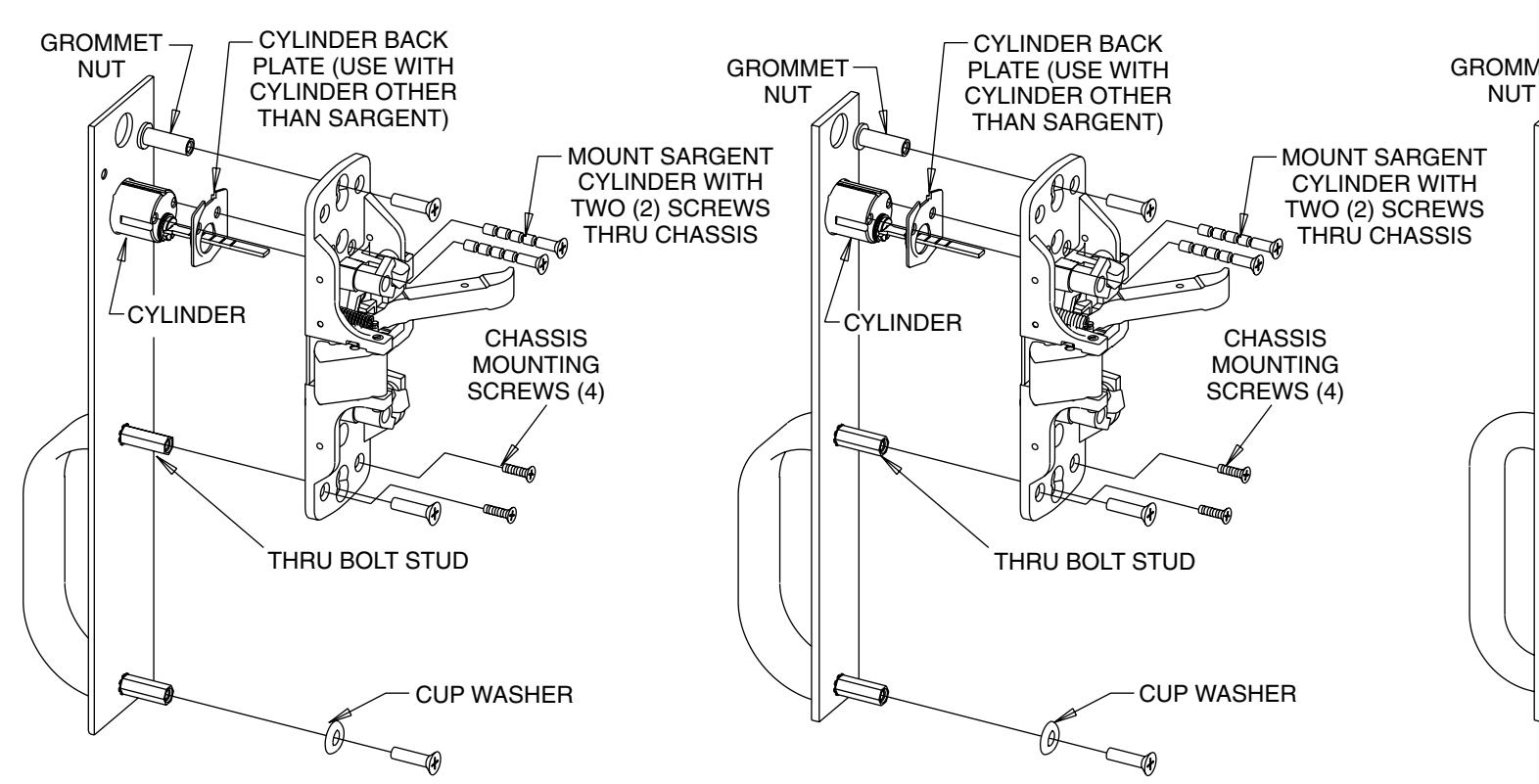

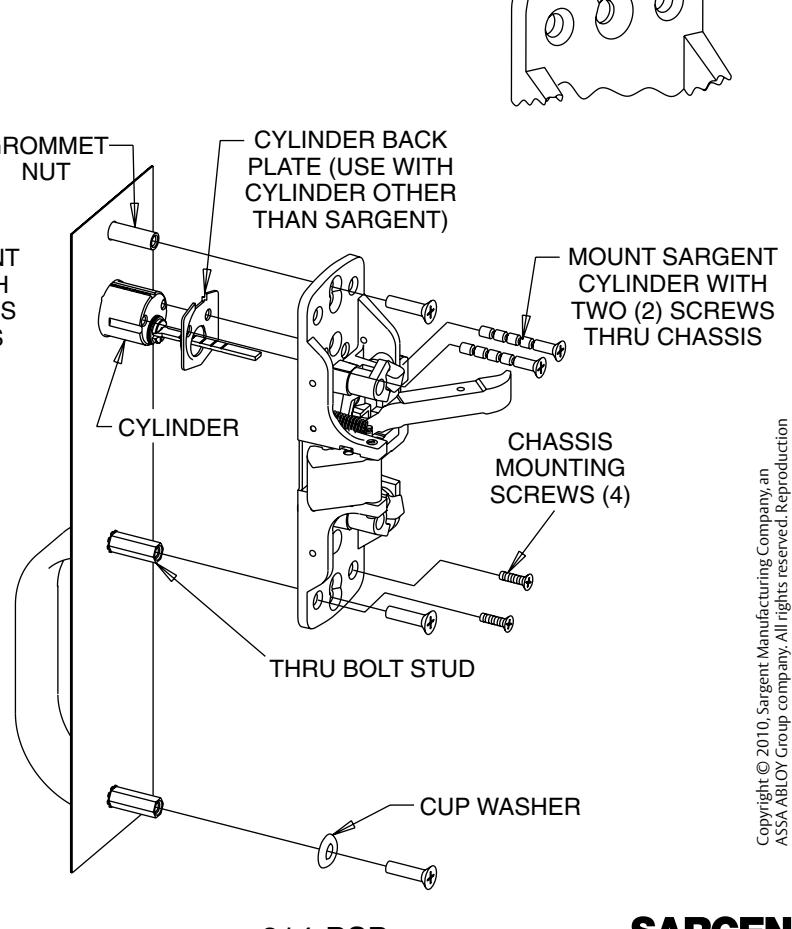

80 SERIES RIM EXIT DEVICE INSTRUCTION SHEET FOR APPLYING THE 814 "S" SERIES TRIMS

ATTENTION:

FOR PROPER TRIM INSTALLATION USE EXIT DEVICE INSTRUCTION SHEET AND TEMPLATE(S). THESE INSTRUCTIONS ARE FOR APPLYING 814 PULLS TO 8888/8810 AND 8804 CHASSIS WITH "FIGURE 8" MOUNTING HOLES (MANUFACTURED AFTER FEB. 12, 2001).

"

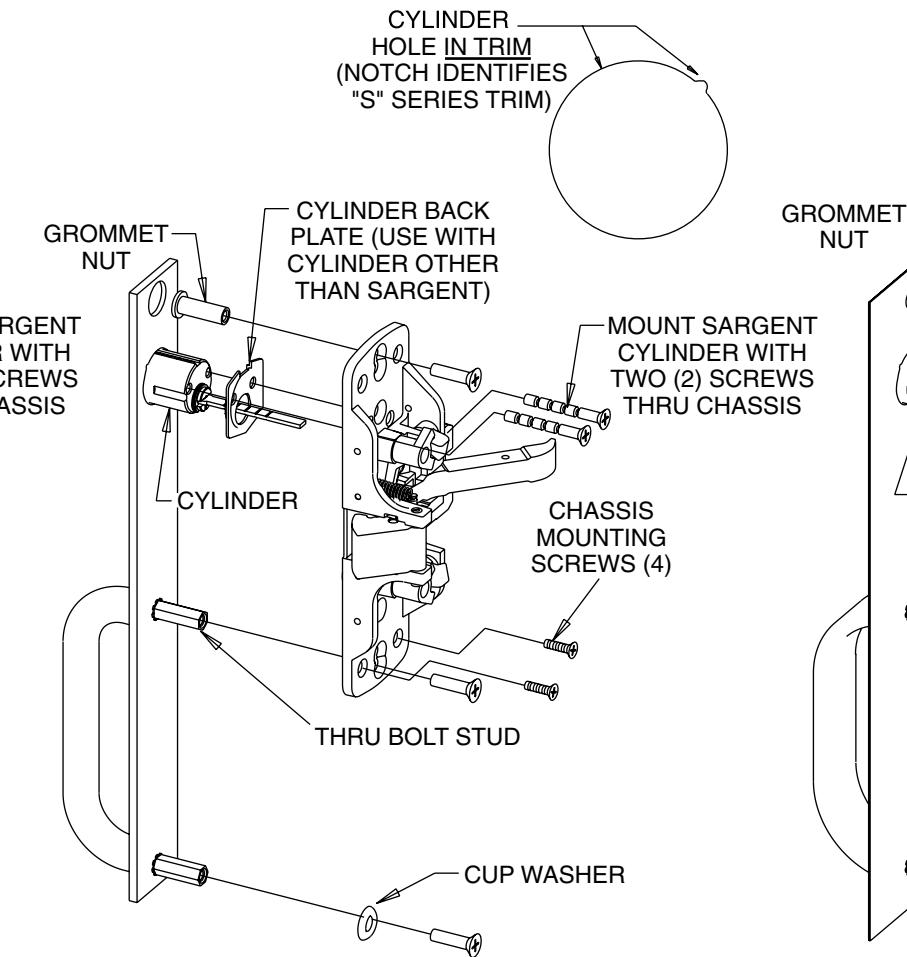

FIGURE 8" HOLE

A-5025 A

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

814-MSL 814-FSL 814-FSW 814-PSB
