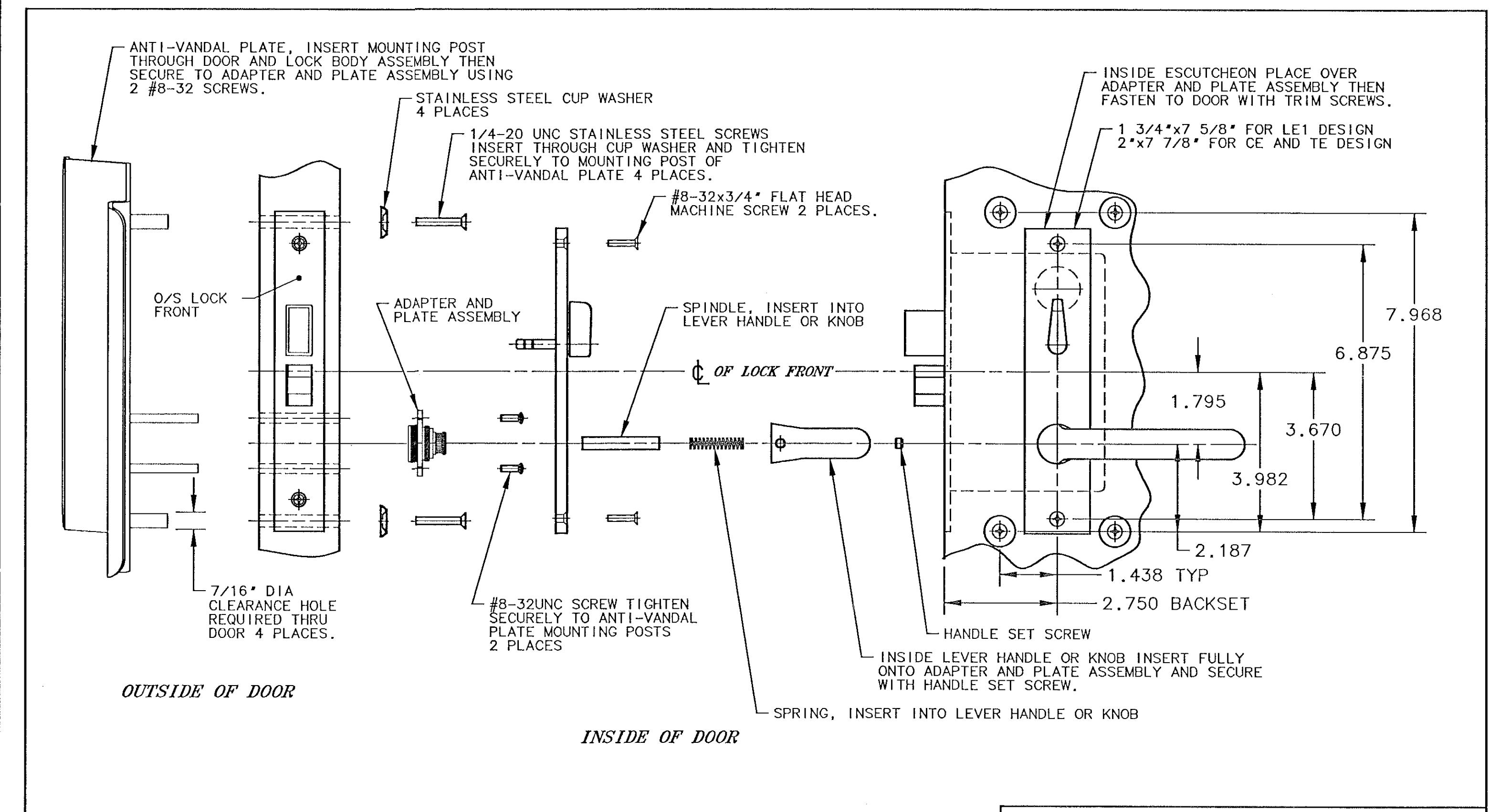

Anti-Vandal 9200 Series Mortise Lock AV-Prefix CE,TE,LE3 Design Escutcheons (Exposed Screws)

NOTES:

• 1. FOR 7800/8200 USE IN CONJUNCTION WITH TEMPLATE #7057 (LOCKBODY).
• 2. FOR 9200 USE IN CONJUNCTION WITH TEMPLATE #4482 (LOCKBODY).
• 3. SUITABLE REINFORCEMENT REQUIRED FOR MOUNTING TRIM SCREWS.

SARGENT & COMPANY

NEW HAVEN, CONN. 06511

TEMPLATE:7800/8200/9200 MORTISE LOCK CE, TE, LE1 ESCUTCHEONS EXPOSED SCREWS

RELEASE DATE FEB03

TEMPLET NO. 4556 B
