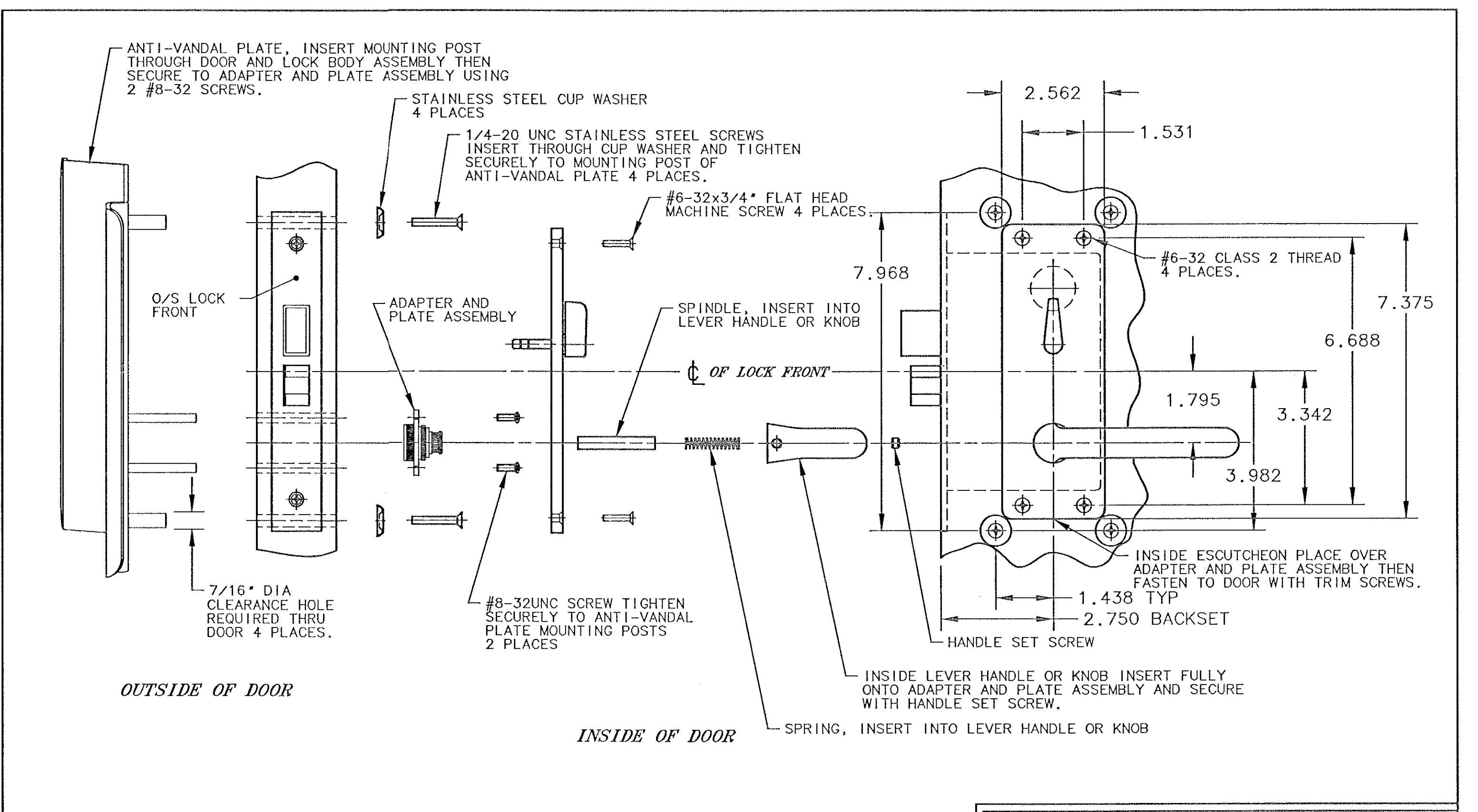

Anti-Vandal 7800-8200-9200 Series Mortise Lock WT Design Escutcheons (Surface Applied)

Open the original PDF document

NOTES:

1. FOR 7800/8200 USE IN CONJUNCTION WITH TEMPLATE #7057 (LOCKBODY).
2. FOR 9200 USE IN CONJUNCTION WITH TEMPLATE #4482 (LOCKBODY).
3. SUITABLE REINFORCEMENT REQUIRED FOR MOUNTING TRIM SCREWS.

SARGENT & COMPANY NEW HAVEN, CONN. 06511

TEMPLATE:7800/8200/9200 MORTISE LOCK WT ESCUTCHEONS SURFACE APPLIED

RELEASE DATE FEBO3 TEMPLET NO.

4558 B
