Hardened PoE Switches & Fiber Media Converters

Deploy devices at longer distances with or without local power...

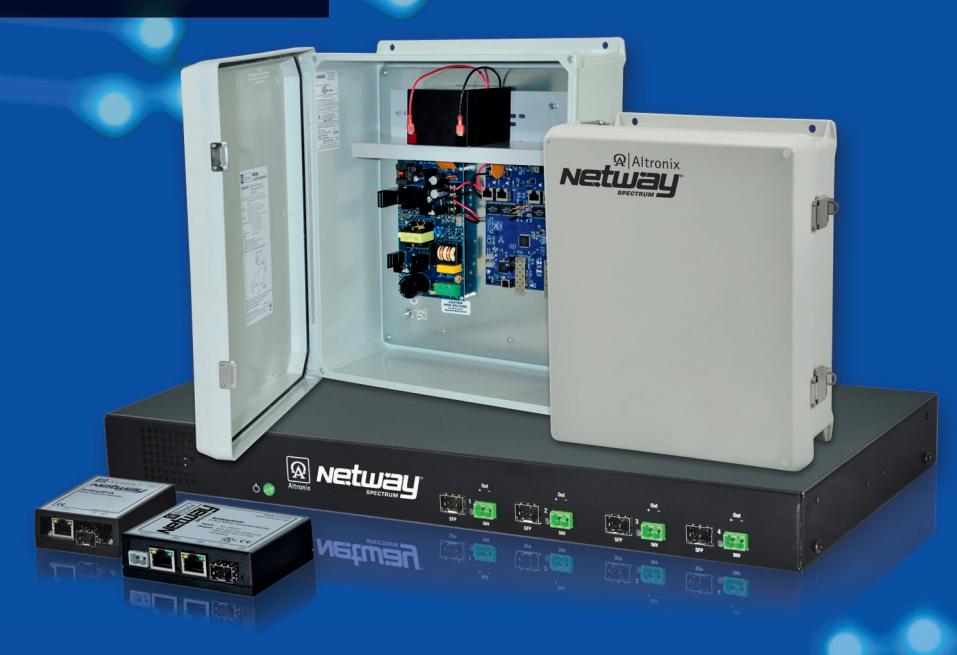

The NetWay Spectrum series by Altronix takes fi ber and power to a new level. Indoor and outdoor models include hardened Ethernet PoE switches and multi-port media converters with or without integral power. Units can be deployed with conventional single or multi-mode fi ber...or composite cable which combines fi ber with copper to simultaneously deliver power and data. NetWay Spectrum also features LINQ™ Network Management Technology to remotely monitor, control and report power/ diagnostics from anywhere. Go further with NetWay Spectrum from Altronix.

• NetWay Spectrum is the solution for deploying devices over fi ber infrastructure with or without local power.
• NetWay Spectrum is designed and manufactured for use in harsh environments at greater distances.
• NetWay Spectrum offers a series of hardened switches with optimized Lithium Iron Phosphate (LiFePO4) battery backup.
• NetWay Spectrum comes in a wide range of models for indoor and outdoor applications.
• NetWay Spectrum hardened PoE switches, media converters and power supply/chargers are available pre-confi gured or separately, as subcomponents to customize your system.
• NetWay Spectrum features embedded LINQ™ Network Management Technology to remotely monitor, control and report power/diagnostics – streamlining service and maintenance operations by leveraging the network. A built-in timer can reset devices automatically on a schedule.
• NetWay Spectrum products are proudly Made in the U.S.A. and backed by a Lifetime Warranty.

Switch in NEMA 4/4X Small Outdoor Enclosure	Switch in NEMA 4/4X Outdoor Enclosure	Switch and Power Supply/Charger on Backplane	Switch and Power Supply/Charger in Outdoor Enclosure	Switch and Power Supply/Charger in Larger Outdoor Enclosure	Switch and Power Supply/Charger in Indoor Enclosure
Dimensions: 7.32"W x 9.5"H x 4.92"D	Dimensions: 13.31"H x 11.31"W x 5.59"D	Dimensions: 10.75"H x 8.875"W x 2.375"D	Dimensions: 13.31"H x 11.31"W x 5.59"D	Dimensions: 17.53"H x 15.3"W x 6.67"D	Dimensions: 13.5"H x 13"W x 3.25"D
NetWaySP1BTWPN	NetWaySP3WPN	NetWaySP3PL	NetWaySP1BTWP	NetWaySP1BTWPX	NetWaySP3X
	NetWay4EWPN	NetWay4EPL	NetWaySP3WP	NetWaySP3(L)WPX	NetWay4EX
	NetWaySP4WPN	NetWaySP4PL	NetWay4EWP	NetWay4E(L)WPX	NetWaySP4X
	NetWaySP8WPN	NetWaySP8PL	NetWaySP4WP	NetWaySP4(L)WPX	NetWaySP8X
			NetWaySP8WP	NetWaySP8(L)WPX

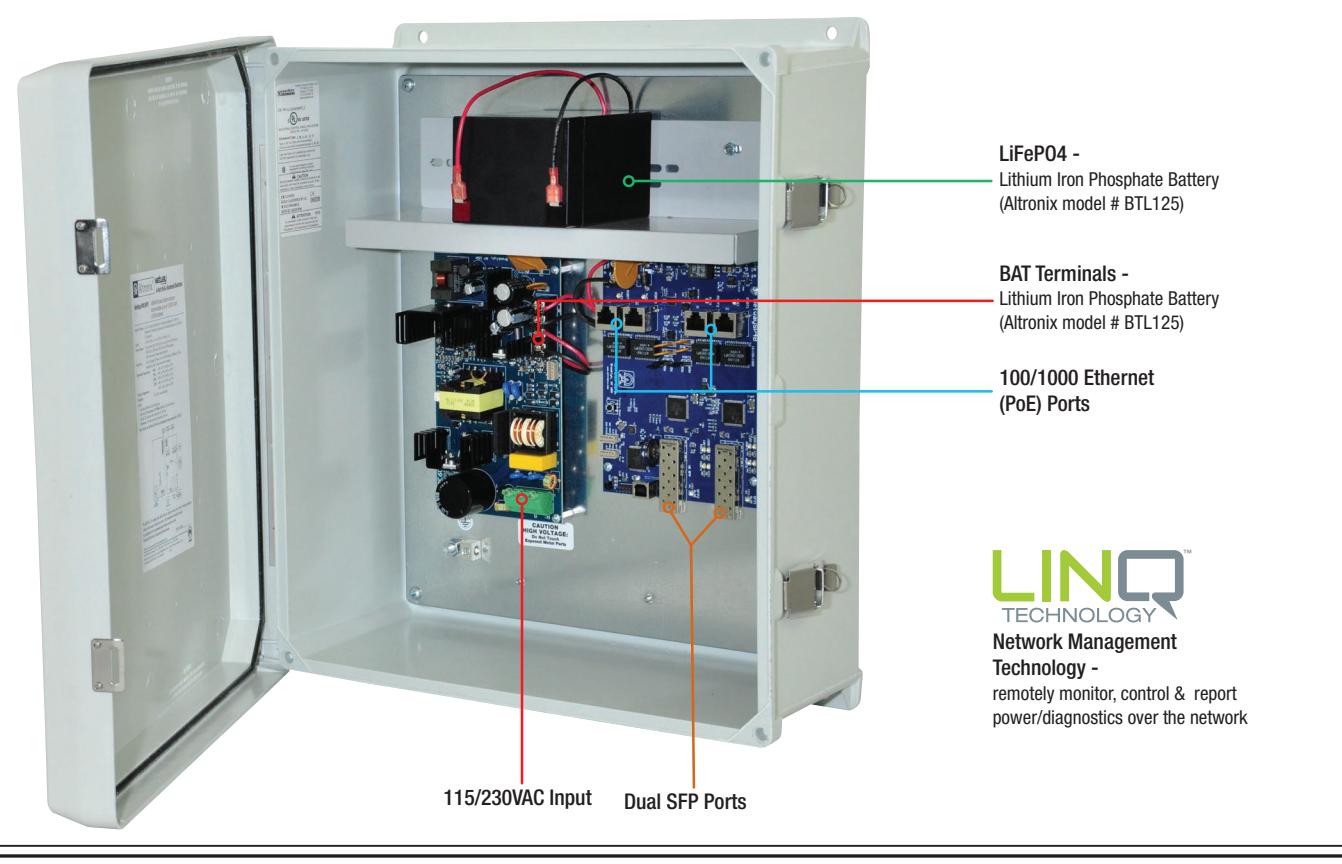

3-Port Hardened PoE Switches with Single SFP Port Hardened PoE Switches with Power Supply/Chargers and Optimized Lithium Iron Phosphate Battery Charging

Model	Configuration	SFP port(s)	10/100 Ethernet ports	10/100/1000 Ethernet ports	PoE ports	Input: 115/ 230VAC	Built-in LiFePO4 Battery Charger	Accommodates LiFePO4 Batteries
NetWaySP3LWPX	Large Outdoor Enclosure NEMA 4/4X, IP66	1		3	3-Ports rated up to 30W or 1-Port rated up to 60W (75W total power)	3	3	3
NetWay4ELWPX	Large Outdoor Enclosure NEMA 4/4X, IP66	1	4		4-Ports rated up to 30W or 1-Port rated up to 60W (75W total power)	3	3	3
NetWaySP4LWPX	Large Outdoor Enclosure NEMA 4/4X, IP66	2		4	4-Ports rated up to 30W or 1-Port rated up to 60W (75W total power)	3	3	3
NetWaySP8LWPX	Large Outdoor Enclosure NEMA 4/4X, IP66	2	6	2	8-Ports rated up to 30W or 1-Port rated up to 60W (75W total power)	3	3	3
	the network.			NetWay Spectrum PoE Switches feature embedded LINQ™ Network Management Technology which let's you remotely monitor, control and report power/diagnostics from anywhere over

BTL125

Altronix BTL125 rechargeable Lithium Iron Phosphate ( LiFePO4 ) Battery provides optimal backup for security, access, and surveillance applications.

• Can be used Altronix Spectrum fiber optic equipment with an Optimized Lithium Iron Phosphate Battery charging circuit.
• Smart technology low power disconnect.
• 10 years shelf life.
• Up to 5,000 duty cycles.
• Environmentally friendly.

3-Port Hardened PoE Switches with Single SFP Port Hardened PoE Switches with Power Supply/Chargers and Optimized Lithium Iron Phosphate Battery Charging

Lithium Iron Phosphate Battery Benefits:

Light weight:

Lithium Iron Phosphate batteries weigh one-third to almost half less than SLA batteries

Efficiency:

Up to 99% efficiency, allowing faster charging with minimal loss, SLA batteries lose power quickly during deep discharge

More Up Time:

Lithium Iron Phosphate Batteries allow for rapid charging and discharging

Longer use Life:

Lithium Iron Phosphate Batteries can cycle up to 5000 times vs. SLA up to 500 times

Longer Shelf Life:

Lithium Iron Phosphate Batteries can be shelfed up to 10 years, SLA batteries need to be charged every 6 months (often times the batteries coming from overseas have already been sitting for 4+ months)

Cold Temperature:

Lithium Iron Phosphate Batteries have up to 40% more capacity in colder climates

Cost per Cycle:

Lithium $0.31 vs. SLA $0.92 (real cost per cycle includes maintenance labor, replacement product and labor and electrical costs to charge batteries

Hardened PoE Switches

Model	Configuration	SFP port(s)	10/100 Ethernet ports	10/100/1000 Ethernet ports	PoE ports	Input: 48-56VDC
NetWaySP1BTWPN	Outdoor Enclosure NEMA 4/4X, IP66	1		1	Single 802.3bt Port rated at 90W	✓

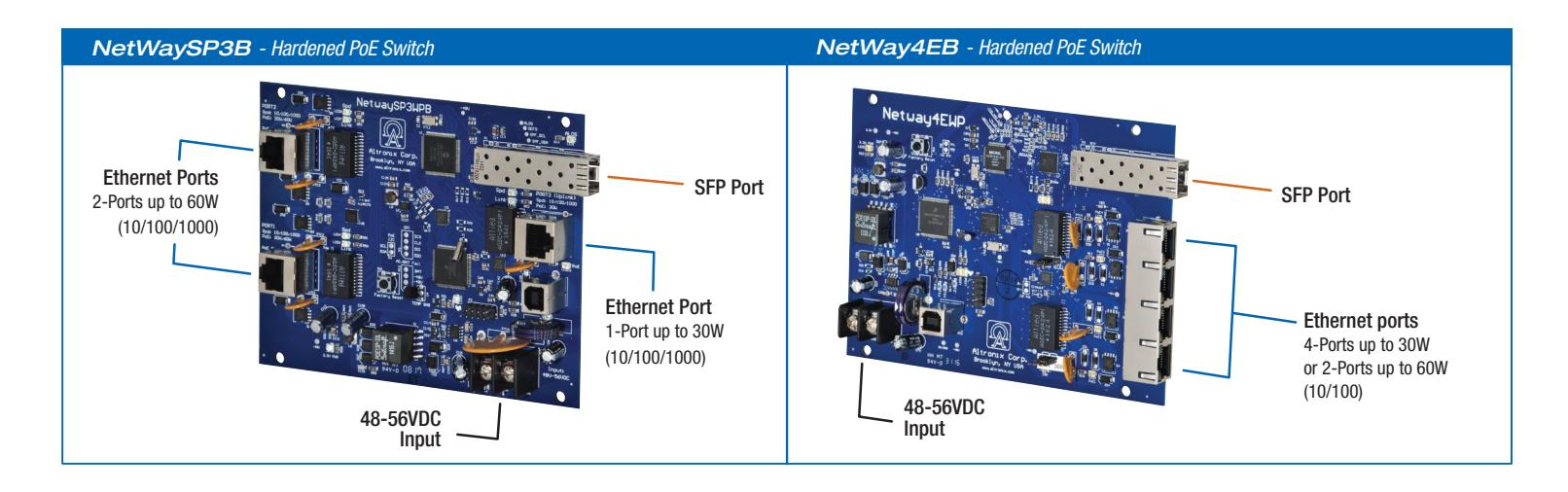

NetWaySP3B	Board	1		2	3-Ports rated up to 30W or 2-Ports rated up to 60W	,
NetWaySP3WPN	Outdoor Enclosure NEMA 4/4X, IP66	1	1 3 0		(120W total power)	~
NetWay4EB	Board	1	4		4-Ports rated up to 30W
NetWay4EWPN	Outdoor Enclosure NEMA 4/4X, IP66		4		or 2-Ports rated up to 60W (120W total power)	V

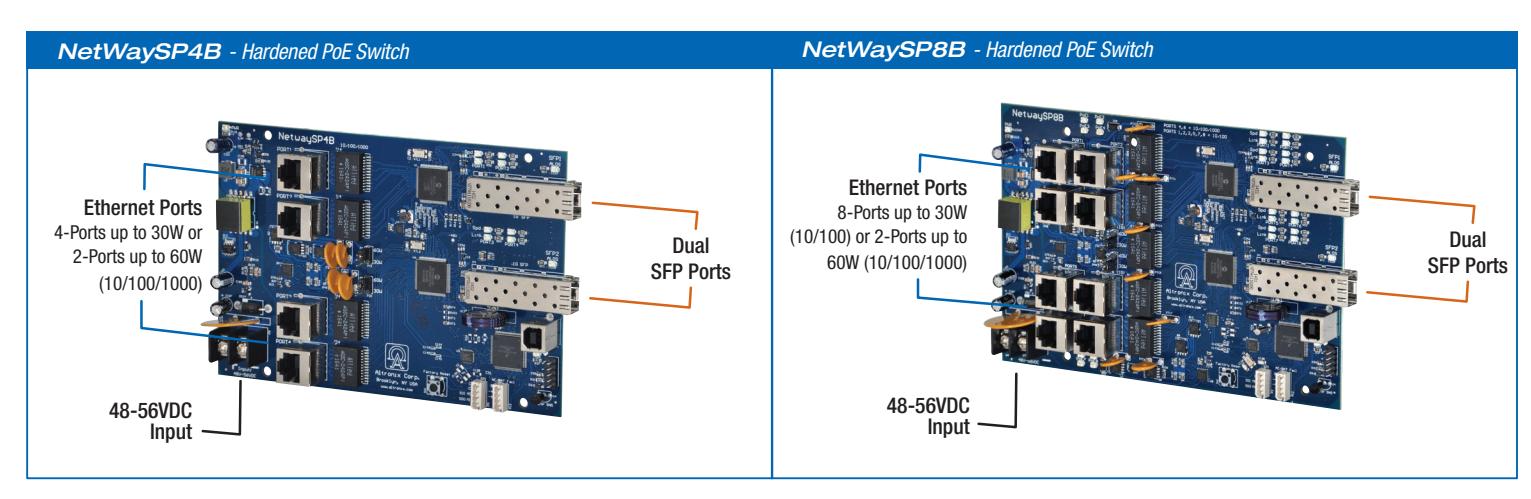

NetWaySP4B	Board	0		4	4-Ports rated up to 30W

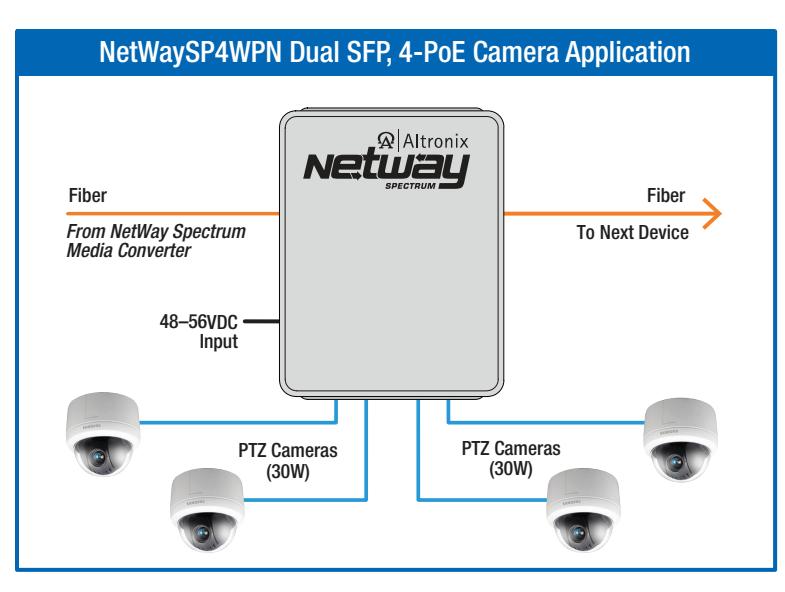

NetWaySP4WPN	Outdoor Enclosure NEMA 4/4X, IP66	2	2 4		or 2-Ports rated up to 60W (120W total power)	/
NetWaySP8B	Board	0		0	8-Ports rated up to 30W
NetWaySP8WPN	Outdoor Enclosure NEMA 4/4X, IP66	2	6	2	or 2-Ports rated up to 60W (115W total power)	✓

P1SM10

Single-Mode SFP Module (up to 10km) P1SM102PK - 2 pk of P1SM10

P1AB2K

Single Strand SFP Modules (up to 2km)

P1MM

Multi-Mode SFP Module (up to 550m) P1MM2PK - 2 pk of P1MM

P1GCE

Copper SFP Module (up to 100m)

Hardened PoE Switches with Power Supply/Chargers -

Model	Configuration	SFP port(s)	10/100 Ethernet ports	10/100/1000 Ethernet ports	PoE ports	Input: 115/230VAC	Built-in Battery Charger	Accommodates (4) 12VDC/4AH Batteries

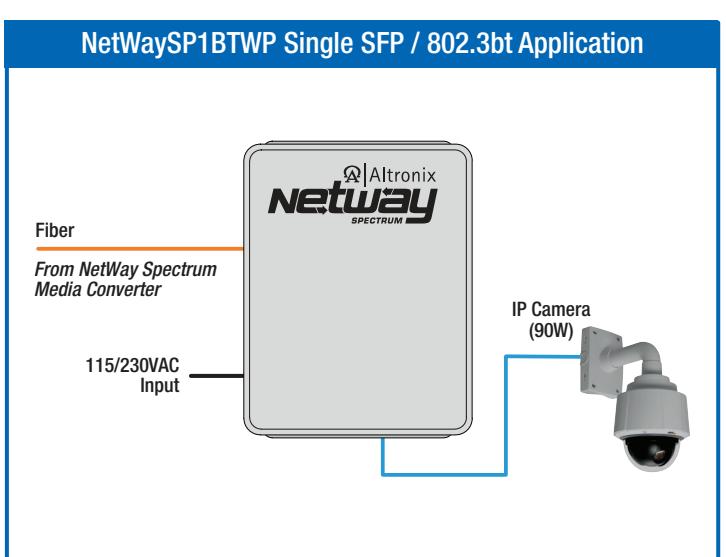

NetWaySP1BTWP	Outdoor Enclosure NEMA 4/4X, IP66				Single 802.3bt		1
NetWaySP3WPX	Large Outdoor Enclosure NEMA 4/4X, IP66	1		1	Port rated up to 90W	✓		✓
NetWaySP3WP	Outdoor Enclosure NEMA 4/4X, IP66						1
NetWaySP3WPX	Large Outdoor Enclosure NEMA 4/4X, IP66	1		3	3-Ports rated up to 30W or 2-Ports rated			1
NetWaySP3PL	Backplane Version	·		3	up to 60W (120W total power)	·
NetWay3X	Indoor Enclosure NEMA 1
NetWay4EWP	Outdoor Enclosure NEMA 4/4X, IP66						1
NetWay4EWPX	Large Outdoor Enclosure NEMA 4/4X, IP66	1	4		4-Ports rated up to 30W or 2-Ports rated up to 60W (120W total power)	1		/
NetWay4EPL	Backplane Version
NetWay4EX	Indoor Enclosure NEMA 1
NetWaySP4WP	Outdoor Enclosure NEMA 4/4X, IP66						✓
NetWaySP4WPX	Large Outdoor Enclosure NEMA 4/4X, IP66	2		4	4-Ports rated\nup to 30W 4 or 2-Ports rated\nup to 60W (120W total power)	✓		✓
NetWaySP4PL	Backplane Version			·
NetWaySP4X	Indoor Enclosure NEMA 1
NetWaySP8WP	Outdoor Enclosure NEMA 4/4X, IP66						✓
NetWaySP8WPX	Large Outdoor Enclosure NEMA 4/4X, IP66	2	6	2	8-Ports rated up to 30W or 2-Ports rated up to 60W (120W total power)	1		1
NetWaySP8PL	Backplane Version
NetWaySP8X	Indoor Enclosure NEMA 1

Media Converters

Media Converters

Model	Configuration	SFP port(s)	10/100/1000 Ethernet ports	PoE Ports	Class 2 power limited Outputs	56VDC Power Output	Integral Power Supply/Charger	Power Input	Built-in Battery Charger

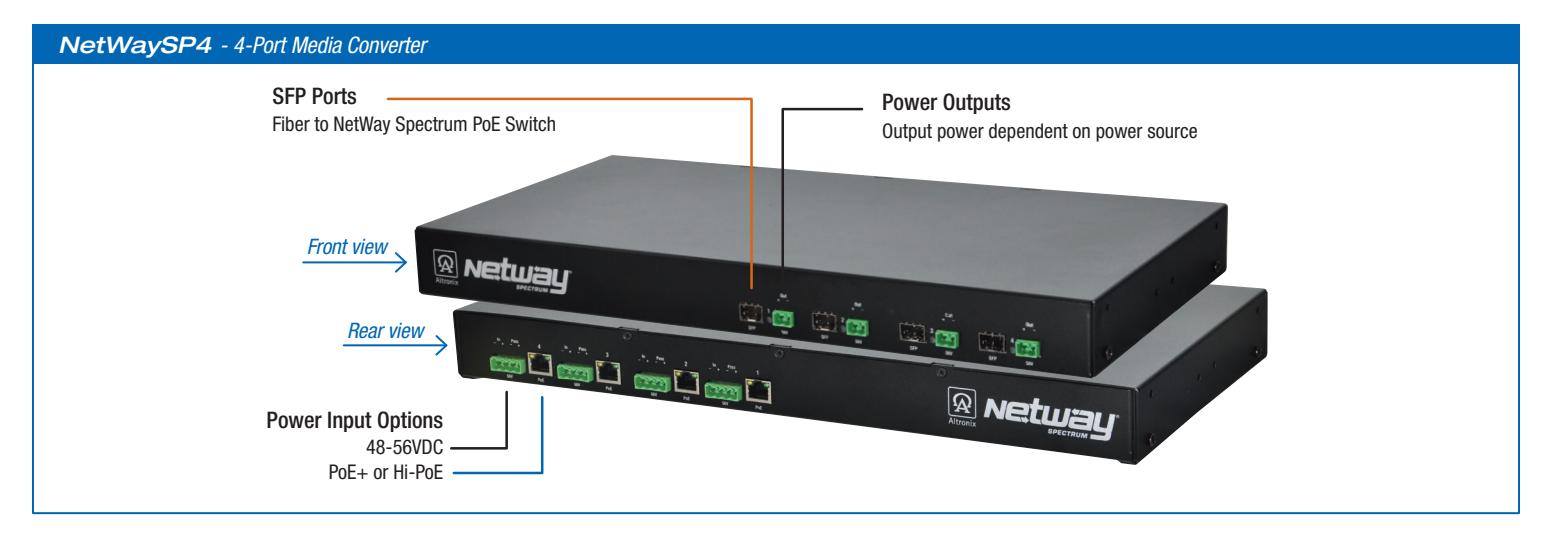

NetWaySP4				Supports up to 60W max per port				48-56VDC or PoE+ (30W) / Hi-PoE (60W)

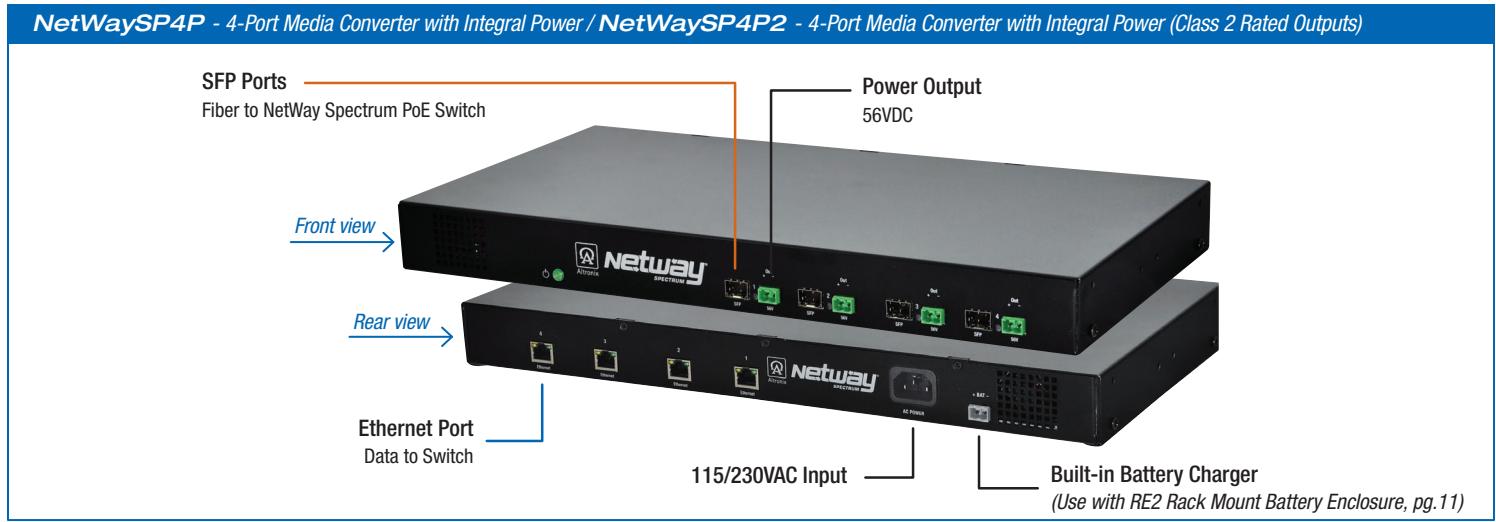

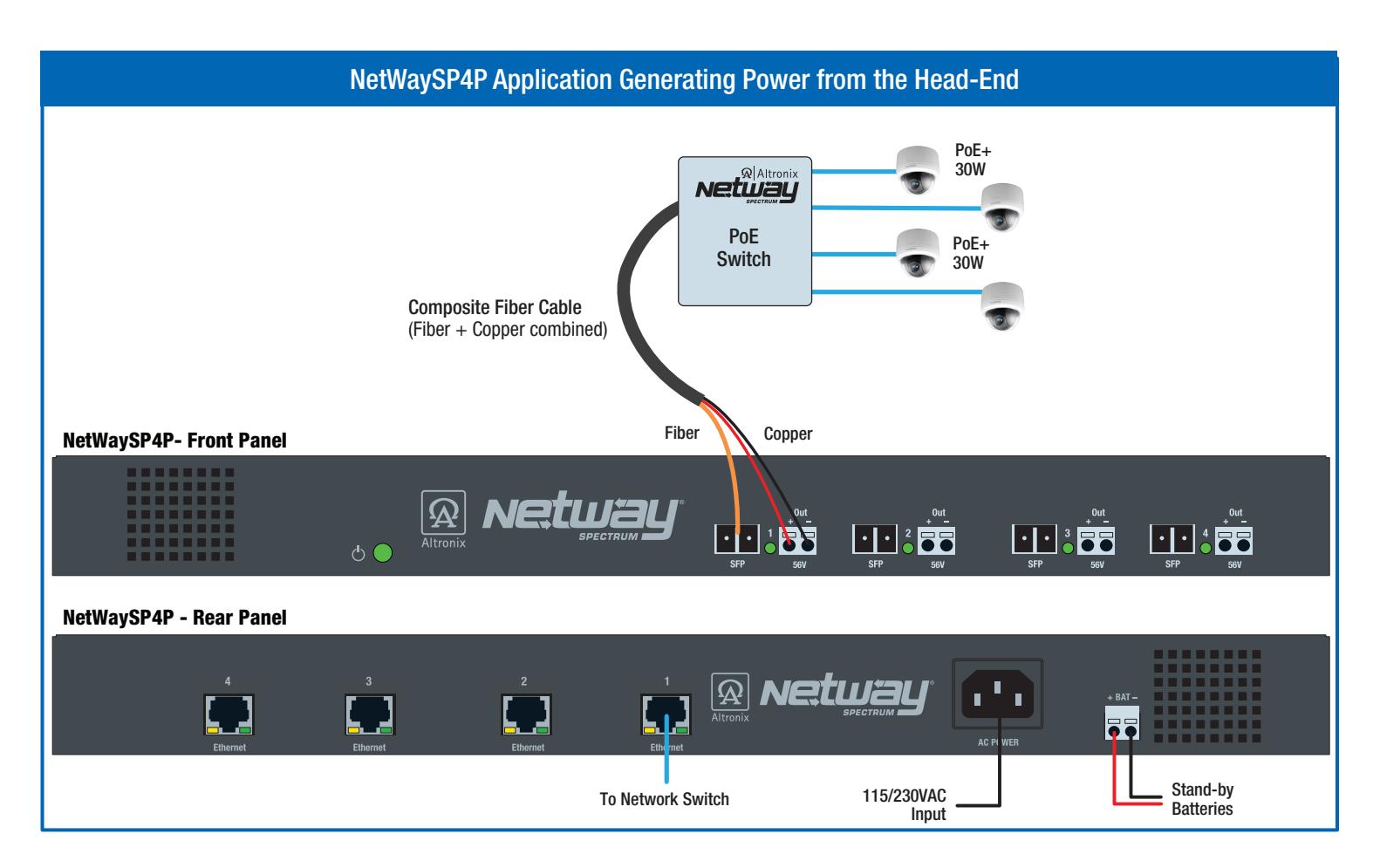

NetWaySP4P	1U Rack Mount	4	4	120W max per port (240W total power)		✓	115/230VAC	1
NetWaySP4P2				60W max per port (240W total power)	√		√	115/230VAC	1
NetWaySP1BT	Modular Case	1	1	90W max				48VDC to 56VDC
NetWaySP1P	Modular Case	1	1	30W max				24VDC to 56VDC

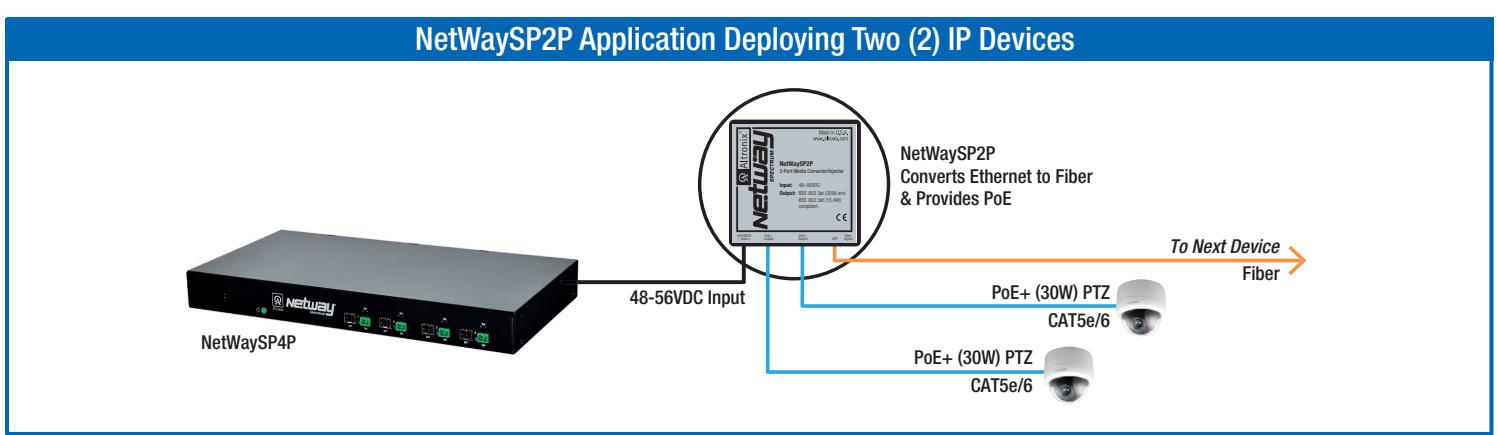

NetWaySP2P	Modular Case	1	2	30W max per port — — — —			48VDC to 56VDC

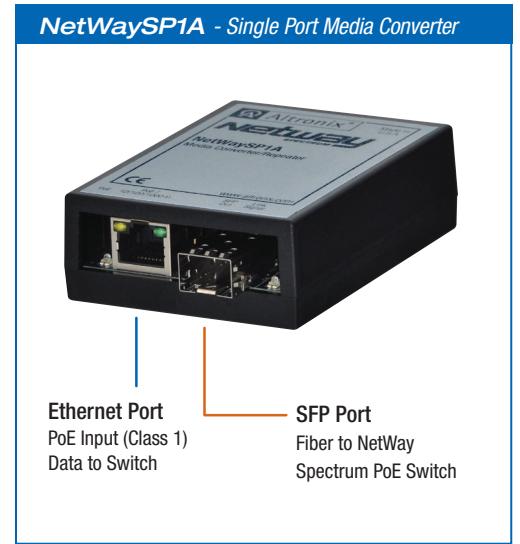

NetWaySP1A	Modular Case	1	1					PoE (Class 1)

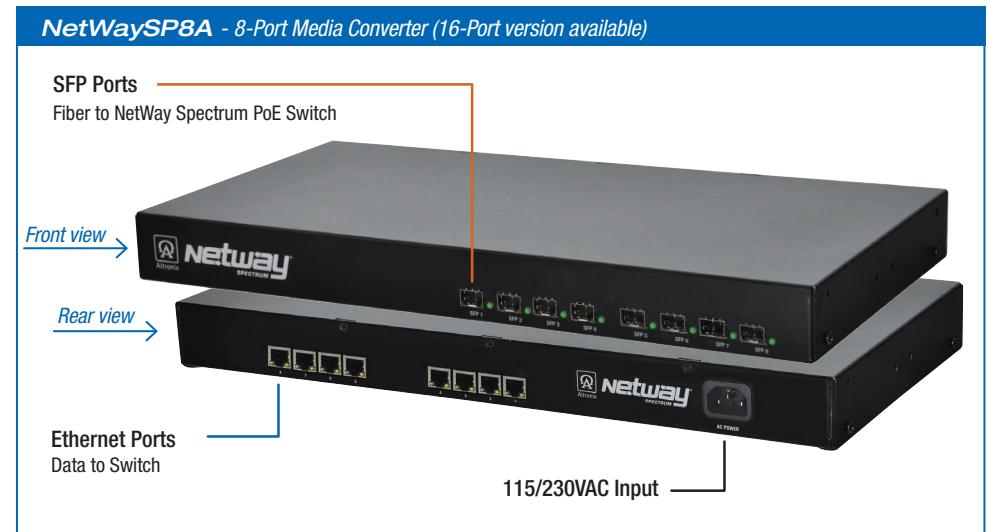

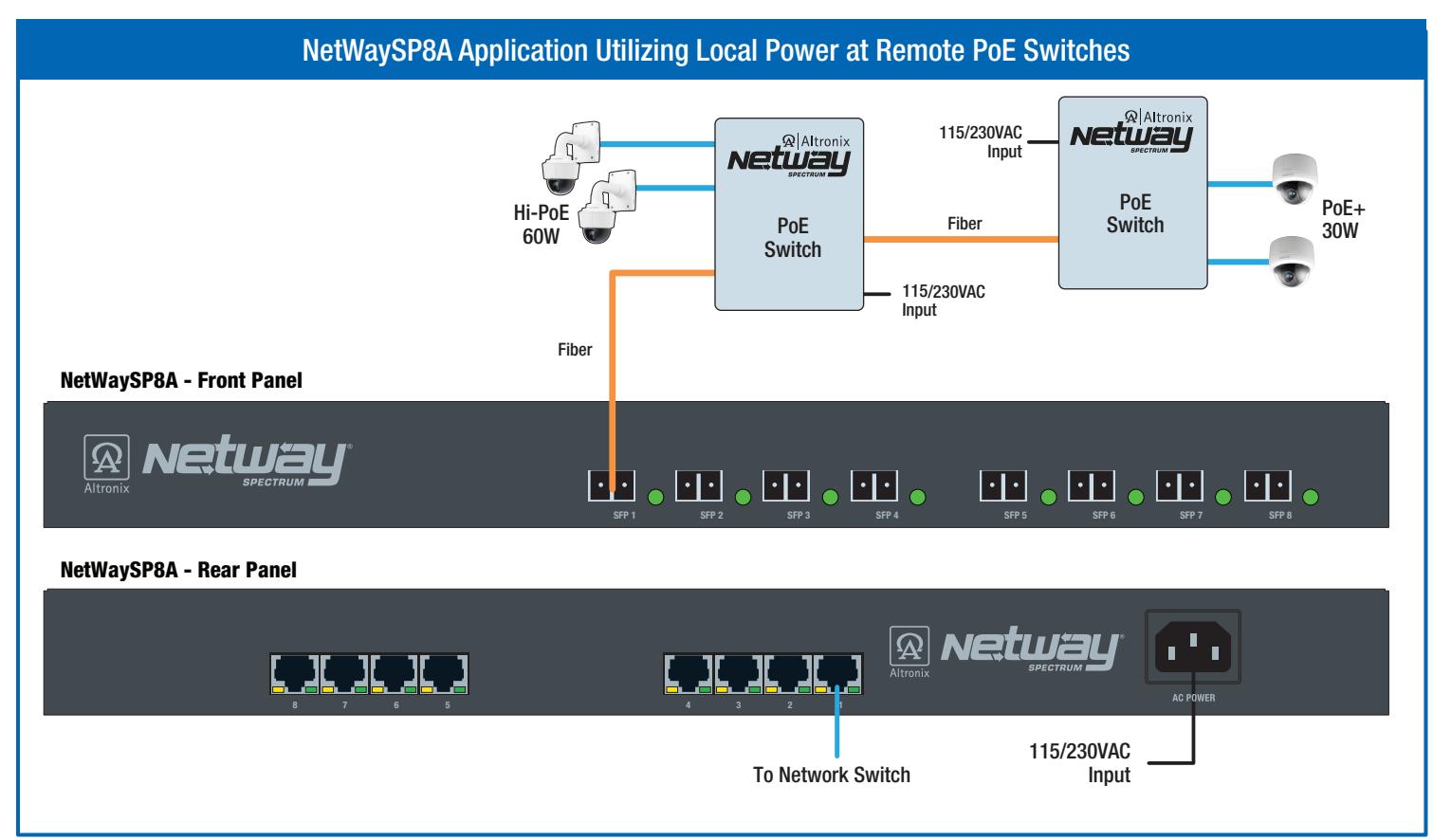

NetWaySP8A	1U Rack Mount	8	8	N/A				115/230VAC
NetWaySP16A	1U Rack Mount	16	16					115/230VAC

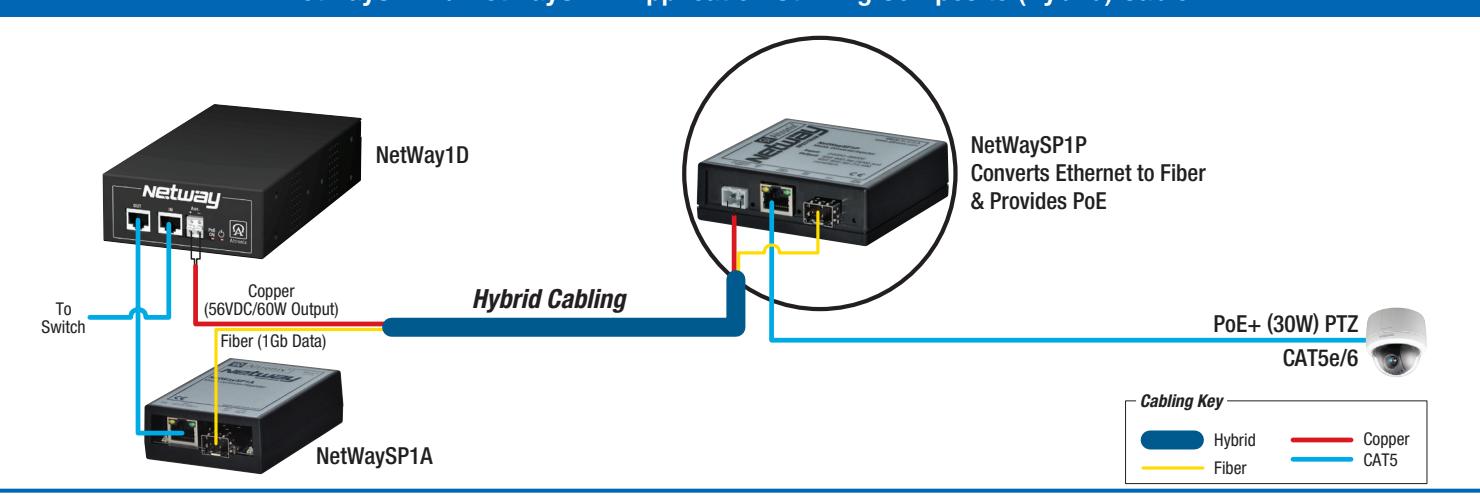

NetWaySP1A / NetWaySP1P Application Utilizing Composite (Hybrid) Cable

Power Sources for NetWay Spectrum -

Model	Description	Input	Total Output Power	Number of Outputs	Built-in Battery Charger	Dimensions (LxWxH)
PoE60	Power Supply/Charger	115/ 230VAC	56VDC / 75W	1	Charges LiFePO4 Batteries	7.19" x 4" x 2" (board only)
PoE201	Power Supply/Charger	115/ 230VAC	56VDC / 120W	1	1	4" x 7" x 1.375" (board only)
NetWay1D	Single Port Midspan/Injector	115/ 230VAC	60W / 56VDC	1		4.1" x 7.2" x 1.7"
NetWay8BT	8-Port Managed Switch LINQ Technology	115/ 230VAC	90W (480W max)	8	✓	1U Rack Mount
NetWay8E	8-Port Managed Switch LINQ Technology	115/ 230VAC	30W (240W max)	8	√	1U Rack Mount
NetWay16G	8/16-Port Managed Switch LINQ Technology	115/ 230VAC	30W (240W / 480W max)	8/16	√	1U Rack Mount
NetWay8GL	8-Port Managed Switch LINQ Technology	115/ 230VAC	60W (240W max)	8	√	1U Rack Mount
NetWay8GP	8-Port Managed Switch LINQ Technology	115/ 230VAC	60W (480W max)	8	√	1U Rack Mount
NetWay8M NetWay16M	8/16-Port Managed Switch LINQ Technology	115VAC	30W (150W / 300W max)	8/16		1U Rack Mount
VertiLine48M	16 Fused / PTC Protected Outputs	115VAC	360W	16		2U Rack Mount
VertiLine563	Dual Output Power Supply/Charger	115VAC	56VDC / 150W	2	√	1U Rack Mount
VB6	Dual Output Power Supply/Charger	24VAC / 24VDC	56VDC / 30W	2		3.5" x 3.5" x 1"

Acces	Accessories for NetWay Spectrum
	7 .
Model	Description
PMK1	Pole Mount Kit fits WP1, WP3 & WP4 Altronix Outdoor Enclosures (accommodates 2"- 8" dia or 5" square poles)
PMK2	Pole Mount Kit fits WP2 Altronix Outdoor Enclosures (accommodates 2"- 8" dia. or 5" square poles)
RE2	Rack Mount Battery Enclosure (2U) accommodates four (4) 12VDC/7AH batteries.
